Subsystems

The Subsystems filter allows you to quickly evaluate how time in a particular call tree is distributed among various components: user and system code, WPF, LINQ, collections, strings, and more.

How subsystems work

With a few exceptions (refer to Special Subsystems below), each subsystem simply groups calls made within a certain namespace or assembly.

For example, all calls of the methods declared in the WindowsBase, PresentationCore and PresentationFramework assemblies are grouped under the WPF subsystem. The time shown next to WPF in the Subsystems filter is the total time of all these calls for all selected threads.

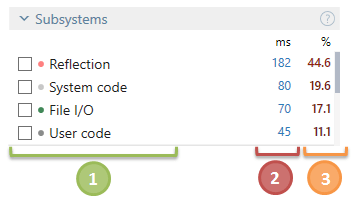

Subsystems

1 Subsystem name.

2 Total time spent in a particular subsystem summed up for all selected threads.

3 The percentage of time spent in a subsystem relative to the total selected time.

To apply a filter by subsystem

  • Select the desired subsystem in Subsystems.

    After you select a subsystem, other filters will show data only for the time intervals where the selected subsystem has worked.

Special subsystems

Some of the subsystems are calculated not by grouping calls from particular assemblies and namespaces but based on other data. Note that timeline snapshots provide a wider list of subsystems.

The list of special subsystems:

  • System code: all source code that does not match the rules in the chosen active profile and belongs to standard system libraries.

  • User code: all source code that does not match the rules in the chosen active profile and does not belong to standard system libraries.

  • GC Wait: all time intervals where threads wait for other threads to finish the blocking garbage collection. Note that the GC Wait time is calculated somewhat differently comparing to the Garbage Collection event.

  • JIT: all activities related to JIT compilation. Calculated based on ETW events data (timeline snapshots only).

  • SQL query: all activities related to communication with SQL server. Calculated based on ETW events data (timeline snapshots only).

  • File I/O: all activities related to file operations. Note that this subsystem is calculated based not only on file I/O ETW events but also based on grouping calls from the System.IO and other namespaces. That's why File I/O subsystem's time may slightly differ from the time of the File Operations event.

  • Waiting for CPU: indicates that a thread is ready to run on the next available CPU core. Typically, these are inevitable pauses related to switching a thread between CPU cores or changing thread state from Waiting to Running. Long Waiting for CPU intervals may mean thread starvation and CPU overload.

    Calculated based on ETW events data (timeline snapshots only).

  • Awaiting Time: (applicable to asynchronous code only) time intervals when async methods waited until their tasks are finished. Learn how to analyze asynchronous code

  • Lock Contention: takes place when a thread tries to acquire the lock to an object which is already acquired by other thread*. Until the object is released, the thread is blocked (in other words, it is in the Waiting state). In some cases, this may lead to a so-called serial execution which negatively affects application performance. The serial execution pattern can be easily determined using the Threads diagram. Instead of threads running in parallel, you will see only one thread running at a time.

    Calculated based on ETW events data (timeline snapshots only).

Configure subsystems

dotTrace lets you create your custom subsystems and group a number of subsystems in profiles.

To add a subsystem

  1. From the main menu, select View | Options. The Options dialog opens.

  2. Click Profiles on the left pane.

  3. Click add Create new subsystem on the Profiles pane, then Add empty subsystem.

  4. In the Subsystem definition:

    1. Enter a subsystem name in the Name field.

    2. Choose the appropriate Color.

    3. Clear the Enable subsystem in current profile checkbox, if you want to disable the subsystem in the current profile.

    4. Specify subsystem visibility options:

      • Show – the subsystem will be shown as a separate entry.

      • Join – subsystem's time will be calculated within calling subsystems. The subsystem will be shown separately only in case there are no subsystems to join with.

      • Hide – the subsystem will be hidden. Subsystem's time will be excluded from calculations.

      For example

      MethodA belongs to SubsystemA and calls MethodB (belongs to SubsystemB) which, in turn, calls MethodC (belongs to SubsystemC). If all subsystems are set to Show, subsystem times will be calculated as follows:


      SubsystemA = MethodA


      SubsystemB = MethodB


      SubsystemC = MethodC



      In case you set SubsystemB to Join, subsystems will be calculated as follows:


      SubsystemA = MethodA + MethodB


      SubsystemC = MethodC



      In case you set SubsystemB to Hide, subsystems will be calculated as follows:


      SubsystemA = MethodA


      SubsystemC = MethodC


    5. Click Add and Clean to manage rules. All rules are displayed in the list.

  5. Click OK.

You can also create a subsystem by duplicating an existing one.

To duplicate a subsystem

  1. From the main menu, select View | Options. The Options dialog opens.

  2. Click Profiles on the left pane.

  3. Click add Create new subsystem on the Profiles pane, then Duplicate subsystem.

  4. In Subsystem definition:

    • If necessary, modify the Subsystem name.

    • Redefine the Color.

    • Click Add and Clean to manage rules. All rules are displayed in the list.

  5. Click OK.

At any time you can return to existing subsystems and modify rules for them.

After all necessary subsystems are defined, you can tune the settings a bit more. All subsystems that should be taken into account can be gathered in one profile and arranged according to their importance. So a profile is just a set of important or active subsystems. It can have a name or be left unnamed.

If a method matches two rules from different subsystems, dotTrace applies the rule from the subsystem higher than the other one in the subsystem list.

To create a new profile

  1. From the main menu, select View | Options. The Options dialog opens.

  2. Click Profiles on the left pane. A new unnamed profile is created.

  3. Click add Add new profile.

  4. Specify a profile name.

  5. In the list of subsystems, configure the set of active subsystems by selecting the corresponding checkboxes.

  6. Optionally, you can reorder the sequence of subsystems with the up Move selected subsystem up or down Move selected subsystem down buttons.

  7. Click OK.

If you are not satisfied with the changes you made to the subsystems configuration, you can quickly reset them to factory defaults using the Reset Defaults button.
