Scientific project

To perform scientific computing and data visualization, select the Scientific project type in the New Project wizard.

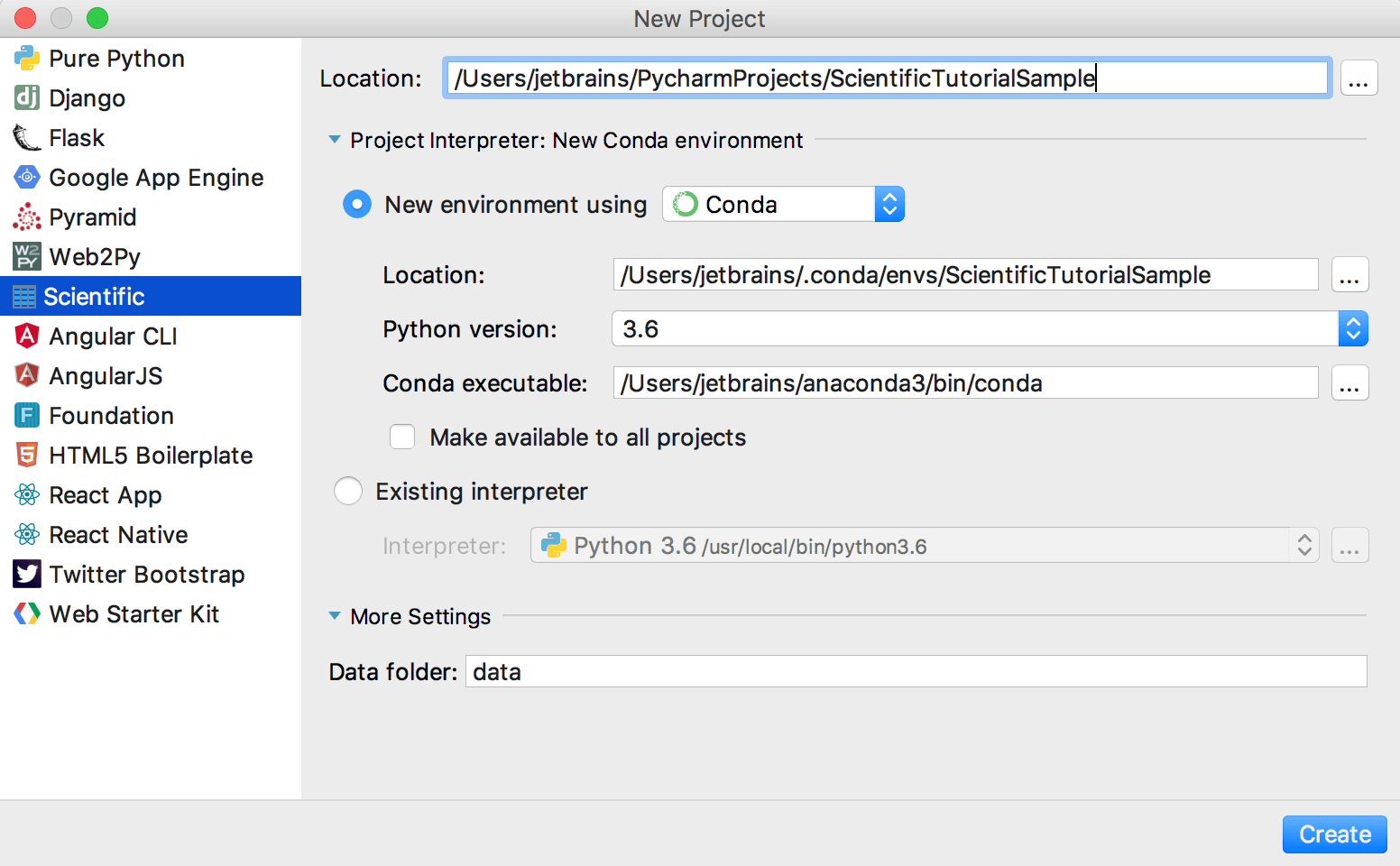

Creating a new scientific project in PyCharm

When choosing the Scientific project type, you need to ensure that you have conda installed. Once this is done, all you need is to specify the project name. You can also alter the name of the data folder if needed.

Note that to work with Matplotlib, Numpy, or or pandas, you need to install these packages on your Python interpreter.

Analyzing data

View data structures

  • When viewing variables in the Python Console, you can click View as Array, View as DataFrame, or View as Series links to display the data in the Data View tool window.

    Viewing data frames
  • By default, the new table representation is used. Click Switch Between Table Representations Switch Between Table Representations to change the table interface.

    Switching the table interface
  • Click Table Coloring Options Table Coloring Options to toggle and configure cell coloring .

    Switching the table interface

Dataframes and series can be displayed in tabular or graphical form. By default, tables are shown. To toggle the view mode, use the corresponding icons in the upper left corner.

View dataframe as a table

Working with tables

  • Right-click the column name to open the context menu:

    Copying table headers
  • To copy the column name to the clipboard, select Copy Column Name.

  • To select the entire column, select Select Column.

  • To hide a column, select Hide Column. Hide Other Columns will hide all columns except the selected one.

  • To display hidden columns, click Columns List Ctrl+F12. The hidden columns are shown strikethrough. Select a column and press Space to toggle its visibility. To search through the column list, start typing a column name in the Columns List window.

  • To assign a language to a column, use Set Highlighting Language. For more information, refer to Inject a language for a column.

Sort data

  • To sort the table data based on the column values, you can either click the column name or select Ascending or Descending from the ORDER BY section in the context menu.

  • To add another column to sorting, you can either click the column name while pressing Alt or select Ascending or Descending from the Add to ORDER BY section in the context menu.

    The data will be sorted by selected columns.

    State

    Description

    No sorting

    Indicates that the data is not sorted in this column. The initial state of the sorting marker.

    Ascending order

    The data is sorted in the ascending order.

    Descending order

    The data is sorted in the descending order.

    Sorting level

    The number to the right of the marker (1 on the picture) is the sorting level. You can sort by more than one column. In such cases, different columns will have different sorting levels.

View column statistics

  • Hover over a column name. A popup with column statistics appears.

    Column statistics for non-numeric data
    Data type

    Shows the data type the column belongs to

    Missing

    Shows the number of None values in the column

    Count

    Shows the total number of items in a column

    Distinct

    Shows the number of unique values

    Top

    Shows the most popular value

    Frequency

    Shows the number of times an element occurs

    Column statistics for numeric data
    Data type

    Shows the data type the column belongs to

    Missing

    Shows the number of None values in the column

    Count

    Shows the total number of items in a column

    Mean

    Shows the average number of all values in the column

    Std. Deviation

    Shows the standard deviation value

    Min

    Shows the minimum value in the column

    Pctl

    Shows values for 5th, 25th, 50th( Median) and 95th percentiles

    Max

    Shows the maximum value in the column

Working with charts

To view dataframes or series in a graphical form, click Show Chart.

View data as a chart

The data will be displayed in the form of a chart. You can change the type of chart and configure additional settings.

Data displayed as a chart

Configure charts

  1. Click Show series settings Show series settings to change the initial settings of the chart.

  2. Select the chart type and configure the settings. You can choose one of the following chart types:

    • Bar

    • Pie

    • Area

    • Line

    • Scatter

    • Bubble

    • Stock

    • AreaRange

    • Histogram

    Change initial settings of the chart
  3. Click the Add new series link to add more series to the chart.

Save a chart as an image

  • Click Export to PNG Export to PNG to save the generated chart in the .png format.

  • Enter the filename and click Save.

Building matplotlib charts

Graphs are displayed in the Plots window, allowing you to resize it, and to zoom it in and out.

Matplotlib debugging

When stopping on a breakpoint, the plot being debugged appears in the Plots tool window. See the Debug section of the Scientific project tutorial.

Matplotlib is available also in console. See the Running in console section of the Scientific project tutorial. When starting a Python console (Tools | Python Console...), one can import Matplotlib, and build graphs as required:

Building graphs with matplotlib in Python console

The Python console is accessible for further inputs.
