Analyze References window

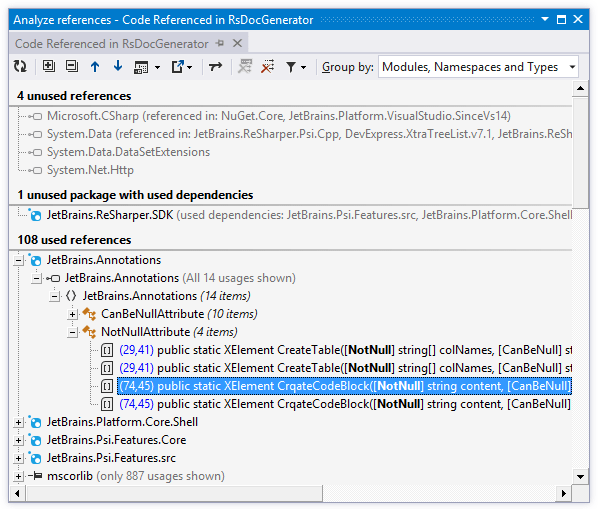

The Analyze references window is used to display project references when you invoke the Optimize References command. It displays unused assembly references, used assembly references with corresponding usages and pinned references.
When results of the Optimize references command open in the window, they are displayed in new tabs, which show up on the left. The previously open tabs move to the right if the width of the window allows, otherwise they unload themselves saving memory - but you can always restore them by clicking the arrow that appears to the right of the tabs and clicking the required tab:
To prevent a tab from unloading, click the pin icon next to the tab title.
Updates window content to reflect any changes made in the code or externally.
Expand All/ Collapse All
Expands/collapses all nodes in the current tab.
Navigate to the previous/next item and scrolls through the source code accordingly.
Show Preview Ctrl+P
Hides or shows the pane with a preview of the selected item in the position specified using the drop-down list (at the bottom or in the right part of the window).
Click this button to export the data currently displayed in the window in text format, or use the drop-down selector to export the data in XML or HTML format. The Export Data dialog that appears, will help you to save the data to a file or copy it to the clipboard.
Merge Occurrences on the Same Line
If this button is selected, occurrences on the same line are shown as.
Remove All Unused References
Removes all assembly references that are not used.
Remove Selected References
Removes all selected assembly references.
With this drop-down list, you can select specific kinds of usages to display - for example, declaration, invocation, parameter, method return, and so on. Click Show All Usages to enable all kinds of usages or Clear Filters to disable all kinds of usages thus hiding all usages in the current tab.
Allows grouping items in the window by different categories.
