RubyMine 2023.3 Help

File nesting rules

You can configure presentation of files with the same names but different suffixes.

Such bunches of files may appear in framework-specific projects, for example, if you use Angular.

RubyMine can present such file bunches as plain structures or show parent files as folders (nests) with their child files inside.

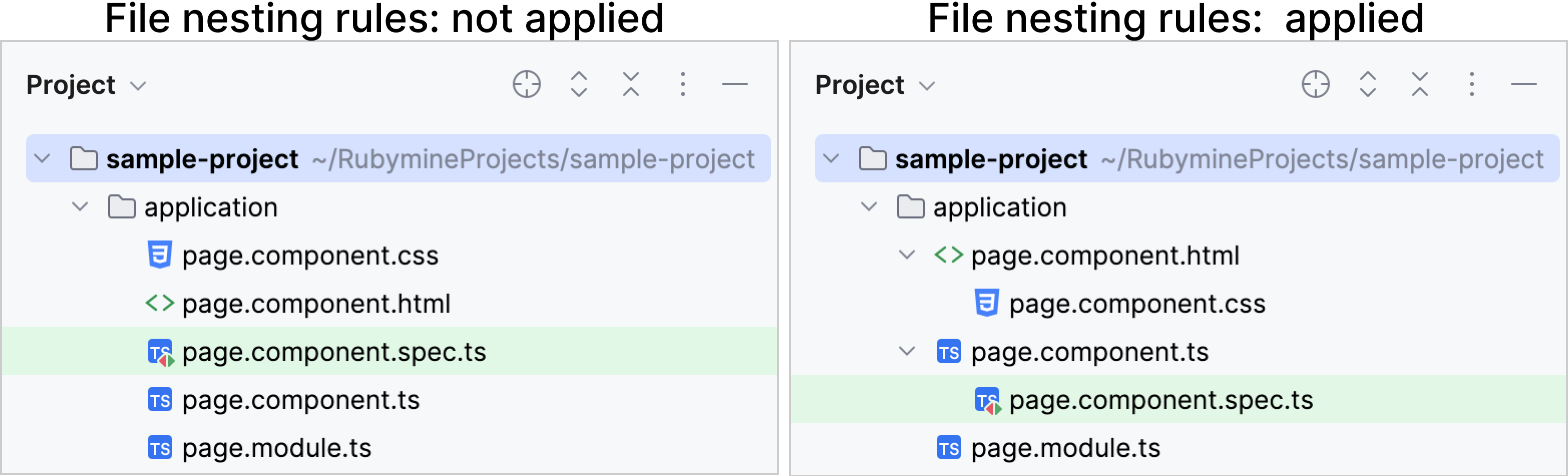

File nesting rules applied vs file nesting rules not applied

Configure file nesting

  1. In the Project tool window (Alt+1), click App expui general more vertical and select File Nesting.

    A dialog opens in which you can configure file nesting rules.

  2. Enable the Show files with the same names as nested option to recognize child files based on the patterns from the list and display them grouped under the corresponding parents.

    Otherwise, RubyMine shows parents and children at the same level.

  3. Configure nesting rules. You can edit predefined rules or specify new ones: click the Add button and specify suffixes of parent and child files.

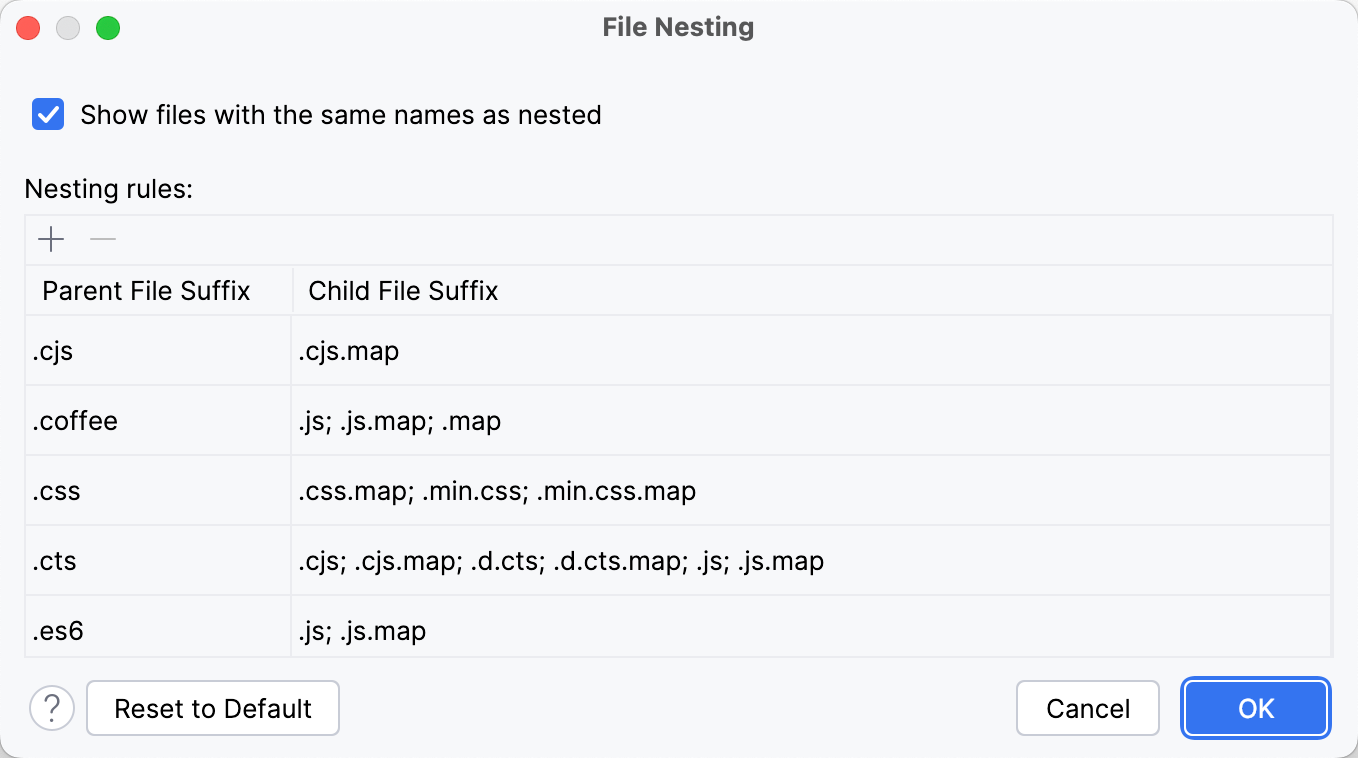

    the File Nesting dialog
  4. Click OK.

Last modified: 27 December 2023
