CI server integration

On this page:

Integration with a CI server (Continuous Integration server) allows Upsource to receive and display build statuses on a commit for a particular project.

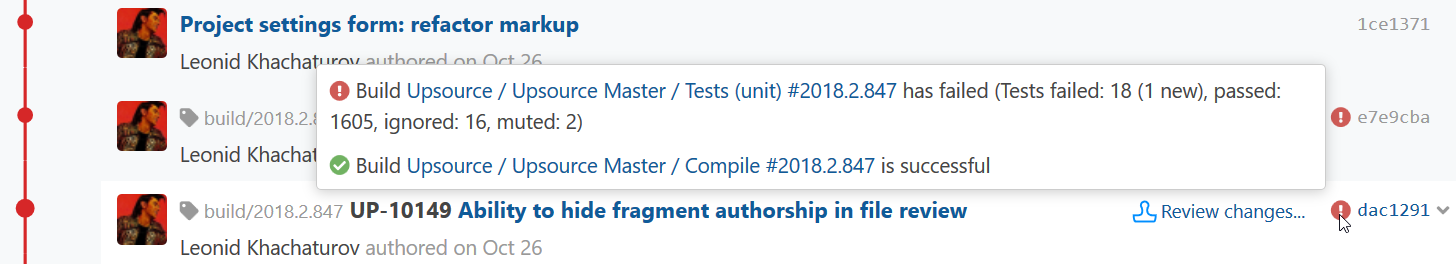

When someone makes a commit and a build system runs the build, its status is displayed in the revision list, next to the commit. Since a single commit can sometimes initiate multiple builds, the commit can have more than one build status:

CI build status rev list

Receiving build statuses from TeamCity

Integrating with a TeamCity CI server is provided via a Commit Status Publisher plugin which comes bundled with the TeamCity version 9.1.7 and newer. Configuring it to work with Upsource is easy and is done on the TeamCity side.

To integrate with TeamCity

  1. Make sure you have administrator access rights to the project in TeamCity.

  2. Go to Settings | Build features | Add build feature.

  3. Choose Commit Status Publisher from the drop-down list.

  4. Specify the following information:

    • Publisher: JetBrains Upsource

    • Upsource URL: the URL of your Upsource server

    • Upsource project ID: the ID of your Upsource project

    • Username, Password: the authentication token specified in Upsource

      or administrator credentials of the Upsource project.

  5. Save your settings.

For more information refer to the TeamCity documentation

Receiving build statuses from other CI servers

Upsource comes with a Build Status Endpoint that is open to receive data as JSON payload at http[s]://your-upsource-server/~buildStatus/.

The POST request should include the following header: Content-Type: application/json; charset=UTF-8

If no credentials are provided, the request will be executed with guest permissions. For a secure connection, send the Authorization header along with your request: Authorization: Basic login:password

Where login:password is the authentication token defined in Upsource.

To make a request on behalf of a specific user, you can provide the users credentials (encoded in Base64) instead of the token.

The POST request body should include the following fields:

Parameter

Required

Description

"key"

Yes

Build key — a unique build identifier (e.g. PROJECT-VERSION-1234)

"state"

Yes

Indication of the build status:

  • in_progress: a build for the commit is not yet complete

  • failed: a build for the commit failed

  • success: a build for the commit completed successfully

"url"

Yes

Build URL

"name"

No

Build name (usually the same as Build key)

"description"

No

Build details (e.g. "15 tests out of 800 are failing")

"project"

Yes

Project ID in Upsource

"revision" or ["revision", "revision", "revision"]

Yes

Revision ID or a JSON array of revision IDs

Last modified: 2 November 2018
