IntelliJ IDEA 14.0.0 Web Help

Sources Tab

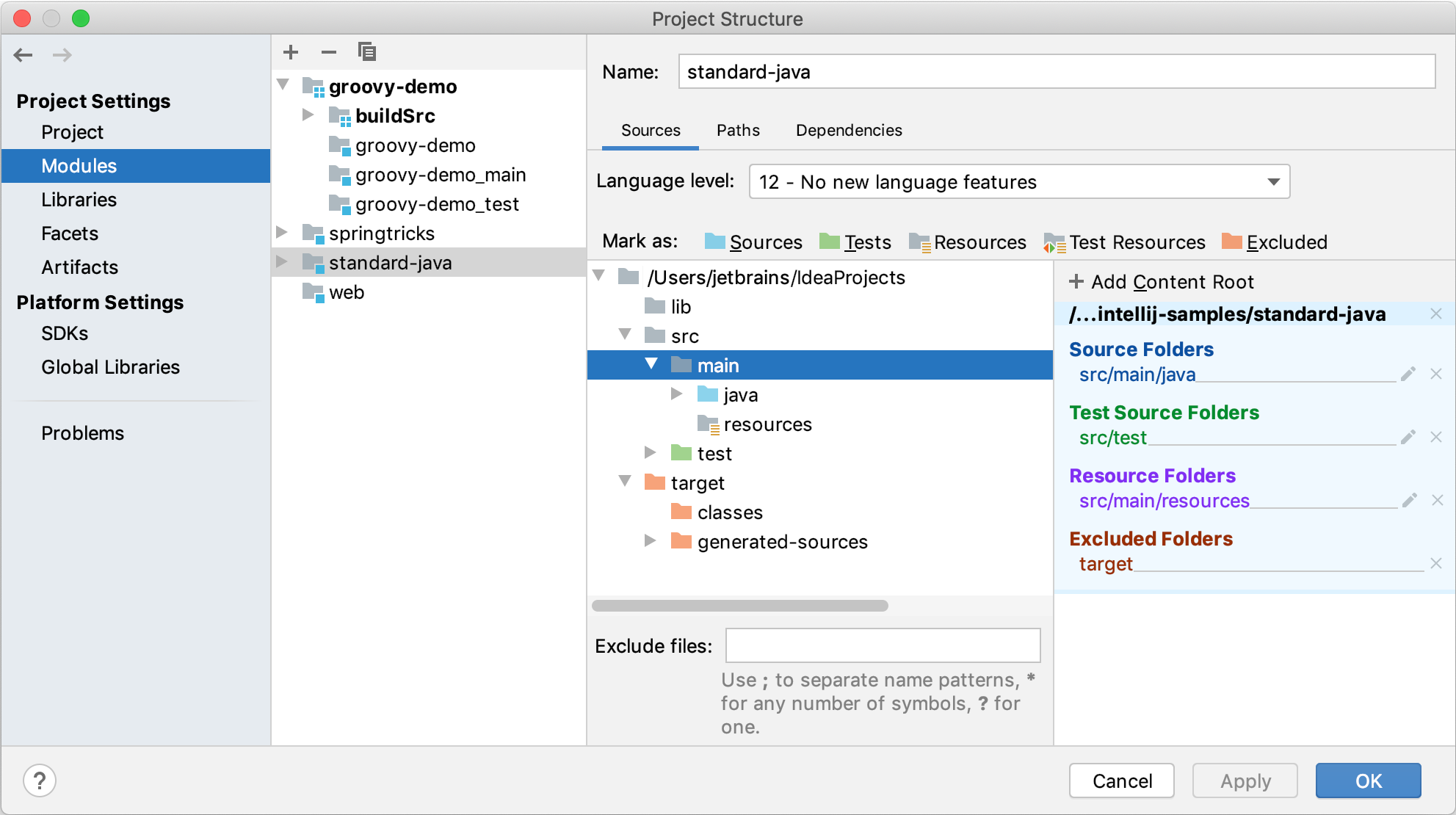

Use the Sources tab of the Module page to select the supported language level for Java and to configure the module contents.

The module contents are configured by adding and removing the module content roots as well as by assigning individual folders (within the content roots) to categories such as sources and test sources, and also by excluding the folders.

Language level list

Item Description
Language level Use this list to select the Java language level for the module. The available options correspond to JDK versions.

You can select the level set for the project (the option <Use project language level>) or set an individual level for the module.

The left-hand pane

The left-hand pane shows a tree of folders for a module content root. If the module has more than one content root, the structure shown corresponds to the content root selected in the right-hand pane.

The folders belonging to different categories have different icons.

The following table lists the available toolbar buttons (the Icon column) and explains their functions (the Description column). Note that the corresponding functions can also be accessed as the context menu commands. These are listed in the Command column.

Most of the icons/commands work as toggles, and can be used to cancel the corresponding assignment (to make a folder "an ordinary folder").

Icon Command Description
rootSource Sources Use this icon or command to assign the selected folder or folders to the source folder category.
rootTest Tests Use this icon or command to assign the selected folder or folders to test sources.
rootResourceIJ Resources For Java modules: use this icon or command to assign the selected folder or folders to resources.
rootTestResourceIJ Test Resources For Java modules: use this icon or command to assign the selected folder or folders to test resources.
rootExcluded Excluded Use this icon or command to make the selected folder excluded.
New Folder Use this command to create a folder in the selected folder. Specify the name for the new folder in the New Folder dialog that opens.

The right-hand pane

The right-hand pane shows the module content roots.

For each content root, a categorized view of the module folders is provided. The categories are the source folders, test source folders, etc.

The "ordinary" folders are not shown in this view.

The individual folders within the categories are identified by their paths. The folder paths are all relative to the module root folder (content root).

The folder paths, functionally, are hyperlinks that let you jump to the corresponding folders in the tree shown in the left-hand pane.

If a module has more than one content root, selecting a content root in the right-hand pane also switches the tree view in the left-hand pane. That is, when you click somewhere within the content root area, the folder structure of this particular content root is shown in the left-hand pane.

The following table lists the controls available in the right-hand pane (icons) and describes their functions.

Icon Tooltip Description
addRoot Add Content Root Use this icon to add a content root. Select the folder to be added as a content root in the dialog that opens.
rootRemove Remove Content Entry Use this icon to remove the corresponding content root from the list of the content roots.
rootPrefix Edit properties Available in Java modules for folders marked as containing sources.

Use this icon to open the Edit Root Properties dialog in which you can specify:

  • A package prefix for the selected folder.

    Specifying the package prefix (e.g. com.mycompany.myapp) eliminates the necessity to create the corresponding folder structure (e.g. com/mycompany/myapp). For more information, see Package prefix for Java source roots.

  • Whether the folder contains generated sources (the For generated sources check box).
rootUnmark Unmark Use this icon to remove the folder from the corresponding category. As a result, the folder becomes "an ordinary folder", that is, not belonging to any specific category.

See Also

Concepts:

Web Resources:

Last modified: 12 November 2014
