dotTrace Help

Controlling Profiling Session

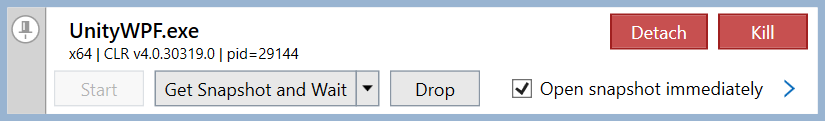

After you configure profiling settings and run the session, the dotTrace Controller window opens*.

Controlling_Profiling_Session_1

To manually control the profiling session, use the buttons on the dotTrace Controller window:

  • Start - Click this button to start collecting performance data. It is displayed in the dotTrace Controller window if the Start immediately check box was not selected in the profiling options.
  • Get Snapshot'n'Wait - Click to generate a snapshot and stop collecting performance data.
    In the button's drop down list there is one more option available:
    Get Snapshot'n'Start - Click to generate a snapshot and continue collecting performance data.
  • Drop - Click to discard collected data and stop collecting performance data.
  • Detach - Click to detach dotTrace from the profiled process, but keep the process running. Not available when using the Tracing or Line-by-line profiling types.
  • Kill All - Click to kill all profiled processes. When you click Kill All, no snapshot is generated. When you close the application manually, a snapshot is created.
  • Stop Service - Click to stop a service. This button is displayed only when a Windows service is being profiled.

Profiling a Particular Application's Process

If your application runs more than one process, you can specify what process should be profiled.

To profile a particular process:

  • Do one of the following:
    • Select the desired process from the drop-down list.
      1. Expand the dotTrace Controller window by clicking the Controlling_Profiling_Session_4 button.
      2. Click the Processes tab.
      3. Select the process you want to profile with double click.

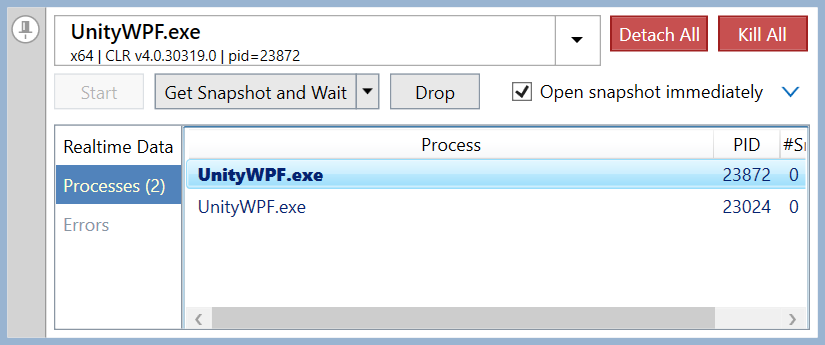

Controlling_Profiling_Session_2

The Processes page shows process names (the Process column), PID, and a number of snapshots taken for each process (the #Snapshots column).
The currently profiled process is shown in bold.

Viewing Real Time Application Activity

To access additional functionality of the dotTrace Controller window, expand it by clicking the Controlling_Profiling_Session_4 button.

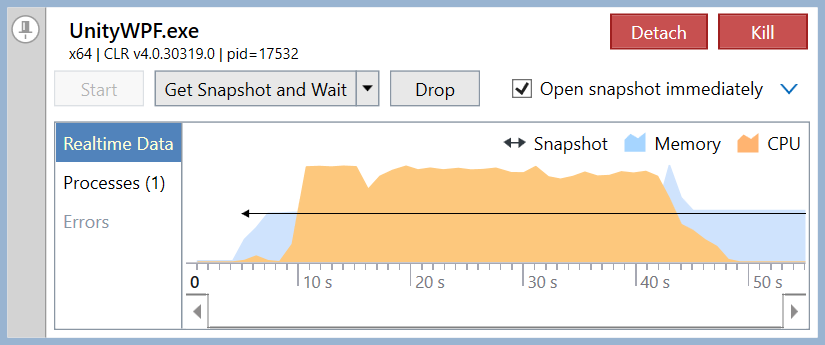

The Realtime Data page provides an overview of application activity showing CPU activity and memory consumption graphs.

Controlling_Profiling_Session_3

Viewing Profiling Errors

The Errors page contains the list of errors that occur during profiling.

Last modified: 25 August 2015
