PyCharm 4.0.0 Web Help

Some features described here are available in the Professional edition only.

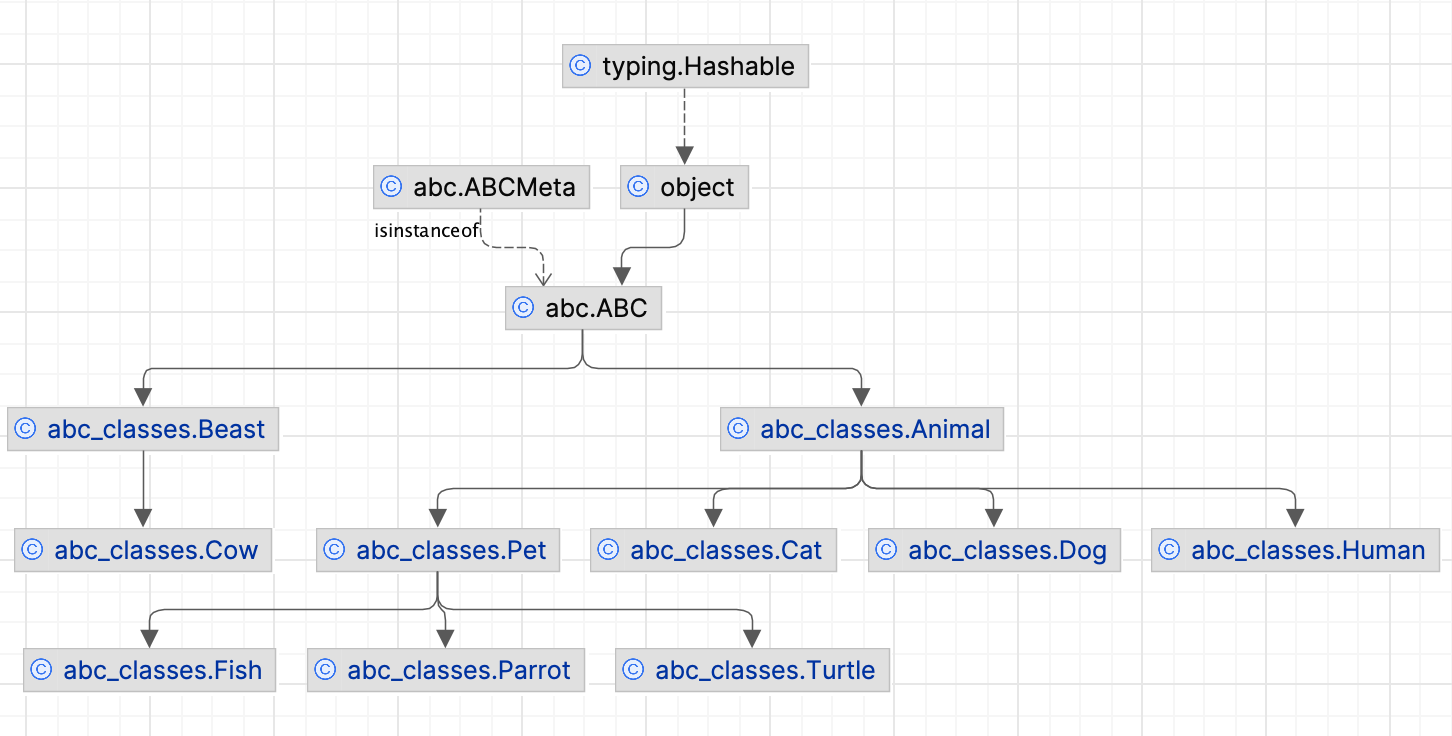

You can add the existing node elements to the background of the UML Class diagram, using the context menu action, or drag-and-drop technique.

If there are relationships between the node elements in model, and the added element, these relationships will be displayed in diagram.

In this section:

To add a node element to a UML class diagram
  1. In the Enter class name to add dialog box, start typing the desired class name. PyCharm automatically displays suggestion list with matching names.

    Note that you can include classes outside the scope of your project, by selecting the Include non-project classes check box.

  2. Select the desired class from the suggestion list, and press EnterEnterEnterEnterEnterEnterEnterEnterEnterEnterEnter.
To add a note to a node element
  1. Right-click a node element, which you would like to comment.
  2. On the context menu, choose New | Note.
  3. In the text box, type the desired text. Note that EnterEnterEnterEnterEnterEnterEnterEnterEnterEnterEnter starts a new line in the text box. To complete a note, click OK, or press Ctrl+EnterCtrl+EnterCtrl+EnterCtrl+EnterCtrl+OCtrl+EnterCtrl+EnterCtrl+EnterCommand EnterCommand EnterCommand Enter.

umlNote
