Running CLion for the First Time

Running CLion for the first time assumes performing the following tasks:

Importing CLion settings from a previous version

When you start CLion for the first time, the Complete Installation dialog opens, and you have an option of importing CLion usage preferences and license information from a previous version.

cl_CompleteInstallation

Select one of the following options and click OK.

  • I want to import my settings from a previous version (<path>). If this option is present in the dialog, the directory that contains the CLion settings and license information is found at its default location. (The corresponding path is shown within the option name in parentheses.) Most likely, this is the option that you want.
  • I want to import my settings from a custom location. You may have the directory with the settings and license information available but not at its default location. If the option discussed above is missing, CLion doesn't know where this directory is; the path initially shown in the field is just a guess, and there's no guarantee that the necessary folder is really there. To import the settings in this case, you can specify the folder with the settings (if you know where it is) , or an installation folder of the previous CLion version. To do that, click browseButtonOneDot and select the folder in the dialog that opens .
  • I do not have a previous version of CLion or I do not want to import my settings. If this is your case, select this option.

The CLion License Activation dialog opens. (If the license information has been imported from the previous version and is still valid, your most recent project or the Welcome screen opens.)

Accepting the License Agreement

Read the License Agreement on the site. To accept the license terms, click Accept button.

Note that without accepting the license terms, you won't be able to use CLion.

The Customize CLion wizard opens.

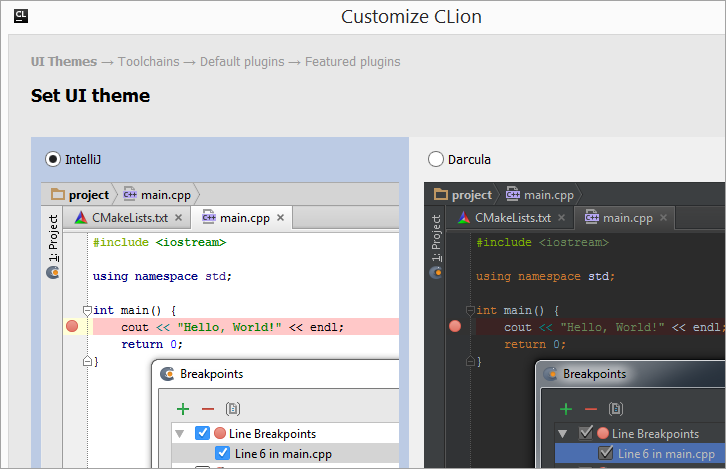

Selecting the user interface theme

Select the user interface theme to be used and click Next.

cl_FirstRunSelectUITheme

Configuring Toolchains

On this page of the wizard, specify your preferred environment (fow Windows and Linux), CMake and GDB executables.

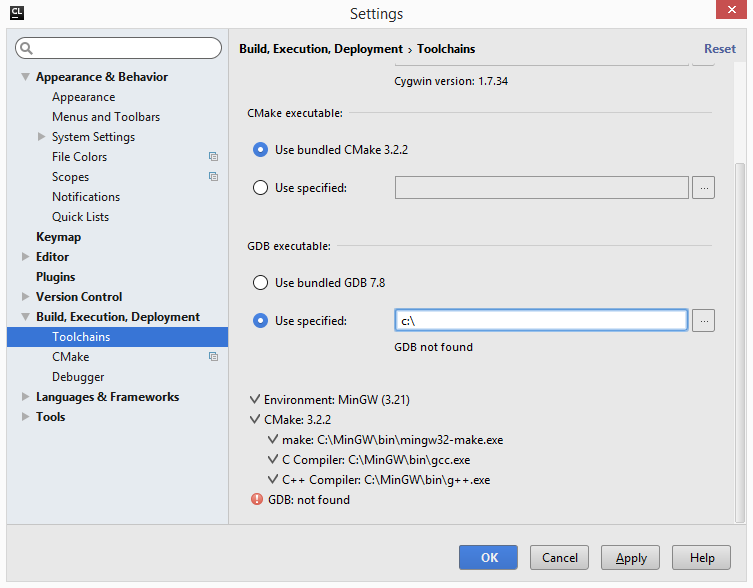

Note that if a certain compiler or variable is missing, CLion shows the image:

cl_configuringToolchains

Note that Next button is still available; however, if you create or open a project without properly configured Toolchains, you'll get error messages.

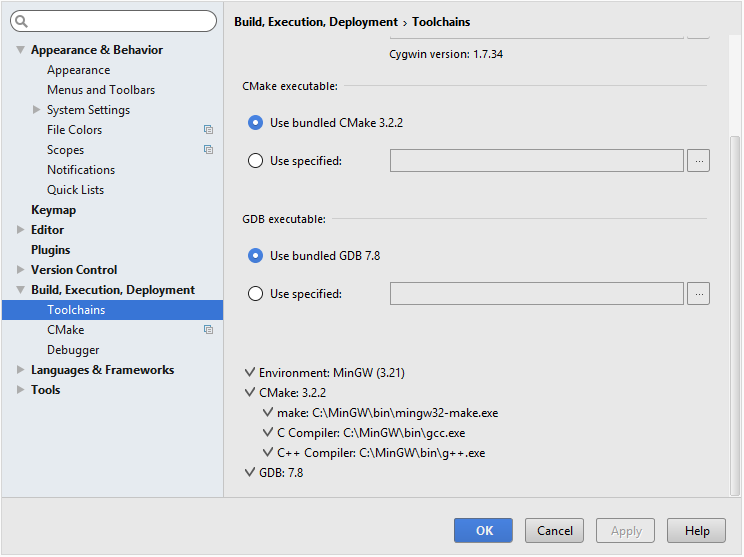

Select the proper installation and make sure there are no red exclamation marks:

cl_configuringToolchains1

When ready, click Next.

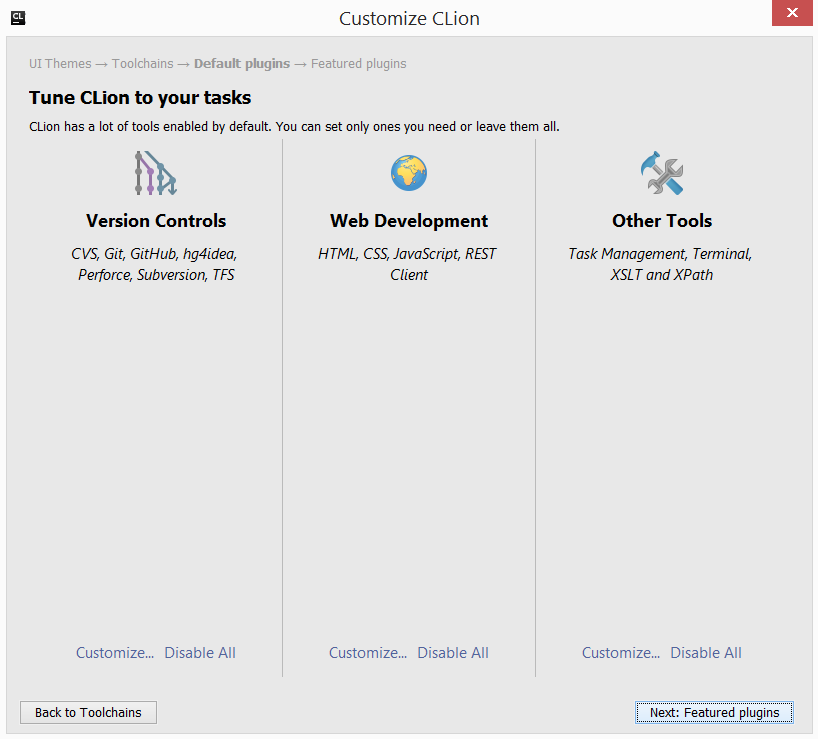

Disabling unnecessary plugins

On the Default plugins page, you can disable the plugins that you are not going to use. (The more plugins are enabled, the more features you have available. On the other hand, disabling unnecessary plugins may increase the IDE performance, especially on "less powerful" computers.)

cl_FirstRunDisablePlugins

The squares on the page correspond to groups of plugins and individual plugins. All these plugins are bundled with the IDE and enabled by default.

Use:

  • Customize to disable one or more plugins in a group. (Use the check boxes on the page that opens.)
  • Disable All or Disable to disable all plugins in a group or an individual plugin.

Note that you can come back to disabling and enabling the plugins at a later time.

Click Next: Featured plugins.

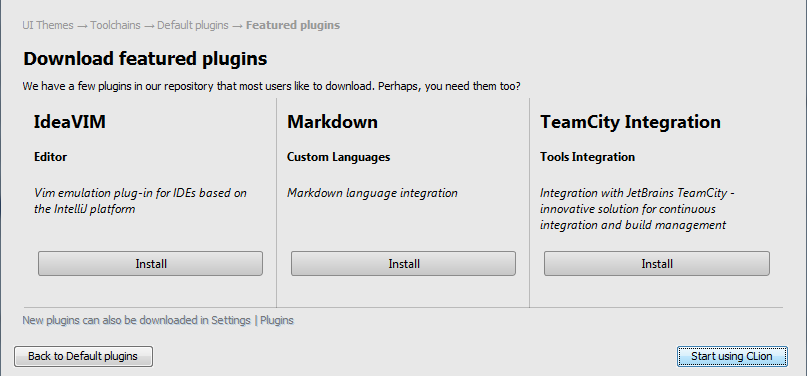

Downloading and installing additional plugins

The Featured plugins page shows the plugins that you might want to download and install. (All these plugins are not included in the CLion distribution.)

cl_FirstRunDownloadPlugins

Click Install to download and install anyone of the plugins.

Click Start using CLion to complete the wizard. As a result, the Welcome screen will open.
