Connect to MySQL with named pipes
Enable the Database Tools and SQL plugin
This functionality relies on the Database Tools and SQL plugin, which is bundled and enabled in CLion by default. If the relevant features aren't available, make sure that you didn't disable the plugin.
Press Control+Alt+S to open the IDE settings and then select.
Open the Installed tab, find the Database Tools and SQL plugin, and select the checkbox next to the plugin name.
Named pipes provide a way for communication among processes that run on the same machine. By using named pipes, you can send your data without having the performance penalty that involves the network stack.
Just like you have a server that listens to an IP address and port for incoming requests, a server can also set up a named pipe that can listen for requests. In both cases, the client process must know the address or a pipe name to which it should send the request.
The default pipe name for the MySQL server is
Step 1. Enable named pipes for the MySQL server
Verify that named pipes are enabled

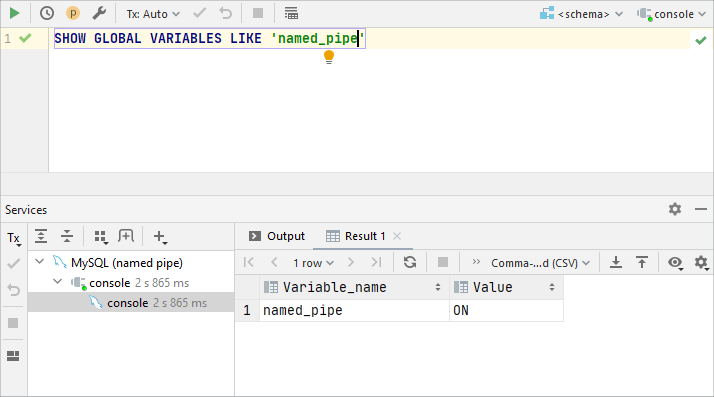

To ensure that named pipes are enabled, run the following code:
SHOW GLOBAL VARIABLES LIKE 'named_pipe'.
named_pipevariable has the
ONvalue, skip Step 1.
Enable named pipes during server installation
Run the installation wizard of the MySQL server.

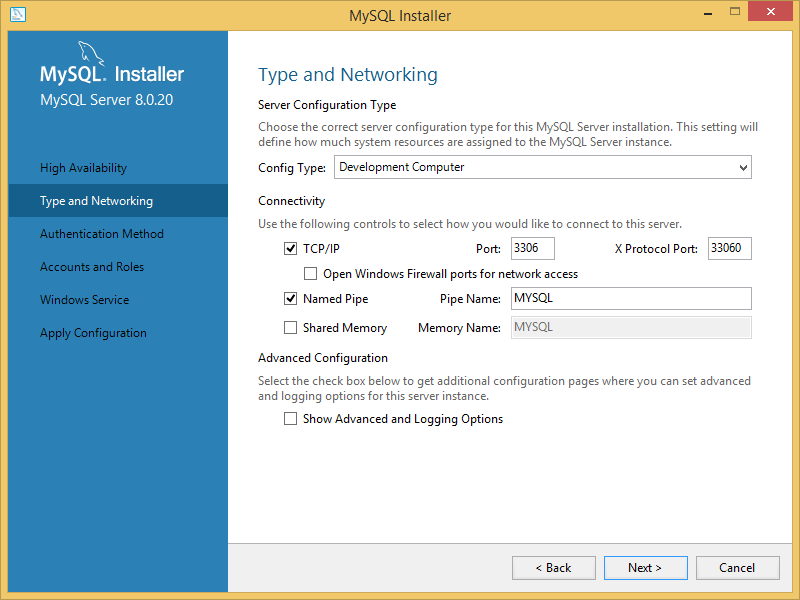

On the Type and Networking dialog, select the Named Pipe checkbox. You can change the pipe name or leave the default value.
Finish all the steps of the installation wizard and start the MySQL server.
Enable named pipes in my.ini
Open the my.ini configuration file in a text editor.
enable-named-pipeparameter to the
mysqldsection. Consider the following example of the
mysqldsection:[mysqld] # The next three options are mutually exclusive to SERVER_PORT below. # skip-networking enable-named-pipe # shared-memory # shared-memory-base-name=MYSQL # The Pipe the MySQL Server will use socket=MYSQL
Save changes and restart the MySQL server.

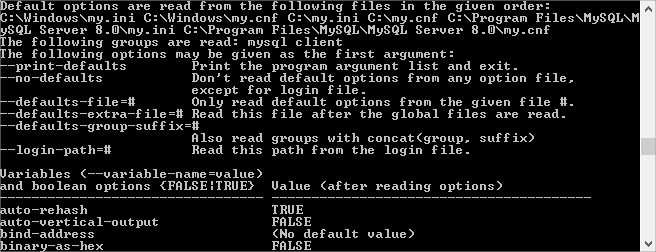

How to find my.ini and my.cnf?
In the command line, run
mysql --help. Scroll down to the end of the Options section.
Step 2. Configure a connection in CLion
To connect to the database, create a data source that will store your connection details. You can do this using one of the following ways:
From the main menu, navigate to MySQL.and select
In the Database tool window ( ) , click the New icon () in the toolbar. Navigate to Data Source and select MySQL.
Check if there is a Download missing driver files link at the bottom of the connection settings area. Click this link to download drivers that are required to interact with a database. For a direct download link, refer to the JetBrains JDBC drivers page.
You can find the downloaded JDBC drivers in the CLion configuration directory.
The IDE does not include bundled drivers in order to have a smaller size of the installation package and to keep driver versions up-to-date for each IDE version.
You can also use your drivers for the database instead of the provided ones. For more information about connecting to a database with your driver, refer to Add a user driver to an existing connection.
If there is no Download missing driver files link, then you already have the required drivers.
On the Advanced tab, find the
serverTimezoneparameter in the list of options. Double-click the Value cell and type your server timezone (for example,

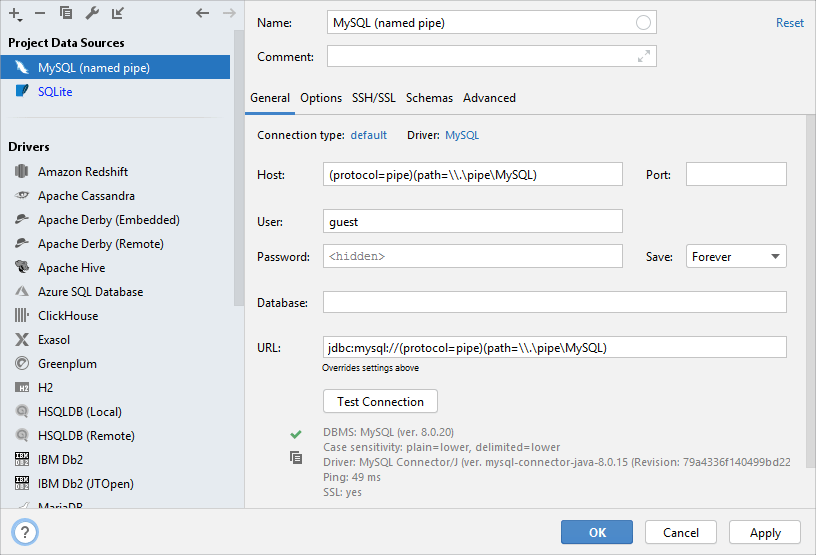

Click the General tab.
In the Host field, type the following text:
MySQLis the pipe name.
Alternatively, in the Connection type list, select Unix Socket and type or select the path to the pipe: \\.\pipe\MySQL.
Ensure that the connection to the database can be established using the provided details. To do that, click the Test Connection link at the bottom of the connection details area.
In case of any connection issues, refer to the Cannot connect to a database page.
(Optional) By default, only the default schema is introspected and available to work with. If you also want to work with other schemas, in the Schemas tab, select them for the introspection.
Click OK to create the data source.
Find your new data source in the Database tool window (Alt+1) .
For more information about the Database tool window, see the corresponding reference topic.
For more information about working with database objects in CLion, refer to Database objects.
To write and run queries, open the default query console by clicking the data source and pressing F4.
To view and edit data of a database object, open Data Editor Dialog by double-clicking the object.
