Parasoft C/C++test

You can run Parasoft C/C++test static analysis on your project directly from CLion by configuring it as an external tool, and then review the findings with the built-in SARIF Viewer.

CLion calls the C/C++test command-line launcher (cpptestcli), which reads the compilation database that CLion generates (compile_commands.json) and writes a report into your project.

Prerequisites

Parasoft C/C++test is installed on your machine, and you know the path to the cpptestcli launcher (for example, /home/<user>/parasoft/cpptest/cpptestcli). For installation and license activation instructions, see the Parasoft C/C++test installation guide.
A C/C++test settings file in your project (for example, cpptest.localsettings.properties) that accepts the EULA, provides the license, and lists the report formats. To use the SARIF Viewer, include sarif in the report formats:
report.format=html,xml,sarif report.location=./reports

Configure the external tools

Define one external tool per analysis scope, for example, one for single-file analysis, and another for project-wide analysis

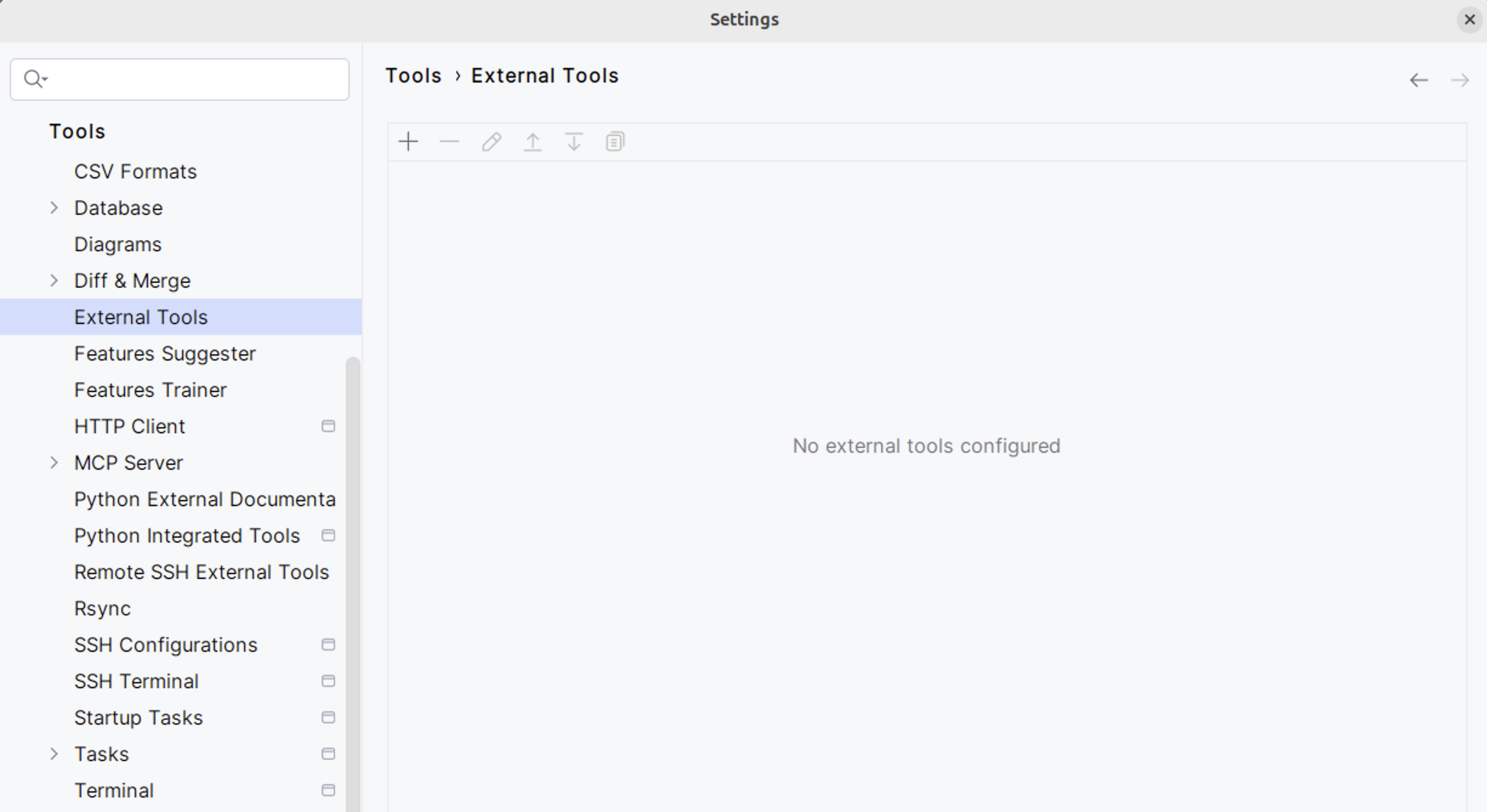

Open Settings | Tools | External Tools.
Click Add (+).

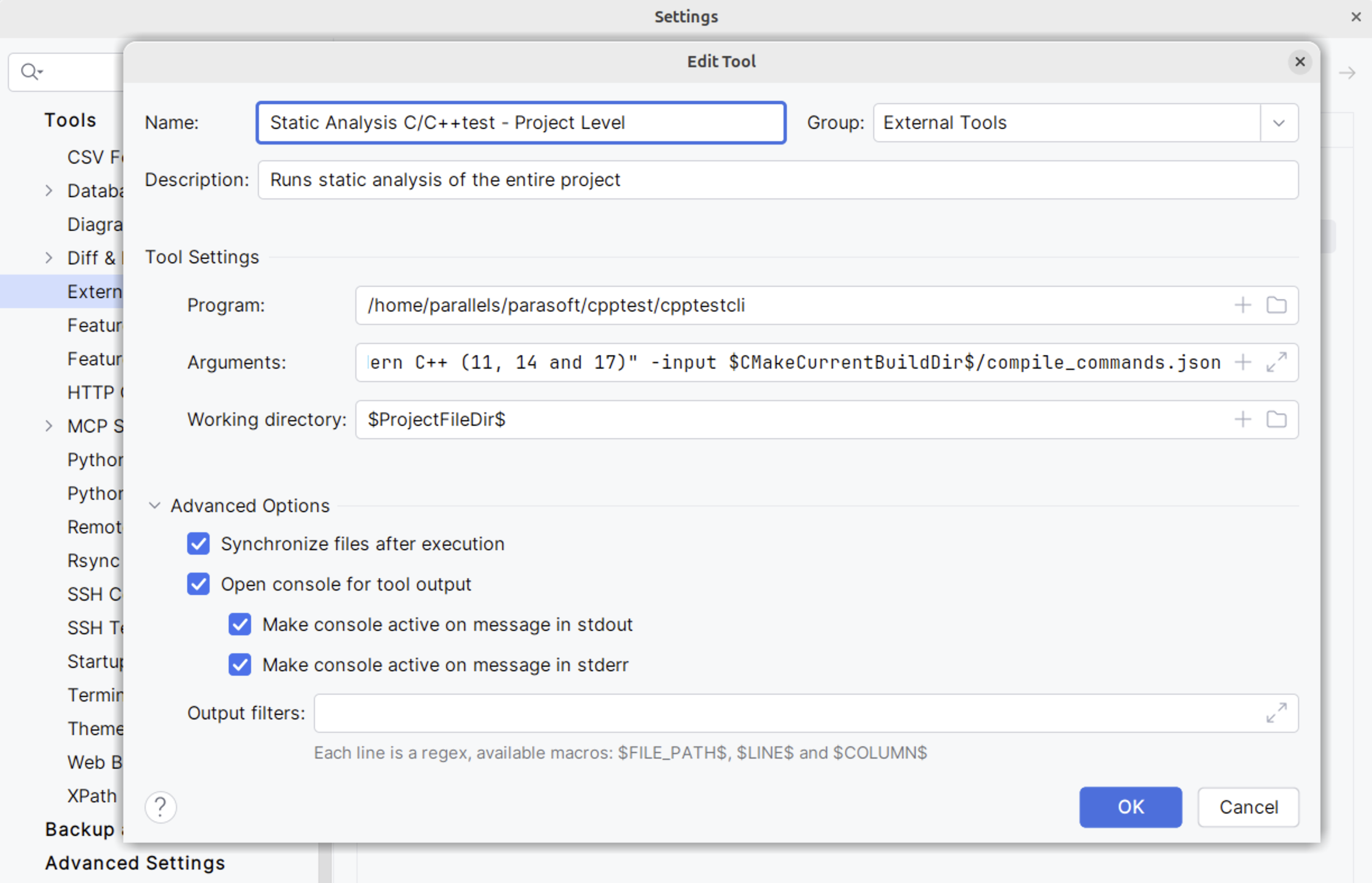

Fill in the required fields, then click OK.

Arguments

Here is an example of arguments for single-file analysis:

                -settings
                "$ProjectFileDir$/cpptest.localsettings.properties"
                -compiler
                gcc_13-aarch64
                -config
                "builtin://Modern C++ (11, 14 and 17)"
                -input
                $CMakeCurrentBuildDir$/compile_commands.json
                -resource
                $FilePath$


-settings — your local configuration file with a license and report formats.
-compiler — the compiler configuration id that matches your toolchain.
-config — the test configuration. You can use a built-in configuration, as shown, or point to a .properties file, like "$ProjectFileDir$/[rules].properties". In the example above, the built-in configuration is the Parasoft built-in configuration for the Modern C++. If your license contains the MISRA C++ 2023 rules, for example, the configuration is -config "builtin://MISRA C++ 2023".
-input — the compilation database, so cpptestcli knows the exact flags or includes used to build each file.
-resource — the scope that restricts analysis to the current file. You do not need this argument for project-wide analysis because the project level is the default scope for cpptestcli.

Run the analysis

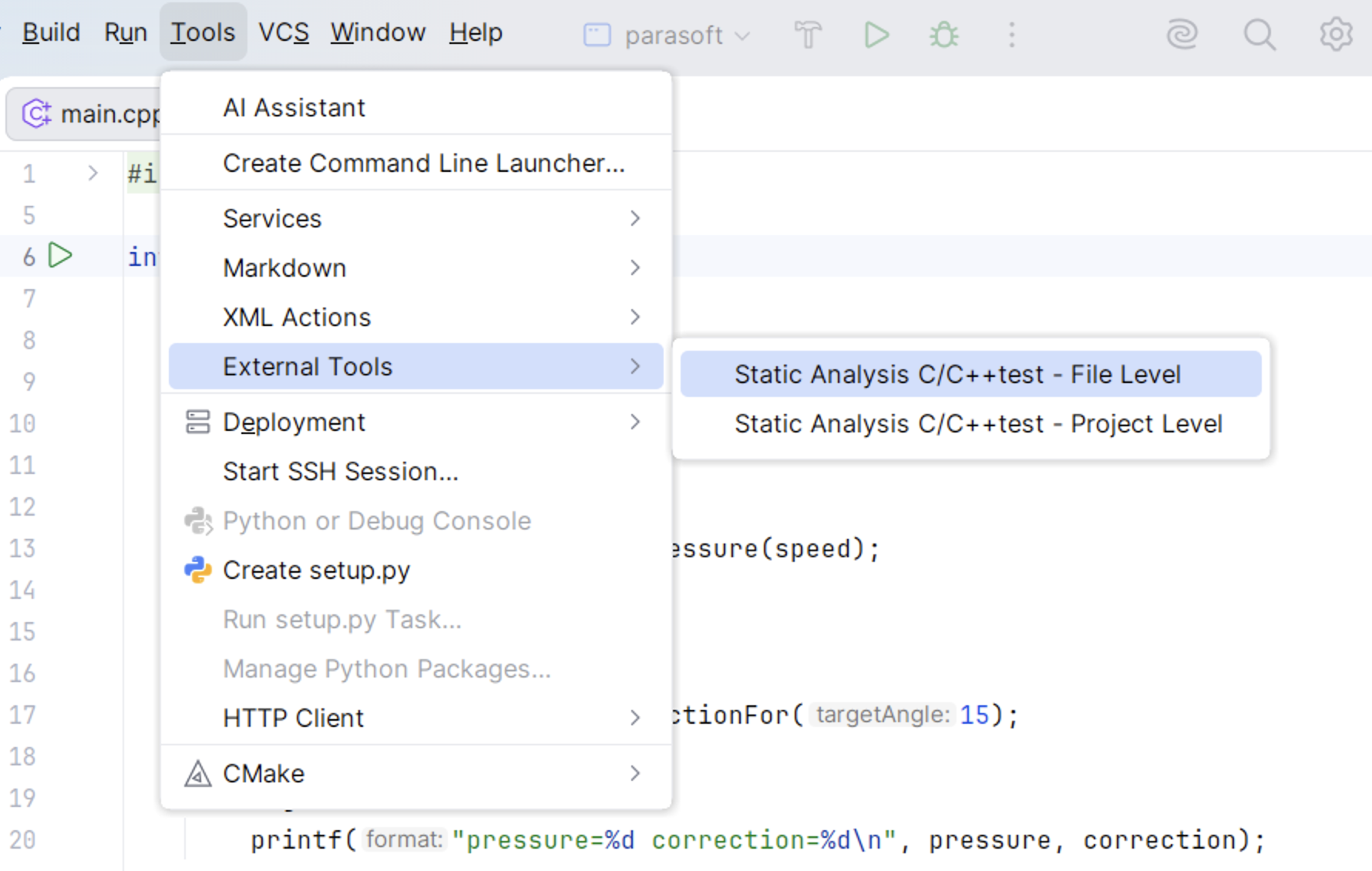

To run the analysis, select Tools | External Tools | <tool name> from the main menu.

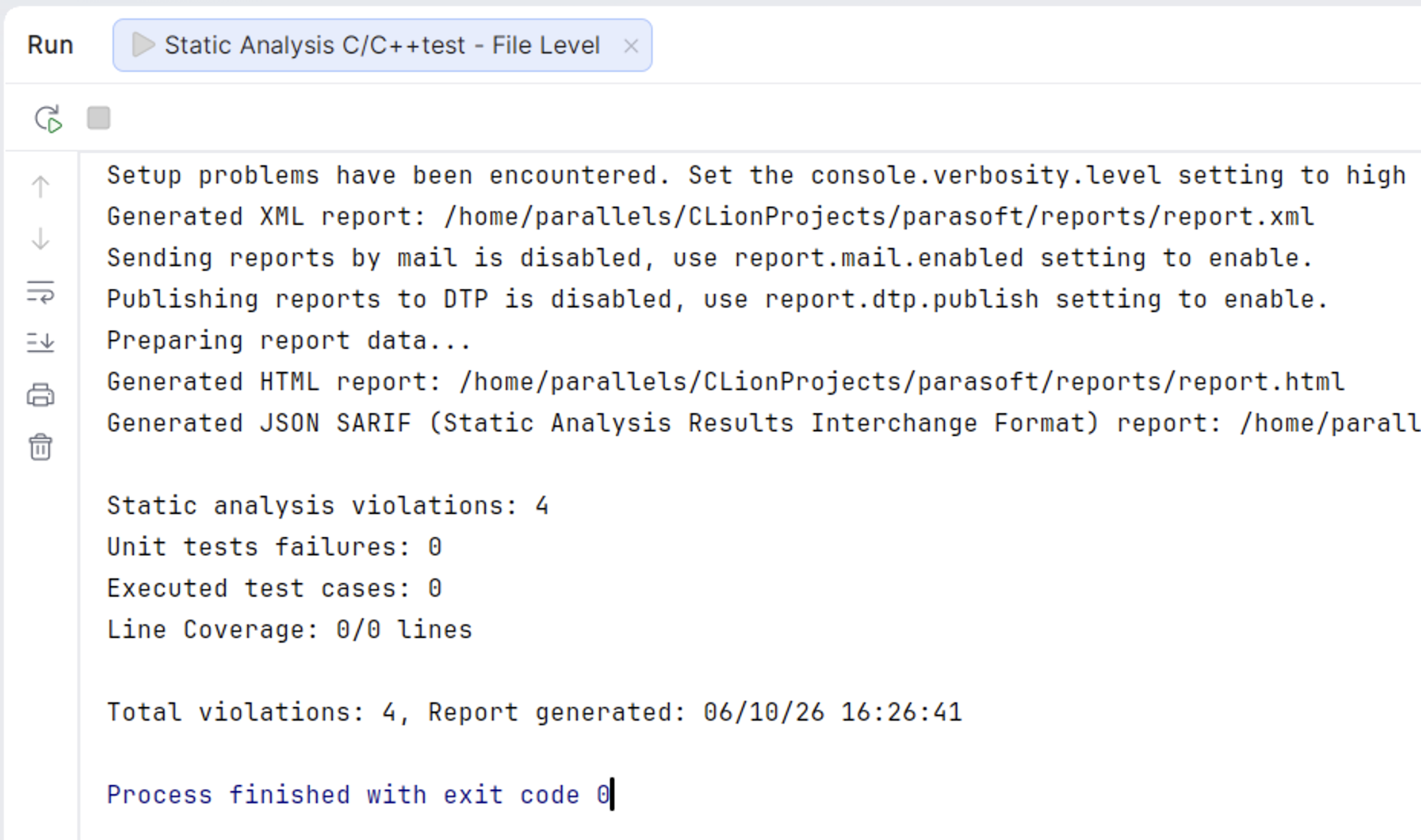

The launcher output appears in the Run tool window.

When the run finishes, C/C++test writes the reports to the -report directory (for example, reports/report.sarif, report.html, and report.xml). The SARIF report is overwritten on each run.

To run a tool with a keyboard shortcut, assign one in Settings | Keymap, under External Tools.

View the results in the SARIF Viewer

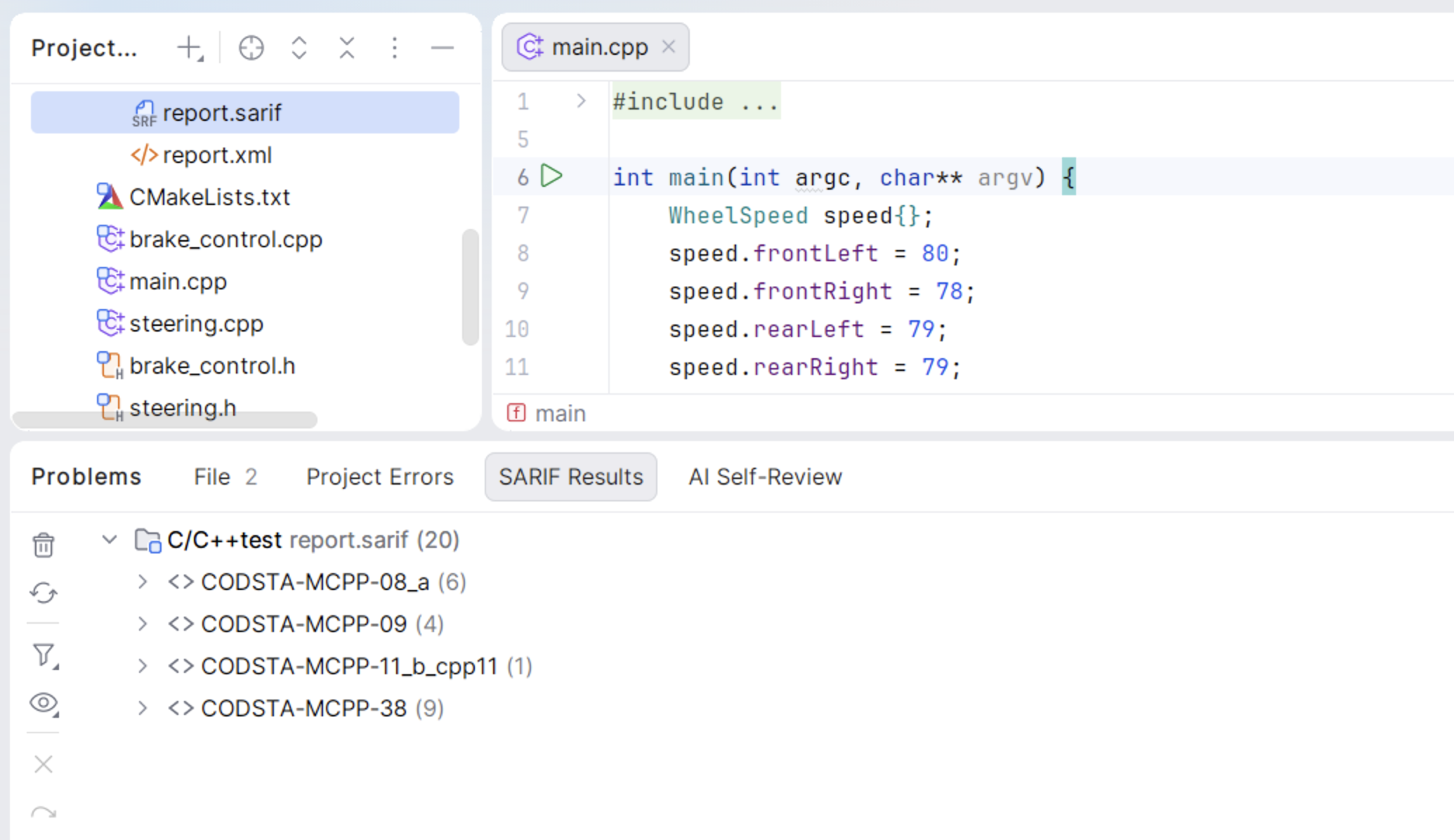

In the Project tool window, double-click the generated reports/report.sarif file. The findings open in the Problems tool window, on the SARIF Results tab, grouped by tool and rule. Each result shows the rule message and its source location.

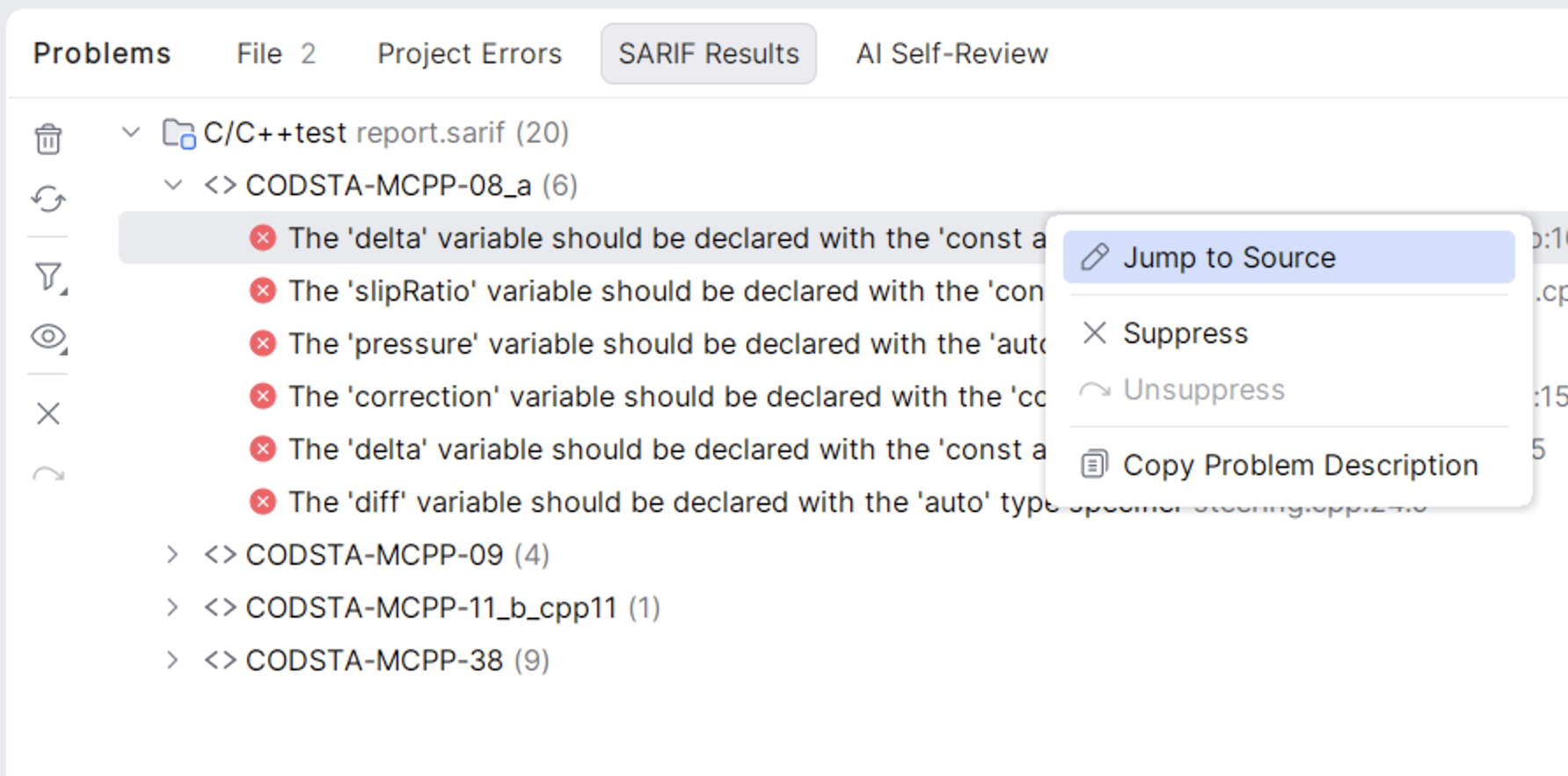

To open the code for a finding, double-click it, press Enter, or select Jump to Source from the context menu.

CLion remembers imported report paths and reloads them when you reopen the project.

For details, see SARIF Viewer.

10 June 2026
