CMake Install

If your workflow includes project installation, you may want to use the CMake install command that generates installation rules. There are multiple signatures for this command, for example, the TARGETS form:

install(TARGETS targets... [EXPORT export-name] [[ARCHIVE|LIBRARY|RUNTIME|OBJECTS|FRAMEWORK|BUNDLE|PRIVATE_HEADER|PUBLIC_HEADER|RESOURCE] [DESTINATION dir] [PERMISSIONS permissions...] [CONFIGURATIONS [Debug|Release|...]] [COMPONENT component] [OPTIONAL] [EXCLUDE_FROM_ALL] [NAMELINK_ONLY|NAMELINK_SKIP] ] [...] [INCLUDES DESTINATION [dir ...]])

Configure and run the installation

  1. Place the install commands into your CMakeLists.txt files.

  2. Set up the installation paths via the [DESTINATION dir] field of the install command. Here you have two options:

    • Provide the full path with a leading slash or drive letter.

    • Use a relative path, which will be interpreted as relative to the value of the CMAKE_INSTALL_PREFIX variable, if provided in the CMake options section of the Settings/Preferences | Build, Execution, Deployment dialog:

      cl CmakeInstall Prefix

    • To run the installation only, call Build | Install from the main menu:

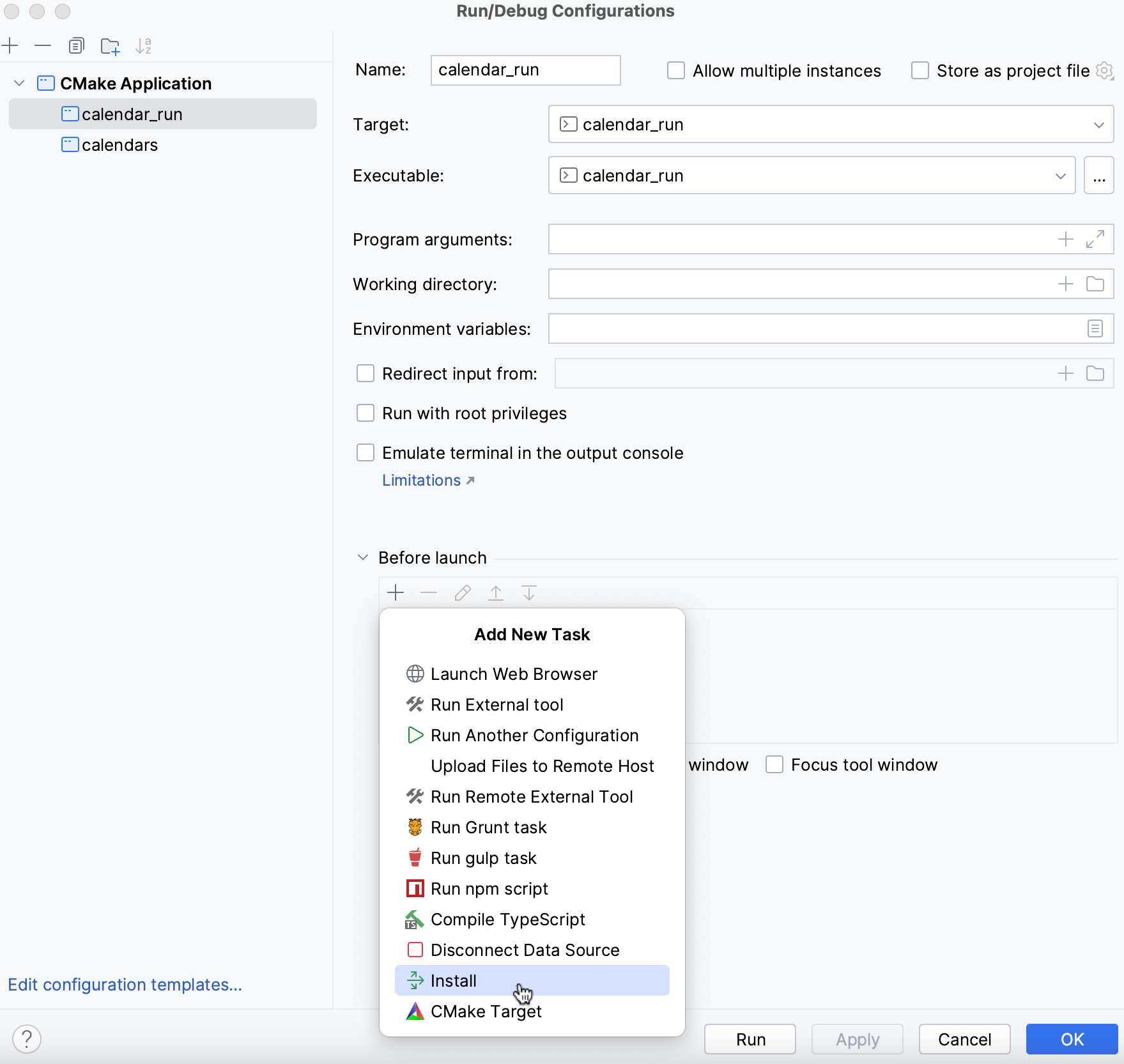

    • If you want the installation to automatically precede the launch, open the Run | Edit Configurations dialog, choose the desired Run/Debug configuration, press icons general add svg in the Before launch section, and choose Install from the drop-down list:

      cl CmakeInstall BeforeLaunch
      Then call Run or Debug for this configuration.

    As a result, the targets you specified in the install commands will be built and put into the desired directories.
