Tutorial: Getting started with Git in CLion

In this tutorial, we will guide you through the most popular Git operations used on a daily basis and show how they can be performed from the CLion user interface. You will learn how to create Git repositories from your projects, share them on GitHub, commit and push changes, create and merge branches, investigate the files' history, and more.

Before you start

In this tutorial, we will create a simple project, share it on GitHub, and perform some Git tasks described below. If you want to use an existing project hosted on GitHub, clone it as described in Check out a project from a remote host (clone).

Create a new project

  1. Launch CLion and click New Project on the Welcome screen.
  2. In the dialog that opens, select the project type (for example, C++ Executable), provide the location path and set the language standard. Click Create.

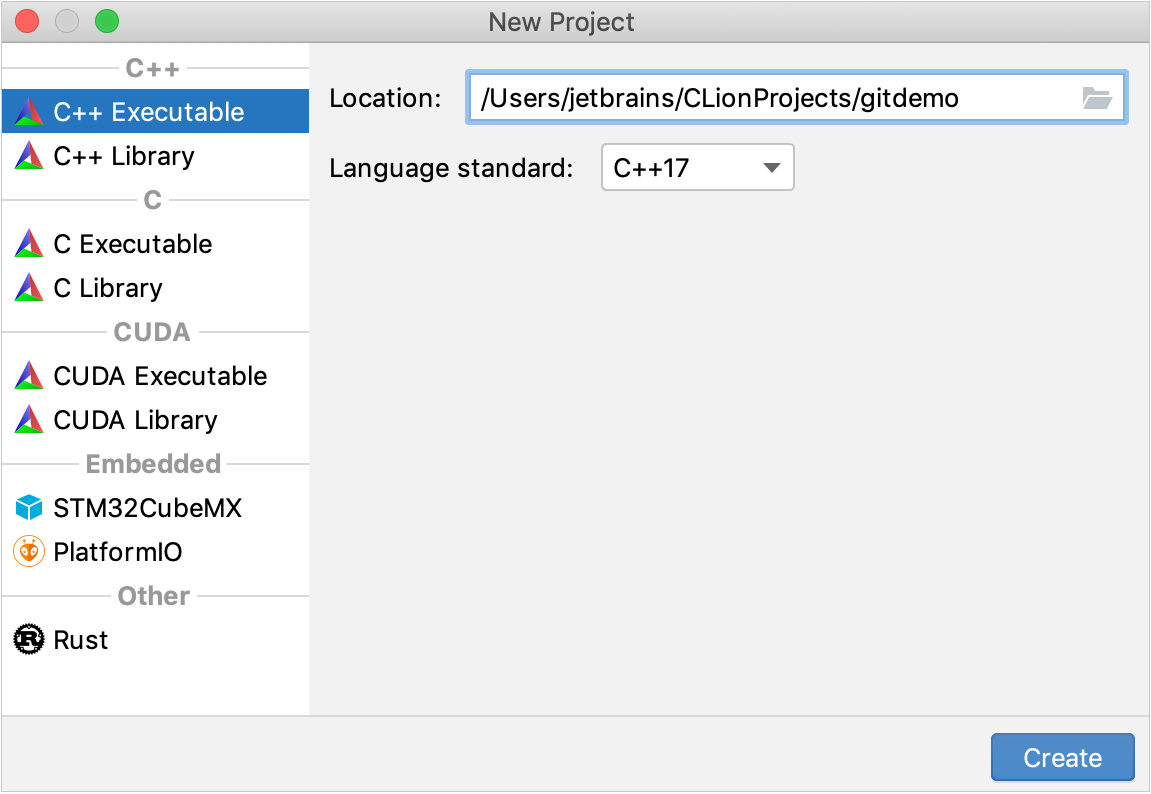

    Create a new project

  3. The new project will immediately open in CLion:

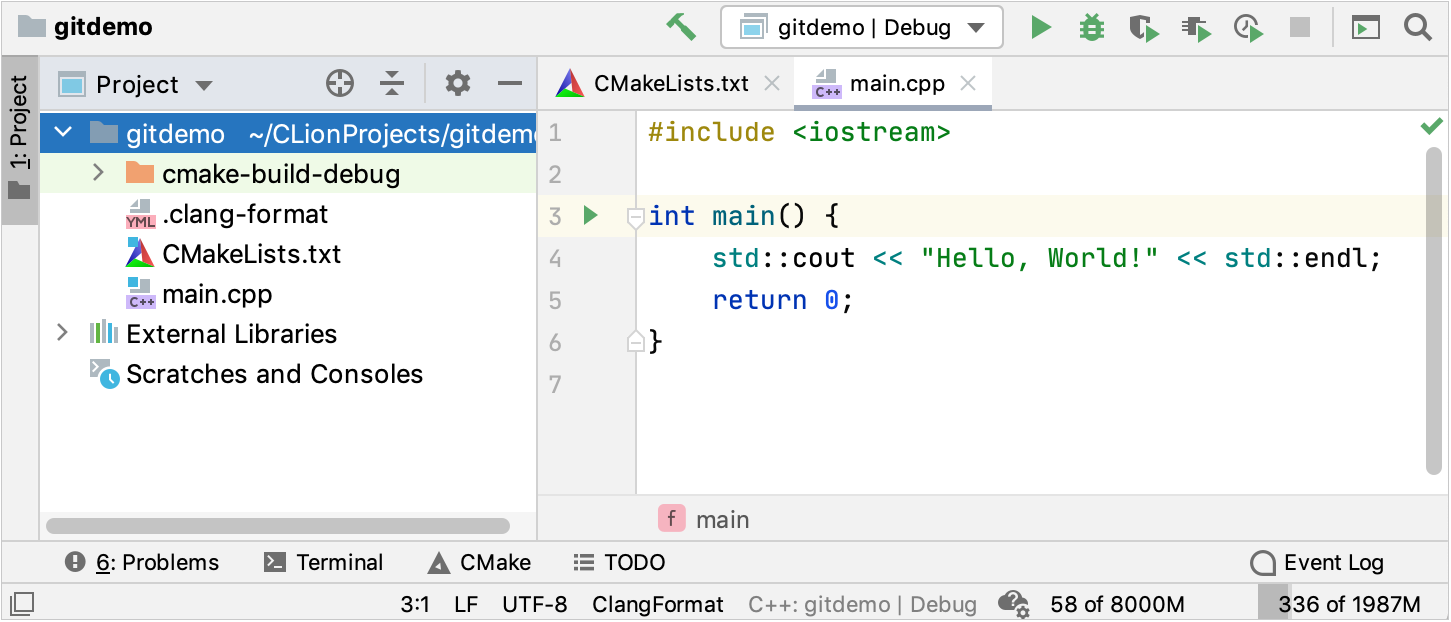

    Project not connected to any VCS

Step 1. Enable Git integration

  1. From the main menu, select VCS | Enable Version Control Integration.

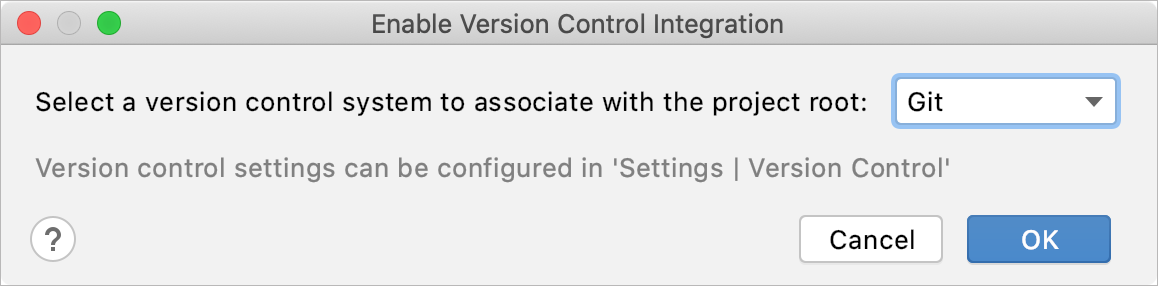

  2. In the dialog that opens, select Git from the list of available version control systems and click OK.

    Enable Git integration

Alternatively, press Alt+` and select Create Git Repository (or press 1). In the Finder window that opens, specify a root folder for the local Git repository.

You will get a notification that the local Git repository has been created for your project. On the toolbar and status bar, the Git-related controls will appear:

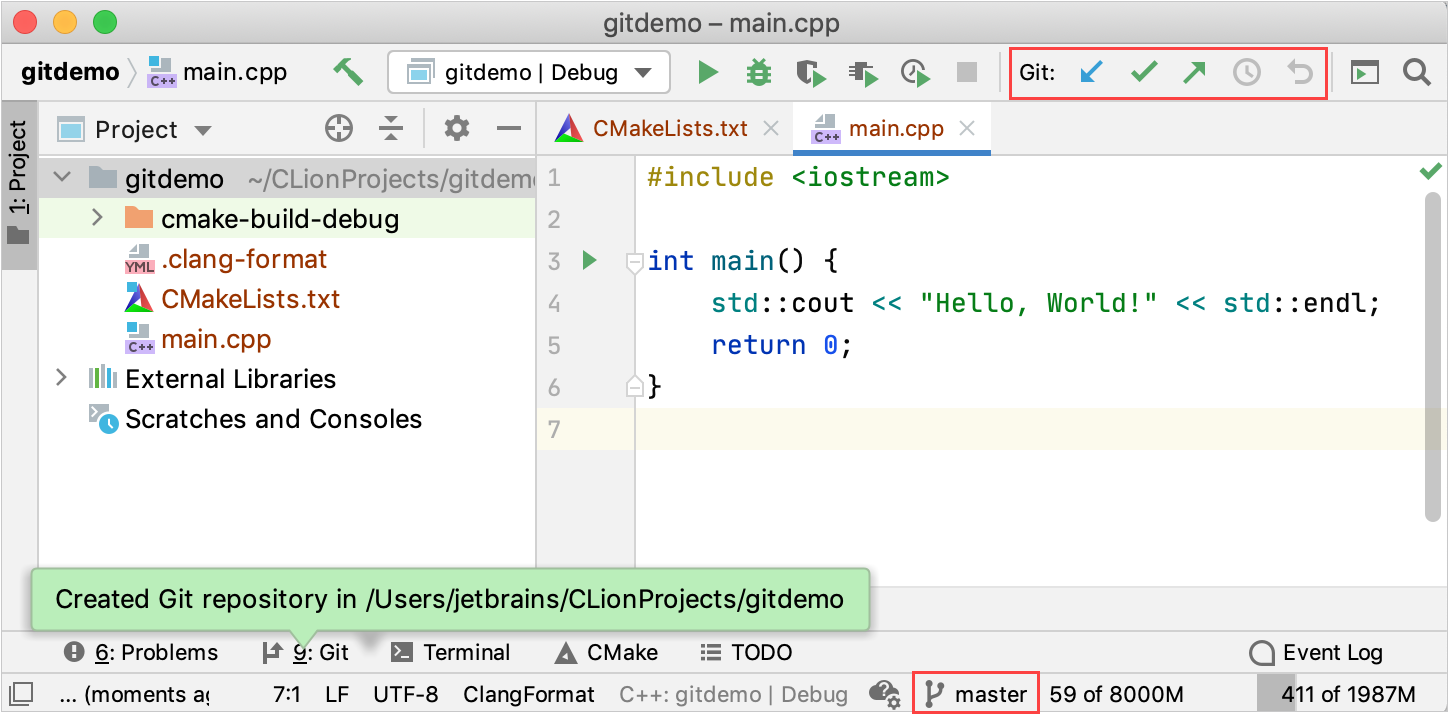

Git integration enabled

The dedicated tool windows for working with Git are now available: Commit (Ctrl+K or View | Tool Windows | Commit) and Git (Alt+9 or View | Tool Windows | Git).

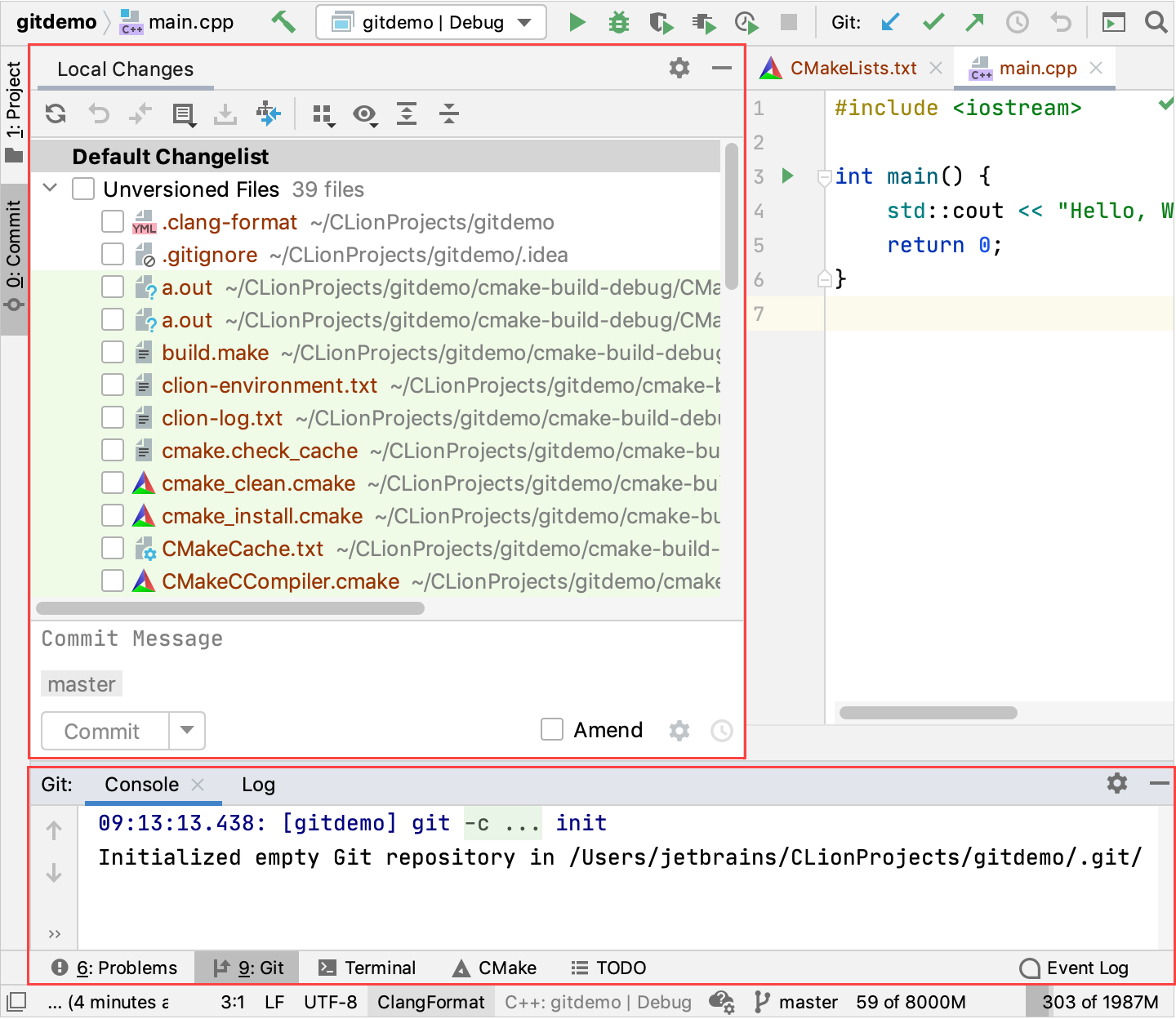

Git tool windows

From the Commit tool window Ctrl+K, you can review the local changes and commit them to the local Git repository. From the Git tool window, you can work with the Git log, manage pull requests from GitHub, and more.

Step 2. Add files to .gitignore

On the Local Changes tab of the Commit tool window Ctrl+K, you see the list of files that belong to your project. These files are not added to the Git repository yet — you need to select which of them you want to share and which ones should be ignored by the VCS.

  1. Group the files by directories: press Ctrl+Alt+P or click the Group By button on the toolbar and select Directory.

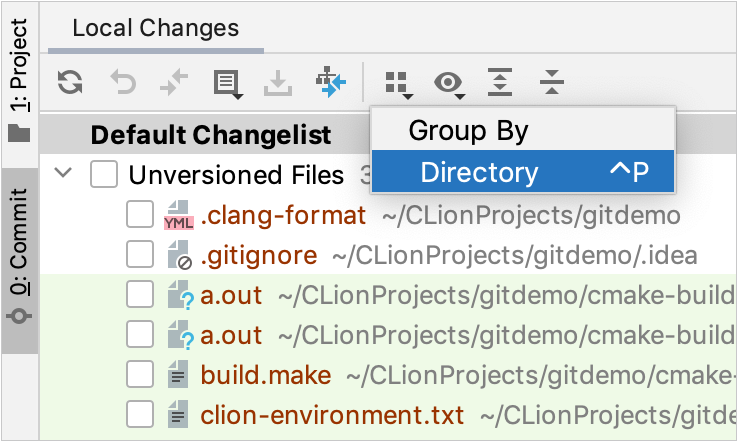

    Group by directory

  2. Select the directories that you don't want to share. For example, the following directories may be ignored without breaking the integrity of the project:

    • .idea: settings of your local CLion installation. Ignore this directory unless you want to share your settings among the team members.

    • cmake-build-debug: the automatically created directory for CMake build artifacts.

  3. Right-click the selection and choose Add to .gitignore | Add to .gitignore.

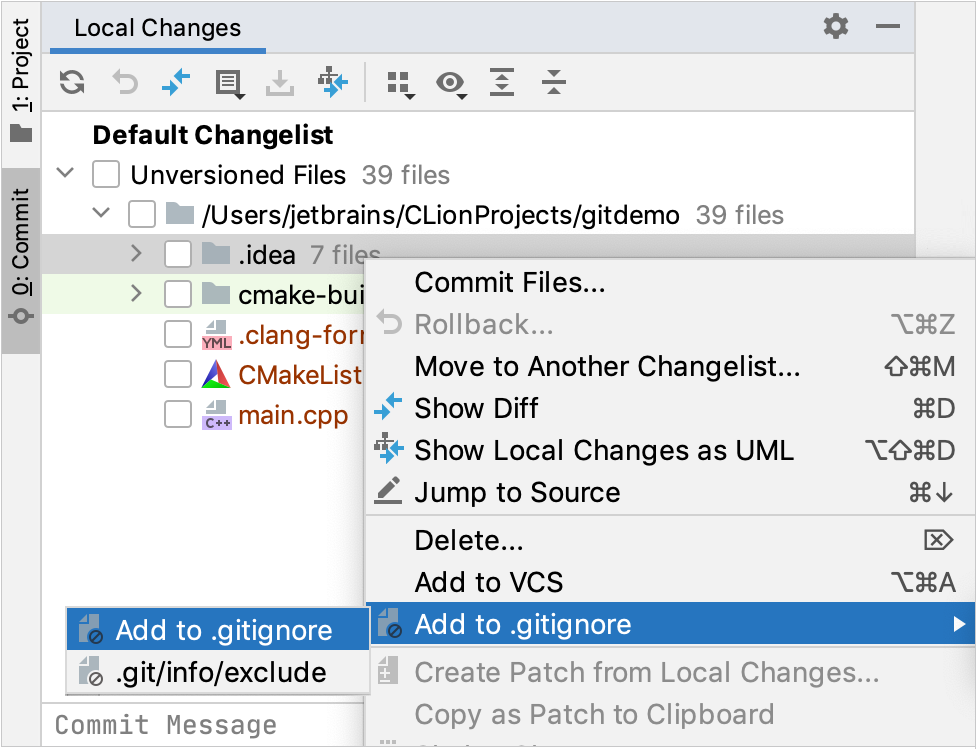

    Add to .gitignore

  4. You will be prompted to confirm the creation of a new .gitignore file in the root directory of your project. Click Create.

  5. From the dialog that opens, you can either add the newly created file to Git right away by pressing Add or postpone this by pressing Cancel.

    Click Add. You will see that the .gitignore file has been added to the root directory of your project and placed to Default Changelist. The directories you selected to ignore are no longer displayed in the Unversioned Files list:

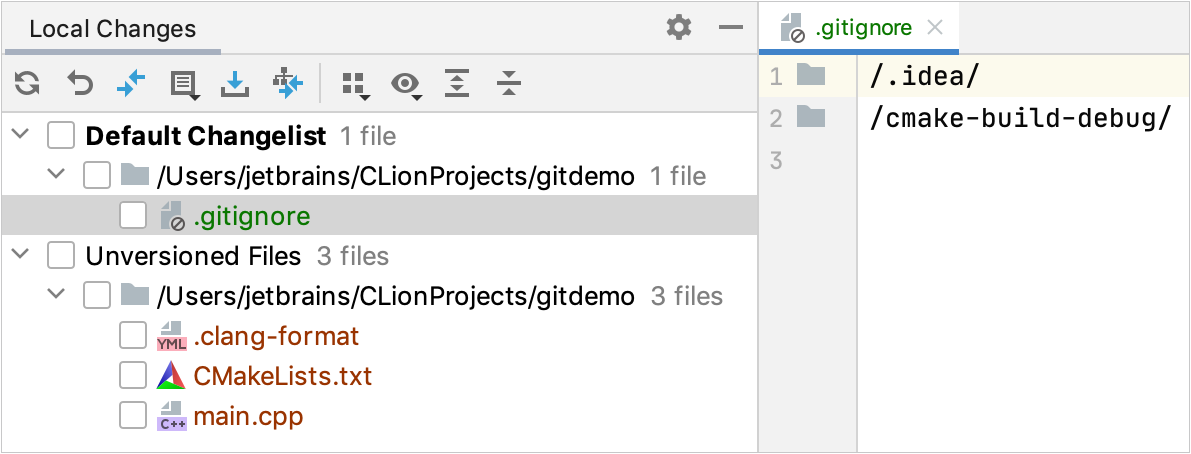

    .gitignore added to Git

    Any time, you can edit the .gitignore file to add new directories to the list or remove existing ones.

Step 3. Commit your project to the local Git repository

Now, when all unnecessary directories are excluded from the list of unversioned files, you just need to add all the files to the repository and commit them to save their current state.

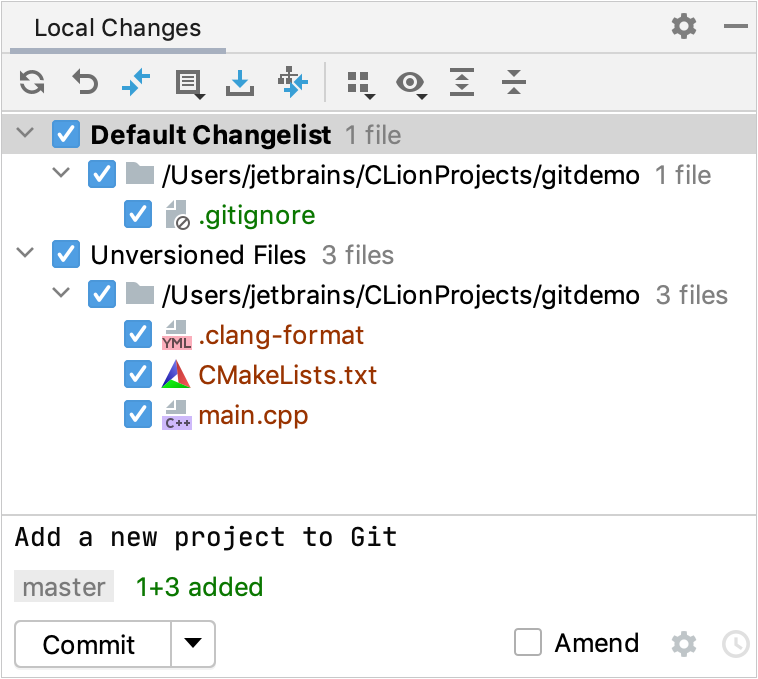

  1. In the Commit tool window Ctrl+K, move all the files from the Unversioned Files list to Default Changelist using drag-and-drop. Select all the files by clicking the root folder checkbox.
  2. Type a message for your first commit:

    The Commit tool window

  3. Click Commit. The corresponding notification appears once the commit is performed:

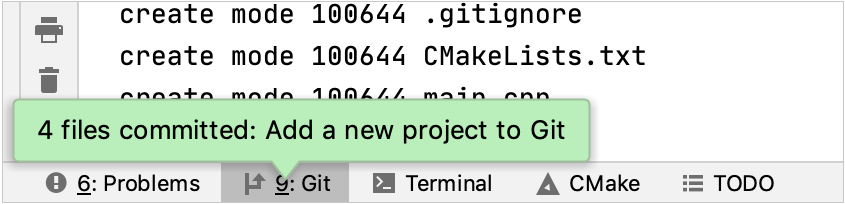

    The Files Commited notification

Step 4. Share your project on GitHub

To make your project available for other contributors, you need to publish it to a remote repository, for example, on github.com. CLion provides integration with GitHub which allows you to manage projects hosted on GitHub, fork external repositories, manage pull requests, and perform other GitHub operations from the IDE. See more details in the GitHub section.

  1. From the main menu, select VCS | Import into Version Control | Share Project on GitHub.

  2. In the dialog that opens, enter your GitHub login and password and click Log In:

    Log in to GitHub

    If you are not registered on GitHub, click Sign up for GitHub to go to github.com and create a new account there.

  3. If you have two-factor authentication enabled for GitHub, the following dialog will appear:

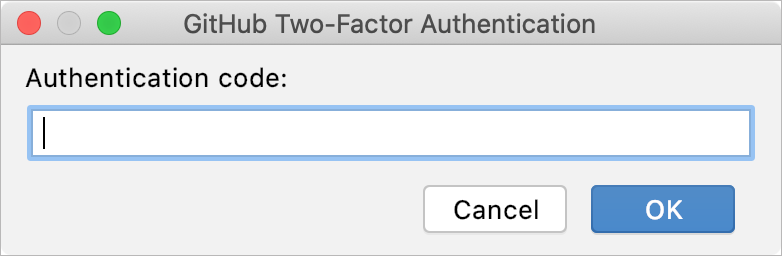

    Two-factor authentication on GitHub

    Enter the code and click OK.

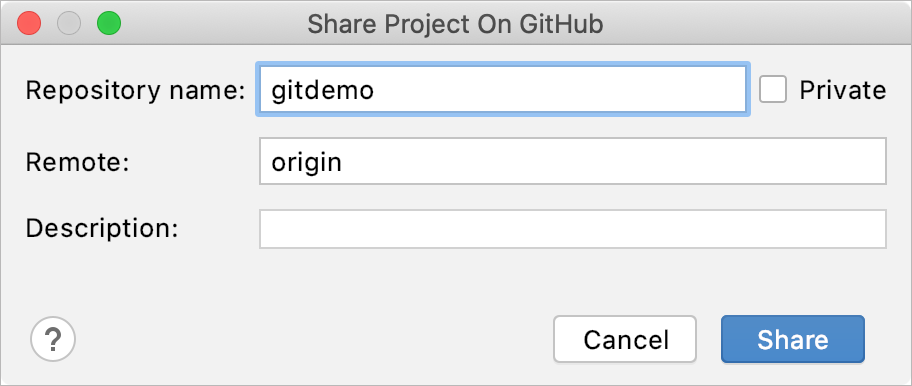

  4. In the dialog that opens, you can change the repository name (by default, it is the same as the project name), the name of a remote (by default, origin), choose the repository type (public or private), and add some description if needed:

    GitHub repository settings

    Click Share. After the project is successfully published on GitHub, the following notification will appear:

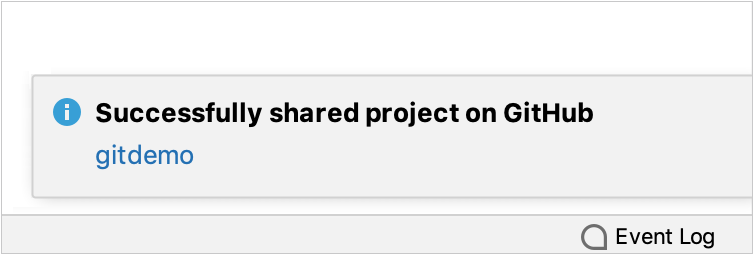

    The repo is shared on GitHub

    Click the link in the notification to open the repository on GitHub.

Step 5. Create a new branch

You may need to create a separate branch, for example, when you are working on a new feature and you don't want your changes to get into the main (master) branch before they are tested.

  1. Press Ctrl+T to pull the latest version of the current branch.

  2. On the status bar, you can see your current branch — master. Click it to open the Git Branches menu:

    Git branch menu

  3. From the Git Branches menu, select New Branch.

  4. In the dialog that opens, specify the branch name, for example, new_feature, and select the Checkout branch checkbox to switch to the new branch right away.

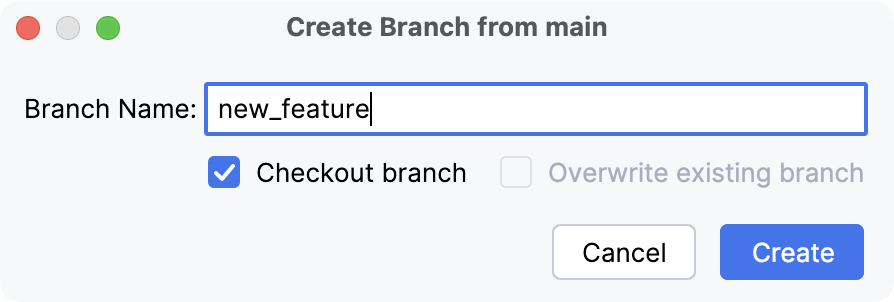

    New Git branch

    Now you are switched to the newly created branch:

    Switched to the new branch

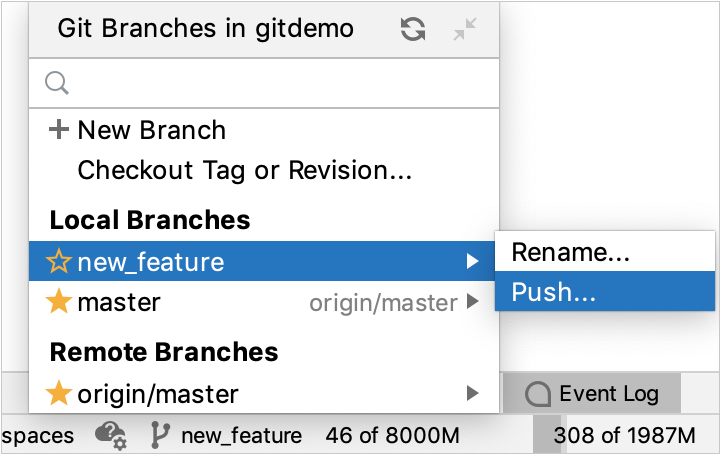

  5. Add the corresponding branch to the remote repository. To do this, select the local branch in the Git Branches menu and click Push:

    Pushing a Git branch

    In the dialog that opens, click Push. The new branch will be added to the remote repository and will appear in the Remote Branches list in the Git Branches menu:

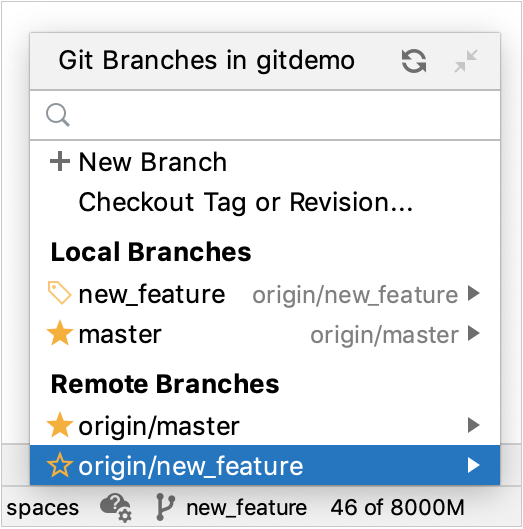

    Remote Git branch

Step 6. Make and view the changes

  1. Press Ctrl+T to pull the latest version of the current branch.

  2. Add a new file to the project, for example, subfunc.cpp, and modify the main.cpp file.

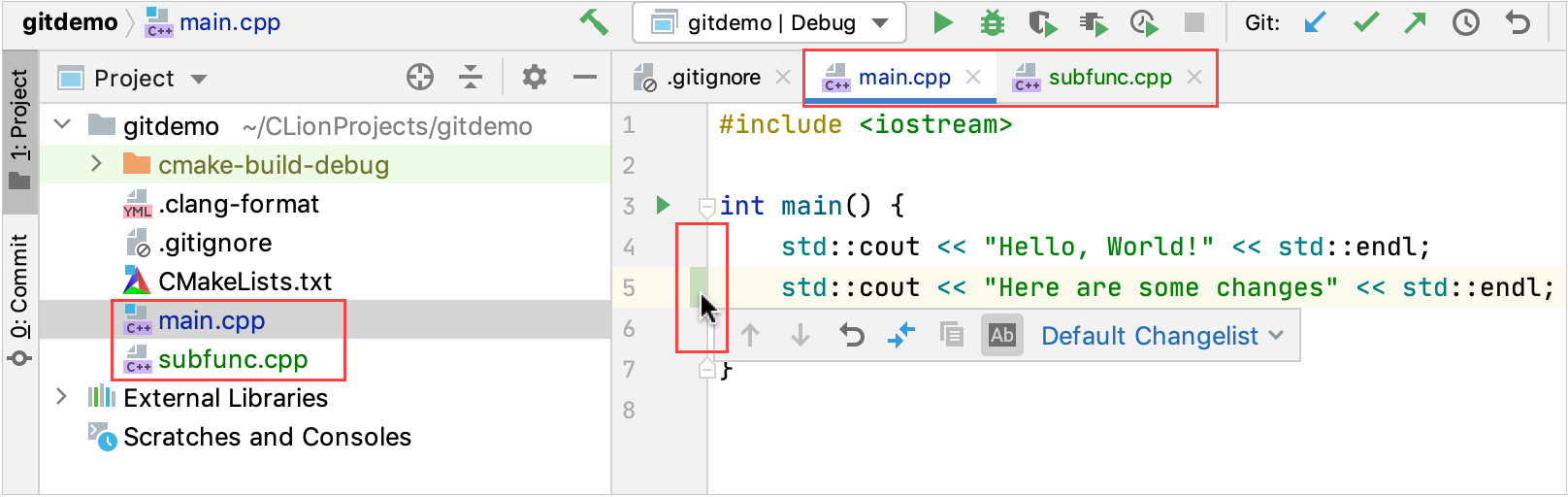

    In the Project tool window and in the editor tabs, CLion applies different colors to files: blue to modified, green — to newly added. Moreover, in the gutter area of a modified file, the colored change markers appear next to the modified lines. You can click the gutter marker to view details:

    Changes in Editor and Project tool Window
  3. Click the Show diff icon to view the difference in a separate window:

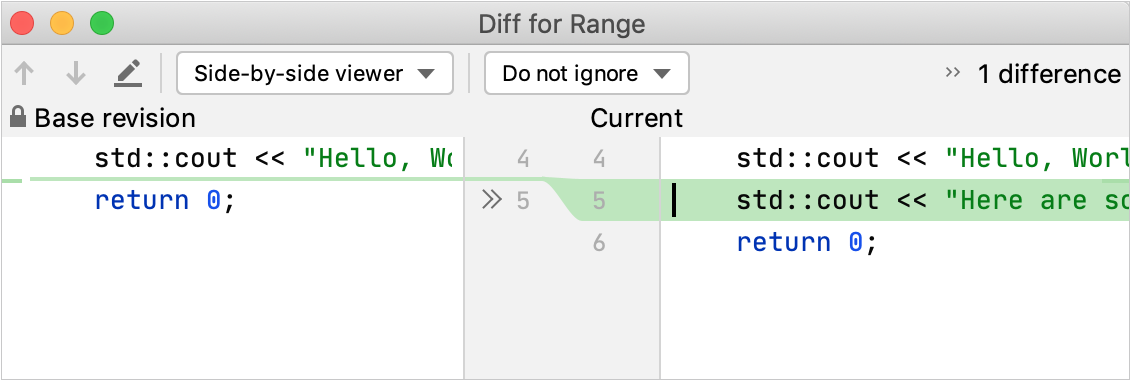

    Diff for range

  4. Go to the Local Changes tab of the Commit tool window Ctrl+K, to preview all the changes at once. Double-click a file to open the difference view in the editor:

    Local Changes

    See more in Review changes.

Step 7. Commit and push the changes

  1. Press Ctrl+T to pull the latest version of the current branch.

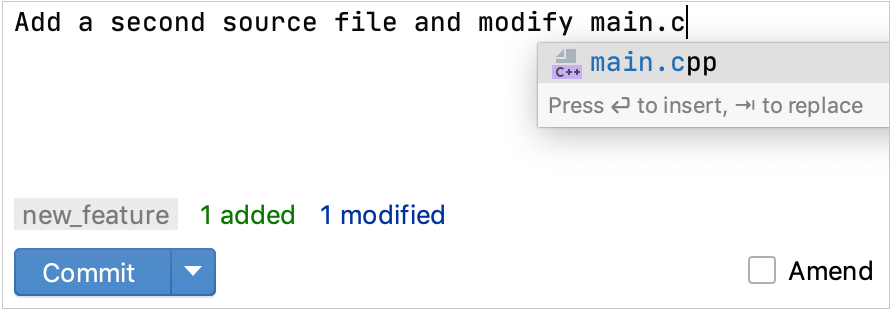

  2. In the Commit tool window Ctrl+K, review the changes, make sure that the new file that you're adding to Git is selected, type the commit message, and click Commit.
  3. Press Ctrl+Shift+K or select VCS | Git | Push from the main menu to push the changes to the remote repository. The Push Commits dialog opens. Here you can see all the commits to be pushed as well as all the affected files. Before pushing the changes, you can see the differences for each file. To do this, right-click a file and select Show Diff or press Ctrl+D:

    Push commits

  4. Click Push.

Step 8. Merge branches and resolve conflicts

There are several ways how you can apply the changes from one branch to another, such as merging and rebasing the branches, cherry-picking commits, applying separate changes or files. All these methods are described in details in Apply changes from one Git branch to another.

In this tutorial, you will learn how to merge two branches and cherry-pick commits.

Merge branches

  1. Select the master branch in the Git Branches menu on the status bar and click Checkout.

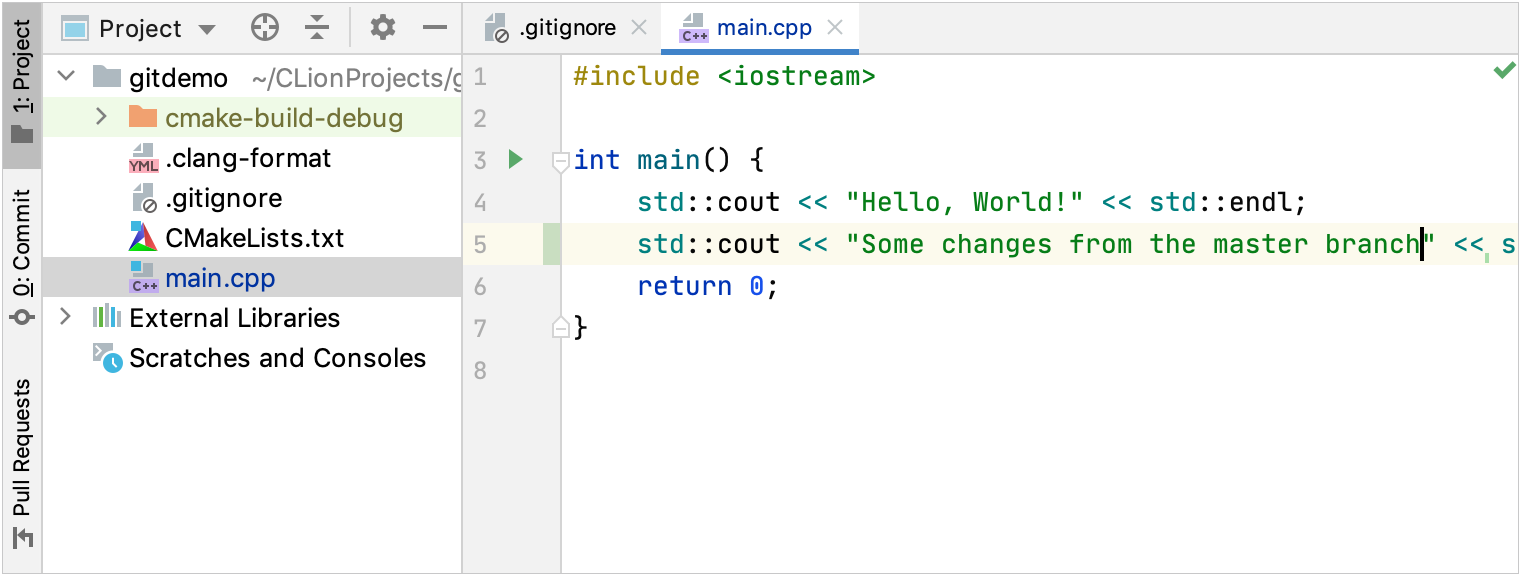

  2. Make some changes in main.cpp that has been modified before in the new_feature branch, for example:

    Change in master

    This way, we simulate a conflict situation. Push and commit the change as described above.

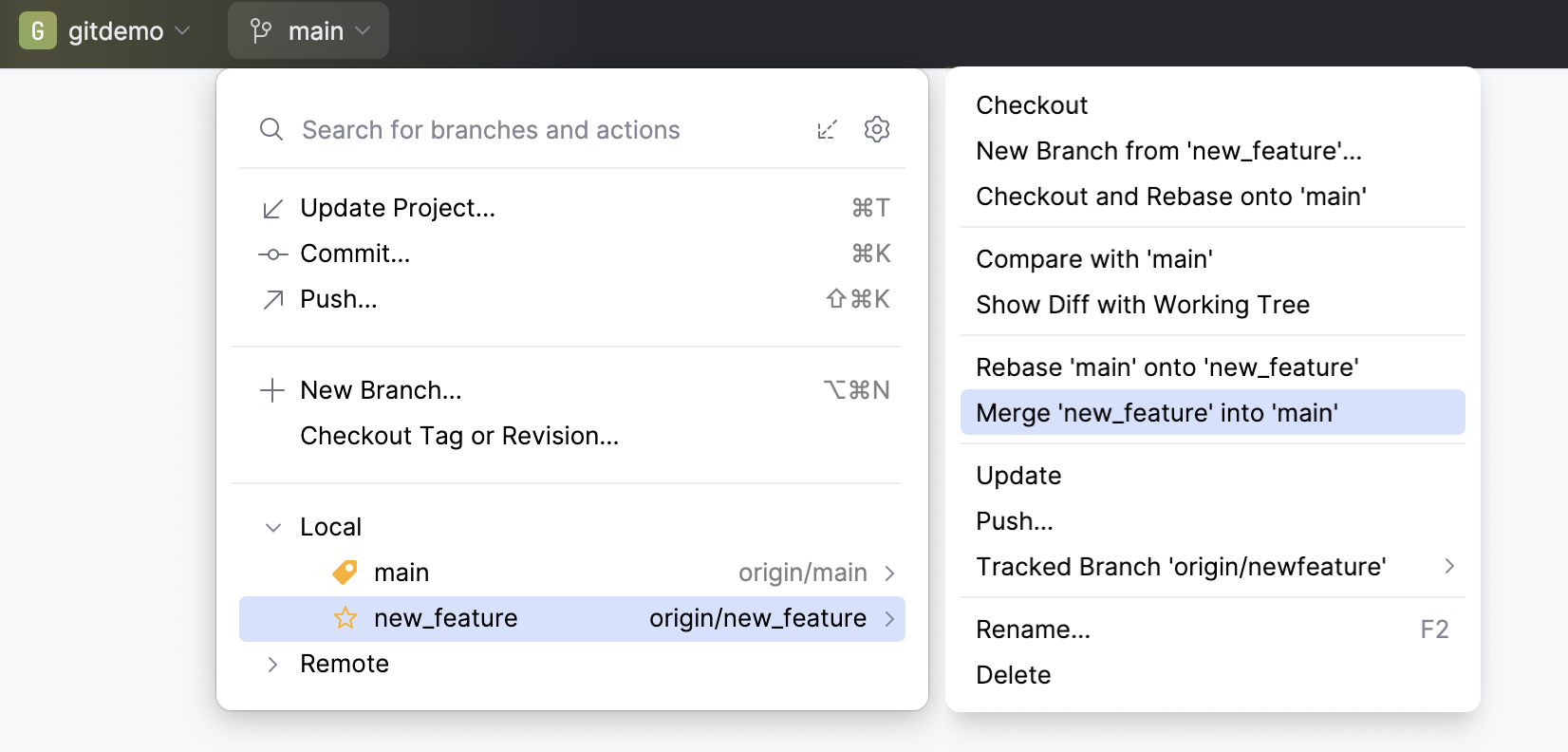

  3. From the Git Branches menu, select new_feature and click Merge into Current.

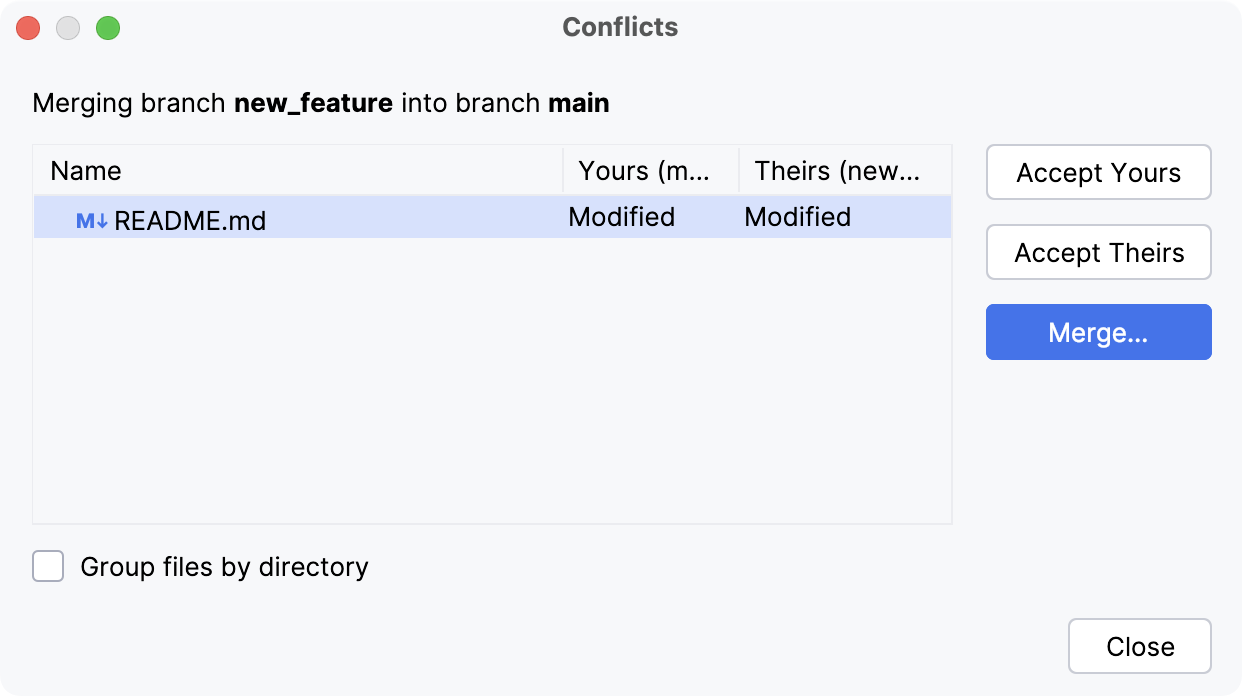

Since we have made changes for the same file in different branches, the Conflicts dialog appears.

Conflicts

Resolve conflicts

  1. In the Conflicts dialog, you have several options to resolve the conflict:
    • Accept Yours: keep the changes made in the current branch.

    • Accept Theirs: apply the changes from the branch that you want to merge into the current one.

    • Merge: resolve conflicts manually in a dedicated dialog.

    Click Merge. The Merge Revisions dialog opens:

    Resolve conflict
  2. In this dialog, you can accept changes by clicking the Apply changes from the left/the Apply changes from the right, decline them by clicking icons.diff.remove.svg, and type code in the Result pane. See more in Resolve Git conflicts.

    The syntax error are highlighted in the Merge Revisions window:

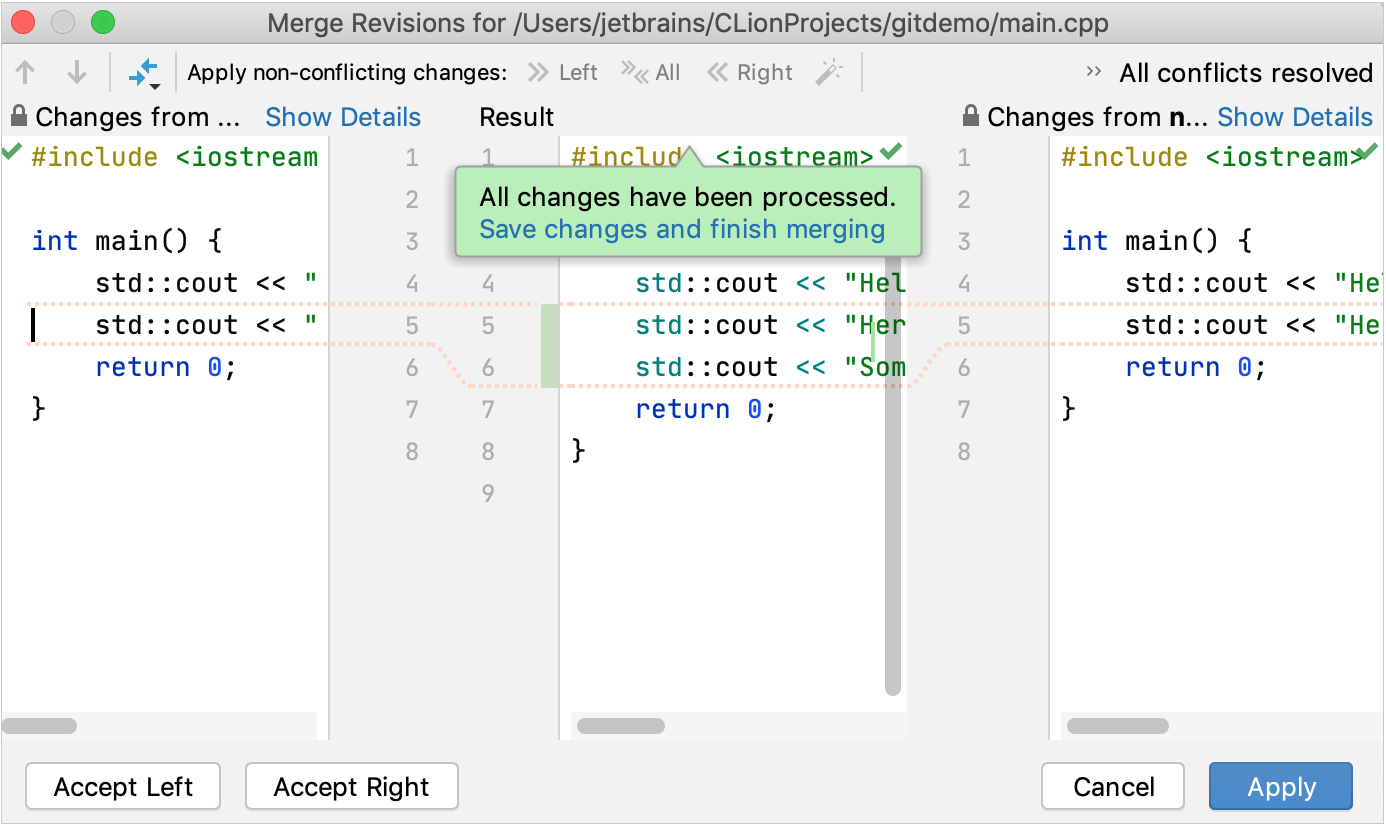

    Conflicts resolved

    Resolve the conflict as on the screenshot above and click Apply.

  3. Push the changes to the remote repository by pressing Ctrl+Shift+K or selecting VCS | Git | Push from the main menu.

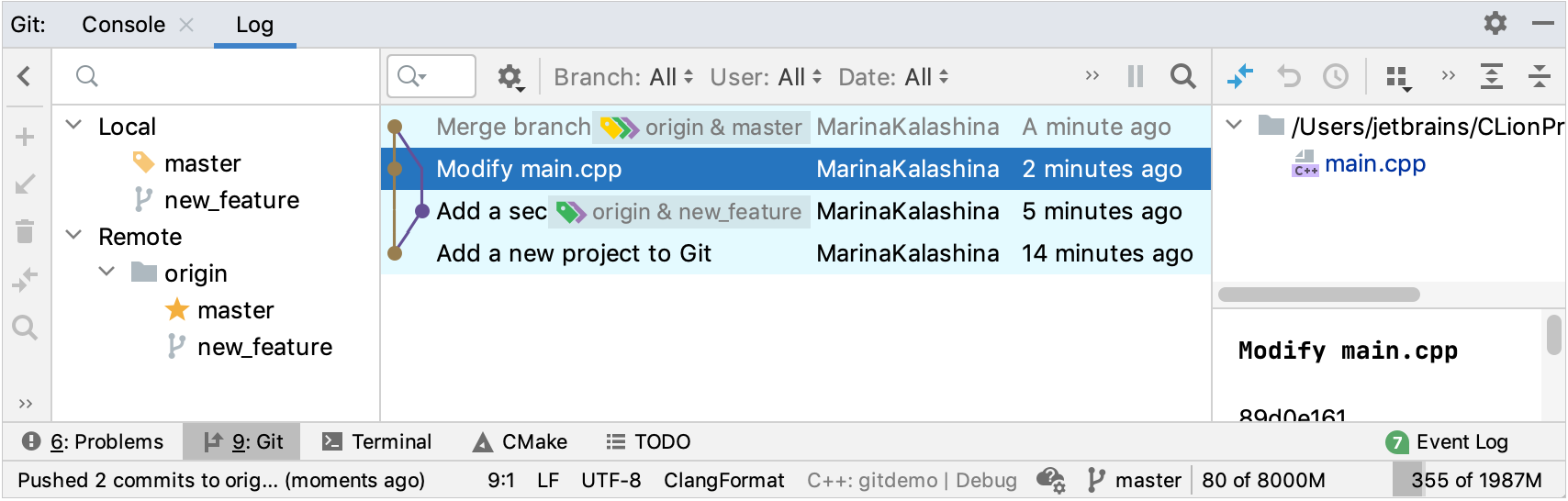

You can see the commits in all the branches on the Log tab of the Git tool window Alt+9:

The Git Log tab

From here, you can also revert commits, cherry-pick changes from one branch to another, and more. See Log tab for more details.

Step 9. View history

In the master branch, open the main.cpp file. You see that the file's syntax is broken — there are two containers within one view. Imagine these changes were made long ago or by someone else: you might be interested which commit this code came from. To find it out, do one of the following:

  • Right-click the file in the editor or in the Project tool window Alt+1 and select Git | Show History. The History tab of the Git tool window opens:

    Git file history
    On this tab you can view all commits that affected the file and find out in which commit the change of your interest was added.

  • In the editor, select a code fragment you want to view history for, right-click the selection, and choose Git | Show History for Selection. The History for Selection window will open:

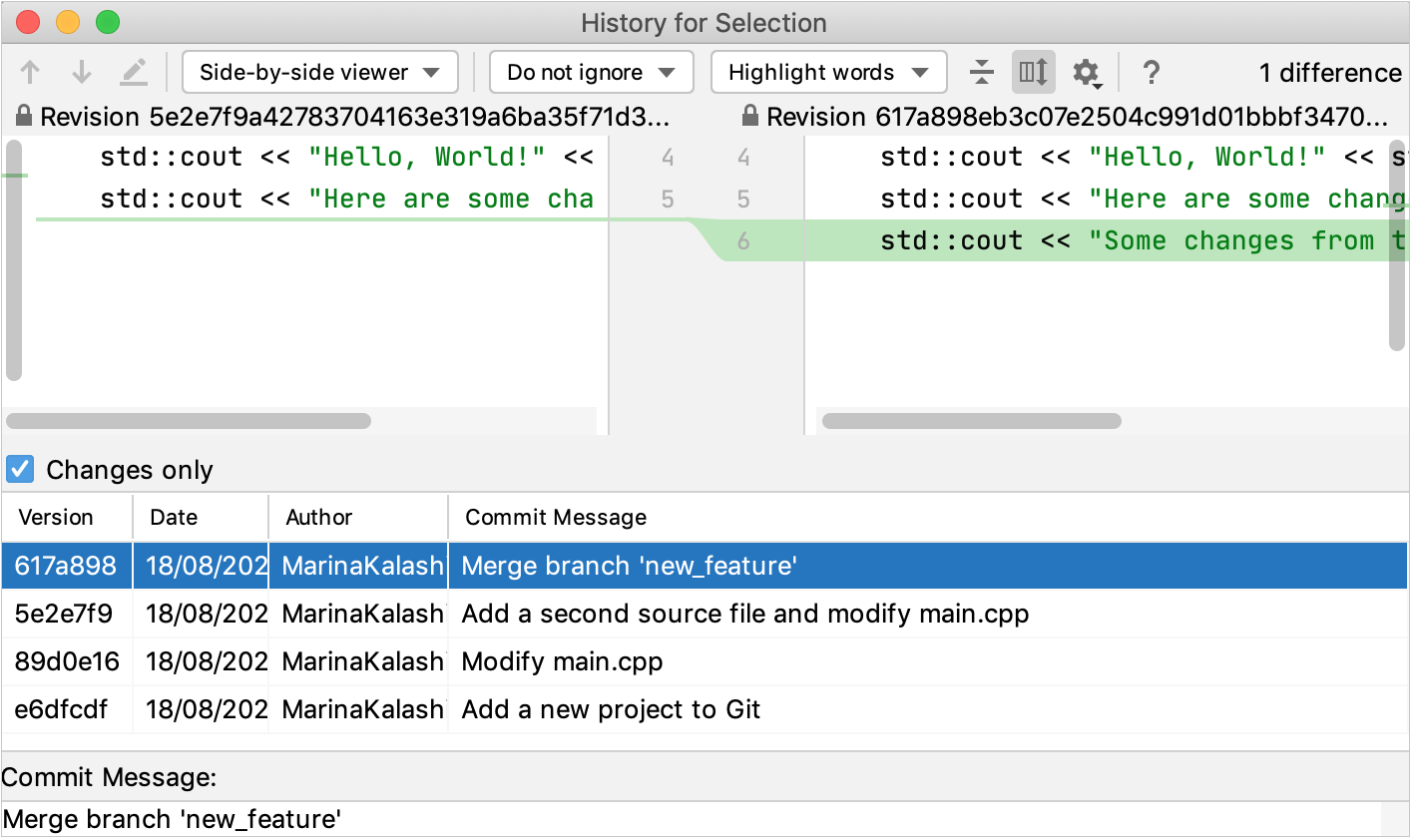

    Git history for selection

    Here you can review all the commits that affected the code selection of your interest.

Find more ways of exploring the Git history in Investigate changes in Git repository.

Step 10. Cherry-pick commits

This operation allows you to apply changes from selected commits from one branch to another.

  1. In the master branch, make a change that you are going to cherry-pick. Commit Ctrl+K and push Ctrl+Shift+K this change.

  2. Switch to the new_feature branch.

  3. In the Git tool window Alt+9, open the Log tab.

  4. In the Branch list, select master.

  5. Select your last commit and click intellij-dvcs.icons.cherryPick.svg:

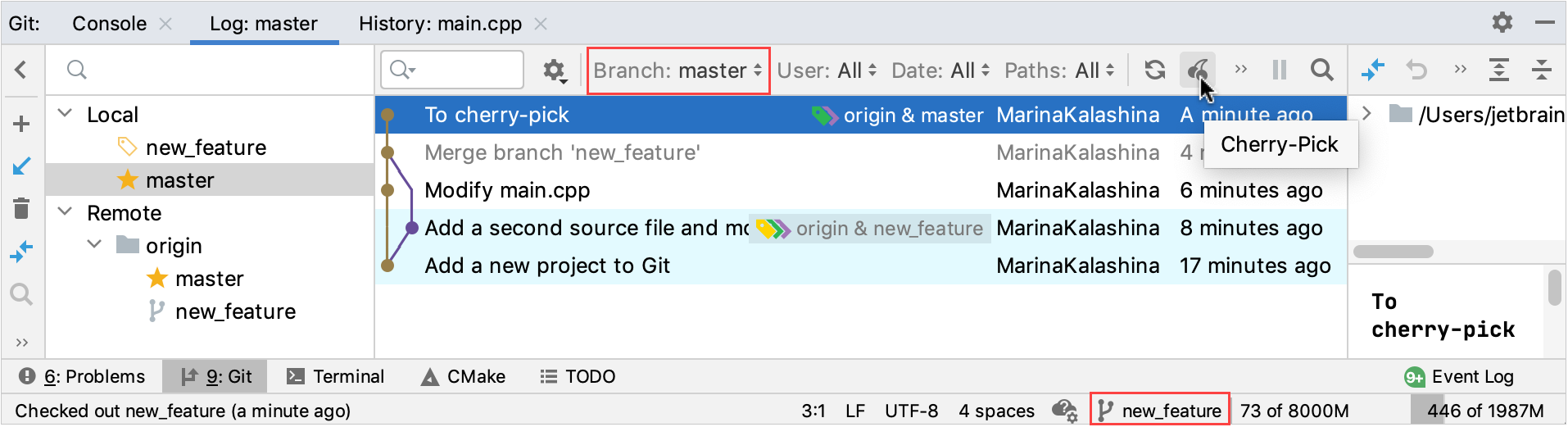

    Cherry-pick

  6. Resolve the conflict by pressing Accept Theirs form the dialog that opens. This means we override the code in the main.cpp file by the changes from the cherry-picked commit.

  7. Commit the changes from the Commit Changes dialog that opens and push them Ctrl+Shift+K.
    Committing a cherry-pick

What's next

If you didn't find how to perform some specific Git task in this tutorial, refer to the Git guidelines — all the Git operations available from the IDE are described there.

For general information on working with version control systems, go to the Version control section. CLion also supports Mercurial, Perforce, and Subversion.

If your project is not under version control, you can still track and manage local changes, roll back to the specific file state, restore deleted files, and more using the Local History feature.
