DataGrip 2020.1 Help

CSV Formats dialog

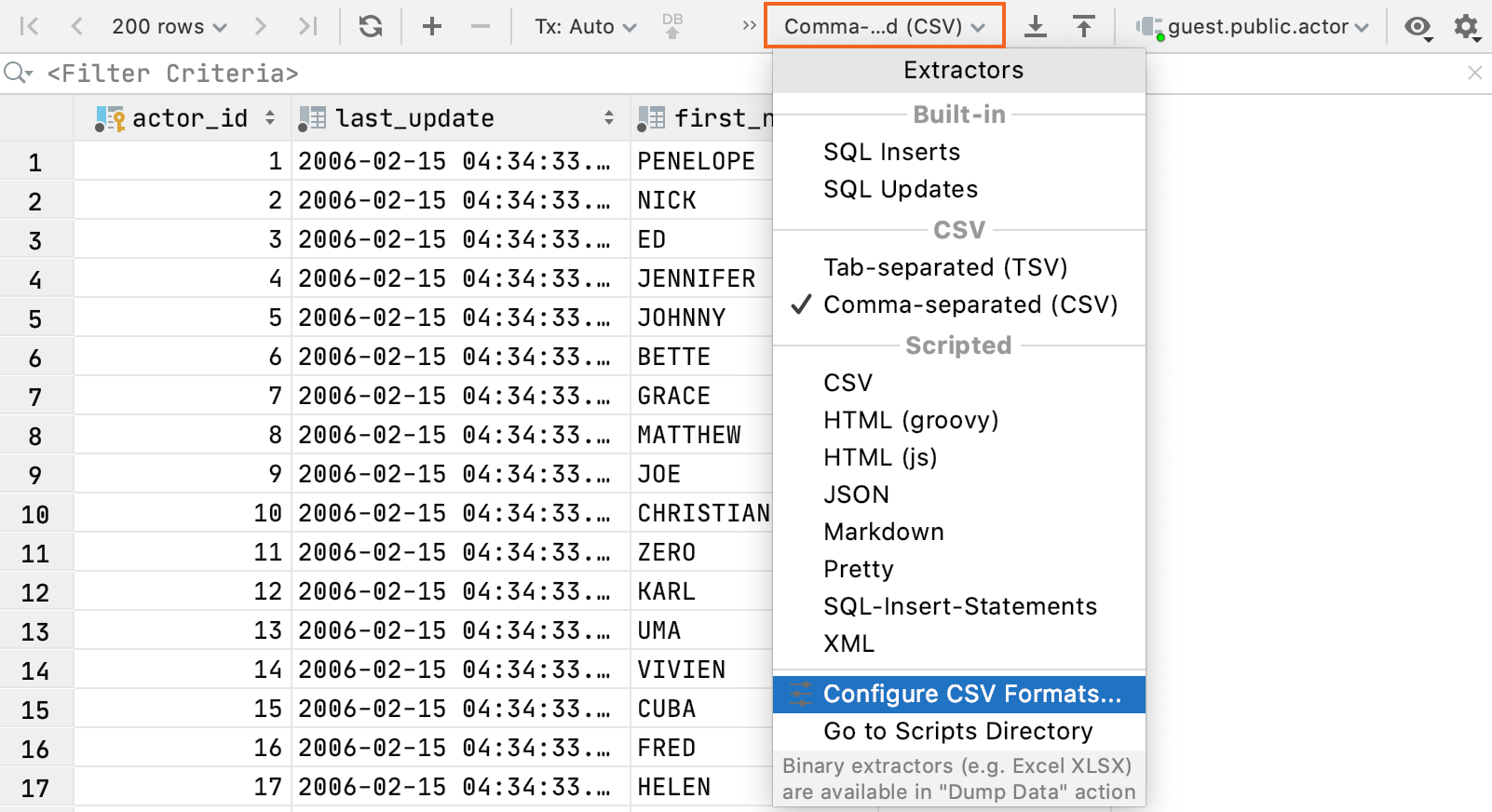

To access this dialog, click the Extractors list on the toolbar and select Configure CSV Formats.

Configure CSV Formats

This page contains the settings for converting table data into delimiter-separated values formats (for example, CSV, TSV) and vice versa.

Import delimiter-separated values into a database

Conversion settings

When you change import settings, the import preview changes correspondingly.

Item

Description

Formats

Select a template that successfully converts the file data into a table. You can change settings of predefined templates or add a new template. To add a template, press Add Format button (the Add Format button).

To save changes, click the Save icon the Save icon and select one of the following options:

  • Save Changes: save changed settings of the current template are saved.

  • Save As: create a new template and save settings of the new template.

  • Save All: save changes in all templates.

Use icons general add,icons general remove, icons actions previousOccurence and icons actions nextOccurence to create, delete and reorder the formats; icons actions copy to create a copy of the selected format.

Value separator

Select or type the character that you want to use as a separator for values.

Row separator

Select or type the character that you want to use as a separator for rows.

Null value text

Select or type the text that you want to use if a cell contains the NULL value.

Add row prefix/suffix

Click the link and type a row prefix and suffix. Prefix and suffix are character sequences which in addition to the row separator indicate the beginning and end of a row.

Quotation

Each line in the area under Quotation is a quotation pattern (see Quote values). A quotation pattern includes:

  • Left: a quotation character that is inserted before a value.

  • Right: a quotation character that is inserted after a value.

  • Escape: an escape method or character for the cases when the quotation character is part of a value. The <duplicate> value means that if a quotation character occurs within a value, it is doubled. You can specify your own escape character.

If there is more than one pattern, the first pattern is used.

Use icons general add,icons general remove, icons actions previousOccurence and icons actions nextOccurence to create, delete and reorder the patterns.

Quote values

Select when you want to enclose values within quotation characters.

  • When needed: a value is quoted if it contains the value or the row separator.

  • Always: all values are quoted.

Trim whitespaces

Ignore or remove whitespace characters. If this checkbox is cleared, the whitespace characters are treated as parts of the corresponding values.

First row is header

Treat the first row as a row that contains column names.

First column is header

Treat the first column as a column that contains row names.

Last modified: 26 May 2020
