Viewing modes of tool windows
You can view and adjust tool windows in various ways to quickly access them and save space when you work in the editor or other tool windows.

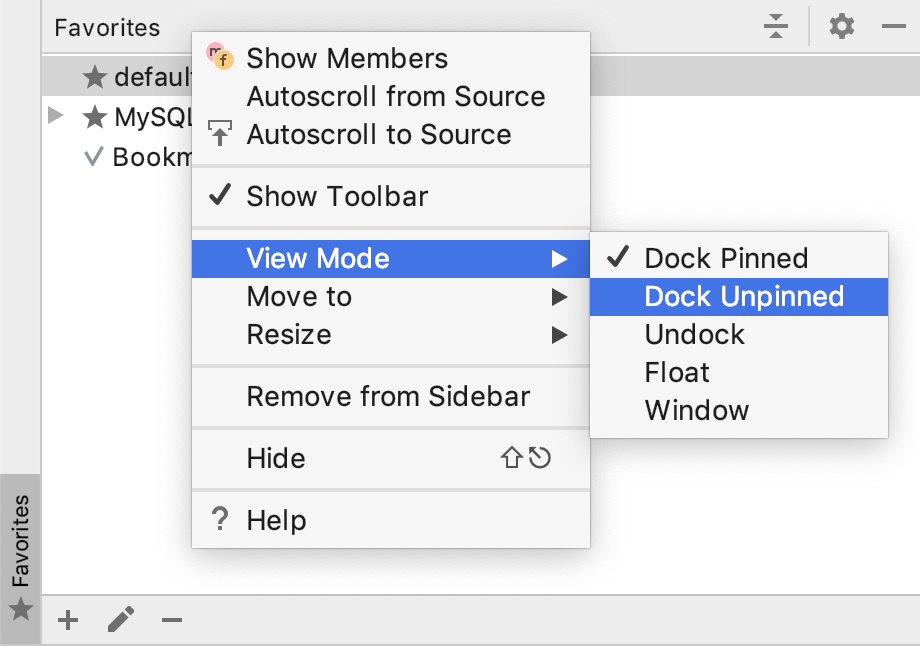

Change view mode of a tool window
From the main menu, selectand the actual mode option.
On the title bar of a tool window, click , from the list of options, selectand the actual mode option.
Right-click a tool window or a title bar and from the list of options, selectand the actual mode option.
You can configure a number of general viewing options for tool windows under Window Options on the page of DataGrip settings Ctrl+Alt+S.
You can make a tool window stay open even if your focus is somewhere else, for example, in the editor or other tool window. To achieve that, use the Dock pinned mode when you select your viewing mode.
To close the tool window when you switch focus, use the Dock unpinned or the Undock mode.
In the docked mode, all the sides of a tool window are attached to surrounding elements (the editor, other tool windows, and so on.) In this mode, the tool window and the adjacent elements share the space available in the main window.
When undocked, all the sides of a tool window (except the one at the tool window bar) are detached from surrounding elements. The window moves to the "upper layer" covering the elements it used to share the space with. In one of the directions (along the tool window bar), the window stretches and takes all the available space. In the other direction, one of the window borders becomes loose and can be moved without affecting the sizes of other, underlying elements.
You can detach a tool window using the Float or the Window mode.
Initially, all the tool windows are in a fixed mode. It means that the tool window stays within the main IDE window.
In the Float mode, a tool window can be moved around the screen, but it stays on top of the main IDE window.
In the Window mode, a tool window behaves as a separate application window. It means that the tool window can be overlapped by the main IDE window.
Wide screen support
DataGrip makes it possible for the tool windows to use the full width and height of the screen. In the Settings dialog Ctrl+Alt+S, expand the node Appearance and Behaviour, and in the Appearance page, use the checkboxes Wide screen tool window layout and Side by side layout on the left/right to optimize placement of the tool windows.
