dotPeek 2019.2 Help

IL Viewer window

Windows | IL Viewer

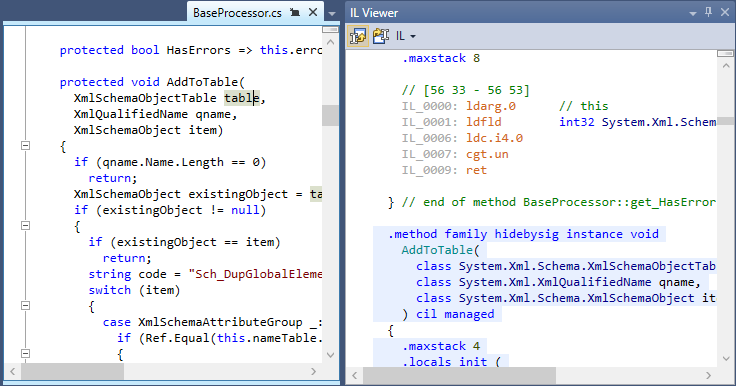

This window displays the current document as Microsoft intermediate language (MSIL). Window content can be synchronized with the code viewer. Most of the navigation actions available in the code viewer are also available in the IL Viewer.

IL Viewer window

In the IL Viewer window, you can learn descriptions of IL instructions in tooltips when hovering the mouse over an instruction. The descriptions are taken from MSDN and from the ECMA-335 standard (Partition III: CIL Instruction Set).

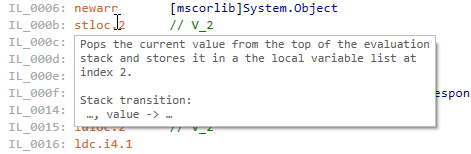

Details of IL instruction in a tooltip

Toolbar Controls

Control

Name

Description

ThemedIcon SyncCaretToView Screen Gray Track Caret in Editor

When this button is pressed, items in the window are highlighted according to the position of the caret in the code viewer.

ThemedIcon SyncViewToCaret Screen Gray Automatically Scroll to Source

When this button is pressed, source code in the code viewer is scrolled according to the items selected in the window.

Last modified: 18 November 2019
