Debug tool window

This tool window becomes available when you start debugging.

It displays the output generated by the debugging session for your application. If you are debugging multiple applications, the output for each application is displayed in a separate tab named after the corresponding run/debug configuration.

For each application, there are the following nested tabs:

  • Console: displays system information and error messages, and the console input and output of your application.

  • Debugger: this tab is divided into the following areas:

Each area has a context menu that allows you to configure its behavior and navigate between tabs.

Each of the tabs and areas can be hidden/restored, or moved to a location of your choice.

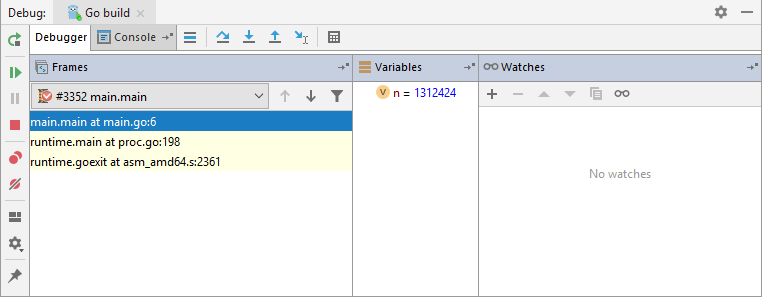

GoLand: Debug window

Debug toolbar

ItemTooltip and ShortcutDescription
RestartRerun
Ctrl+F5
Click this button to stop the current application and run it again.
Resume Debug
F9
When the current application is stopped, click this button to debug it again. When an application is running, this button toggles to Restart.
ResumeResume Program
F9
When an application is paused, click this button to resume program execution.
PausePause Program
Ctrl+Pause

Click this button to pause program execution.

StopStop
Ctrl+F2
Click this button to terminate the current process externally by means of the standard shutdown script .
View breakpointsView Breakpoints
Ctrl+Shift+F8
Click this button to open the Breakpoints dialog where you can configure breakpoints behavior.
Mute breakpointsMute Breakpoints

Use this button to toggle breakpoints status.

When the icons.debugger.muteBreakpoints.png button is pressed in the toolbar of the Debug tool window, all the breakpoints in a project are muted, and their icons become grey: muted breakpoint png.

You can temporarily mute all the breakpoints in a project to execute the program without stopping at breakpoints.

restore layoutRestore LayoutClick this button to abandon changes to the current layout and return to the default state.
Show options menuShow Options Menu

Click this button to open the menu with the following options available:

  • Show Values Inline: select this option to enable the Inline Debugging feature that allows viewing the values of variables right next to their usage in the editor.

  • Sort Values Alphabetically: select this option to sort the values in the Variables pane in the alphabetical order.

  • Unmute Breakpoints on Session Finish: select this option to re-enable all disabled breakpoints after the debugging session has been finished.

icons.general.pin_tab.pngPin Tab Click this button to pin or unpin the current tab. You may need to pin a tab to prevent it from closing automatically when the maximum number of tabs is reached in this window.

Stepping toolbar

ItemTooltip and ShortcutDescription
Show Execution PointShow Execution Point
Alt+F10
Click this button to highlight the current execution point in the editor and show the corresponding stack frame in the Frames pane.
Step overStep Over
F8
Click this button to execute the program until the next line in the current method or file, skipping the methods referenced at the current execution point (if any). If the current line is the last one in the method, execution steps to the line executed right after this method.
Step intoStep Into
F7

Click this button to have the debugger step into the method called at the current execution point.

Step outStep Out
Shift+F8
Click this button to have the debugger step out of the current method, to the line executed right after it.
Run to cursor Run to Cursor
Alt+F9

Click this button to resume program execution and pause until the execution point reaches the line at the current cursor location in the editor. No breakpoint is required. Actually, there is a temporary breakpoint set for the current line at the caret, which is removed once program execution is paused. Thus, if the caret is positioned at the line which has already been executed, the program will be just resumed for further execution, because there is no way to roll back to previous breakpoints. This action is especially useful when you have stepped deep into the methods sequence and need to step out of several methods at once.

If there are breakpoints set for the lines that should be executed before bringing you to the specified line, the debugger will pause at the first encountered breakpoint.

Evaluate expressionEvaluate Expression
Alt+F8
Click this button to evaluate expressions.
the Add method to skip list button Add method to skip list

Click this button to add the method you have stepped into to a skip list.

You can configure this list on the Languages & Frameworks | PHP | Debug | Step Filters page of the Settings/Preferences dialog Ctrl+Alt+S .

Hide/restore toolbar

IconTooltipDescription
Hide a debugger pane.HideClick this button located in the upper-right corner of the Debug Console, Watches, Frames, or Variables pane to hide the corresponding area. When an area is hidden, its icon appears in the upper-right corner of the Debugger.
Debug consoleRestore 'Console' viewClick this button to make the Console area visible. This button becomes available after clickingMove to button.
Debugger frameRestore 'Frames' viewClick this button to make the Frames area visible. This button becomes available after clicking move to button.
Restore Variables viewRestore 'Variables' viewClick this button to make the Variables area visible. This button becomes available after clicking move to button.

Moving tabs and areas

If you are unhappy with the default layout of the Debug tool window, you can always move the tabs and areas. To do that, just drag a tab or an area to the desired location. The possible target gets highlighted.

Drop the tab or area in the highlighted location.

To restore the default layout of tabs and area, click Restore layout in the Debug toolbar.

Context menu of a tab

Use the context menu of the Frames , Variablesor Watches areas to configure the behavior of these areas or navigate between tabs.

ItemDescription
HideClick this button to hide the corresponding area
Close OthersClick this button to hide all tabs except for the Console and Debugger tabs.
Focus On StartupIf this option is selected, the selected area gets the focus when you start a debugging session.
Focus On BreakpointIf this option is selected, the selected area gets the focus when a breakpoint is reached.
Select Next Tab / Select Previous Tab
Ctrl+Alt+Right / Ctrl+Alt+Left
Use these options to switch between the Console and the Debugger tabs.
