Configure TLS in the Web-based Configuration Wizard

Hub allows you to secure the network connection with a built-in TLS. You can enable HTTPS mode either in the Configuration Wizard or from the command line. However, no matter which method you prefer, this procedure does not depend on the distribution type that you use. Thus, the procedures are described separately from the basic ones.

This page describes steps to enable HTTPS in the Configuration wizard. For the detailed instructions for the command line, see Configure TLS from the Command Line.

A summarized procedure for enabling the built-in TLS in Configuration Wizard looks as follows:

  • If you have a running Hub service, stop it.

  • Start an installation or an upgrade.

  • In the web-based Configuration Wizard, enable and configure HTTPS settings.

  • Complete installation or upgrade.

  • Enjoy running your Hub server over HTTPS.

Let's see the procedures in more details.

Enable HTTPS during Installation

To enable HTTPS during a clean installation

  1. Prepare a compliant server private key and certificate or a keystore.

  2. Start installation.

  3. When the web-based Configuration Wizard is open, click the Set up link.

  4. In the Server settings page, click the HTTPS tab to enable the TLS settings. The port and the base URL are corrected automatically.

  5. Optionally, enable the Redirect from HTTP to HTTPS option. This option enables a non-secure port that receives all HTTP requests and redirects them to the secure listen port.

  6. Depending on whether you use a keystore or a private key and certificate, select the relevant option.

  7. Provide the required files:

    • For the keystore: the keystore file, its password, the alias and its password.

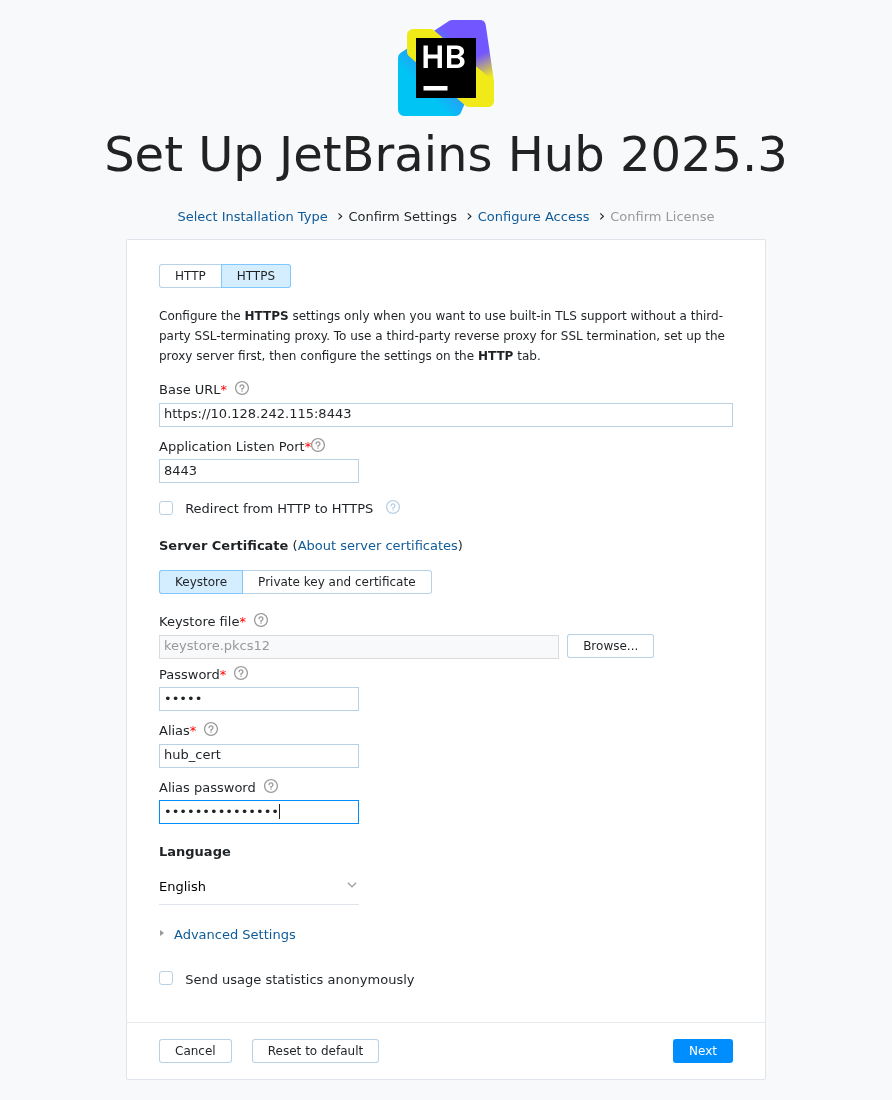

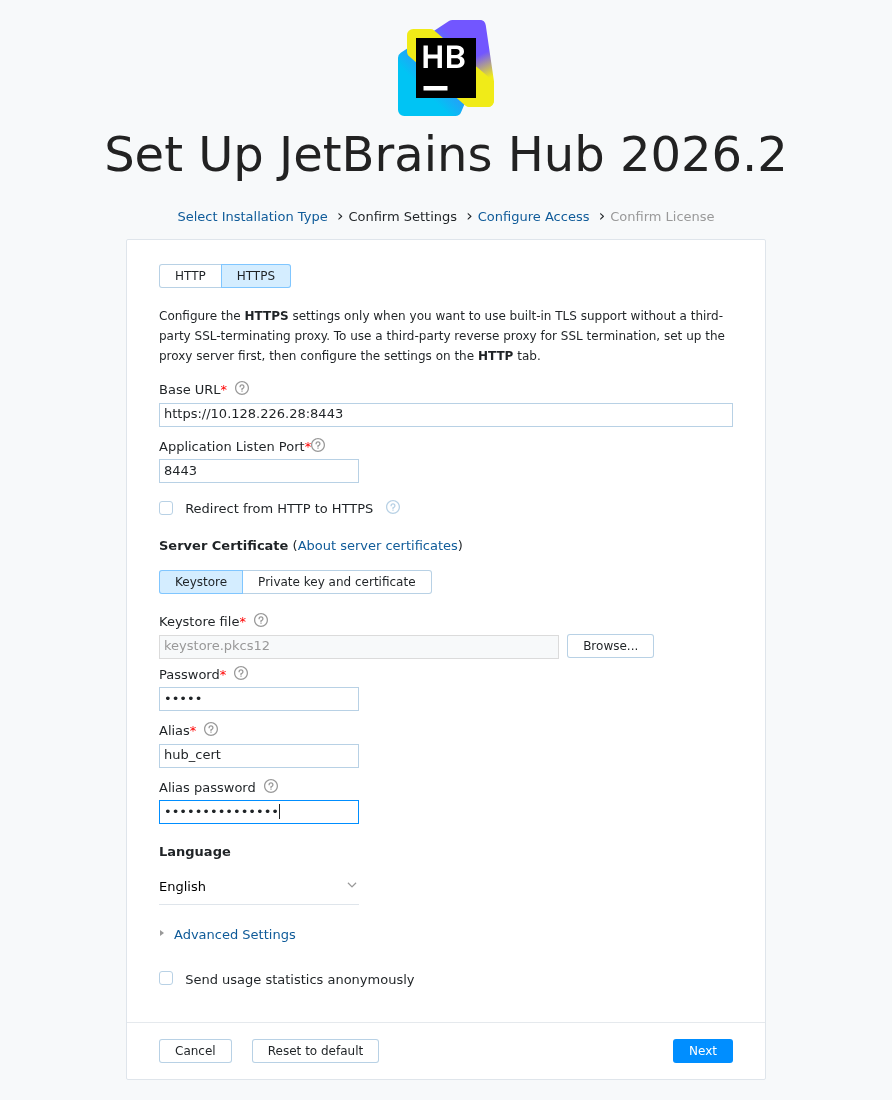

      Install Hub - Built-in TLS with a keystore
    • For the certificate: the private key, certificate itself, and, optionally, the chain certificate, if you use one.

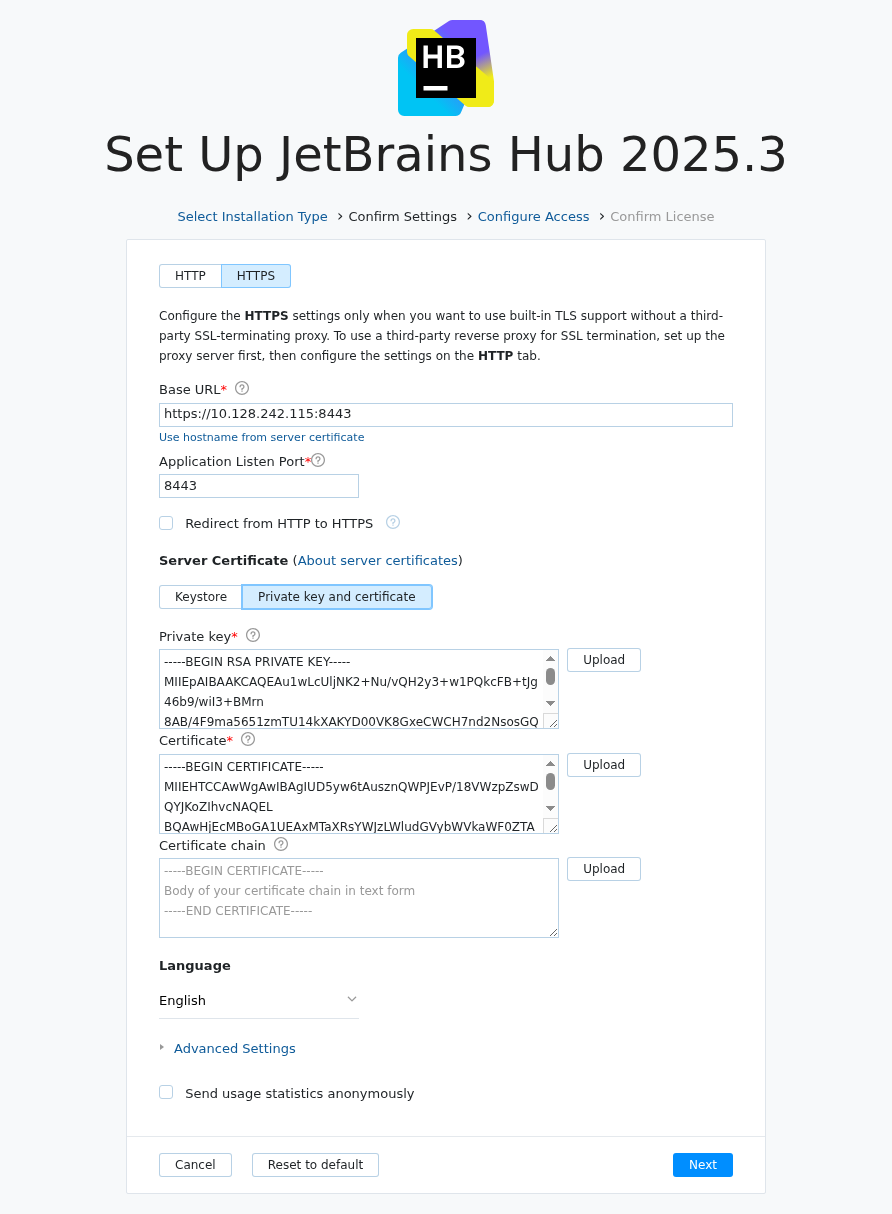

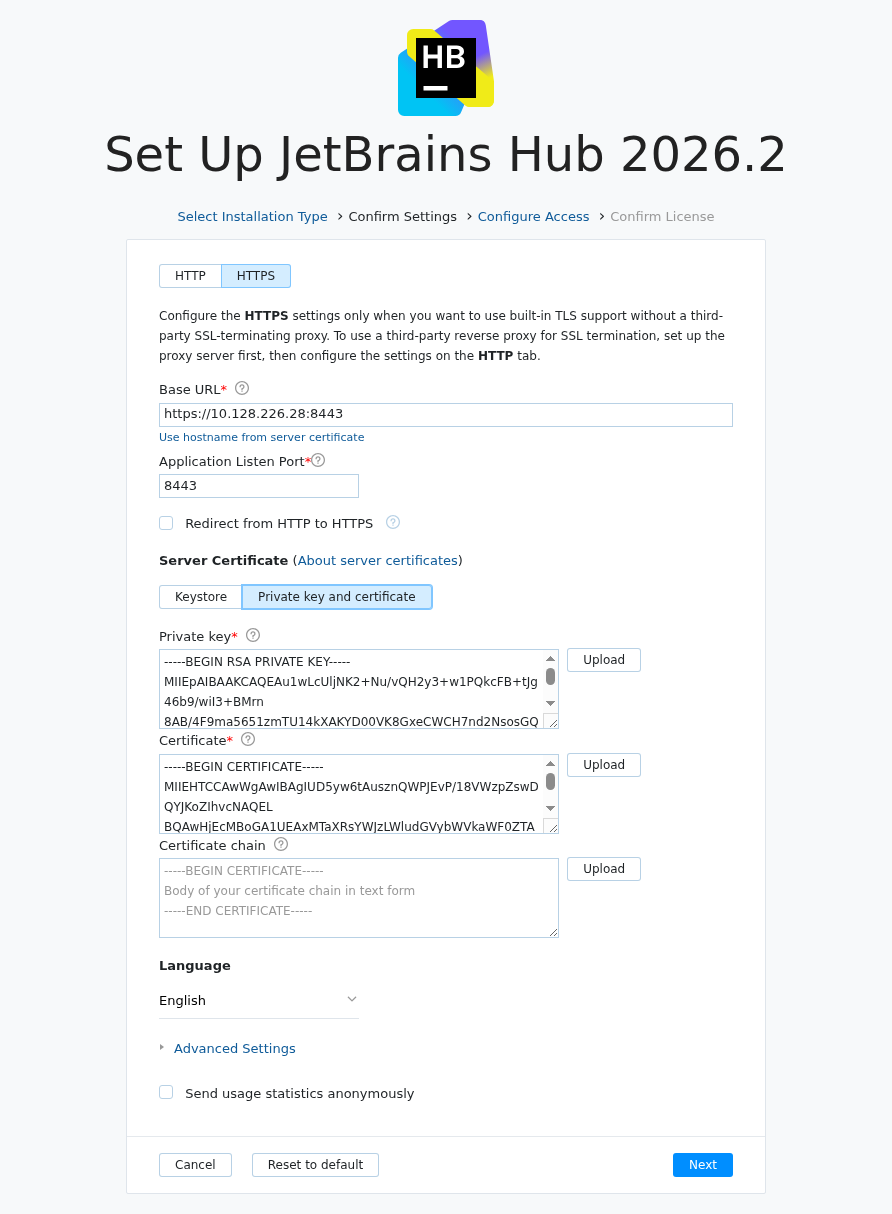

      Install Hub - Built-in TLS with a certificate

    For more details about the TLS specific parameters, refer to the table below.

  8. Complete the remaining steps of the Configuration Wizard to finish the installation and start the Hub service.

Upgrade Scenarios with Built-in TLS

When it comes to the upgrade, you have three use cases:

  • You want to enable the TLS on a server that previously used plain HTTP.

  • You have a server that is already configured to use the built-in TLS. You just want to get a newer version of the application.

  • You have a server that is already configured to use the built-in TLS. However, you want to use another certificate or a keystore for the server. The reason might be an expiring certificate in the existing database, or, for example, you wish to switch to a production environment and stop using a self-signed existing certificate. Regardless the reason, you can upload a new certificate or a keystore during the upgrade in the web-based Configuration wizard.

Switch from HTTP to HTTPS During Upgrade

If your previous version used the plain HTTP connection, then the steps to enable and configure the built-in TLS are quite similar to those during the clean installation.

To enable HTTPS during an upgrade:

  1. Stop the currently running Hub service.

  2. Start a newer installation package or a docker image.

  3. On the start page of the Configuration Wizard, click Upgrade.

  4. Select the upgrade source.

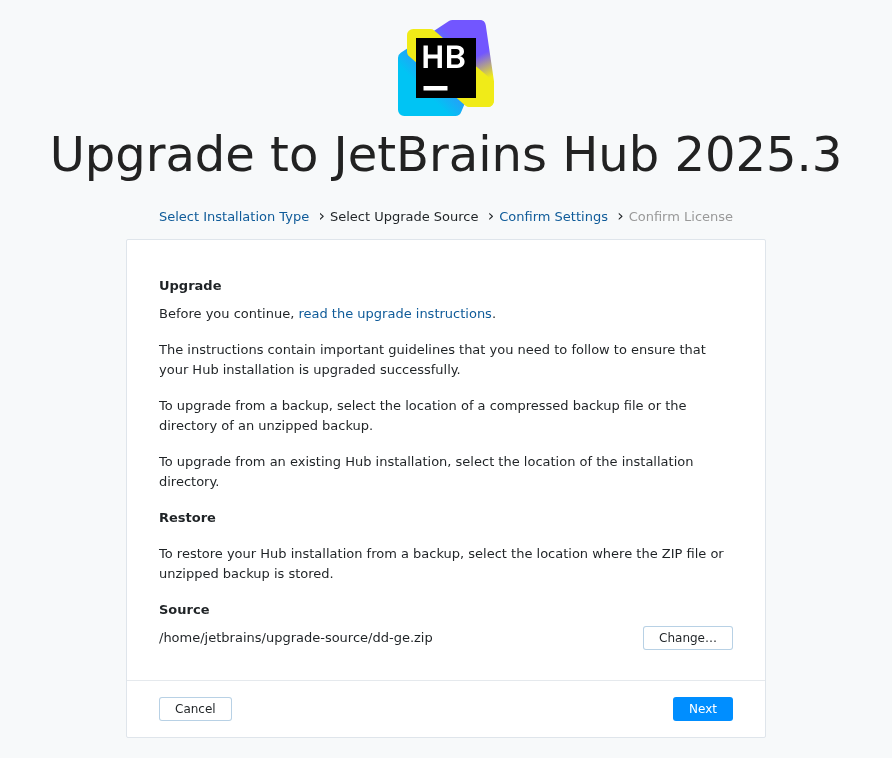

    Upgrade Hub - Source
  5. Click HTTPS tab to configure TLS.

  6. Optionally, select Redirect from HTTP to HTTPS. This option enables a non-secure port that receives all HTTP requests and redirects them to the secure listen port.

  7. Depending on whether you use a keystore or a private key and certificate, select the relevant option.

  8. Provide the required files:

    • For the keystore: the keystore file, its password, the alias and its password.

    • For the certificate: the private key, certificate itself, and, optionally, the chain certificate, if you use one.

    For more details, see the TLS-specific Attributes.

  9. Review and adjust other settings.

  10. When done, click Upgrade to finish upgrading Hub service.

Upgrade a Server with Enabled TLS and Valid Certificate

If the built-in TLS was enabled in your previous installation and the server certificate or keystore is still valid, then you can safely reuse them during the upgrade.

To upgrade an existing service with already enabled built-in TLS:

  1. Stop the currently running Hub service.

  2. Run a newer installation package or a docker image.

  3. On the start page of the Configuration Wizard, click Upgrade.

  4. Select the upgrade source.

    Upgrade Hub: Select source
  5. Click HTTPS tab to configure TLS.

  6. Optionally, enable Redirect from HTTP to HTTPS.

  7. If the source database contains the valid server certificate, the option Use existing files is enabled by default. The validity date of the found server certificate is provided next to this option.

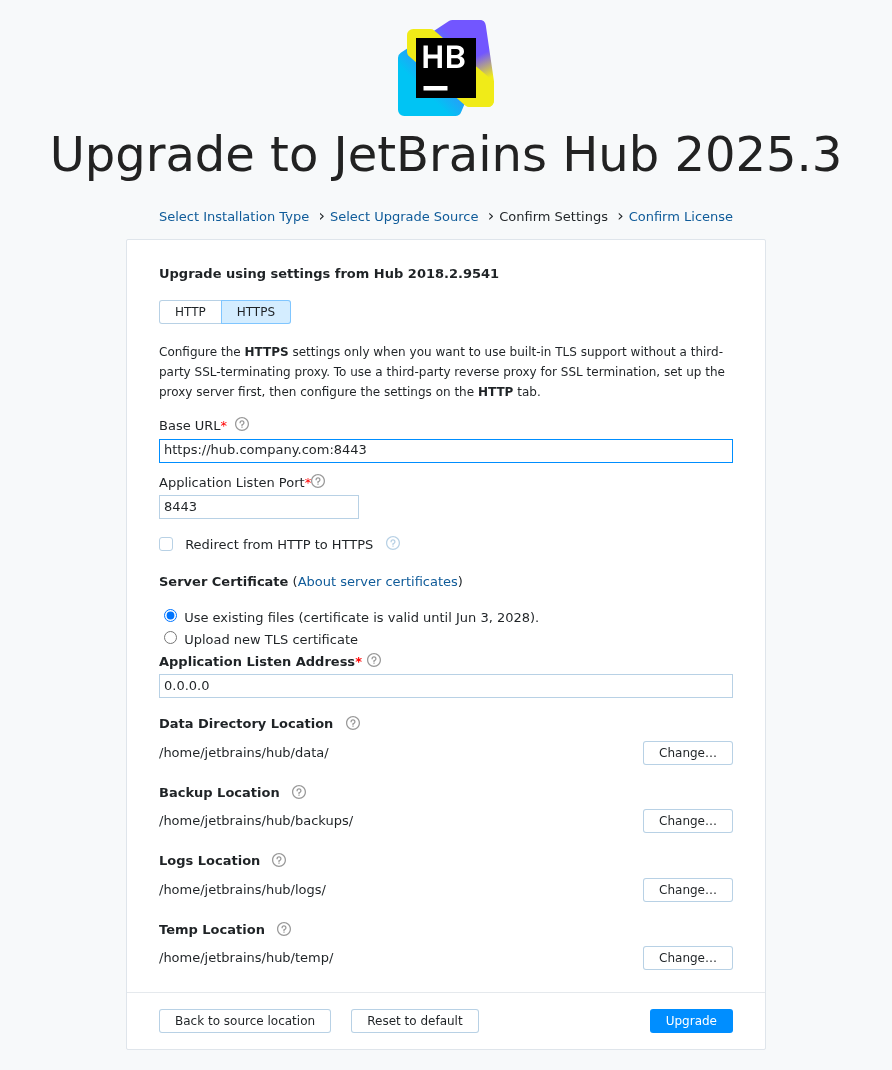

    Upgrade Hub - Use existing valid certificate
  8. Review other settings, and adjust if required.

  9. When done, click Upgrade to finish upgrading Hub service.

Apply a New TLS Certificate or Keystore during Upgrade

If built-in TLS was enabled for your installation but the server certificate or keystore is invalid or expiring, you can upload a new one during upgrade.

To enable HTTPS during upgrade:

  1. Stop the Hub service.

  2. Run a newer installation package or Docker image.

  3. When the Configuration Wizard launches, click the Upgrade link.

  4. Select the upgrade source.

    Upgrade Hub - Select source
  5. During the Confirm Settings step, switch to the HTTPS configuration.

  6. Optionally, enable the Redirect from HTTP to HTTPS option. This enables a non-secure port that receives all HTTP requests and redirects them to the secure listen port.

  7. For the Server Certificate setting, select the Upload new TLS certificate option. Depending on whether you use a keystore or a private key and certificate, select the relevant option.

  8. Provide the required files:

    • For a keystore: the keystore file, its password, the alias and its password.

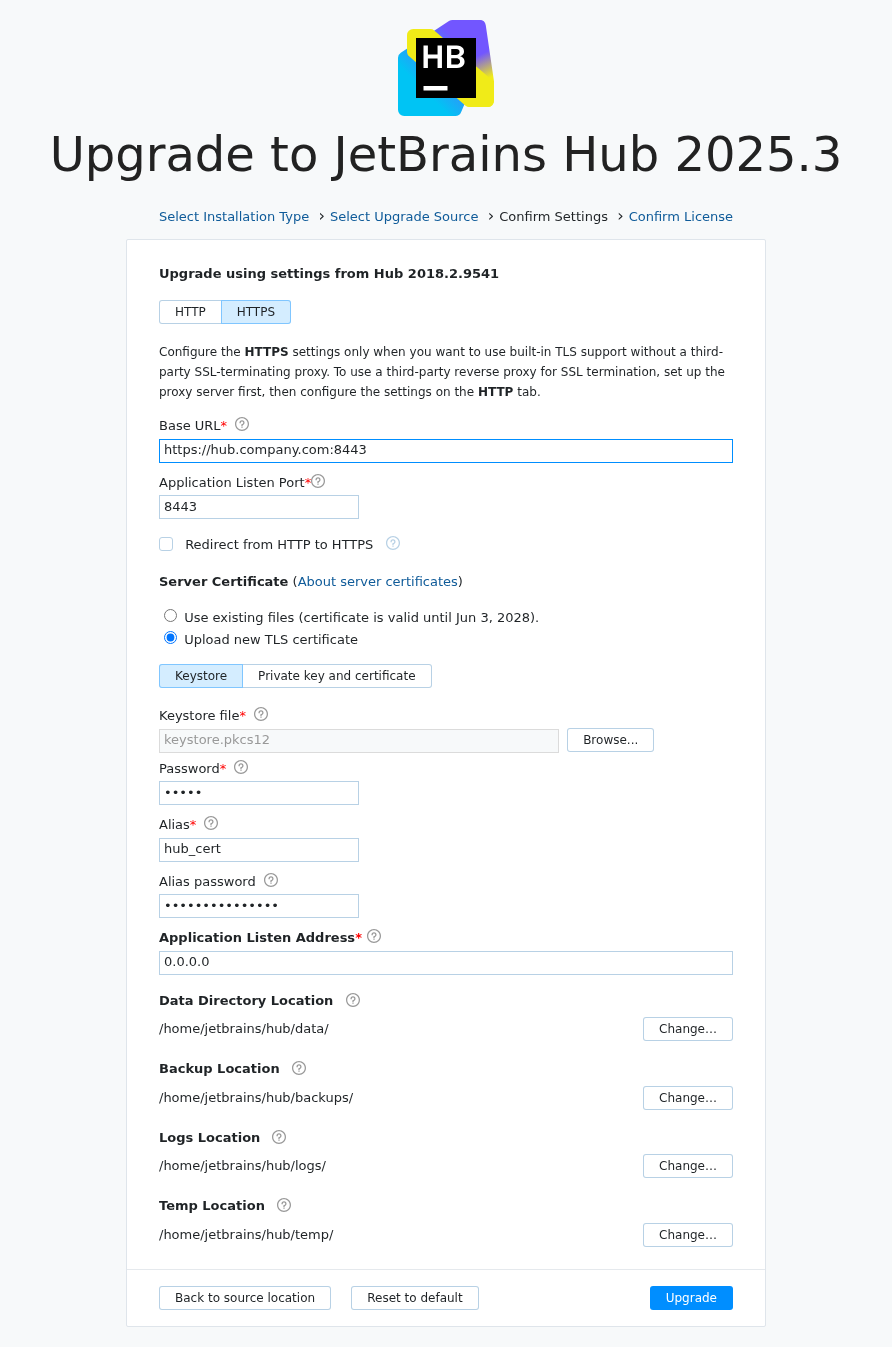

      Upload new server keystore during upgrade
    • For a certificate: the private key, certificate itself, and, optionally, the chain certificate, if you use one.

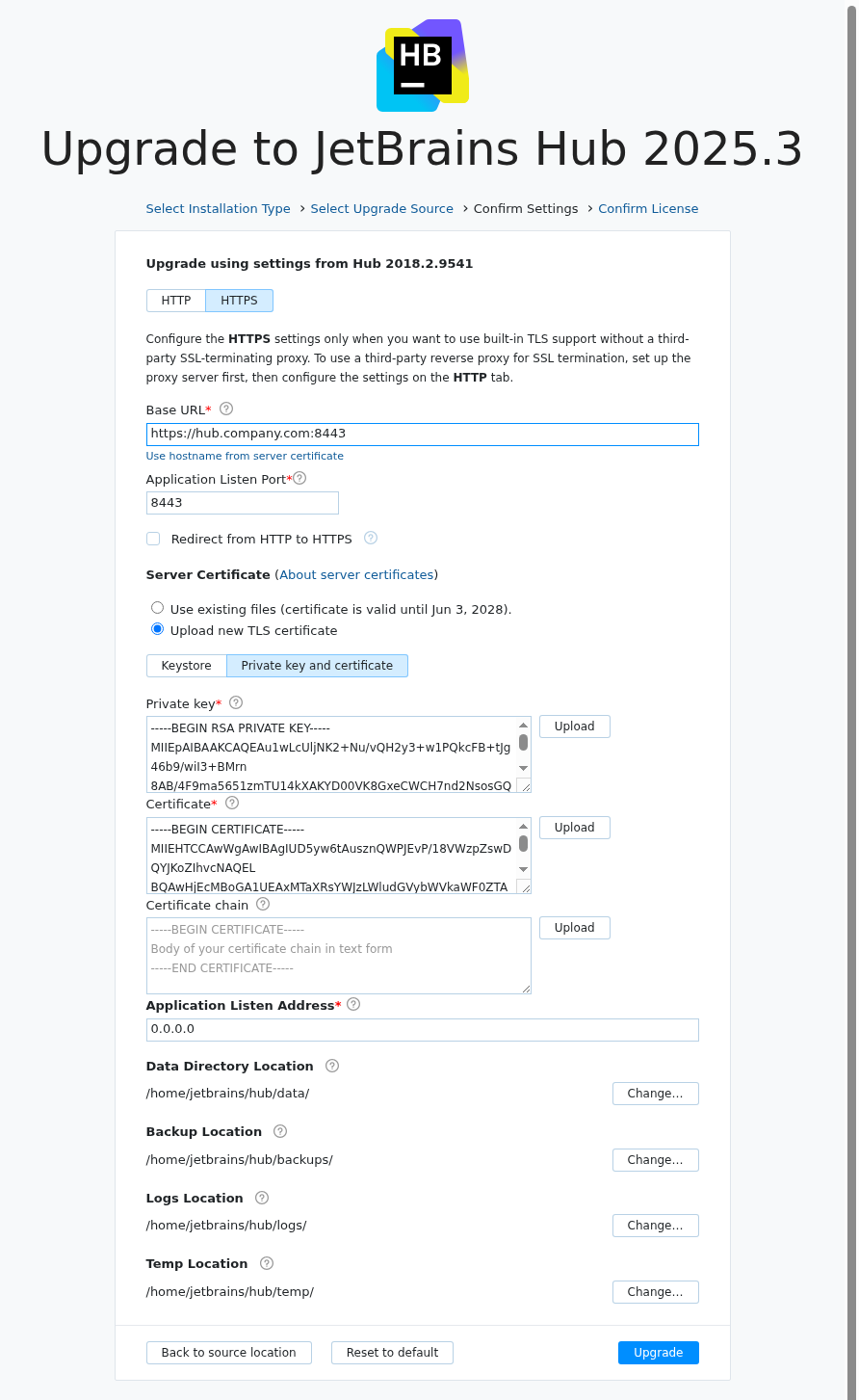

      Upload new server certificate during upgrade

    For details, see TLS Settings.

  9. Review other settings, and adjust if required.

  10. When done, click Upgrade and finish upgrading the Hub service.

TLS Settings

Setting

Description

Redirect from HTTP to HTTPS

Option that lets you to enable and configure a non-secure port to redirect all HTTP requests to the newly configured HTTPS secure port.

Keystore

Keystore file

A keystore is a JKS or PKCS #12 file that contains a certificate and a private key that secure your HTTPS connection.

Password

The password that protects the keystore file.

Alias

The alias (known as the "friendly name" for PKCS #12) of the entry in the keystore that contains the server certificate and the private key.

If you use a PKCS #12 keystore, and the private key and certificate pair is not marked with a friendly name during generation, enter the sequential number of this pair in the keystore as the Alias. If the keystore contains only one pair of private key and certificate, then enter 1 in the Alias field.

Alias password

The password that was used to encrypt the private key. If the private key is not encrypted, leave the field blank.

This field is optional. When left blank, the configuration wizard first checks whether the keystore password is used as the alias password. If this doesn't match, the wizard tries again using an empty value. If neither of these values is a match, an error message informs you that the alias password is incorrect.

Private key and certificate

Private key

The private key PEM file that secures and verifies connections using your server certificate.

Certificate

Server certificate PEM file that secures the HTTPS connection to your domain.

Certificate chain

The chain of intermediate certificates between your server certificate and the root certificate.

To learn how to generate a private key and certificate, see TLS Server Certificates and Keystores.
