Customize Threads View

Debug tool window | Frames | context menu | Customize Threads View Debug tool window | Threads | context menu | Customize Threads View

Use this dialog box to manage contents view and groupings of the Frames tab.

Item	Description
Show thread groups	If this option is selected, threads appear in a hierarchy of thread groups, allowing you to drill down into each group to access its member threads.
Show stack frames for synthetic methods	Specify whether you want stack frames for synthetic methods to be shown.
Move current thread to the top	Select this check box to keep the current thread on top of the list.
Show line number	If this check box is selected, the line number is displayed.
Show class name	If this check box is selected, the name of a class containing the method is shown.
Show package name	If this check box is selected, the name of the class package is shown. This check box allows hiding package names in the Threads view.
Show source file name	Shows the name of source file that contains the method.

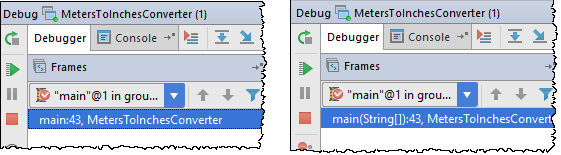

Show method arguments types	If this check box is selected, the method type is shown next to the method name in the Frames or Threads panes of the Debugger. For example, the unselected vs selected check box is shown in the following image:
