Alter the program's execution flow

While debugging an application, you typically follow the normal flow of a program. However, there are cases when you need to deviate from it. This can be required in order to reproduce certain conditions or to test how the program deals with issues (for example, processes a null value or handles an exception).

Also, this is convenient when you need to skip particular parts of the program that aren't related to the problem you are currently examining.

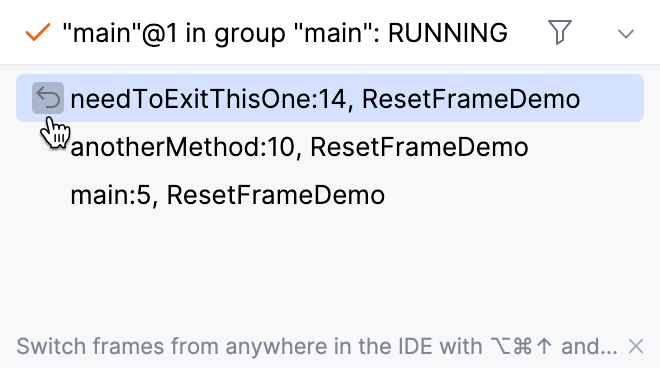

Return to a previous stack frame

IntelliJ IDEA lets you fall back to a previous stack frame in a program's execution flow. This can be useful, for example, if you've mistakenly stepped too far, or want to re-enter a method where you missed a critical spot.

  • Click the Drop Frame icon Drop frame on the toolbar of the Debug tool window.

    Drop Frame

Use breakpoint expressions

In order to change the flow of your program, you can use non-suspending breakpoints that evaluate an expression when hit. This is useful, for example, when you want to automatically modify your variables during debugging.

public class AlteringFlow { private static boolean readyToExit = false; private void printHello() { System.out.println("Hello"); //more code goes here readyToExit = true; } public static void main(String[] args) { AlteringFlow af = new AlteringFlow(); af.printHello(); if (!readyToExit) main(null); // line n1 } }

In the example, resetting readyToExit to false will make the printHello method be executed over and over until we disable the breakpoint that resets it.

Also, breakpoint expressions can be utilized to add some logic that you want to be only used during debugging.

public class AlteringFlow { private static boolean addDebugLogic; public static void main(String[] args) { System.out.println("Hello"); if (addDebugLogic) new Debug().doSomething(); } } class Debug { void doSomething() { // code goes here } }
  1. Add a breakpoint at the line where you want to modify the program state.

  2. Go to breakpoint properties.

  3. In the properties of the new breakpoint, clear the Suspend checkbox and enter the expression that will modify the program state in the Evaluate and log field.

Force return from the current method

You can exit a method before it reaches the return statement and make it return an arbitrary value. This is useful when the problem is related to the return value of the method and not to how it's produced. Force return helps you test how the return values are handled by the program without having to reproduce the conditions that lead to these values.

When you use Force return, the instructions after the current execution point are disregarded.

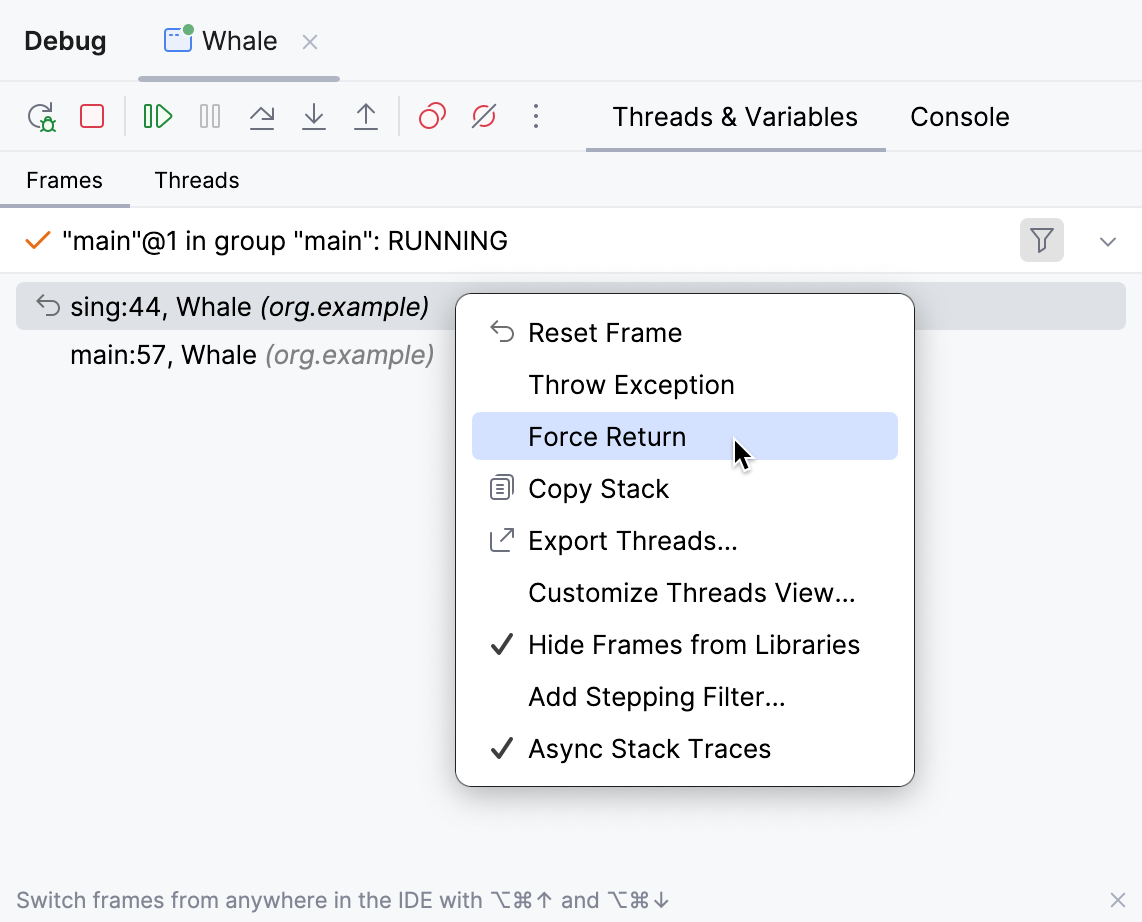

  1. Make sure the current method is selected on the Frames tab, then right-click anywhere in the tab and select Force Return.

    Force Return menu item

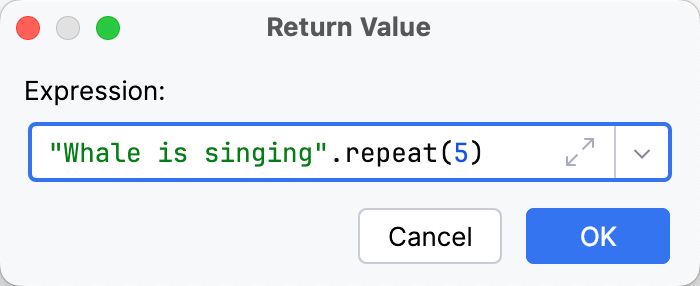

  2. If the method returns a value (its return type is not void), specify the value or an expression that will calculate it.

    Return Value dialog

    Expressions are evaluated in the local context and can use any local variables that have already been declared. The return value must conform to the method's return type.

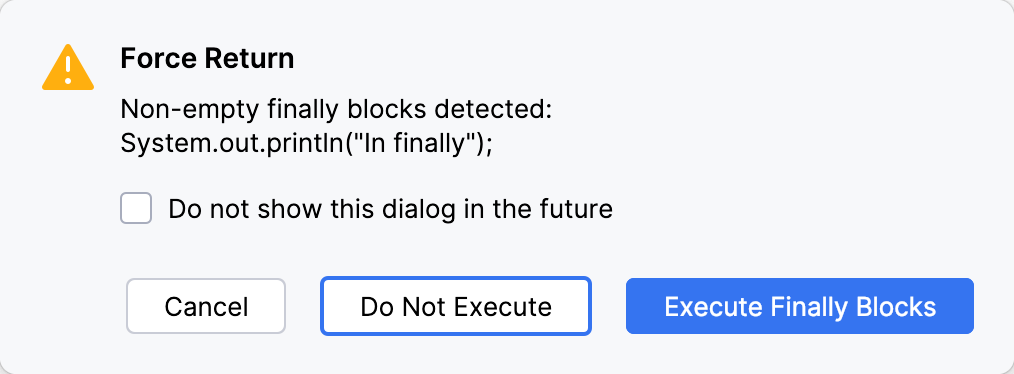

  3. If the execution point is currently in a try,catch, or finally block and there are lines of code in finally that have not been executed, select whether you want to skip them.

    Dialog asks you whether you want to                 execute code in finally

Throw an exception

IntelliJ IDEA lets you throw an exception or error from the currently executed method. This is useful when you want to test how a particular type of exception is handled in your program without having to reproduce the cause or modify the code.

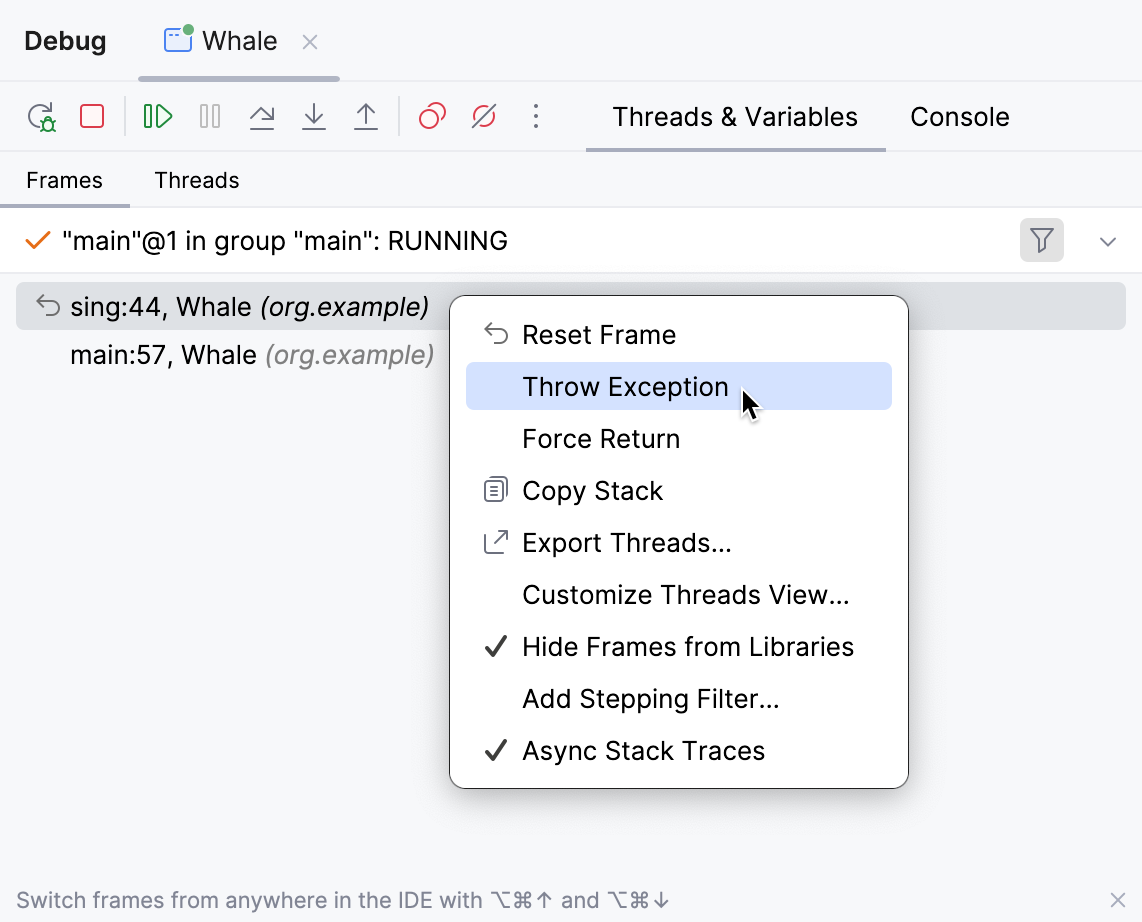

  1. Make sure the current method is selected on the Frames tab, then right-click anywhere in the tab and select Throw Exception.

    Throw Exception menu item

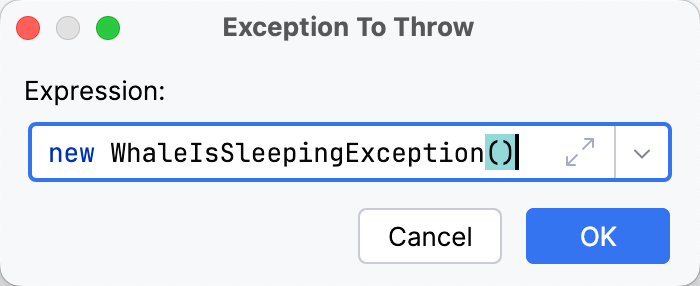

  2. Create the exception (this can be any Throwable including Error and checked exceptions that are not handled by the method). Do not use the throw keyword.

    Exception To Throw dialog

Reload modified classes

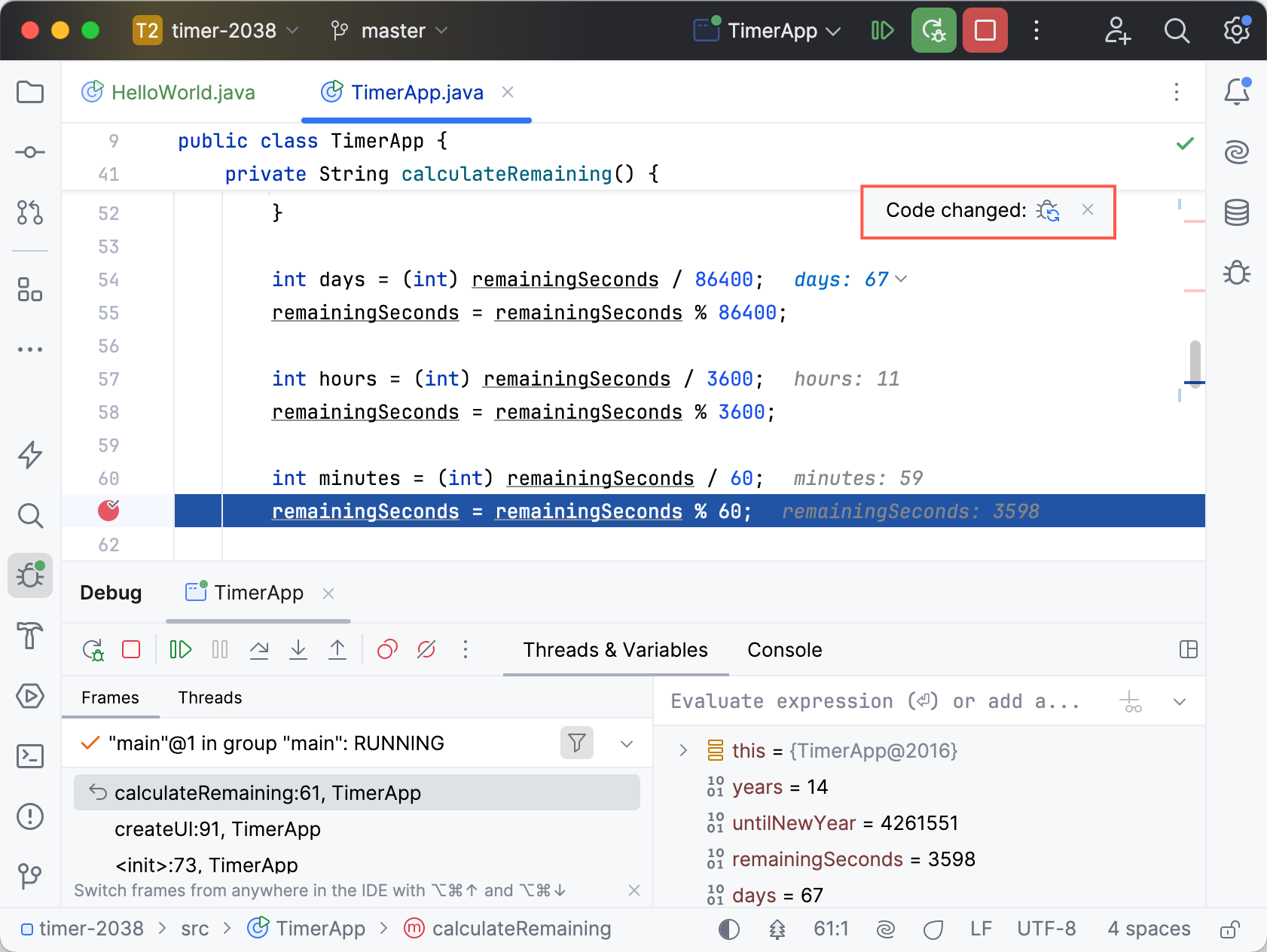

Sometimes, when you're making minor changes to your code, you want to immediately see how they will behave in a working application without shutting down the process. The HotSwap mechanism lets you reload classes changed during a debugging session without having to restart the entire application.

Reload single file

  • Right-click in the editor tab of the modified file and select Compile and Reload File.

You can also configure automatic reloading of classes after they have been recompiled using the Reload classes after compilation option in Settings/Preferences | Build, Execution, Deployment | Debugger | HotSwap. Automatic reloading can be enabled/disabled, or you can configure it so that the debugger asks you whether to reload the file in each specific case.

Reload all files

  • From the main menu, select Run | Reload Changed Classes.

Recompilation happens automatically if the Build project before reloading classes option is enabled in Settings/Preferences | Build, Execution, Deployment | Debugger | HotSwap. If this option is disabled, you need to recompile the files before reloading (Build | Recompile Ctrl+Shift+F9).

HotSwap limitations

Due to VM design, HotSwap has the following limitations:

  • it is only available if a method body is modified. Changing signatures is not supported.

  • adding and removing class members is not supported

  • if the modified method is already in the call stack, the changes will take effect only after the program exits the modified method. Until that moment, the method body remains unchanged, and the frame is marked as obsolete.

If you want to remove the limitations imposed by the standard VM, you can use the Dynamic Code Evolution VM with unlimited support for reloading classes at runtime.

Last modified: 24 December 2019
