Persistence tool window

If you have at least one module with the JPA facet in your project, you can use the Persistence tool window to view and manage various JPA items: configuration files, persistence units, and managed entities (persistent classes and fields).

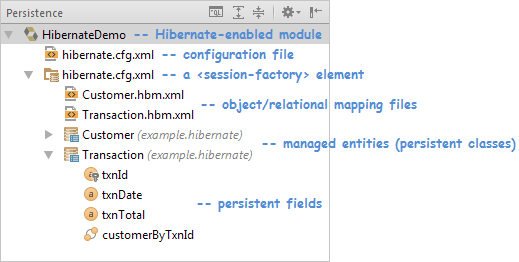

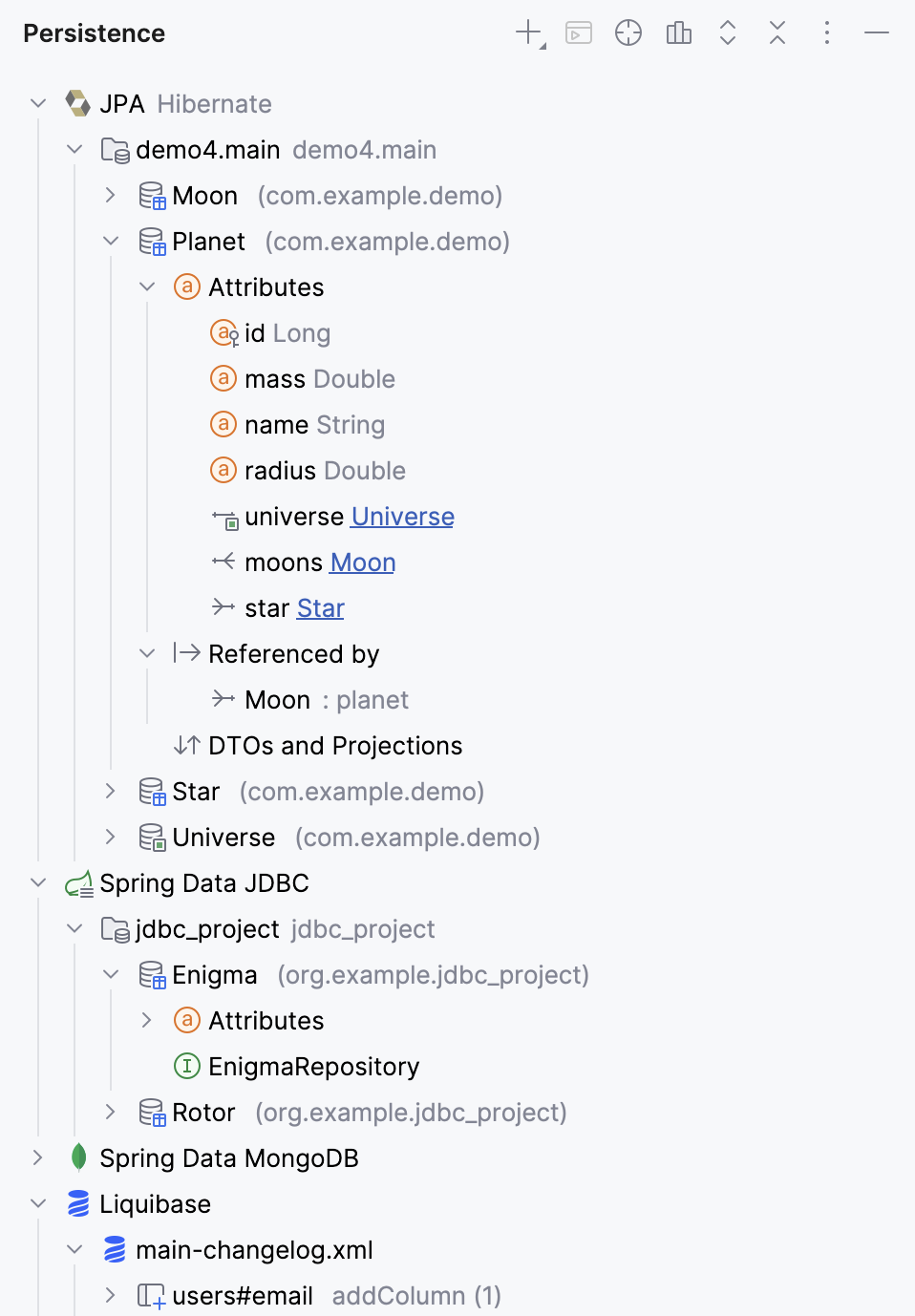

The Persistence tool window

For information about adding a JPA facet to your project, see Enable JPA support for an existing Java Enterprise project.

Navigate to entity definitions

To navigate from an entity in the Persistence tool window to the corresponding source code definition in the editor, do one of the following:

  • Double-click a field.

  • Select a field or class and press F4.

  • Right-click a field or class and select Jump to Source.

Create new entities

Use the New action in the Persistence tool window to create XML configuration files, persistence units, entity classes and fields with their getters and setters, embeddable objects, mapped superclasses, entity listeners, object-relational mappings, and so on.

  • Select an item and press Alt+Insert.

  • Right-click an item and select New.

View entity relationship diagrams (ERD)

  • Right-click a managed entity and select Entity Relationship Diagram.

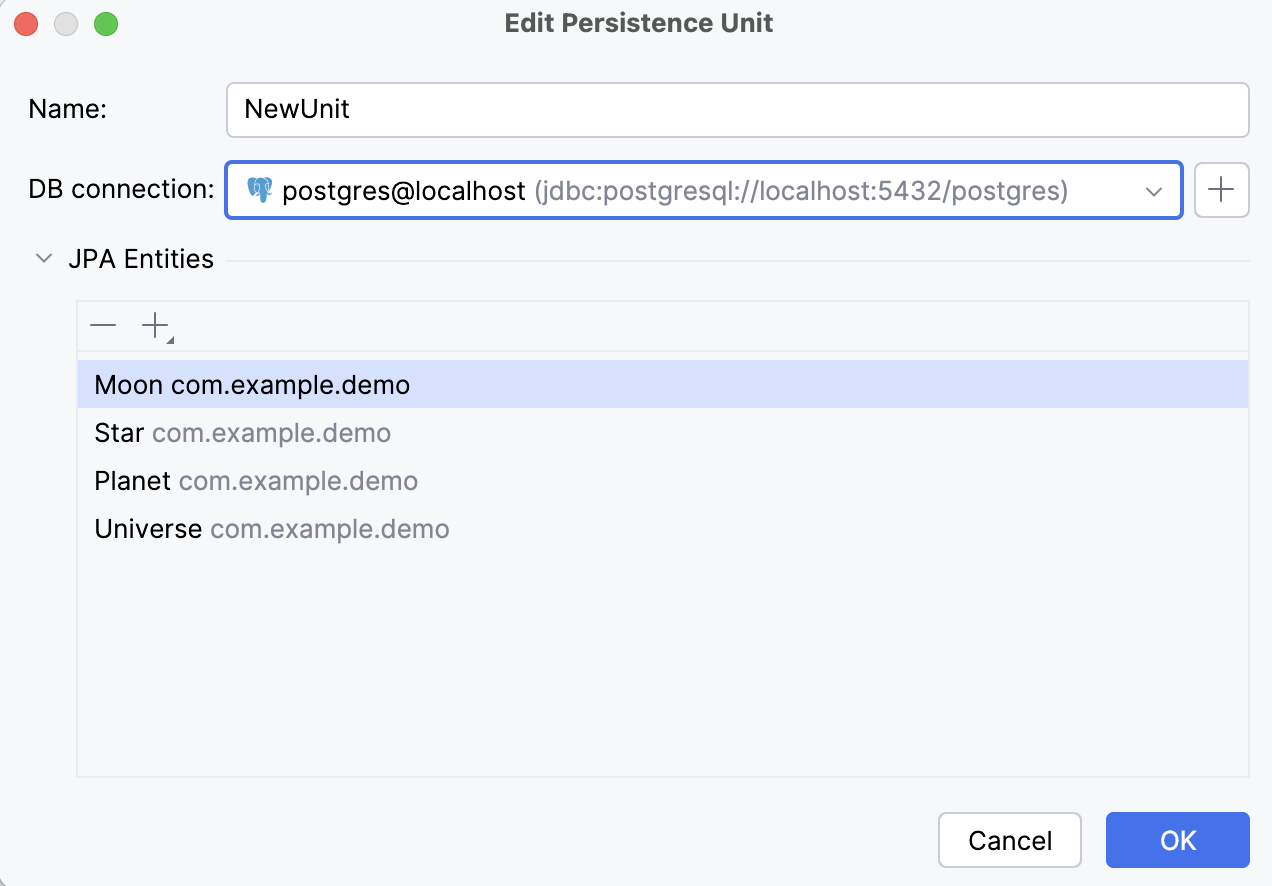

Associate persistence units with data sources

  1. Right-click a module, persistence unit, or entity, and select Assign Data Sources.

  2. Select necessary data sources for relevant persistence units and click OK.

With this association, IntelliJ IDEA will validate the source code that references database tables against the corresponding data sources. Also, the JPA console will use proper database connection settings, and you won't need to specify them manually.

Associate persistence units with naming strategies

  1. Right-click a module, persistence unit, or entity, and select Assign Naming Strategies.

  2. Select necessary naming strategies for relevant persistence units and click OK.

Run JPQL queries

  • Right-click a persistence unit or entity and select Console or click The Console button in the toolbar Ctrl+Shift+F10.

This will open the JPA console where you can write and execute JPQL queries.

Generate persistence mappings

You can generate managed entity classes and object-relational mappings from a database schema represented by a data source, from entity beans in an EJB facet with an associated deployment descriptor file ejb-jar.xml, or from a Hibernate object-relational mapping file .hbm.xml.

  1. Right-click a module or a persistence unit, point to Generate Persistence Mapping and select By Database Schema.

  2. Select the source and output options and click OK.

Import Database Schema dialog options

Choose Data SourceSpecify the data source.
PackageSpecify the destination package for your entity classes.
Entity prefixSpecify one or more characters as a prefix for your entity class names.
Entity suffixSpecify one or more characters as a suffix for your entity class names.
Prefer primitive typesPrefer primitive field types to object reference types (for example, prefer int to java.lang.Integer).
Show default relationshipsAnalyze foreign keys in tables and suggest creating corresponding relationships (for example, one-to-one, one-to-many).
Database Schema MappingSelect the tables and columns to be mapped. Edit the names of entity classes and their persistent fields (the Map As column). Adjust the field types (the Mapped Type column).
Add to Persistence UnitAssociate the generated entity classes with the selected persistence unit. Click the Add button to create a new persistence unit.
Generate Column PropertiesInclude column properties, such as length, nullable, and so on.
Generate Single Mapping XMLStore object-relational mappings for all the generated entity classes in one XML file.
Generate Separate XML per EntityCreate an individual object-relational mapping file for every generated entity class.
Generate JPA Annotations (Java 5)Add mapping information to the source code of the generated entity classes as annotations.
  1. Right-click a module or a persistence unit, point to Generate Persistence Mapping and select By Entity Beans.

  2. Select the source and output options and click OK.

Import Entity Beans dialog options

Choose EJB FacetSpecify the EJB facet with an associated deployment descriptor file ejb-jar.xml.
PackageSpecify the destination package for your entity classes.
Entity prefixSpecify one or more characters as a prefix for your entity class names.
Entity suffixSpecify one or more characters as a suffix for your entity class names.
Prefer primitive typesPrefer primitive field types to object reference types (for example, prefer int to java.lang.Integer).
Show default relationshipsAnalyze foreign keys in tables and suggest creating corresponding relationships (for example, one-to-one, one-to-many).
  1. Right-click a module or a persistence unit, point to Generate Persistence Mapping and select By Hibernate Mappings.

  2. Select the source and output options and click OK.

Import Hibernate Mappings dialog options

Choose Hibernate XMLSpecify the Hibernate object-relational mapping file .hbm.xml.
PackageSpecify the destination package for your entity classes.
Entity prefixSpecify one or more characters as a prefix for your entity class names.
Entity suffixSpecify one or more characters as a suffix for your entity class names.
Add to Persistence UnitAssociate the generated entity classes with the selected persistence unit. Click the Add button to create a new persistence unit.
Generate Single Mapping XMLStore object-relational mappings for all the generated entity classes in one XML file.
Generate Separate XML per EntityCreate an individual object-relational mapping file for every generated entity class.
Generate JPA Annotations (Java 5)Add mapping information to the source code of the generated entity classes as annotations.
