IntelliJ IDEA 2019.2 Help

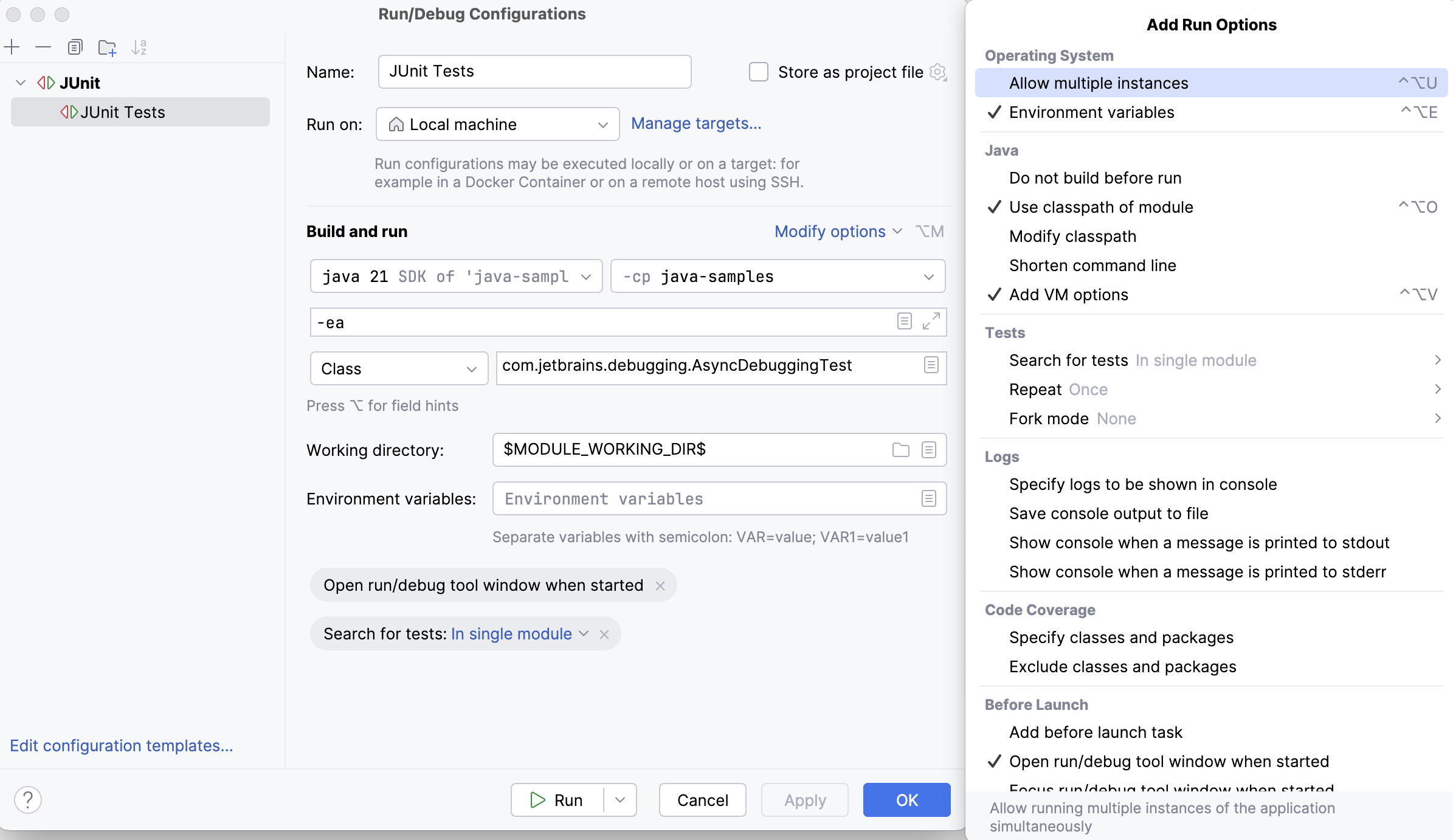

Run/Debug Configuration: JUnit

JUnit run/debug configurations define how unit tests that are based on the JUnit testing framework should be run.

The dialog box consists of the following tabs:

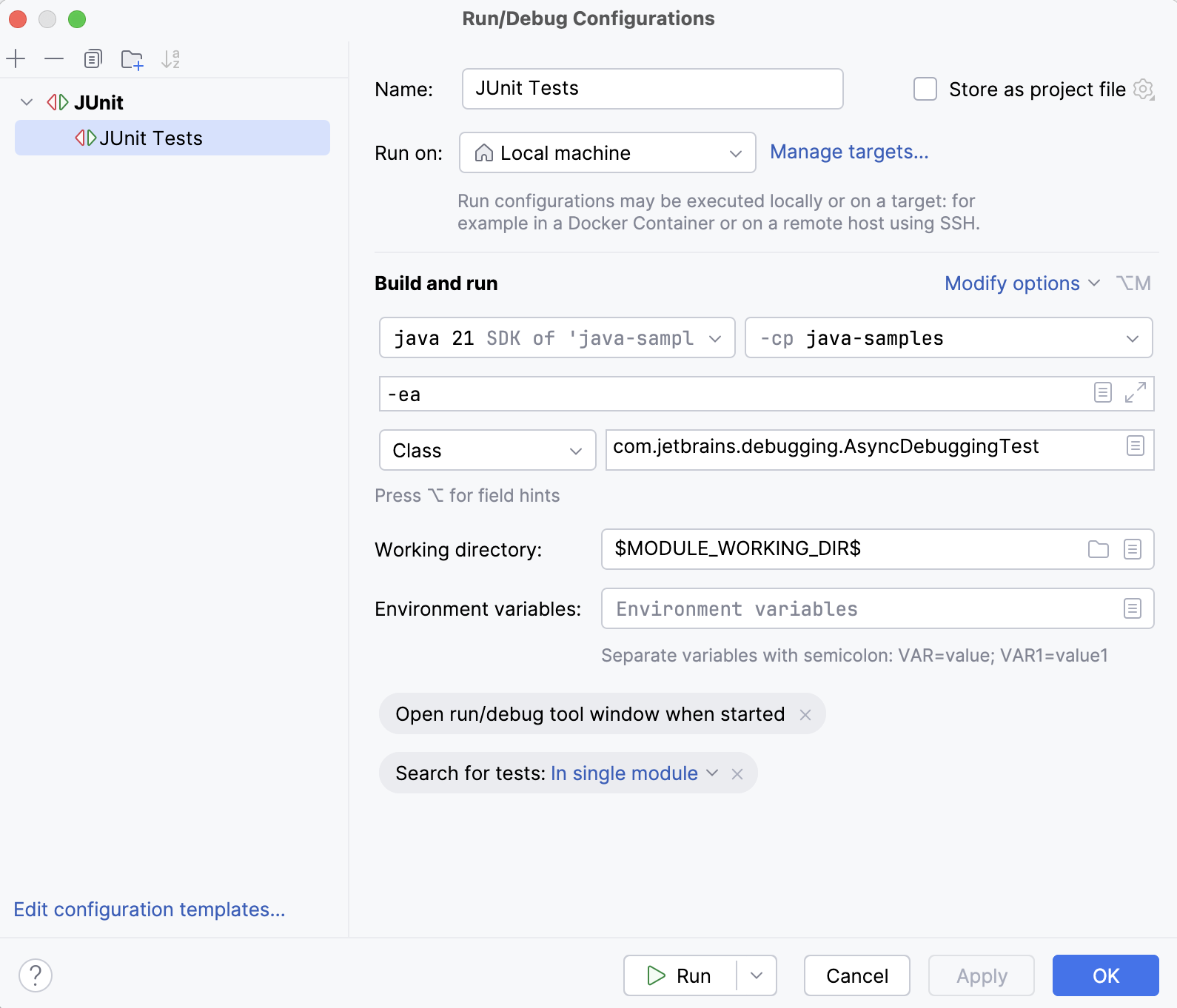

Configuration tab

Item

Description

Test kind

From this drop-down list, select the scope for your tests and fill in the fields depending on your selection.

All in package

Select this option to run all unit tests in the specified package. Fill in the following fields:

Package

Specify package name

Search for tests

Select where in your project IntelliJ IDEA shall look for test classes related to the current package:

  • In whole project: IntelliJ IDEA will look for test classes in all project modules

  • In single module: IntelliJ IDEA will look for test classes only in the module selected in the Use classpath of module field

  • Across multiple dependencies: IntelliJ IDEA will look for test classes only in the module selected in the Use classpath of module field, and in the modules that depend on it

All in directory

Select this option to run all unit tests in the specified directory. Fill in the following field:

Directory

Specify the directory where you want to run the tests. It will act as the root directory for all relative input and output paths.

Pattern

Select this option to run a set of test classes. This set may include classes located in the same or different directories, packages or modules. Fill in the following fields:

Pattern

Specify the required classes. Each class in this field must be represented by its fully qualified name. Class names must be separated with ||. You can type class names manually, or click icons general add svg on the right (or press Shift+Enter) and search for classes you want to add in the dialog that opens.

You can also create a suite test, i.e. a bundle of several test classes that will be run together. To create a suite test class, click icons general expandComponent svg on the right and type the test classes you want to be run as a suite in the Configure suit tests dialog that opens. As a result, a new class will be created with the @Suite annotation.

Method

Specify the method to be launched (passed to the JRE). Type method name, or click the Browse button and select the desired method in the dialog that opens.

Search for tests

Select where in your project IntelliJ IDEA shall look for test classes related to the current package:

  • In whole project: IntelliJ IDEA will look for test classes in all project modules

  • In single module: IntelliJ IDEA will look for test classes only in the module selected in the Use classpath of module field

  • Across multiple dependencies: IntelliJ IDEA will look for test classes only in the module selected in the Use classpath of module field, and in the modules that depend on it

Class

Select this option to run all tests in a class.

Fill in the following field:

Class

Specify the fully qualified name of the class to be launched (passed to the JRE). Type the class name or click the Browse button and select the desired class in the dialog that opens.

Method

Select this option to run an individual test method.

Fill in the following fields:

Class

Specify the fully qualified name of the class to be launched (passed to the JRE). Type the class name or click the Browse button and select the desired class in the dialog that opens.

Method

Specify the method to be launched (passed to the JRE). Type method name, or click the Browse button and select the desired method in the dialog that opens.

Category

Select this option if you only want to run test classes and test methods that are annotated either with the category given with the @IncludeCategory annotation, or a subtype of this category. Learn more about JUnit categories.

Fill in the following fields:

Category

Specify the desired category. Type category name, or click the Browse button and select the desired category in the dialog that opens.

Search for tests

Select where in your project IntelliJ IDEA shall look for test classes related to the current package:

  • In whole project: IntelliJ IDEA will look for test classes in all project modules

  • In single module: IntelliJ IDEA will look for test classes only in the module selected in the Use classpath of module field

  • Across multiple dependencies: IntelliJ IDEA will look for test classes only in the module selected in the Use classpath of module field, and in the modules that depend on it

UniqueId

Select this option to include tests and containers with a specific ID in the testing scope.

Tags
(JUnit 5)

Select this option to include classes and methods tagged with the @Tag annotation in the testing scope.

Fork mode

This option controls how many Java VMs will be created if you want to fork some tests. Select method or class to create a separate virtual machine for each method or class respectively.

The available options in this drop-down list depend on the Test kind setting.

Repeat

If you want to repeatedly run a test, select the threshold from this drop-down list. You can select to run your test once, n times (in this case specify the number of times in the field on the right), until the test fails, or until it is stopped.

VM options

If necessary, specify the string to be passed to the VM. This string may contain the options such as -mx, -verbose, etc.

When specifying JVM options, follow these rules:

  • Use spaces to separate individual options, for example, -client -ea -Xmx1024m.

  • If an option includes spaces, enclose the spaces or the argument that contains spaces in double quotes, for example, some" "arg or "some arg".

  • If an option includes double quotes (as part of the argument), escape the double quotes using backslashes, for example, -Dmy.prop=\"quoted_value\".

  • You can pass environment variable values to custom Java properties. For example, if you define a variable MY_ENV_VAR, you can pass it to the foo property as follows:

    -Dfoo=${MY_ENV_VAR}

If there is not enough space, you can click icons general expandComponent svg and enter the string in the dialog that opens.

The -classpath option specified in this field overrides the classpath of the module.

Program arguments

In this field, type a list of arguments to be passed to the program in the format you would use in the command line. If necessary, click the icons general expandComponent svg button and type the required arguments in the dialog that opens.

Use the same rules as for specifying the VM options.

Working directory

Specify the directory that will act as the current directory when running the test. It will act as the root directory for all relative input and output paths. By default, the directory where the project file resides, is used as a working directory.

Type directory name, or click the Browse button and select the desired directory in the dialog that opens. You can also click icon switch directories to switch between directories.

Environment variables

Click the Browse button to open the Environment Variables dialog box where you can create variables and specify their values.

Use classpath of module

Select the module whose classpath should be used to run the tests.

JRE

Specify the JRE to be used. Select the JRE from the list, or click the Browse button and select the installation folder of the required JRE in the dialog that opens.

Shorten command line

Select a method that will be used to shorten the command line if the classpath gets too long, or you have many VM arguments that exceed your OS command line length limitation. The choice of option depends on the class loader implementation. Note that some frameworks do not support JAR manifest, while other frameworks with custom class loaders will not work well with the classpath.file option.

  • none: IntelliJ IDEA will not shorten a long classpath. If the command line exceeds the OS limitation, IntelliJ IDEA will be unable to run your application and will display a message suggesting you to specify the shortening method.

  • JAR manifest: IntelliJ IDEA will pass a long classpath via a temporary classpath.jar. The original classpath is defined in the manifest file as a class-path attribute in classpath.jar. Note that you will be able to preview the full command line if it was shortened using this method, not just the classpath of the temporary classpath.jar.

  • classpath.file: IntelliJ IDEA will write a long classpath into a text file.

  • User-local default: this legacy option is set automatically for projects created before IntelliJ IDEA version 2017.3. IntelliJ IDEA will configure this setting depending on the properties set in the ide/workspace.xml and idea.config.path/options/options.xml files.

  • @argFiles (java 9+): the command-line length limitations will be overcome using the @argument files option.

Code Coverage tab

Use this tab to configure code coverage monitoring options.

Item

Description

Choose coverage runner

Select the desired code coverage runner.

By default, IntelliJ IDEA uses its own coverage engine with the Sampling mode. You can also choose JaCoCo or Emma for calculating coverage.

Sampling

Select this option to measure code coverage with minimal slow-down.

Tracing

Select this option to collect accurate branch coverage. This mode is available for the IntelliJ IDEA code coverage runner only.

Track per test coverage

Select this checkbox to detect lines covered by one test and all tests covering line. If this checkbox is selected, Track per test coverage becomes available on the toolbar of the coverage statistic popup.

Refer to the section .

Packages and classes to record code coverage data

Click Packages and classes to cover and add a package buttons to specify classes and packages to be measured. You can also remove classes and packages from the list by selecting them in the list and clicking the remove the package button.

Enable coverage in test folders.

If this checkbox is selected, the folders marked as test root_Test.png are included in the code coverage analysis.

Logs tab

Use this tab to specify which log files generated while running or debugging should be displayed in the console, that is, on the dedicated tabs of the Run or Debug tool window.

Item

Description

Is Active

Select checkboxes in this column to have the log entries displayed in the corresponding tabs in the Run tool window or Debug tool window.

Log File Entry

The read-only fields in this column list the log files to show. The list can contain:

  • Full paths to specific files.

  • Ant patterns that define the range of files to be displayed.

  • Aliases to substitute for full paths or patterns. These aliases are also displayed in the headers of the tabs where the corresponding log files are shown.

    If a log entry pattern defines more than one file, the tab header shows the name of the file instead of the log entry alias.

Skip Content

Select this checkbox to have the previous content of the selected log skipped.

Save console output to file

Select this checkbox to save the console output to the specified location. Type the path manually, or click the browse button and point to the desired location in the dialog that opens.

Show console when a message is printed to standard output stream

Select this checkbox to activate the output console and bring it forward if an associated process writes to Standard.out.

Show console when a message is printed to standard error stream

Select this checkbox to activate the output console and bring it forward if an associated process writes to Standard.err.

the Add button

Click this button to open the Edit Log Files Aliases dialog where you can select a new log entry and specify an alias for it.

the Edit button

Click this button to edit the properties of the selected log file entry in the Edit Log Files Aliases dialog.

the Delete button

Click this button to remove the selected log entry from the list.

Common

When you edit a run configuration (but not a run configuration template), you can specify the following options:

Item

Description

Name

In this field, specify the name for the run/debug configuration. The name will help you identify the created configuration when you choose to edit it later, or when you invoke it, for example, from the Run popup Shift+Alt+F10.

Share through VCS

Select this checkbox to put the run/debug configuration under version control and make it available to other team members.

If the directory-based project format is used, the settings for a run/debug configuration are stored in a separate .xml file in the .idea\runConfigurations folder if the run/debug configuration is shared, or in the .idea\workspace.xml file otherwise.

If the file-based format is used, the settings are stored in the .ipr file for shared configurations, or in the .iws file otherwise.

Allow running in parallel

If this checkbox is selected, it is possible to launch a run configuration multiple times in parallel instead of rerunning it. Each runner will start in its own tab of the Run Tool Window or Debug Tool Window.

When disabled, every time a new instance of the run/debug configuration is launched, IntelliJ IDEA checks the presence of the other instances of the same run/debug configuration, and displays a confirmation dialog. If you click OK in the confirmation dialog, the first instance of the runner will be stopped, and the next one will take its place. This makes sense when launching two instances of run/debug configurations of the same type consumes too much of the CPU and memory resources..

Toolbar

The tree view of run/debug configurations has a toolbar that helps you manage configurations available in your project as well as adjust default configurations templates.

Item

Shortcut

Description

the Add buttonAlt+Insert

Create a run/debug configuration.

the Remove buttonAlt+Delete

Delete the selected run/debug configuration. Note that you cannot delete default configurations.

Copy Ctrl+D

Create a copy of the selected run/debug configuration. Note that you create copies of default configurations.

Save configuration

The button is displayed only when you select a temporary configuration. Click this button to save a temporary configuration as permanent.

Edit Templates

View and edit the template (that is, the default settings) for the selected run/debug configuration. The templates are displayed under the Templates node and used for newly created configurations.

Method up/Method down

Alt+Up/Alt+Down

Move the selected run/debug configuration up and down in the list.

The order of configurations in the list defines the order, in which the configurations appear when you choose a run/debug configuration.

Default templates of run/debug configurations are always sorted alphabetically.

Move into new folder / Create new folder

Move into new folder / Create new folder. You can group run/debug configurations by placing them into folders.

To create a folder, select the configurations within a category, click Folder, and specify the folder name. If only a category is in focus, an empty folder is created.

Then, to move a configuration into a folder, between the folders or out of a folder, use drag or Move Up and Move Down buttons.

To remove grouping, select a folder and click Remove Configuration.

Sort configurations

Click this button to sort configurations in the alphabetical order.

Before Launch

In this area you can specify tasks that must be performed before starting the selected run/debug configuration. The tasks are performed in the order they appear in the list.

Item

Shortcut

Description

the Add buttonAlt+Insert

Click this icon to add one of the following available tasks:

  • Run External tool: select to run an external application. In the dialog that opens, select one or multiple applications you want to run. If it is not defined in IntelliJ IDEA yet, add its definition. For more information, see External tools and External Tools.

  • Run Another Configuration: select to execute another run/debug configuration. In the dialog that opens, select the configuration to be run.

  • Build: select to compile the specified module. The Build Module command will be executed.

    If an error occurs during compilation, IntelliJ IDEA won't attempt to start the run/debug configuration.

  • Build Project: select to compile the entire project. The Build Project command will be executed.

    If an error occurs during compilation, IntelliJ IDEA won't attempt to start the run/debug configuration.

  • Build, no error check: the same as the Build option, but IntelliJ IDEA will try to start the run/debug configuration irrespective of the compilation results.

  • Build Artifacts: select this option to build an artifact or artifacts. In the dialog that opens, select the artifact or artifacts that should be built.

  • Launch Web Browser: select this option to have a browser started. In the dialog that opens, select the type of the browser and provide the start URL. Also, specify if you want the browser be launched with JavaScript debugger.

  • Run Ant target: select this option to run an Ant target. In the dialog that opens, select the target to be run.

  • Run Grunt task: select this option to run a Grunt task.

    In the Grunt task dialog that opens, specify the Gruntfile.js where the required task is defined, select the task to execute, and specify the arguments to pass to the Grunt tool.

    Specify the location of the Node.js interpreter, the parameters to pass to it, and the path to the grunt-cli package.

  • Run Gulp task: select this option to run a Gulp task.

    In the Gulp task dialog that opens, specify the Gulpfile.js where the required task is defined, select the task to execute, and specify the arguments to pass to the Gulp tool.

    Specify the location of the Node.js interpreter, the parameters to pass to it, and the path to the gulp package.

  • Run Maven Goal: select this option to run a Maven goal. In the dialog that opens, select the goal to be run.

  • Run npm Script: select this option to execute an npm script.

    In the NPM Script dialog that opens, specify the npm run/debug configuration settings.
  • Generate CoffeeScript Source Maps: select this option to generate the source maps for your CoffeeScript sources. In the dialog that opens, specify where your CoffeeScript source files are located.

  • Run Remote External tool: adds a remote SSH external tool.

the Remove buttonAlt+Delete

Click this icon to remove the selected task from the list.

Edit Enter

Click this icon to edit the selected task. Make the necessary changes in the dialog that opens.

Method up/Method down

Alt+Up/Alt+Down

Click these icons to move the selected task one line up or down in the list. (The tasks are performed in the order that they appear in the list.)

Show this page

Select this checkbox to show the run/debug configuration settings prior to actually starting the run/debug configuration.

Activate tool window

By default this checkbox is selected and the Run or the Debug tool window opens when you start the run/debug configuration.

Otherwise, if the checkbox is cleared, the tool window isn't shown. However, when the configuration is running, you can open the corresponding tool window for it yourself by pressing Alt+4 or Alt+5.

Last modified: 20 September 2019
