Enabling Version Control

MPS supports version control integration at two levels:

  • At the IDE level, VCS integration is provided through a set of bundled plugins enabled by default.
  • At the project level, VCS integration is enabled by associating project folders with one or several version control systems.

Associate a project root with a version control system

MPS allows you to quickly enable your project's integration with a version control system, and associate it with the project root. For instructions on how to associate separate project directories with different version control systems, refer to Enabling Version Control.

  1. Choose VCS | Enable Version Control Integration on the main menu, or press N/A, and select Enable Version Control Integration....
  2. In the Enable Version Control Integration dialog box that opens, select a version control system from the drop-down list that you want to associate with your project root.

Associate a directory with a version control system

MPS supports a directory-based versioning model, which means that each project directory can be associated with a different version control system.

  1. Open version control settings (File | Settings | Version Control). This page shows a list of project directories and version control systems associated with them (if no directories have been added, the list only contains the project root).
  2. Click the Add button add on the right.
  3. In the Add VCS Directory Mapping dialog box that opens, select the Directory option. Type the path to the directory that you want to associate with a version control system, or click the Browse button browseButton and select the directory in the dialog that opens.
  4. From the VCS drop-down list, select the version control system that will be used to control the files in this directory. Note that this list only contains the version control systems for which the corresponding plugins are currently enabled.
  5. Optionally, click the Configure VCS button that allows you to specify the settings for the selected version control system. The same settings are also available under the Version Control settings node.
  6. Click OK to save the mapping and return to the Version Control page.

Manage unregistered directories

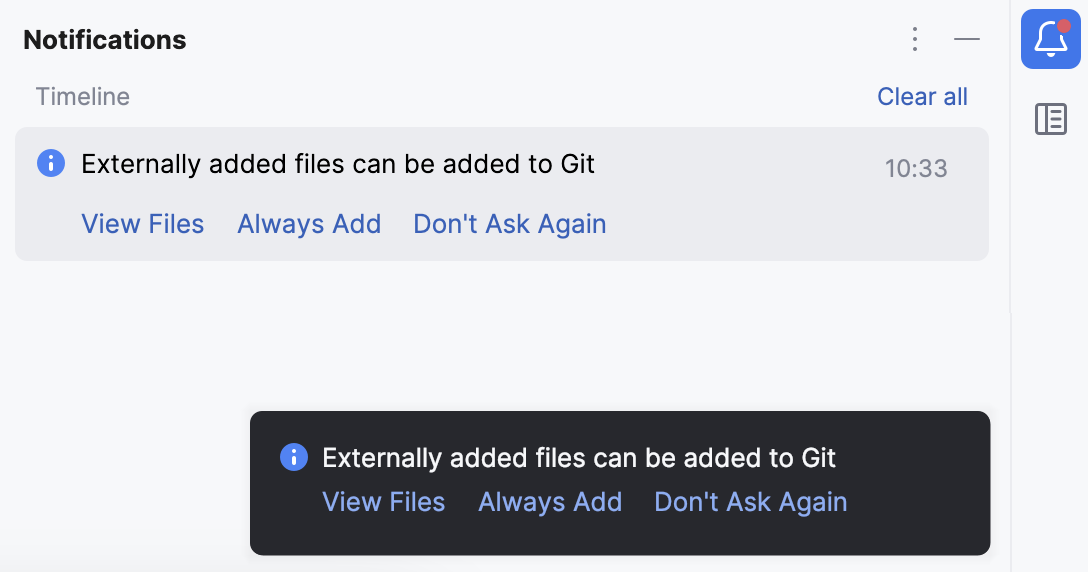

For projects with Git or Mercurial integration enabled, MPS scans project directories to check if there are Git/Mercurial repositories that are not controlled by the IDE. If such repositories are detected, MPS displays a notification.

To add an unregistered root, click the Add roots link in the notification. Alternatively, open the Version Control settings page, select the unregistered root you want to add (they are marked grey) and follow the procedure Enabling Version Control.

If you do not want to be notified about these roots again, click the Ignore link in the notification. Note that if new unregistered repositories are added to the project, MPS will notify you about them.

Change VCS associations

  1. Open the Version Control settings page. This settings page displays a table of directories with associated version control systems.
  2. In the table, locate the row that corresponds to the directory which you want to put under another version control system.
  3. Click the VCS column. From the drop-down list that appears, select a new version control system.
  4. Click OK to save the new mapping and close the Version Control dialog box.
Last modified: 4 April 2018
