Code Completion

This section covers various techniques of context-aware code completion that allow you to speed up your coding process.

Basic completion

Basic code completion helps you complete the names of classes, methods, and keywords within the visibility scope. When you invoke code completion, AppCode analyses the context and suggests the choices that are reachable from the current caret position (suggestions also include Live templates).

If basic code completion is applied to a part of a field, parameter, or variable declaration, AppCode suggests a list of possible names depending on the item type.

Invoke basic completion

  1. Start typing a name.

  2. Press ⌃Space or choose Code | Completion | Basic from the main menu.

  3. If necessary, press ⌃Space for the second time (or press ⌃⌥Space).

Smart completion

Smart code completion filters the suggestions list and shows only the types applicable to the current context.

  1. Start typing.

  2. Press ⌃⇧Space or choose Code | Completion | SmartType from the main menu.

    The most suitable suggestion for the current context is highlighted.

  3. If necessary, press ⌃⇧Space once again.

Statement completion

You can create syntactically correct code constructs by using statement completion. It inserts the necessary syntax elements (parentheses, braces, and semicolons) and gets you in a position where you can start typing the next statement.

Examples

The command is helpful in numerous scenarios, including auto-closing parentheses, adding semicolons, and more.

Complete Statement works with the following language constructs:

  • Type and type members: class, namespace, enum and enum classes.

  • Statements: if/else, while, do, for, switch/case, catch.

Below, you can find a number of examples of applying the complete statement command in different contexts.

Use case

Before Complete Statement

After Complete Statement

Class declaration

public class Foo /*caret*/

public class Foo { /*caret*/ };

switch clause

switch/*caret*/

switch (/*caret*/) {}

switch (i /*caret*/ {}

switch (i) { /*caret*/ }

while statement

while/*caret*/

while (/*caret*/) {}

while (n > 0/*caret*/) {}

while (n > 0) { /*caret*/ }

if statement

if/*caret*/

if (/*caret*/) {}

if(n > 0/*caret*/) {}

if (n > 0) { /*caret*/ }

for statement

for /*caret*/

for (/*caret*/) {}

for (int i = 0/*caret*/) {}

for (int i = 0;/*caret*/) {}

for (int i = 0; i < 10; ++i/*caret*/) {}

for (int i = 0; < 10; ++i) { /*caret*/ }

Catch statement

catch/*caret*/

catch (/*caret*/) {}

catch (const std::exception &ups/*caret*/) {}

catch (const std::exception &ups) { /*caret*/ }

Hippie completion

Hippie completion is a completion engine that analyses your text in the visible scope and generates suggestions from the current context. It helps you complete any word from any of the currently opened files.

Expand a string at caret to an existing word

  1. Type the initial string and do one of the following:

    • Press ⌥/ or choose Code | Completion | Cyclic Expand Word to search for matching words before the caret.

    • Press ⌥⇧/ or choose Code | Completion | Cyclic Expand Word (Backward) to search for matching words after the caret and in other open files.

    The first suggested value appears, and the prototype is highlighted in the source code.

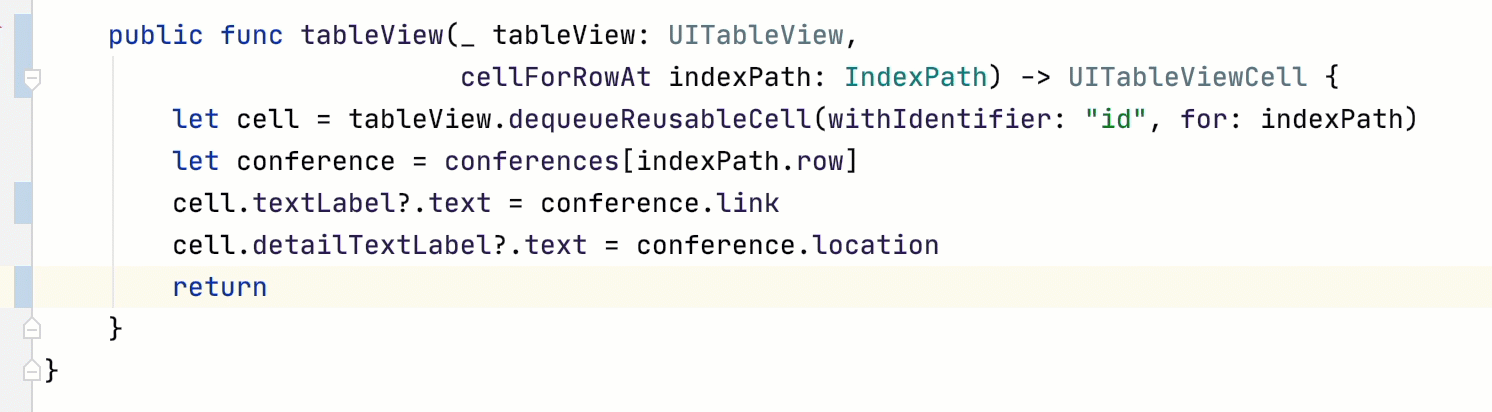

    completion hippie 1
  2. Accept the suggestion, or hold the Alt key and keep pressing / until the desired word is found.

Postfix code completion

Postfix code completion helps you reduce backward caret jumps as you write code. You can transform an already-typed expression to a different one based on a postfix you type after the dot, the type of expression, and its context.

  • To view a full list of available postfix templates, in the Settings/Preferences dialog (⌘,), go to Editor | General | Postfix Completion.

  • Select , Space, or to expand postfix templates.

Transform a statement with a postfix

  • Type an expression and then type a postfix after a dot, for example, .if:

    function m(arg) { arg.if }

    The initial expression gets wrapped with an if statement:

    function m(arg) { if (arg) { } }

To disable certain postfix completion templates, in the Settings/Preferences dialog (⌘,) select Editor | General | Postfix Completion.

You can select , Space, or to expand postfix templates.

You can edit the predefined postfix templates, for example, to replace a long key with a shorter one, or to expand the list of applicable expression types.

Completion of tags and attributes

AppCode automatically completes the names and values of tags and attributes in many file types:

Completion of tags and attribute names is based on the DTD or Schema the file is associated with. If there is no schema association, AppCode will use the file content (tag and attribute names and their values) to complete your input.

Complete tag names

  1. Press < and start typing the tag name. AppCode displays the list of tag names appropriate in the current context.

    tags completion
    Use the ArrowUp and ArrowDown buttons to scroll through the list.

  2. Press to accept a selection from the list. If your file is associated with a schema or a DTD, AppCode automatically inserts the mandatory attributes according to it.

Import a taglib declaration

If you need to use tags declared in a tag library, you need to import this taglib before any custom tag from it can be used.

  1. Start typing a taglib prefix and press ⌘N.

  2. Select a taglib from the list and press .

    AppCode imports the selected taglib and adds the import statement automatically.

Insert a tag declared in a taglib

  1. Start typing a tag and press ⌃⌥Space.

  2. Select a tag from the list. The uri of the taglib it belongs to is displayed in brackets.

  3. Select the desired taglib and press . AppCode adds the declaration of the selected taglib:

Configure code completion settings

Configure completion options

  1. In the Settings/Preferences dialog (⌘,), select Editor | General | Code Completion.

  2. Do the following:

    • To automatically display the suggestions list, select the Show suggestions as you type checkbox. If the checkbox is cleared, you have to call code completion explicitly by pressing ⌃Space for basic completion or ⌃⇧Space for smart completion.

      You can also choose to automatically insert suggestions when there's just one option: select the completion type under Automatically insert single suggestions for.

    • To sort suggestions in the alphabetical order, instead of sorting them by relevance, select the Sort suggestions alphabetically checkbox.

      You can also toggle these modes by clicking sort alphabetically or sort by relevance respectively in the lower-right corner of the suggestions list.

    • If you want the word case to be taken into account when suggesting completion options, select Match case and choose whether you want to match case for first letters only, or for all letters.

    • If you want the documentation popup to be displayed automatically for each item in the suggestions list as you scroll it, select the Show documentation popup in option. In the field to the right, specify the delay (in milliseconds), after which the pop-up window should appear.

Completion tips and tricks

Narrow down the suggestions list

You can narrow down the suggestions list by typing any part of a word (even characters from somewhere in the middle) or invoking code completion after a dot separator. AppCode will show suggestions that include the characters you've entered in any positions.

This makes the use of wildcards unnecessary:

In case of CamelCase or snake_case names, type the initial letters only. AppCode automatically recognizes and matches the initial letters.

Accept a suggestion

You can accept a suggestion from the list in one of the following ways:

  • Press or double-click a list item to insert it to the left of the caret.

  • Press to replace the characters to the right from the caret.

  • Use ⇧⌘⏎ to make the current code construct syntactically correct (balance parentheses, add missing braces and semicolons, etc.)

You can also use specific keys to insert the selected completion suggestion: in the Settings/Preferences dialog (⌘,) choose Editor | General | Code Completion and select the Insert selected suggestion by pressing space, dot or other context-dependent keys option. These keys depend on the language, your context, etc.

View reference

View code hierarchy

You can view code hierarchy when you've selected an entry from the suggestions list:

  • ⌃H: view type hierarchy

  • ⇧⌘H: view method hierarchy.

Using method parameters placeholders

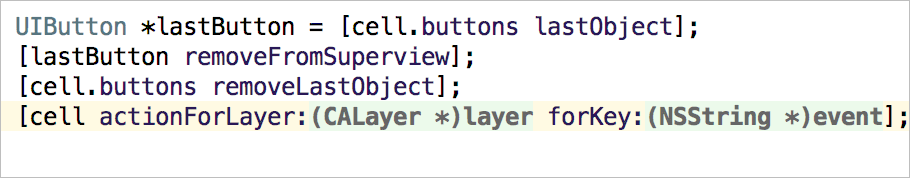

When you choose a method call from the suggestions list, the IDE inserts placeholders for argument values that include a name and a type of a parameter:
ac parametersPlaceholder
Upon completing selection from the suggestion list, you can replace the placeholders with the actual arguments values.

Troubleshooting

If code completion doesn't work, this may be due to one of the following reasons:

  • The Power Save Mode is on (File | Power Save Mode). Turning it on minimizes power consumption of your laptop by eliminating the background operations, including error highlighting, on-the-fly inspections, and code completion.

  • An SDK is not configured for your project.

  • Your file doesn't reside in a content root, so it doesn't get the required class definitions and resources needed for code completion.

  • A file containing classes and functions that you want to appear in completion suggestions list is marked as a plain text file.

  • External libraries that contain functions that you want to appear in the completion suggestions list are not added as dependencies or global libraries.
