AppCode 2020.1 Help

HTML

AppCode brings powerful support for HTML that includes syntax and error highlighting, formatting according to the code style, structure validation, code completion, on-the-fly preview during a debugging session (Live Edit), and much more.

HTML specification is configurable with the Default HTML language level preference on the Languages and Frameworks | Schemas and DTDs page of the Preferences ⌘,. By default, specification HTML 5.0 from W3C is assumed.

Creating an HTML file

  • From the main menu, select File | New Scratch File, and then select HTML File from the list.

Creating references in an HTML file

Inside a <script>, <link>, or <img> tag, AppCode suggests completion for the path to the file you are referencing.

Alternatively, in the Project tool window, select the JavaScript, CSS, or image file you want to reference and drag it into the HTML file. AppCode generates the <script>, <link>, or <img> tags inside <head>. For <img> tags, AppCode also generates the width and height attributes.

Wrapping a code fragment in a tag

  1. Select the code fragment to wrap and press ⌥⌘T or select Code | Surround With from the main menu.

  2. From the list, select Wrap with Tag. AppCode encloses the selection in a pair of brackets (<> and </>).

  3. Type the tag inside the opening brackets <>. AppCode automatically fills in the tag in the closing brackets </>.

Learn more from Code generation.

Documentation look-up

For most HTML tags and attributes AppCode can show you a summary from the corresponding MDN article. This summary is displayed in the Documentation popup which also shows the deprecation status of a tag or an attribute and information on its compatibility with various browsers.

If the tag or the attribute is available in all versions of browsers, AppCode does not show any information about its compatibility.

HTML quick documentation: attribute is available in all versions of browsers

Otherwise, the Documentation popup also lists the browsers and their versions that support the tag or the attribute.

HTML quick documentation: compatible browsers are listed

If the tag or the attribute is deprecated, the popup also informs you about this status.

HTML quick documentation: status Deprecated for <big> tag

View documentation for a tag or an attribute

  • Position the caret at the tag or the attribute and press F1 or select View | Quick Documentation Lookup from the main menu.

  • When you hover the mouse pointer over a tag or an attribute, AppCode immediately displays the reference for it in the Documentation popup.

    You can turn off this behavior or configure the popup to appear faster or slower, see Configuring the behavior of Documentation popup below.

Configure the behavior of Documentation popup

  • To turn off showing documentation automatically, open the Preferences dialog ⌘,, go to Editor | Code Editing, and clear the Show quick documentation on mouse move checkbox.

  • To have the Documentation popup shown faster or slower, open the Preferences dialog ⌘,, go to Editor | General | Code Completion, then select the Show the documentation popup checkbox and specify the delay time.

Open the MDN documentation for tags and attributes in the browser

  • In the Documentation popup F1, click the link at the bottom.

  • Press ⇧F1 or select View | External Documentation from the main menu.

Previewing output of an HTML file in a browser

  • Select View | Open in Browser from the main menu and then select the desired browser from the list. To open the AppCode default browser, select Default.

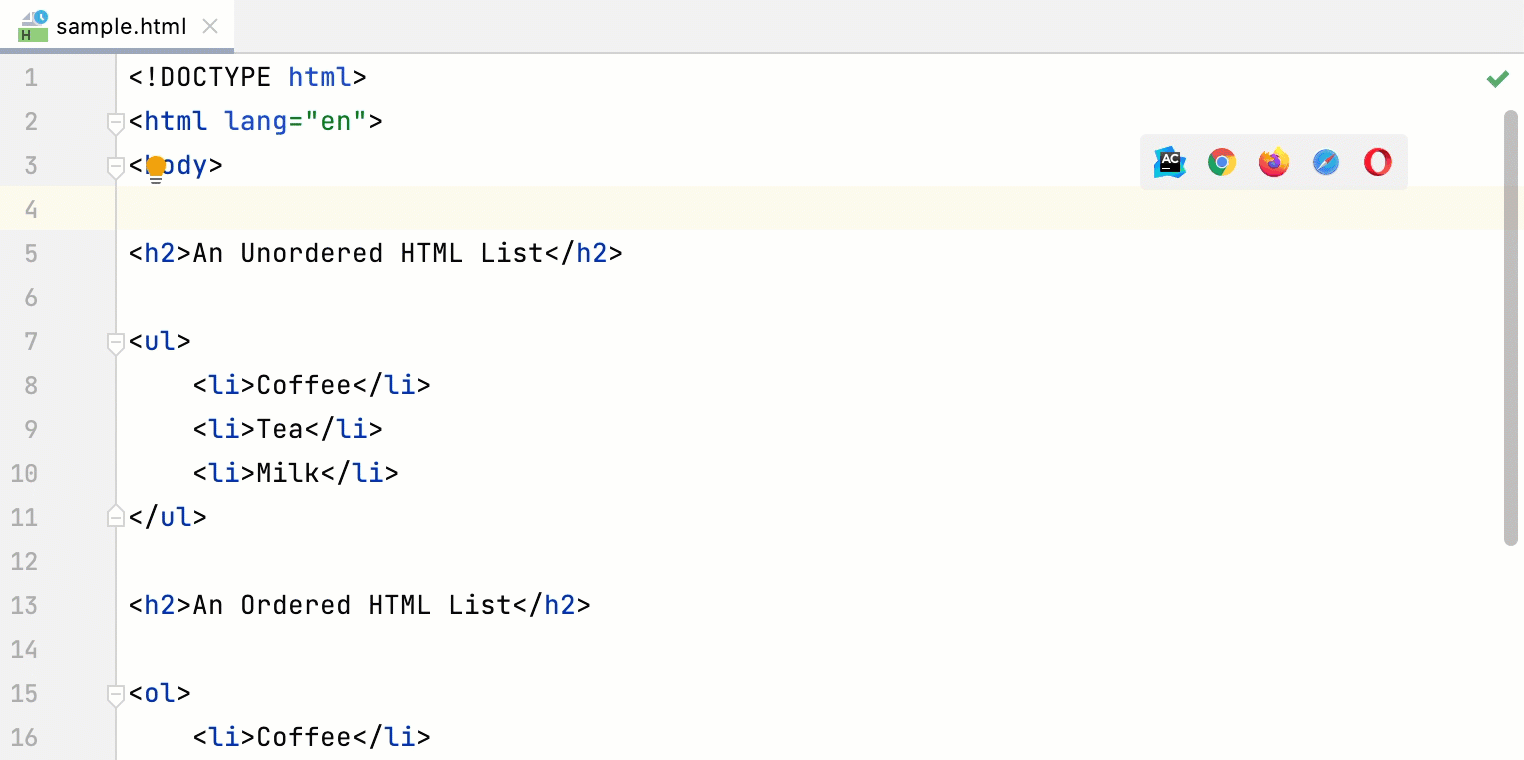

  • Alternatively, hover your mouse pointer over the code to show the browser icons popup, and click the icon that indicates the desired browser: Firefox Chrome Safari Internet Explorer Opera

    To hide all the icons or some of them, clear the Active checkboxes for the unnecessary browsers on the Web Browsers page.

    To suppress showing the browser icons popup, clear the For HTML files checkbox.

  • If you have only one browser configured, just press ⌥F2.

Viewing HTML source code of a web page in the editor

  1. Press ⇧⌘A and select Open Source Code from URL... from the list.

  2. In the Open URL dialog that opens, type the URL address of the web page or choose a previously opened URL from the list.

Viewing embedded images

AppCode offers several ways to view images embedded in an HTML file. You can use navigation to source, open an image in an external graphical editor, or preview images on-the-fly.

Check and configure the appearance of the preview on the Images page.

View images in AppCode

  • Select the image file in the Project tool window and press ⌘↓.

  • Alternatively, position the caret at the reference to the image in the editor and press ⌘B

  • To preview an image in a popup instead of in a separate tab, select the reference to it and press ⌥Space

View images in an external editor

  1. Configure the path to the external editor on the Images page (AppCode | Preferences | Editor | Images for macOS).

  2. Select the image file in the Project tool window, and choose Open in external editor or press ⌥⌘F4.

Extracting an include file

You can extract a fragment of HTML code into a separate include file. Entire JavaScript code blocks inside a <script> tags can be extracted as well. AppCode also suggests adding references instead of duplicates of the selected fragment.

  1. In the editor, select the code block to be extracted and choose Refactor | Extract | Extract Include File from the main menu or from the context menu of the selection.

  2. In the Extract Include File dialog that opens, specify the name of the include file without the extension and the directory to store it in. You can accept the predefined directory or select another one.

  3. Click OK, when ready. AppCode extracts the selected source code into the specified file in the target directory and generates the corresponding reference in the source file.

Configuring syntax highlighting

You can configure HTML-aware syntax highlighting according to your preferences and habits.

  1. In the Preferences dialog ⌘,, go to Editor | Color Scheme | HTML.

  2. Select the color scheme, accept the highlighting settings inherited from defaults or customize them as described in Configuring Colors and Fonts.

Last modified: 8 July 2020
