PhpStorm 2023.2 Help

Cannot connect to a database

Step 1. Check your network settings

Databases can work locally, on a server, or in the cloud. For server and cloud databases, you need a network connection. To verify that connection is available, use ping and telnet commands.

With the ping command, you can ensure that the destination computer is reachable from the source computer. Open a command line and type the following command: ping -a <host_IP>, where -a is a command option that resolves addresses to hostnames (if it is possible). If you use hostnames with the ping command, a hostname is resolved to the IP address. For example, ping -a example.com resolves to PING example.com (93.184.216.34).

ping -a <host_IP>

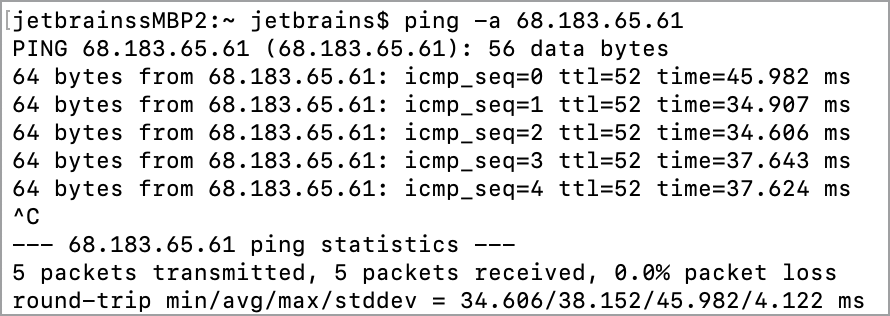

Test connection with the ping command

With the telnet command, you can test connectivity to remote computers and issue commands. If you specify a port as a parameter for the telnet command, you can test connectivity to a remote host on the given port. If the connection is successful, you see the message: Connected to <host_IP>.

telnet <host_IP> <port_number>
Test connection with the telnet command

Step 2. Check your connection properties

Each database (MySQL, PostgreSQL, Oracle, or any other vendor) has its own connection settings. Most database include the connection settings:

  • Host: A hostname of a computer or another device that stores a database. It can be an IP address 127.0.0.1 or a domain name localhost.

  • Database: A name of the database to which you want to connect. You can find the database name in the settings of your database server, or you can ask your database administrator. In some cases, it is possible to run a query in a database command line to see the names of all available databases. For example, in MySQL you can run SHOW DATABASES;.

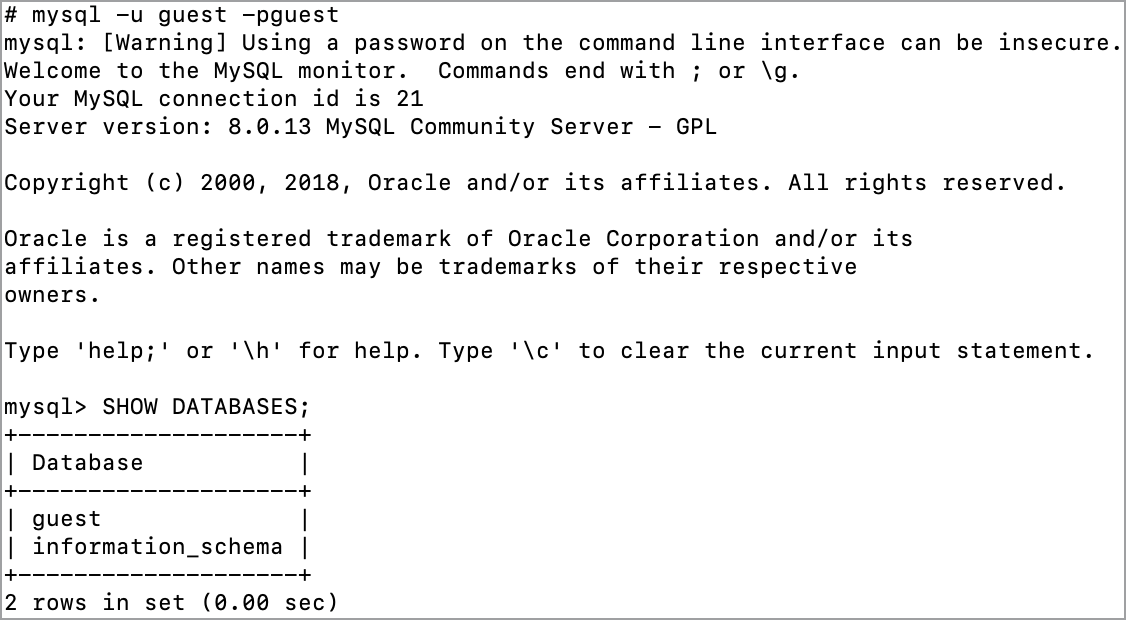

    The SHOW DATABASES query
  • User: A name of a user that has sufficient privileges to perform actions with a database. Run a query in a database command line to see the names of all available databases. For example, in MySQL you can run SHOW GRANTS;.

    The SHOW GRANTS query
  • Password: A password of the user.

  • Port: A number that identifies a connection point between hosts. Hosts use port numbers to determine to which application, service, or process a connection must be established. Different database vendors use different ports for their databases. The following list is a list of default port numbers.

    Vendor

    Default port

    Amazon Redshift

    5439

    Apache Derby

    1527

    Apache Cassandra

    9042

    Apache Hive

    10000 (Hive Server2) or 9083 (Hive Metastore)

    Azure SQL Database

    1433

    ClickHouse

    8123

    Couchbase Query Query Service

    11210

    Exasol

    8563

    Greenplum

    5432

    H2

    8082

    HSQLDB

    9001

    IBM Db2 LUW

    50000

    MariaDB

    3306

    Microsoft SQL Server

    1433 (TCP), 1434 (UDP might be required)

    MySQL

    3306

    Oracle

    1521

    PostgreSQL

    5432

    Snowflake

    443

    SQLite

    None

    Sybase ASE

    5000

    Vertica

    5433

Verify that the connection settings for the selected data source are correct. For more information about creating and changing a data source, refer to Create a data source and Sessions.

Step 3. Check the driver version

With a JDBC driver, you can interact with a database management system (DBMS) from PhpStorm. Each DBMS requires its own JDBC driver. Ensure that the driver version and the DBMS version are compatible with each other.

From PhpStorm, you can download drivers for all supported vendors. You can check the full list of supported vendors in the Drivers list . Alternatively, you can add your own driver to an existing vendor, or create a new driver entry for the vendor that is not on the Drivers list.

To open the Drivers list, in the Database tool window ( View | Tool Windows | Database), click the Data Source Properties icon The Data Source Properties icon or press Command I.

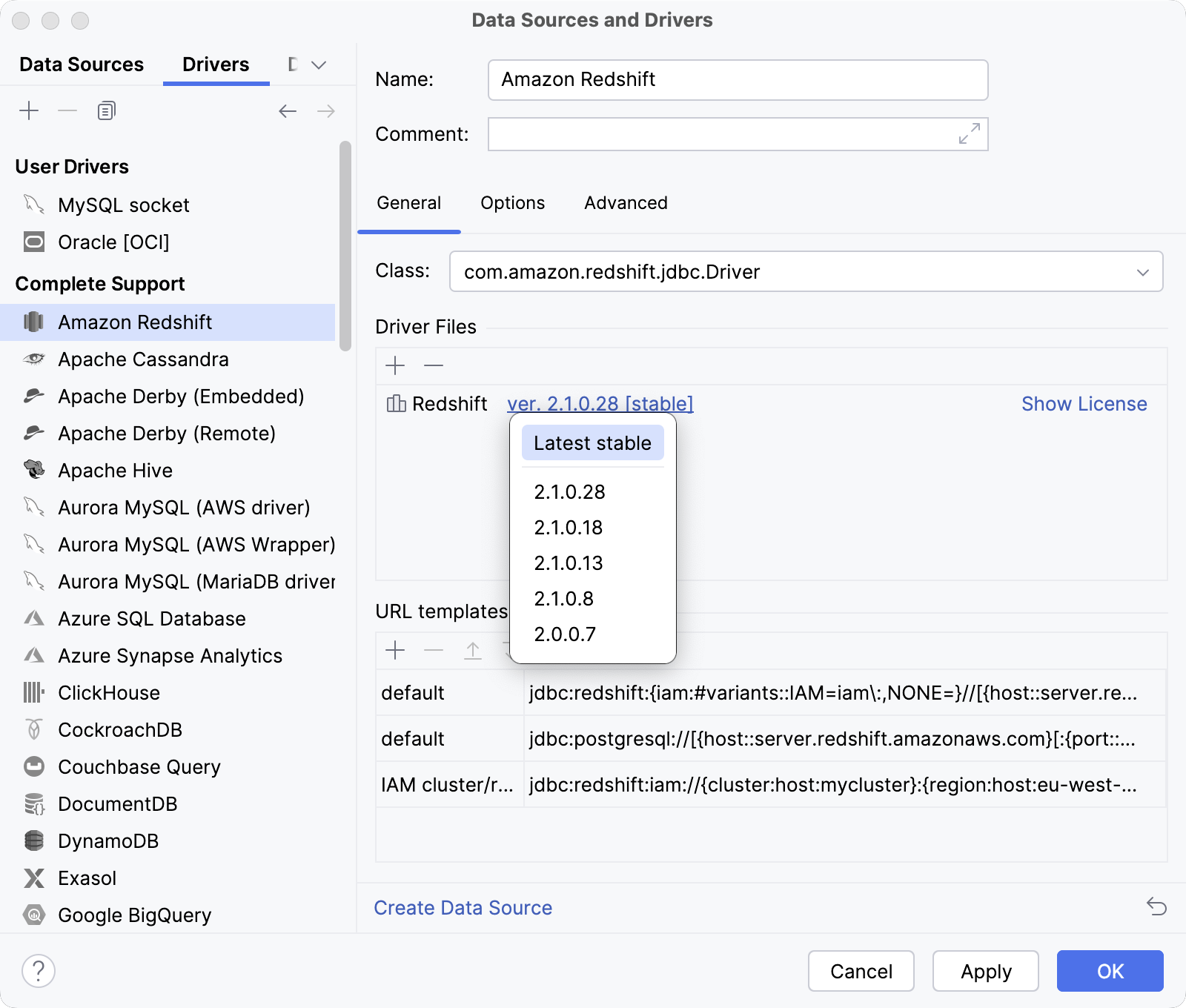

Download a driver and select the driver version

To download drivers from the JetBrains FTP server, select a vendor from the Drivers list, and click the Download ver. <version_number> link in the Driver files pane.

To change the driver version, click the ver. <version_number> link in the Driver files pane and select the driver version that you need.

The Drivers list and driver settings

    Using user driver files

    1. Open data source properties. You can open data source properties by using one of the following options:

      • In the Database tool window ( View | Tool Windows | Database) , click the Data Source Properties icon The Data Source Properties icon.

      • Press Control+Alt+Shift+S.

    2. In the Data Sources and Drivers dialog, ensure that you are on the Drivers tab.

    3. In the Data Sources and Drivers dialog, click the Add icon (The Add icon).

    4. In the Name field, type the name of the driver.

    5. In the Driver Files pane, click the Add icon (The Add icon) and select Custom JARs….

    6. Navigate to the JAR file of the JDBC driver, select it, and click OK.

    7. In the Class field, specify the value that you want to use for the driver.

    8. Click Apply.

    9. To create a data source from the driver's dialog, click Create Data Source.

      Connect to a database with a user driver

    Configure a JDBC driver for an existing data source

    You can add libraries to the existing driver or replace the driver completely.

    1. Open data source properties. You can open data source properties by using one of the following options:

      • In the Database tool window ( View | Tool Windows | Database) , click the Data Source Properties icon The Data Source Properties icon.

      • Press Control+Alt+Shift+S.

    2. Click the Driver link in data source settings and select Go to Driver.

    3. Click the provided driver entry, and click Remove (the Remove button).

      To revert changes, click the Roll back Changes icon (the Roll back Changes icon) that is in the lower-right part of the window.

    4. In the Driver Files pane, click the Add icon (The Add icon) and select Custom JARs….

    5. In the file browser, navigate to the JAR file of the JDBC driver, select it, and click OK.

    6. In the Class field, specify the value that you want to use for the driver.

    7. Click Apply.

    Step 4. Check if the connection with SSH or SSL is required

    To make a connection to a database more secure, some services require SSH or SSL usage.

    SSL

    The following procedure describes the SSL configuration that suits most databases. For some databases, you need to use another approach for a successful connection. You can see configuration examples for Cassandra and Heroku Postgres in the DataGrip documentation.

    Connect to a database with SSL

    1. Open data source properties. You can open data source properties by using one of the following options:

      • In the Database tool window ( View | Tool Windows | Database) , click the Data Source Properties icon The Data Source Properties icon.

      • Press Control+Alt+Shift+S.

    2. On the Data Sources tab, select a data source that you want to modify.

    3. Click the SSH/SSL tab and select the Use SSL checkbox.

    4. In the CA file field, navigate to the CA certificate file (for example, mssql.pem).

    5. You can leave the certificate file fields empty and use a truststore to obtain a required certificate from the certificates that it contains. To do that, tick the Use truststore checkbox and select the truststore that you want to use.

      • IDE: Use the certificates that are accepted by the IDE. You can add new accepted certificates in Tools | Server Certificates.

      • JAVA: Use JAVA truststore certificates.

      • System: Use System truststore certificates.

    6. In the Client certificate file field, navigate to the client certificate file (for example, client-cert.pem).

    7. In the Client key file field, navigate to the client key file (for example, client-key.pem).

    8. From the Mode list, select the verification mode:

      Require

      Verifies that the server recognizes the client certificate, if the certificate is provided.

      Verify CA

      • Verifies that the server recognizes the client certificate, if the certificate is provided.

      • Verifies the server by checking the certificate chain up to the root certificate that is stored on the client.

      Full Verification

      • Verifies that the server recognizes the client certificate, if the certificate is provided.

      • Verifies the server by checking the certificate chain up to the root certificate that is stored on the client.

      • Verifies the server host to ensure that it matches the name stored in the server certificate.

      The SSL connection fails if either one of the certificates cannot be verified.

    9. To ensure that the connection to the data source is successful, click Test Connection.

      Connect to a database with SSL

    Disable SSL connection to a database

    1. Open data source properties. You can open data source properties by using one of the following options:

      • In the Database tool window ( View | Tool Windows | Database) , click the Data Source Properties icon The Data Source Properties icon.

      • Press Control+Alt+Shift+S.

    2. On the Data Sources tab, select a data source that you want to modify.

    3. Click the SSH/SSL tab and clear the Use SSL checkbox.

    4. Click Apply.

    Copy SSL settings from other data sources

    If you configured SSL settings for one data source, you can copy them for another data source.

    1. Open data source properties. You can open data source properties by using one of the following options:

      • In the Database tool window ( View | Tool Windows | Database) , click the Data Source Properties icon The Data Source Properties icon.

      • Press Control+Alt+Shift+S.

    2. On the Data Sources tab, select a data source that you want to modify.

    3. Click the SSH/SSL tab and select the Use SSL checkbox.

    4. Click the Copy from … link and select the configuration that you want to copy.

    SSH

    Secure Shell or SSH is a network protocol that is used to encrypt a connection between a client and a server.

    In PhpStorm, you can create an SSH connection one of the following ways:

    PhpStorm SSH tunnel

    PhpStorm can create an SSH tunnel based on the SSH configuration that you set. To access the SSH configuration settings, press Control+Alt+S to open the IDE settings and select Tools | SSH Configuration.

    To use an SSH tunnel for the data source, select the Use SSH tunnel checkbox in the SSH/SSL tab of Data Sources and Drivers dialog (Command I).

    All created SSH connections are shared between all the data sources that you have in a project. If you do not want to share a connection between projects, select the Visible only for this project checkbox in the SSH connection settings.

    Connect to a database with SSH

    1. Open data source properties. You can open data source properties by using one of the following options:

      • In the Database tool window ( View | Tool Windows | Database) , click the Data Source Properties icon The Data Source Properties icon.

      • Press Control+Alt+Shift+S.

    2. Select a data source profile where you want to change connection settings.

    3. Click the SSH/SSL tab and select the Use SSH tunnel checkbox.

    4. Click the Add SSH configuration button (the Add SSH configuration).

    5. In the SSH dialog, click the Add button.

    6. If you do not want to share the configuration between projects, select the Visible only for this project checkbox.

    7. In Host, Username, and Port fields, specify your connection details.

    8. From the Authentication type list, you can select an authentication method:

      • Password: Access the host with a password. To save the password in PhpStorm, select the Save password checkbox.

      • Key pair (OpenSSH or PuTTY): Use SSH authentication with a key pair. To apply this authentication method, you must have a private key on the client machine and a public key on the remote server. PhpStorm supports private keys that are generated with the OpenSSH utility.

        Specify the path to the file where your private key is stored and type the passphrase (if any) in the corresponding fields. To have PhpStorm remember the passphrase, select the Save passphrase checkbox.

      • OpenSSH config and authentication agent: Use a credentials helper application that manages your SSH keys, such as ssh-agent.

    9. Click OK to confirm the new SSH configuration settings.

    10. In the Local port field of Data Sources and Drivers dialog, specify the local port number from which you want to forward the connection. Otherwise, PhpStorm selects the port dynamically.

    SSH settings of a data source

    Disable SSH connection to a database

    1. Open data source properties. You can open data source properties by using one of the following options:

      • In the Database tool window ( View | Tool Windows | Database) , click the Data Source Properties icon The Data Source Properties icon.

      • Press Control+Alt+Shift+S.

    2. Select a data source profile where you want to change connection settings.

    3. Click the SSH/SSL tab and clear the Use SSH tunnel checkbox.

    4. Click Apply.

    Create SSH tunnel manually

    Create the SSH tunnel with PuTTY (Windows)

    1. Download and run the latest version of the PuTTY SSH and Telnet client (download the client from https://www.putty.org/).

    2. In the PuTTY Configuration dialog, navigate to Connection | SSH | Auth.

    3. In the Private key file for authentication field, specify the path to your private key file and click Open.

    4. In the command line window, specify the username that you use for the SSH tunnel and press Enter. Do not close the command line window.

    5. In the Database tool window ( View | Tool Windows | Database) , click the Data Source Properties icon the Data Source Properties icon on the toolbar.

    6. Select a data source profile where you want to change connection settings.

    7. Click the SSH/SSL tab and select the Use SSH tunnel checkbox.

    8. From the Auth type list, select OpenSSH config and authentication agent.

    9. In Proxy host, Proxy user, and Port fields, specify connection details.

    10. To ensure that the connection to the data source is successful, click Test Connection.

    Create the SSH tunnel with PuTTY (Windows)

    Create the SSH tunnel with Pageant (Windows)

    Pageant is an SSH authentication agent for PuTTY, PSCP, PSFTP, and Plink. Pageant stores your private key, and as long as it is running, it provides the unlocked private key to PuTTY or other tools like PhpStorm. You can find the Pageant icon in the Windows taskbar.

    1. Download the latest version of Pageant (download the client from https://www.putty.org/).

    2. In the Windows taskbar, right-click the Pageant icon and select Add Key.

    3. In the Select Private Key File dialog, navigate to the private key file (the PPK file) and click Open.

    4. (Optional) Enter the private key passphrase and press Enter.

    5. In the Database tool window ( View | Tool Windows | Database) , click the Data Source Properties icon the Data Source Properties icon on the toolbar.

    6. Select a data source profile where you want to change connection settings.

    7. Click the SSH/SSL tab and select the Use SSH tunnel checkbox.

    8. From the Auth type list, select OpenSSH config and authentication agent.

    9. In Proxy host, Proxy user, and Port fields, specify connection details.

    10. To ensure that the connection to the data source is successful, click Test Connection.

    Create the SSH tunnel with Pageant (Windows)

    Create the SSH tunnel with the ssh-agent (macOS and Linux)

    Run all commands for ssh-agent in the command line.

    1. Ensure that ssh-agent is running.

      ssh-agent
    2. Add your key to the agent (in the following example, the key path is ~/.ssh/id_rsa).

      ssh-add ~/.ssh/id_rsa
    3. (Optional) On macOS, you can add -K option to the ssh-add command to store passphrases in your keychain. On macOS Sierra and later, you need to create the config file in ~/.ssh/ with the following text:

      Host * UseKeychain yes AddKeysToAgent yes IdentityFile ~/.ssh/id_rsa

      If you have other private keys in the .ssh directory, add an IdentityFile line for each key. For example, if the second key has the id_ed25519 name, add IdentityFile ~/.ssh/id_ed25519 as an additional line for the second private key.

    4. List all added keys.

      ssh-add -L
    5. In the Database tool window ( View | Tool Windows | Database) , click the Data Source Properties icon the Data Source Properties icon on the toolbar.

    6. Select a data source profile where you want to change connection settings.

    7. Click the SSH/SSL tab and select the Use SSH tunnel checkbox.

    8. From the Auth type list, select OpenSSH config and authentication agent.

    9. In Proxy host, Proxy user, and Port fields, specify connection details.

    10. To ensure that the connection to the data source is successful, click Test Connection.

    Create the SSH tunnel with the ssh-agent (macOS and Linux)

    Step 5. Write to us if you still need help

    Write to the PhpStorm team

    • Email our team at phpstorm-support@jetbrains.com. Describe your problem, and attach all available materials that can speed up troubleshooting (code samples, screenshots, logs, animations, videos, and other materials).

    For more information about other troubleshooting sources, refer to Getting started.

    Last modified: 11 September 2023
