Migrating From Eclipse to PhpStorm

Overview

Switching from Eclipse to PhpStorm, especially if you've been using Eclipse for a long time, requires understanding some fundamental differences between the two IDEs, including their user interfaces, compilation methods, shortcuts, project configuration and other aspects.

User Interface

No workspace

The first thing you'll notice when launching PhpStorm is that it has no workspace concept. This means that you can work with only one project at a time. While in Eclipse you normally have a set of projects that may depend on each other, in PhpStorm you have a single project that consists of a set of modules.

If you have several unrelated projects, you can open them in separate windows.

If you still want to have several unrelated projects opened in one window, as a workaround you can configure them all in PhpStorm as modules.

No perspectives

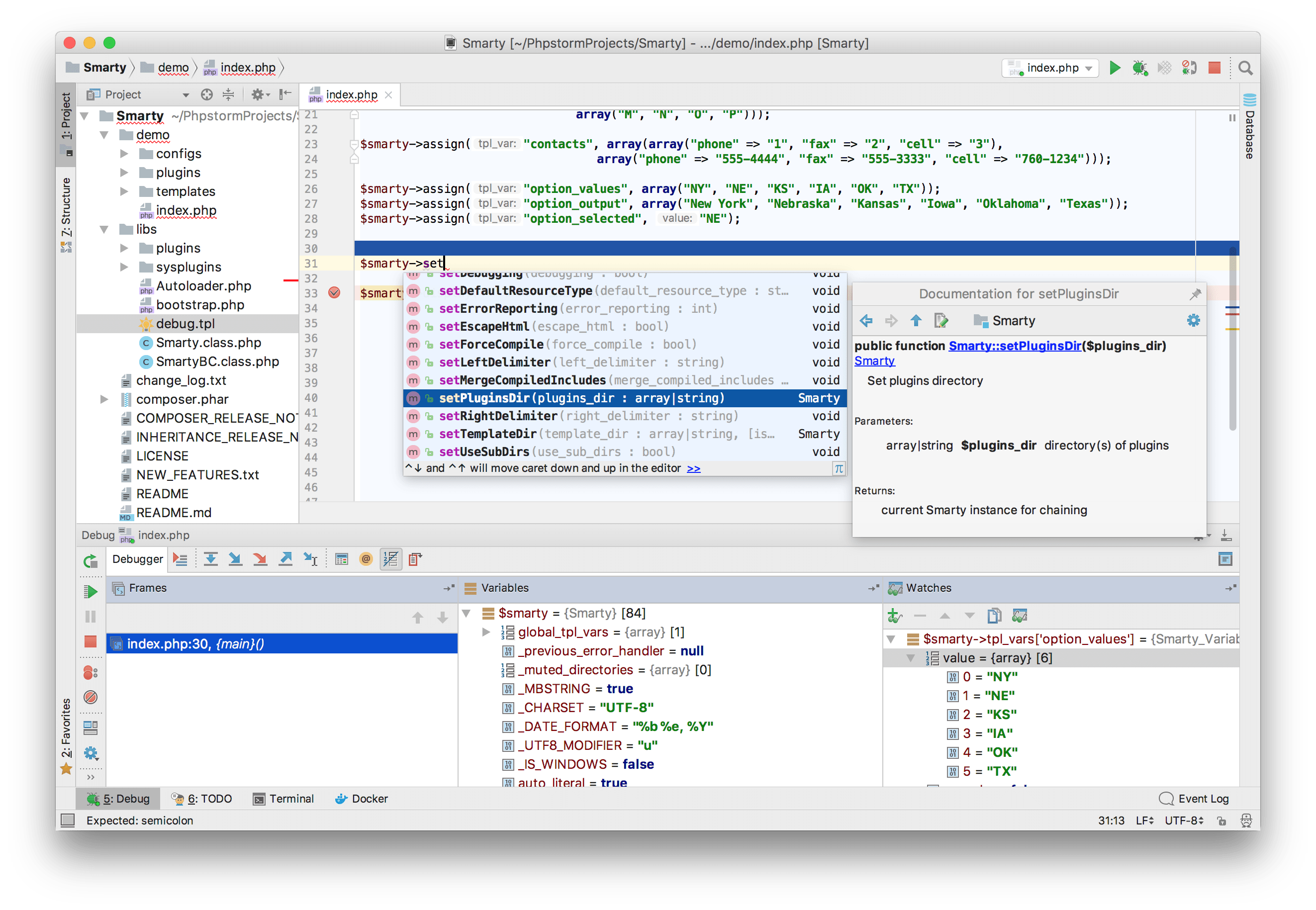

The second big surprise when you switch to PhpStorm is that it has no perspectives.

It means that you don't need to switch between different workspace layouts manually to perform different tasks. The IDE follows your context and brings up the relevant tools automatically.

ps overview

Tool windows

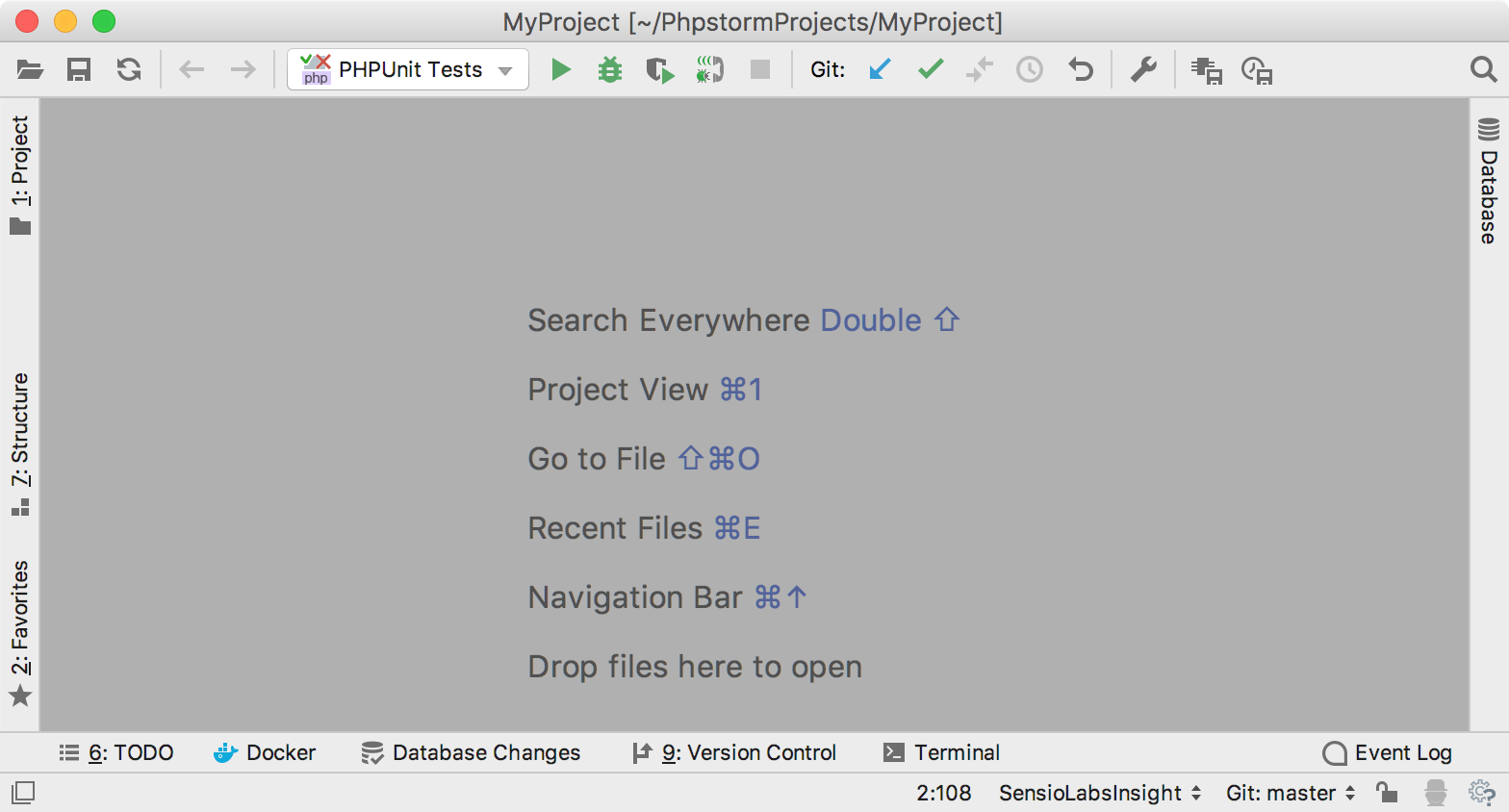

Just like in Eclipse, in PhpStorm you also have tool windows. To open a tool window, simply click it in the tool window bar:

ps migration guide tool window bar 2

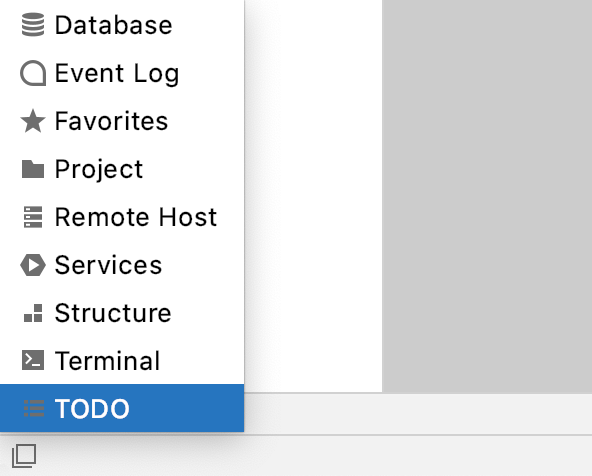

If the tool window bar is hidden, you can open any tool window by hovering over the corresponding icon in the bottom left corner:

ps ToolWindowQuickAccess

If you want to make the tool window bar visible for a moment, you can press Alt (Cmd for macOS) twice and hold it.

If you don't want to use the mouse, you can always switch to any toolbar by pressing the shortcut assigned to it. The most important shortcuts to remember are:

  • Project: Alt+1

  • Version Control: Alt+9

  • Terminal: Alt+F12

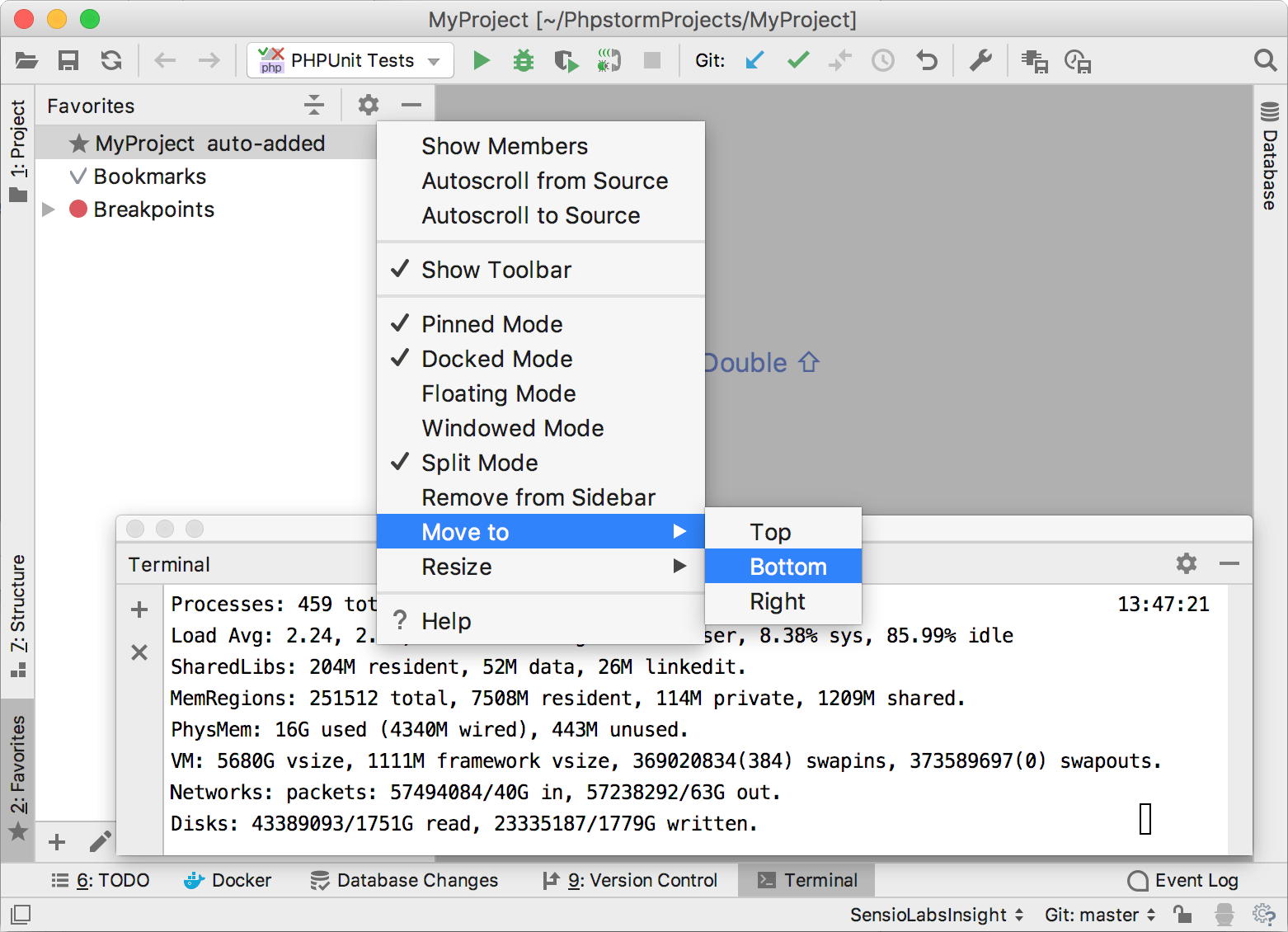

Another thing about tool windows is that you can drag, pin, unpin, attach and detach them:

ps migration guide tool windows

To help store/restore the tool windows layout, there are two useful commands:

  • Window | Store Current Layout as Default
  • Window | Restore Default Layout (also available via Ctrl+F12)

Multiple windows

Windows management in PhpStorm is slightly different from Eclipse. You can't open several windows with one project, but you can detach any number of editor tabs into separate windows.

Auto-scrolling to/from sources

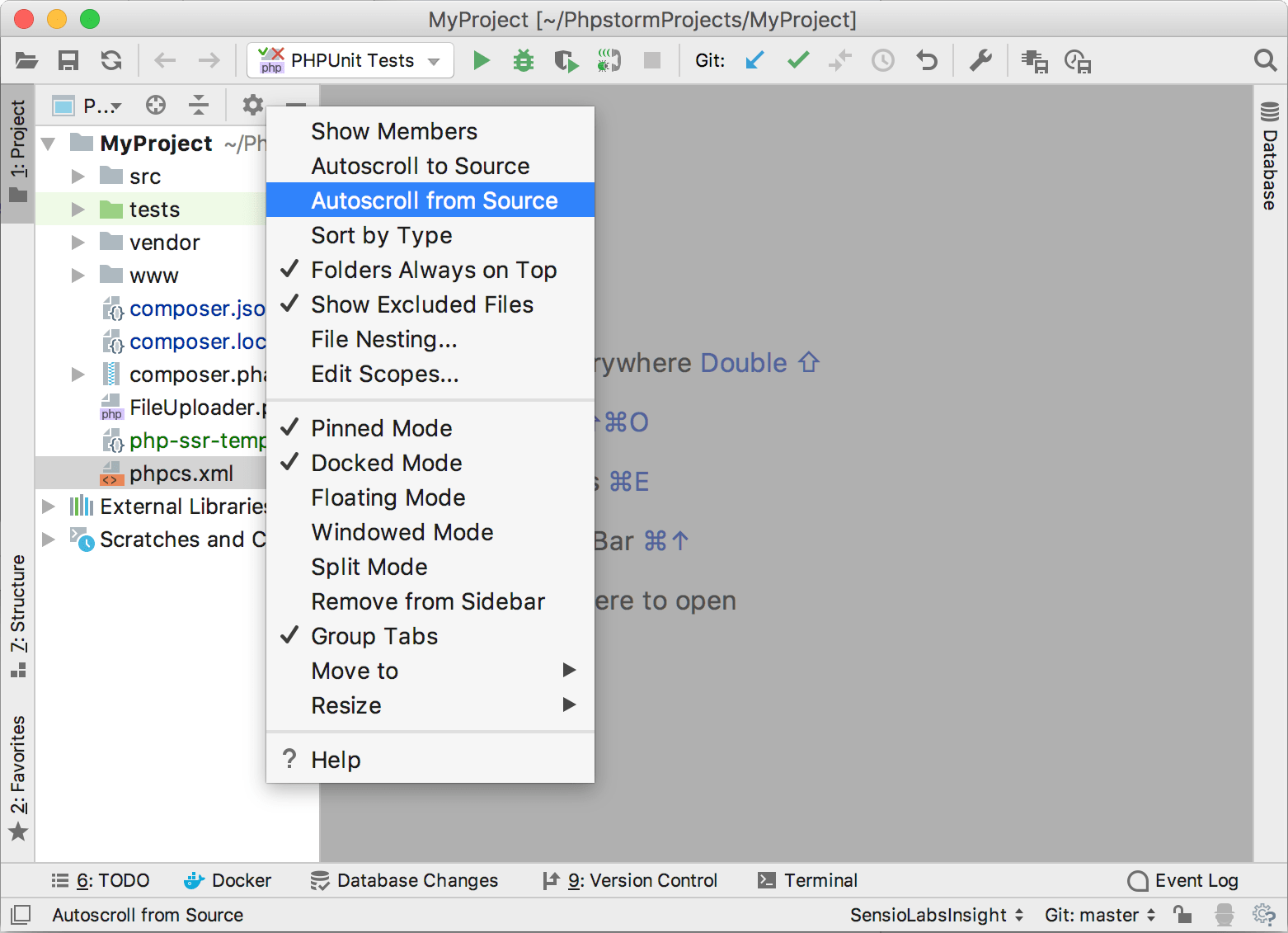

By default, PhpStorm doesn't change the selection in the Project Tool Window when you switch between editor tabs. However, you can enable it in the tool window settings:

ps migration guide auto scroll from source

Enabling line numbers

Line numbers are not shown in the editor by default. To enable them, go to Settings/Preferences | Editor | General | Appearance | Show line numbers. There you will also find other useful settings.

General workflows

No 'save' button

Time for some really shocking news: PhpStorm has no Save button. Since in PhpStorm you can undo refactorings and revert changes from Local History, it makes no sense to ask you to save your changes every time.

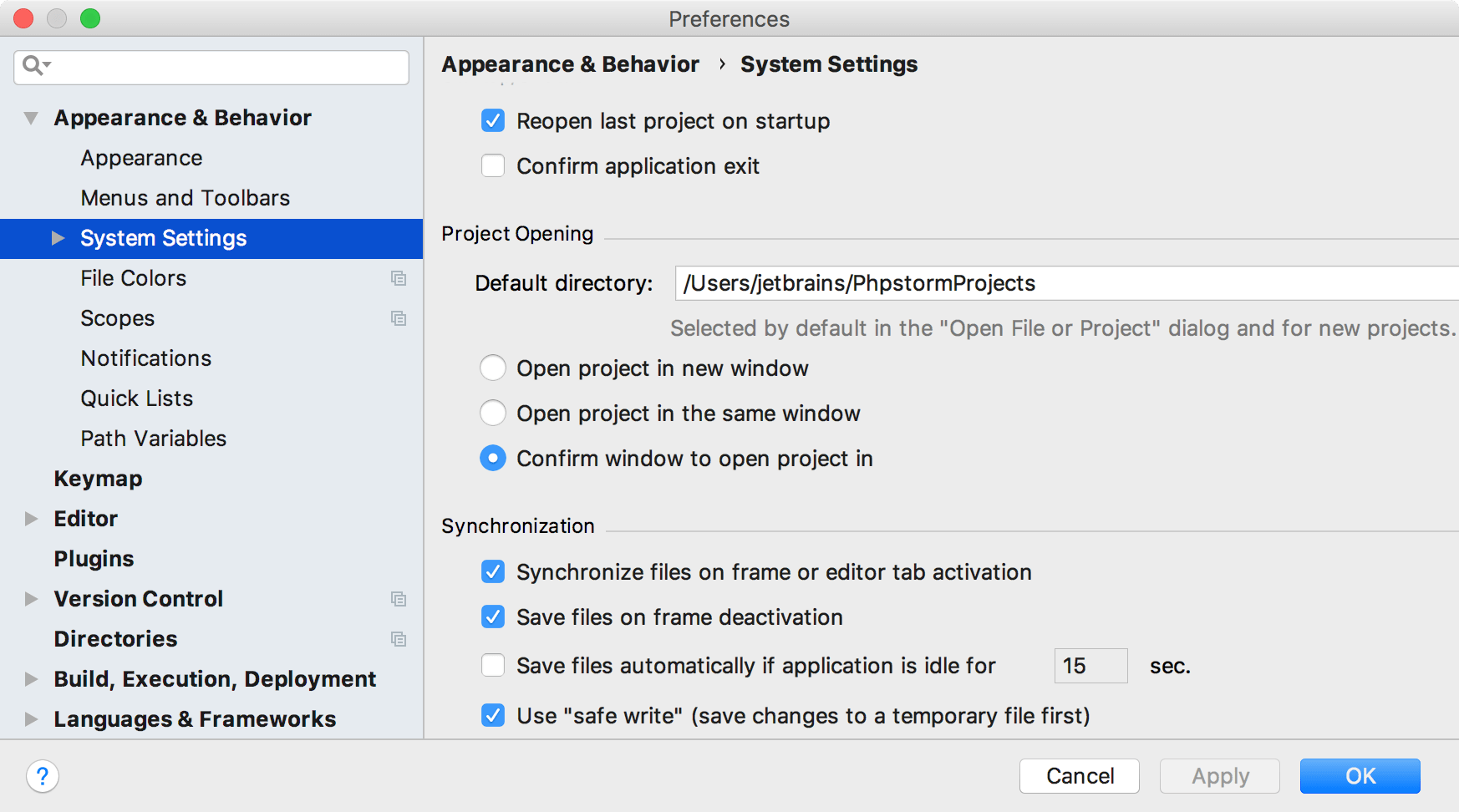

Still, it's worth knowing that physical saving to disk is triggered by certain events, including compilation, closing a file, switching focus out of the IDE, etc. You can change this behavior via Settings | Appearance & Behavior | System Settings:

ps migration guide save settings

No save actions

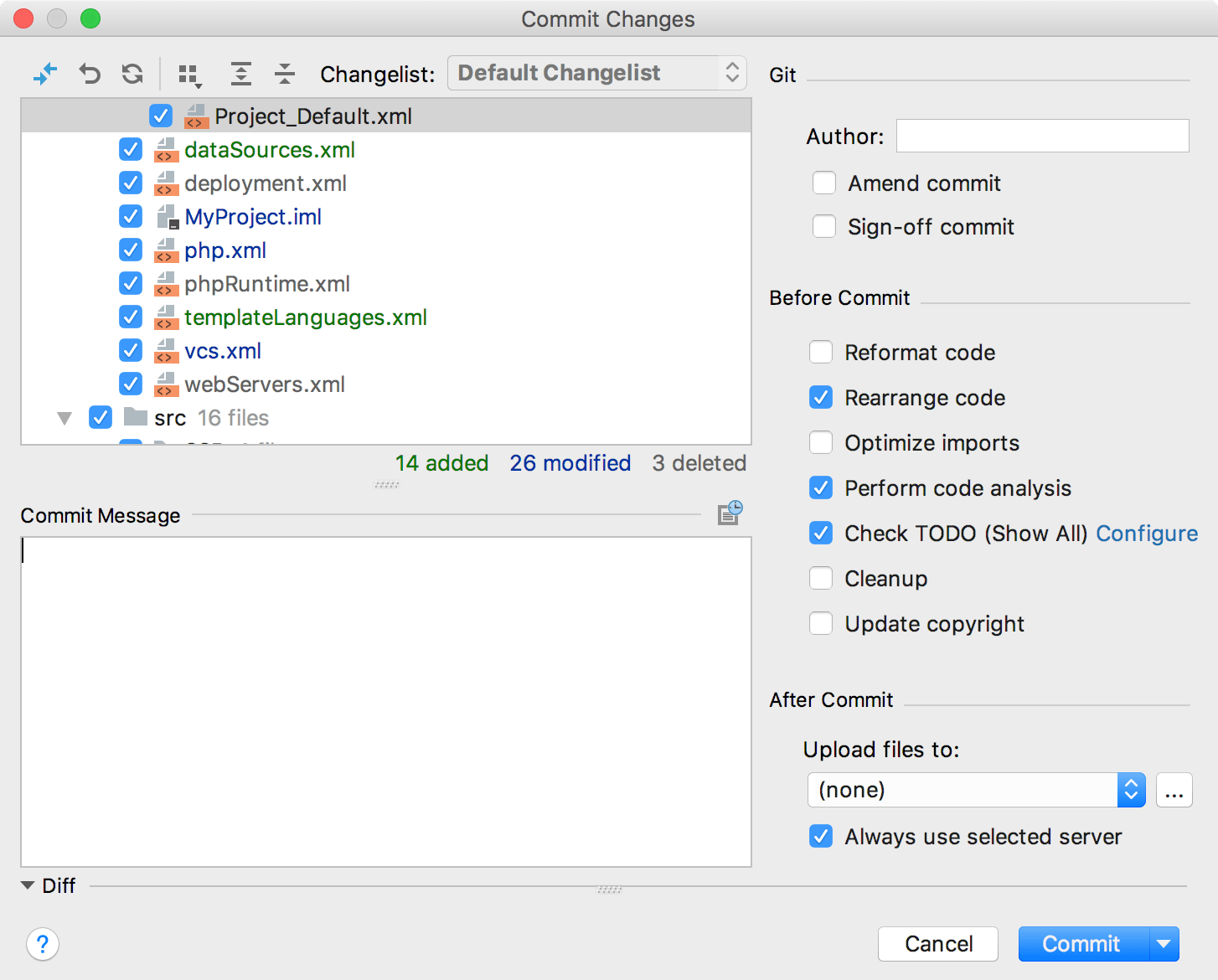

One of the features you may miss in PhpStorm as an Eclipse user is save actions, i.e. the actions triggered automatically on save, such as reformatting code, organizing imports, adding missing annotations and the final modifier, etc. Instead, PhpStorm offers you to run the corresponding actions automatically on commit:

ps migration guide commit

Or manually:

  • Code | Reformat Code (Ctrl+Alt+L)

  • Code | Optimize Imports (Ctrl+Alt+O)

  • Analyze | Code Cleanup

If, for some reason, you can't live without an Eclipse save action, you can install a plugin that imitates Eclipse save actions.

Shortcuts

PhpStorm shortcuts are completely different from those in Eclipse.

The table below shows how the top Eclipse actions (and their shortcuts) are mapped to PhpStorm (you may want to print it out to always have it handy).

Eclipse

PhpStorm

Action

Shortcut

Action

Shortcut

Code completion

Ctrl+Space

Basic completion

Ctrl+Space

-

-

Smart completion

Ctrl+Shift+Space

-

-

Statement completion

Ctrl+Shift+Enter

Quick access

Ctrl+3

Search everywhere

Shift x 2

Maximize active view or editor

Ctrl+M

Hide all tool windows

Ctrl+Shift+F12

Open type

Ctrl+Shift+T

Navigate to class

Ctrl+N

Open resource

Ctrl+Shift+R

Navigate to file

Ctrl+Shift+N

-

-

Navigate to symbol

Ctrl+Shift+Alt+N

Next view

Ctrl+F7

-

-

-

-

Recent files

Ctrl+E

-

-

Switcher

Ctrl+Tab

Quick outline

Ctrl+O

File structure

Ctrl+F12

Move lines

Alt+Up/Down

Move lines

Shift+Alt+Up/Shift+Alt+Down

Delete lines

Ctrl+D

Delete lines

Ctrl+Y

Quick fix

Ctrl+1

Show intention action

Alt+Enter

Quick switch editor

Ctrl+E

Switcher

Ctrl+Tab

-

-

Recent files

Ctrl+E

Quick hierarchy

Ctrl+T

Navigate to type hierarchy

Ctrl+H

-

-

Navigate to method hierarchy

Ctrl+Shift+H

-

-

Show UML popup

Ctrl+Alt+U

Last edit location

Ctrl+Q

Last edit location

Ctrl+Shift+Backspace

Next editor

Ctrl+F6

Select next tab

Alt+Right

Run

Ctrl+Shift+F11

Run

Shift+F10

Debug

Ctrl+F11

Debug

Shift+F9

Correct indentation

Ctrl+I

Auto-indent lines

Ctrl+Alt+I

Format

Ctrl+Shift+F

Reformat code

Ctrl+Alt+L

Surround with

Ctrl+Alt+Z

Surround with

Ctrl+Alt+T

-

-

Surround with live template

Ctrl+Alt+J

Open declaration

F3

Navigate to declaration

Ctrl+B

-

-

Quick definition

Ctrl+Shift+I

Open type hierarchy

F4

Navigate to type hierarchy

Ctrl+H

-

-

Show UML popup

Ctrl+Alt+U

References in workspace

Ctrl+Shift+G

Find usages

Alt+F7

-

-

Show usages

Ctrl+Alt+F7

-

-

Find usages settings

Ctrl+Shift+Alt+F7

Open search dialog

Ctrl+H

Find in path

Ctrl+Shift+F

Occurrences in file

Ctrl+Alt+U

Highlight usages in file

Ctrl+Shift+F7

Copy lines

Ctrl+Alt+Down

Duplicate lines

Ctrl+D

Extract local variable

Ctrl+Alt+L

Extract variable

Ctrl+Alt+V

Assign to field

Ctrl+2/Ctrl+F

Extract field

Ctrl+Alt+F

Show refactor quick menu

Ctrl+Alt+T

Refactor this

Ctrl+Shift+Alt+T

Rename

Ctrl+Alt+R

Rename

Shift+F6

Go to line

Ctrl+L

Navigate to line

Ctrl+G

Structured selection

Shift+Alt+Up/Shift+Alt+Down

Select word at caret

Ctrl+W/Ctrl+Shift+W

Find next

Ctrl+J

Find next

F3

Show in

Ctrl+Alt+W

Select in

Alt+F1

Back

Ctrl+[

Back

Ctrl+Alt+Left

Forward

Ctrl+]

Forward

Ctrl+Alt+Right

Eclipse keymap

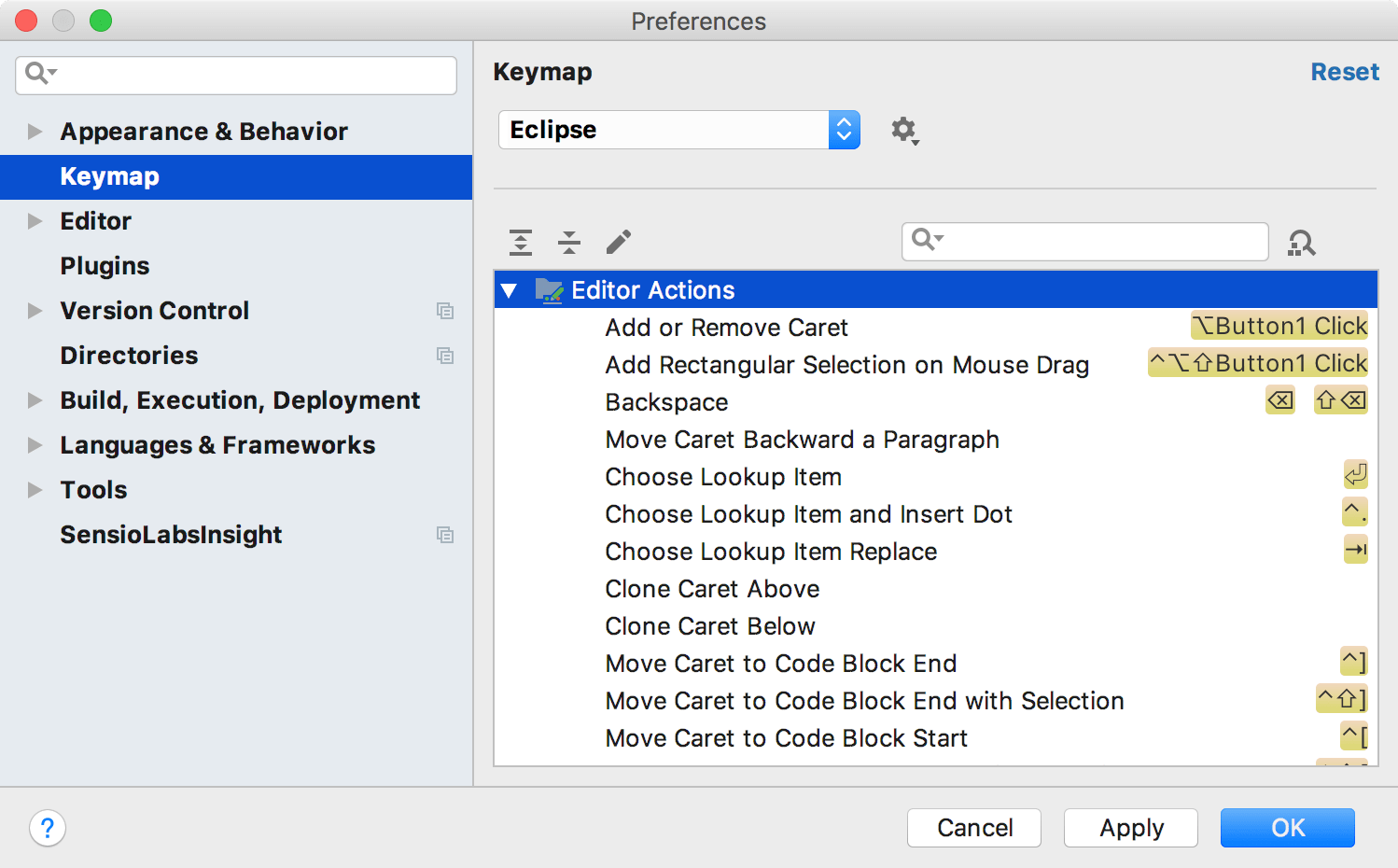

For Eclipse users who prefer not to learn new shortcuts, PhpStorm provides the Eclipse keymap which closely mimics its shortcuts:

ps migration guide eclipse keymap

Find action

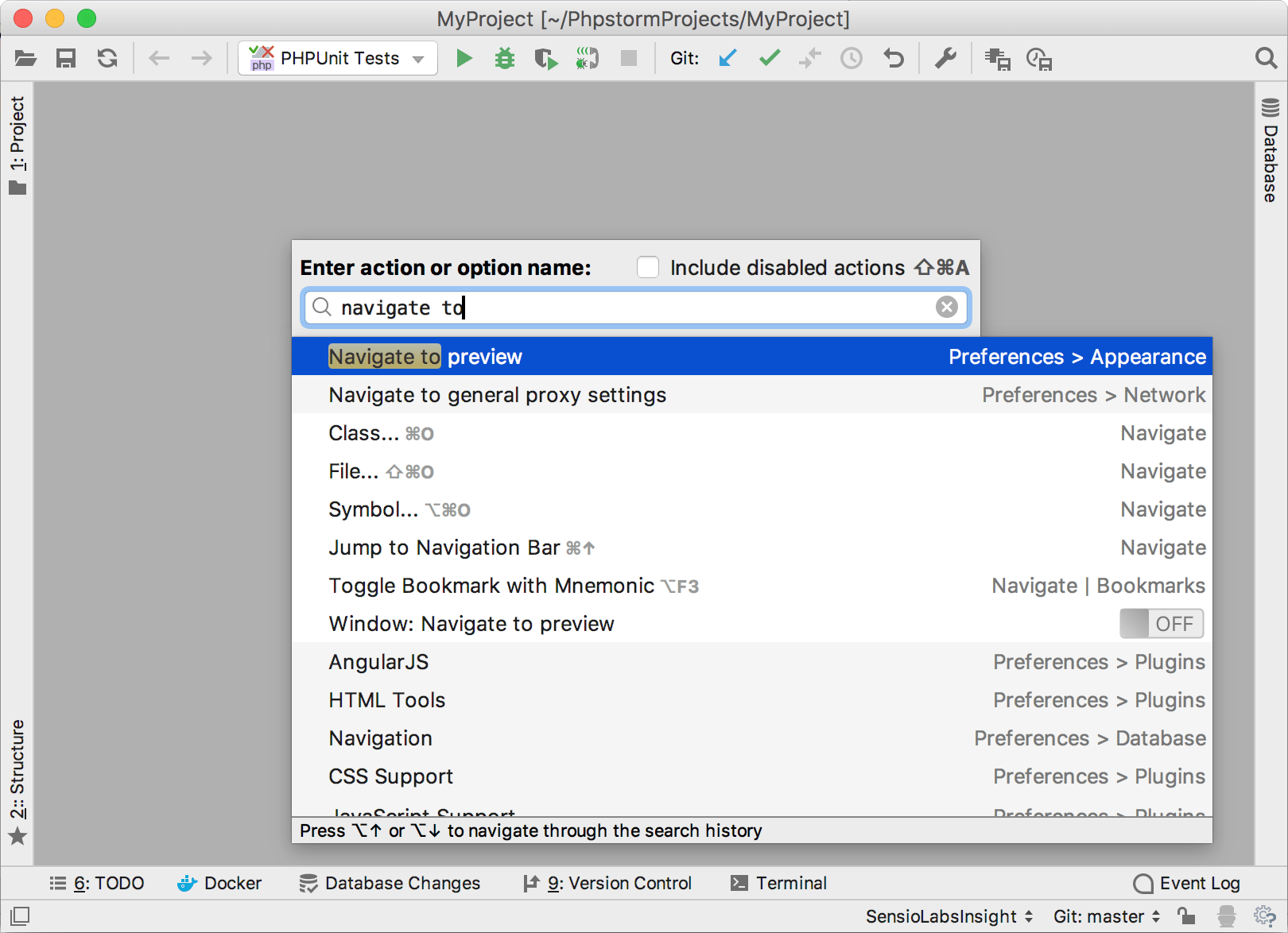

When you don't know the shortcut for some action, try using the Find action feature available via Ctrl+Shift+A. Start typing to find an action by its name, see its shortcut, or call it:

ps migration guide find action

Coding assistance

Both Eclipse and PhpStorm provide coding assistance features, such as code completion, code generation, quick-fixes, live templates, etc.

Quick-fixes

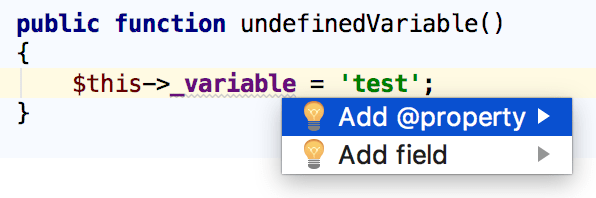

To apply a quick-fix in PhpStorm, press Alt+Enter:

ps migration guide quick fix

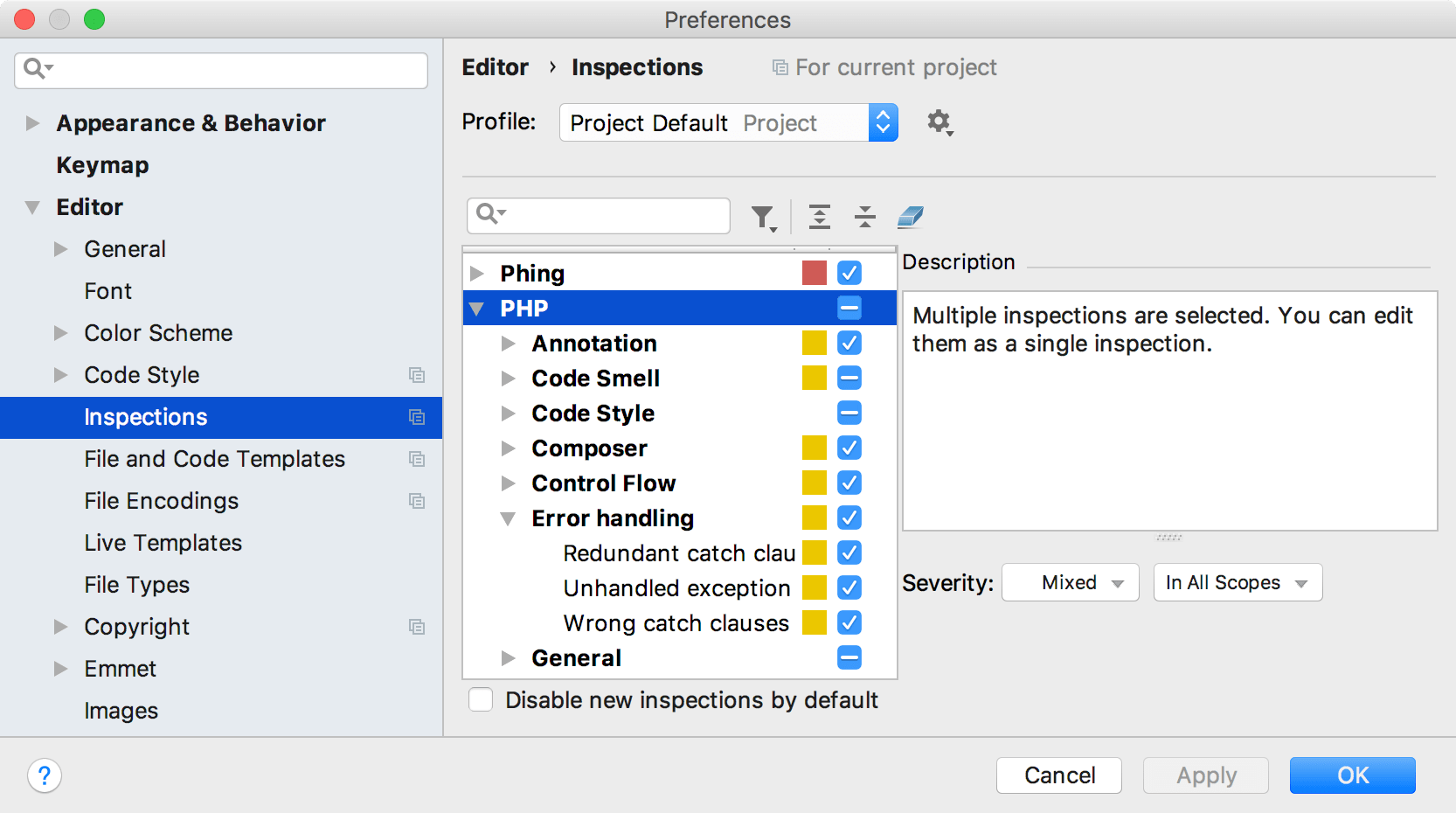

All quick-fixes are based on inspections configured in Settings | Editor | Inspections:

ps migration guide inspection settings

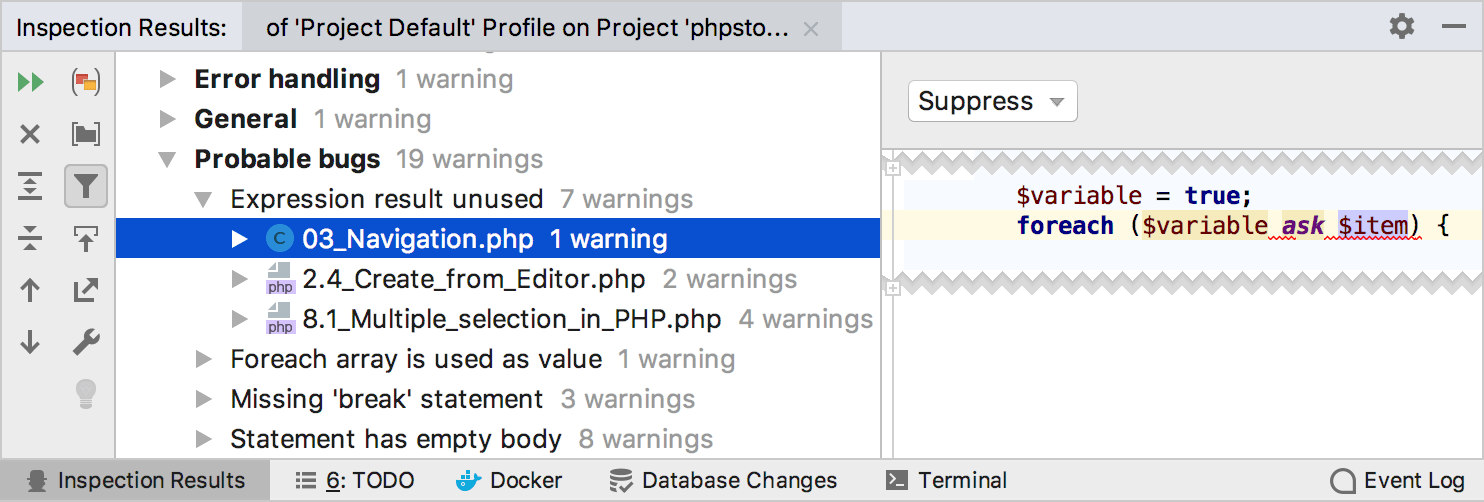

If you want to apply a quick-fix to several places at once (i.e. to a whole folder, module or even a project), you can do it by running the corresponding inspection via Analyze | Run Inspection By Name or by running the whole batch of inspections via Analyze | Inspect Code:

ps migration guide batch inspections

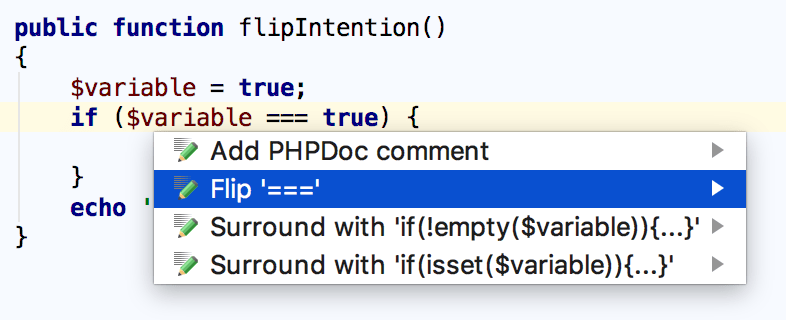

Apart from outright problems, PhpStorm also recognizes code constructs that can be improved or optimized via the so-called intentions (also available with Alt+Enter):

ps migration guide intention

Eclipse

PhpStorm

ActionShortcutActionShortcut

Quick fix

Ctrl+1

Show intention action

Alt+Enter

Generating code

The key action for generating code is Code | Generate, available via Alt+Insert:

ps quick start generate code mac

Code completion

PhpStorm provides several different types of code completion, which include:

  • Basic completion

  • Second basic completion

  • Smart completion

  • Second smart completion

  • Statement completion

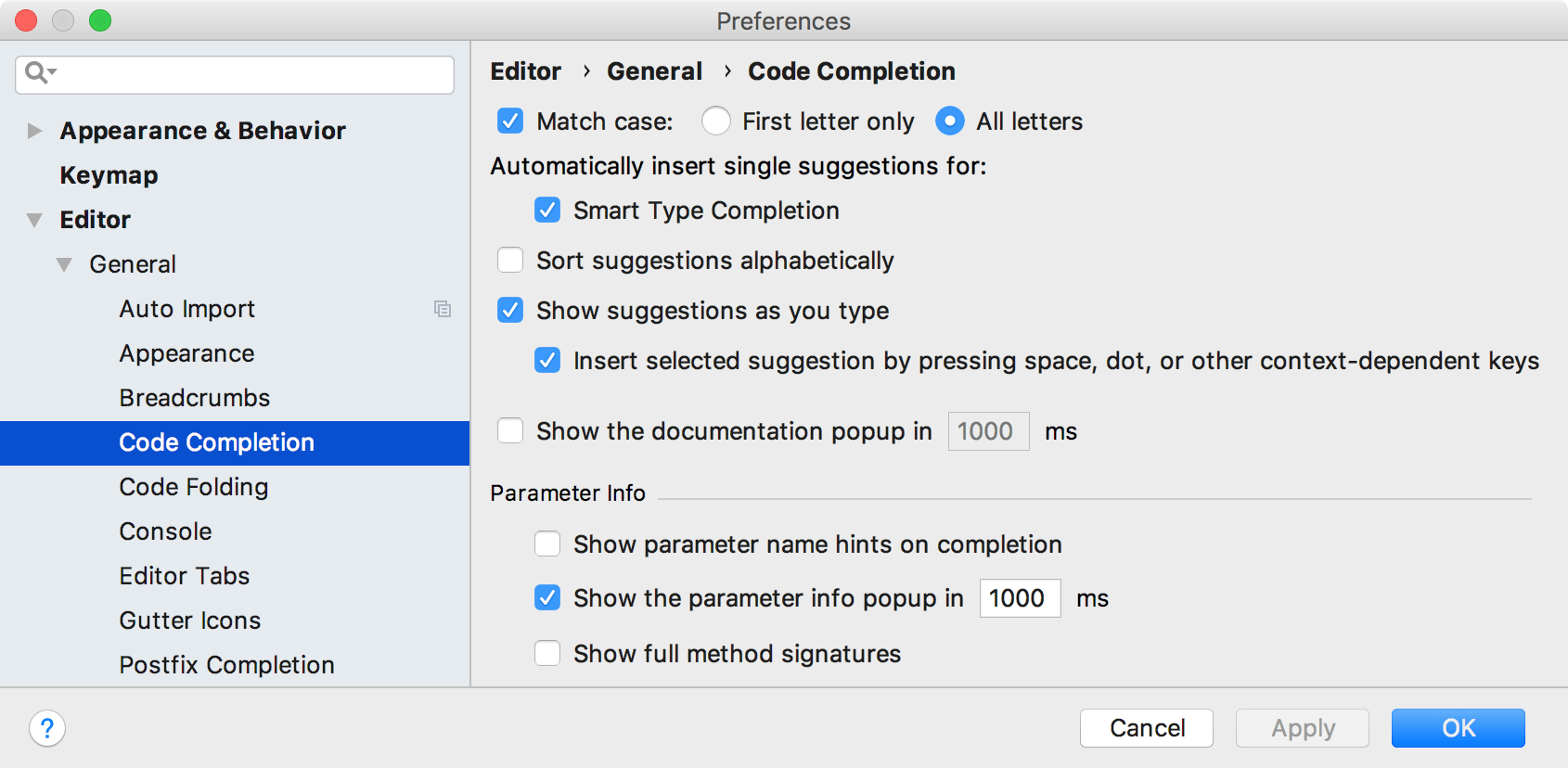

By default, PhpStorm doesn't show the Documentation popup for the selected item, but you can enable it in Settings/Preferences | Editor | Code Completion | Autopopup documentation in (ms):

ps migration guide code completion settings

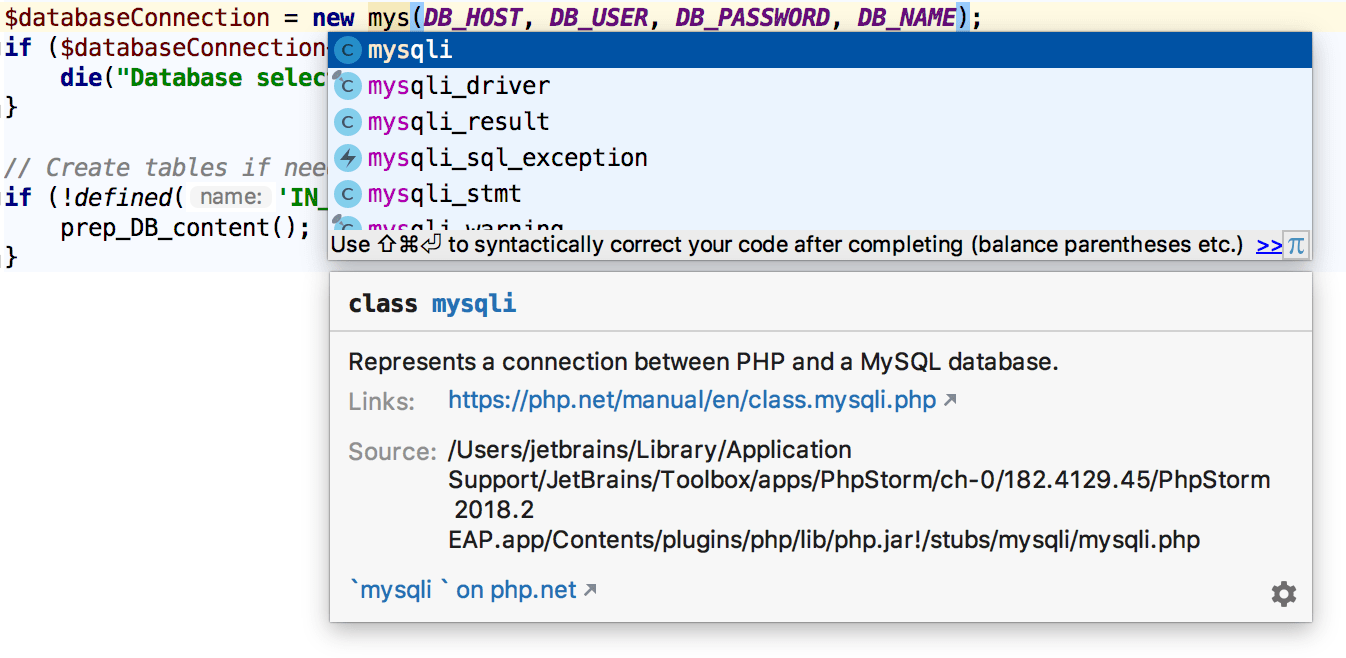

If you don't want to enable this option, you can manually invoke this popup by pressing Ctrl+Q when you need it:

ps migration guide code completion quick doc

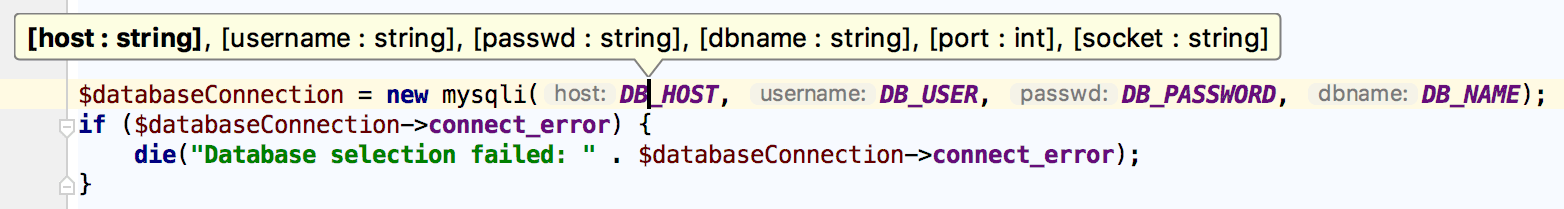

When the caret is within the brackets of a method or a constructor, you can get the info about the parameters by calling Parameter Info with Ctrl+P:

ps migration guide parameter info

Eclipse

PhpStorm

ActionShortcutActionShortcut

Code completion

Ctrl+Space

Basic completion

Ctrl+Space

-

-

Smart completion

Ctrl+Shift+Space

-

-

Statement completion

Ctrl+Shift+Enter

Templates

In PhpStorm, Live templates let you insert frequently used constructs into source code.

Abbreviation

Expands to ...

rqr

require "";

pubsf

public static function () { }

fore

foreach ( as $item) { }

eco

echo "";

The list of available templates can be found in Settings/Preferences | Editor | Live Templates. There you can also add your own templates or modify any existing ones.

While PhpStorm suggests templates in code completion results, you can quickly expand any template without using code completion simply by pressing Tab.

Postfix templates

In addition to 'regular' templates, PhpStorm offers the so-called postfix templates. They are useful when you want to apply a template to an expression you've already typed. For instance, type a variable name, add null and press Tab. PhpStorm will turn your expression into a if (...==null){...} statement.

To see a complete list of available postfix templates, go to Settings/Preferences | Editor | General | Postfix Completion.

Surround with live template

The surround with templates is another addition that works similarly to live templates but can be applied to the selected code with Ctrl+Alt+J.

To define your own surround with template, go to Settings/Preferences | Editor | Live Templates and use $SELECTION$ within the template text:

try { $SELECTION$ } catch ($TYPE$ $$$VARIABLENAME$) { Logger::log($$$VARIABLENAME$); $END$ }

Navigation

The table below roughly maps the navigation actions available in Eclipse with those in PhpStorm:

Eclipse

PhpStorm

ActionShortcutActionShortcut

Quick access

Ctrl+3

Search everywhere

Shift x 2

Open type

Ctrl+Shift+T

Navigate to class

Ctrl+N

Open resource

Ctrl+Shift+R

Navigate to file

Ctrl+Shift+N

-

-

Navigate to symbol

Ctrl+Shift+Alt+N

Quick switch editor

Ctrl+E

Switcher

Ctrl+Tab

-

-

Recent files

Ctrl+E

Open declaration

F3

Navigate to declaration

Ctrl+B

Open type hierarchy

F4

Navigate to type hierarchy

Ctrl+H

-

-

Show UML popup

Ctrl+Alt+U

Quick outline

Ctrl+O

File structure

Ctrl+F12

Back

Ctrl+[

Back

Ctrl+Alt+Left

Forward

Ctrl+]

Forward

Ctrl+Alt+Right

Refactorings

The following table maps the shortcuts for the most common refactorings in Eclipse with those in PhpStorm:

Eclipse

PhpStorm

ActionShortcutActionShortcut

Extract local variable

Ctrl+Alt+L

Extract variable

Ctrl+Alt+V

Assign to field

Ctrl+2

Extract field

Ctrl+Alt+F

Show refactor quick menu

Ctrl+Alt+T

Rafactor this

Ctrl+Shift+Alt+T

Rename

Ctrl+Alt+R

Rename

Shift+F6

Undo

Sometimes, refactorings may affect a lot of files in a project. PhpStorm not only takes care of applying changes safely, but also lets you revert them. To undo the last refactoring, switch the focus to the Project Tool Window and press Ctrl+Z.

Search

Below is a map of the most common search actions and shortcuts:

Eclipse

PhpStorm

ActionShortcutActionShortcut

Open search dialog

Ctrl+H

Find in path

Ctrl+Shift+F

References in workspace

Ctrl+Shift+G

Find usages

Alt+F7

-

-

Show usages

Ctrl+Alt+F7

-

-

Find usages settings

Ctrl+Shift+Alt+F7

Occurrences in file

Ctrl+Alt+U

Highlight usages in file

Ctrl+F7

Code formatting

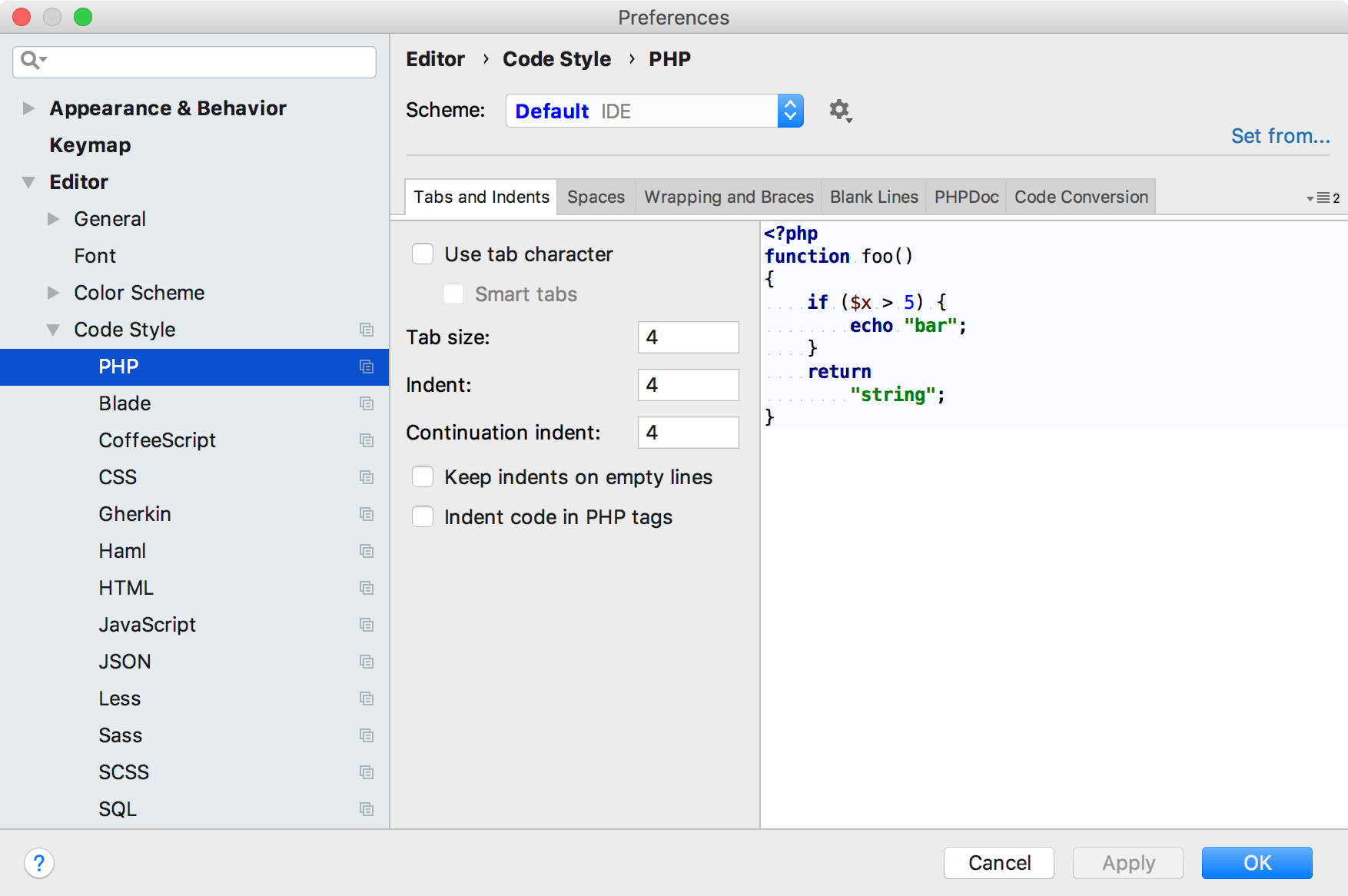

PhpStorm code formatting rules (available via Settings/Preferences | Editor | Code Style) are similar to those in Eclipse, with some minor differences. You may want to take note of the fact that the Using the Tab char option is disabled by default, the Indent size may be different, etc.

ps migration guide code style php

If you would like to import your Eclipse formatter settings, go to Settings/Preferences | Editor | Code Style | PHP, click Manage, click Import and select the exported Eclipse formatter settings (an XML file).

Note that there may be some discrepancies between the code style settings in PhpStorm and Eclipse. For example, you cannot tell PhpStorm to put space after (but not before). If you want PhpStorm to use the Eclipse formatter, consider installing the Eclipse code formatter plugin.

Eclipse

PhpStorm

ActionShortcutActionShortcut

Format

Ctrl+Shift+F

Reformat code

Ctrl+Alt+L

Running and reloading changes

Similarly to Eclipse, PhpStorm also has Run/Debug Configurations Dialog that you can access either from the main toolbar, or the main menu. Compare the related shortcuts:

Eclipse

PhpStorm

ActionShortcutActionShortcut

Run

Ctrl+Shift+F11

Run

Shift+F10

Debug

Ctrl+F11

Debug

Shift+F9

-

-

Make

Ctrl+F9

-

-

Update application

N/A

Debugging

The debuggers in Eclipse and PhpStorm are similar but use different shortcuts:

See also, How do I start debugging?

Eclipse

PhpStorm

ActionShortcutActionShortcut

Step into

F5

Step into

F7

-

-

Smart step into

Shift+F7

Step over

F6

Step over

F8

Step out

F7

Step out

Shift+F8

Resume

F8

Resume

F9

Toggle breakpoint

Ctrl+Shift+B

Toggle breakpoint

Ctrl+F8

-

-

Evaluate expression

Alt+F8

Working with VCS (Git, Mercurial, Subversion, Perforce)

Configuring VCS roots

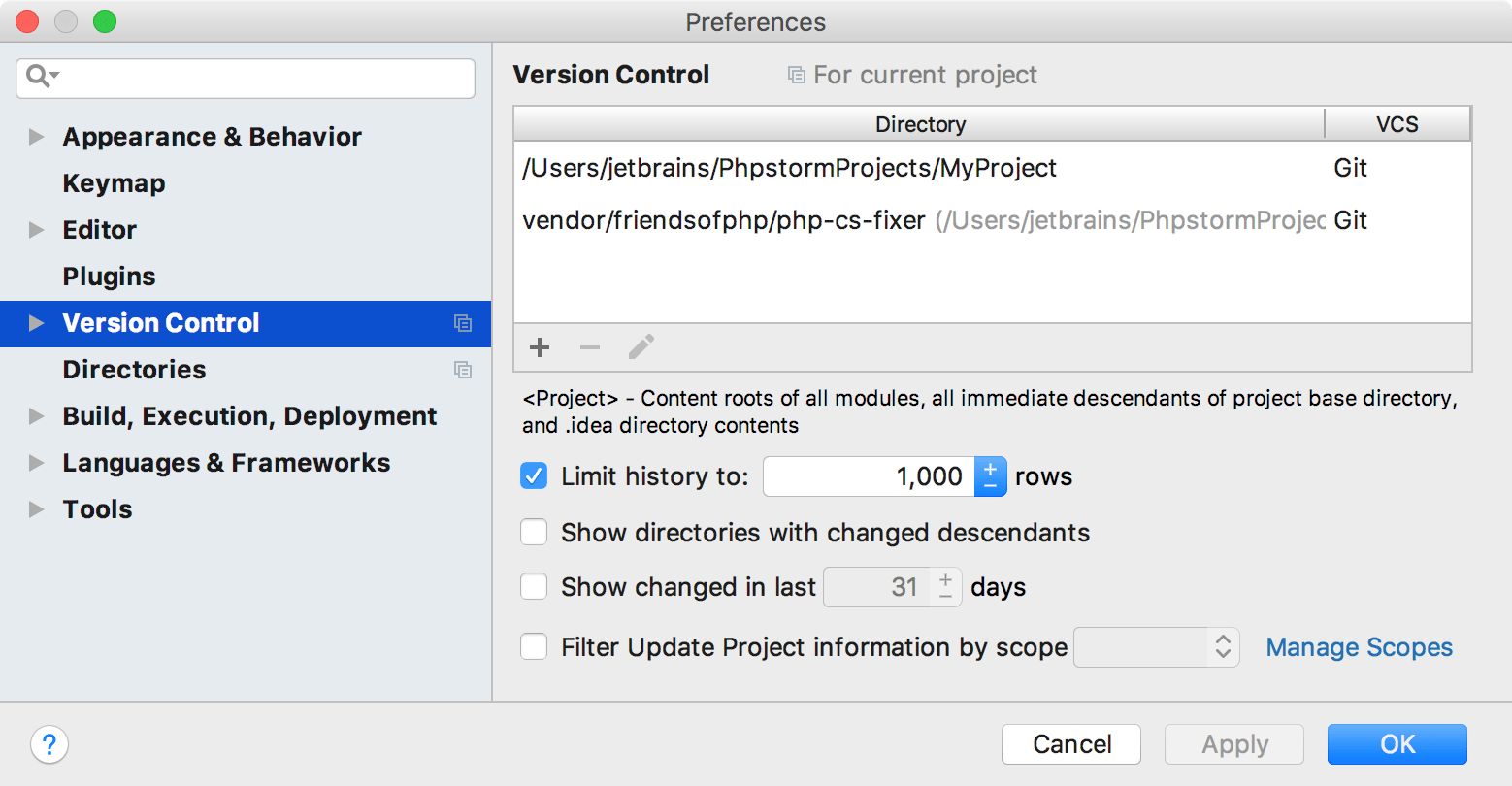

When you open a project located under a VCS root, PhpStorm automatically detects it and suggests adding this root to the project settings. To change version control-related project settings (or manually add a VCS root), go to Settings | Version Control:

ps migration guide vcs settings

PhpStorm works perfectly with multi-repository projects. Just map your project directories to VCS, and the IDE will take care of the rest. For Git and Mercurial, the IDE will even offer you synchronized branch control, so that you can perform branch operations on multiple repositories simultaneously (for more details, see Manage branches).

Editing VCS settings

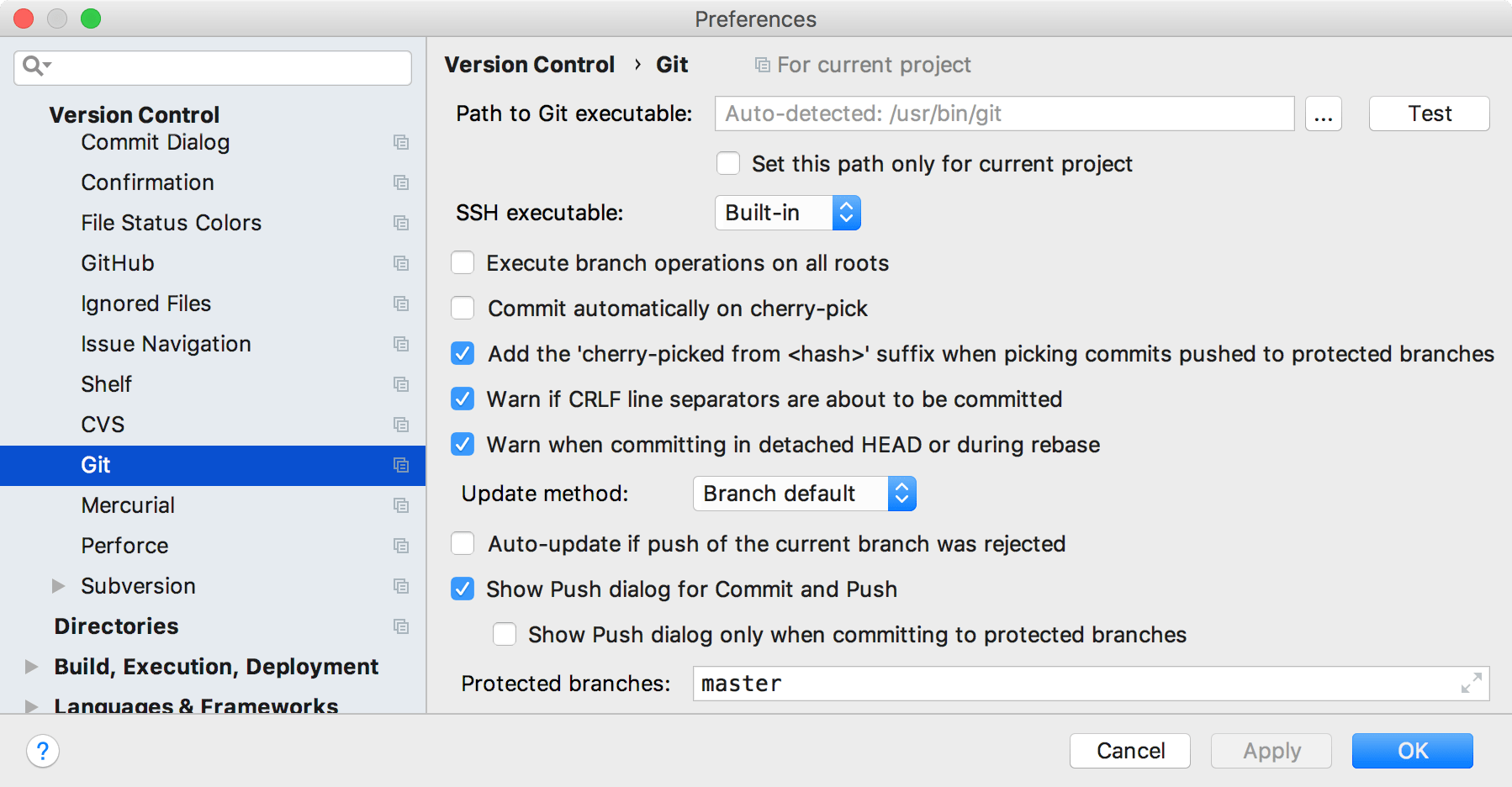

Every VCS may require specific settings, for example, Path to Git executable, GitHub/Perforce credentials, etc.:

ps migration guide git settings

Once you've configured the VCS settings, you'll see the Version Control tool window. You can invoke it any time by pressing Alt+9.

Checking projects out

To check out a project from a VCS, click Checkout from Version Control on the Welcome Screen, or in the main VCS menu.

Working with local changes

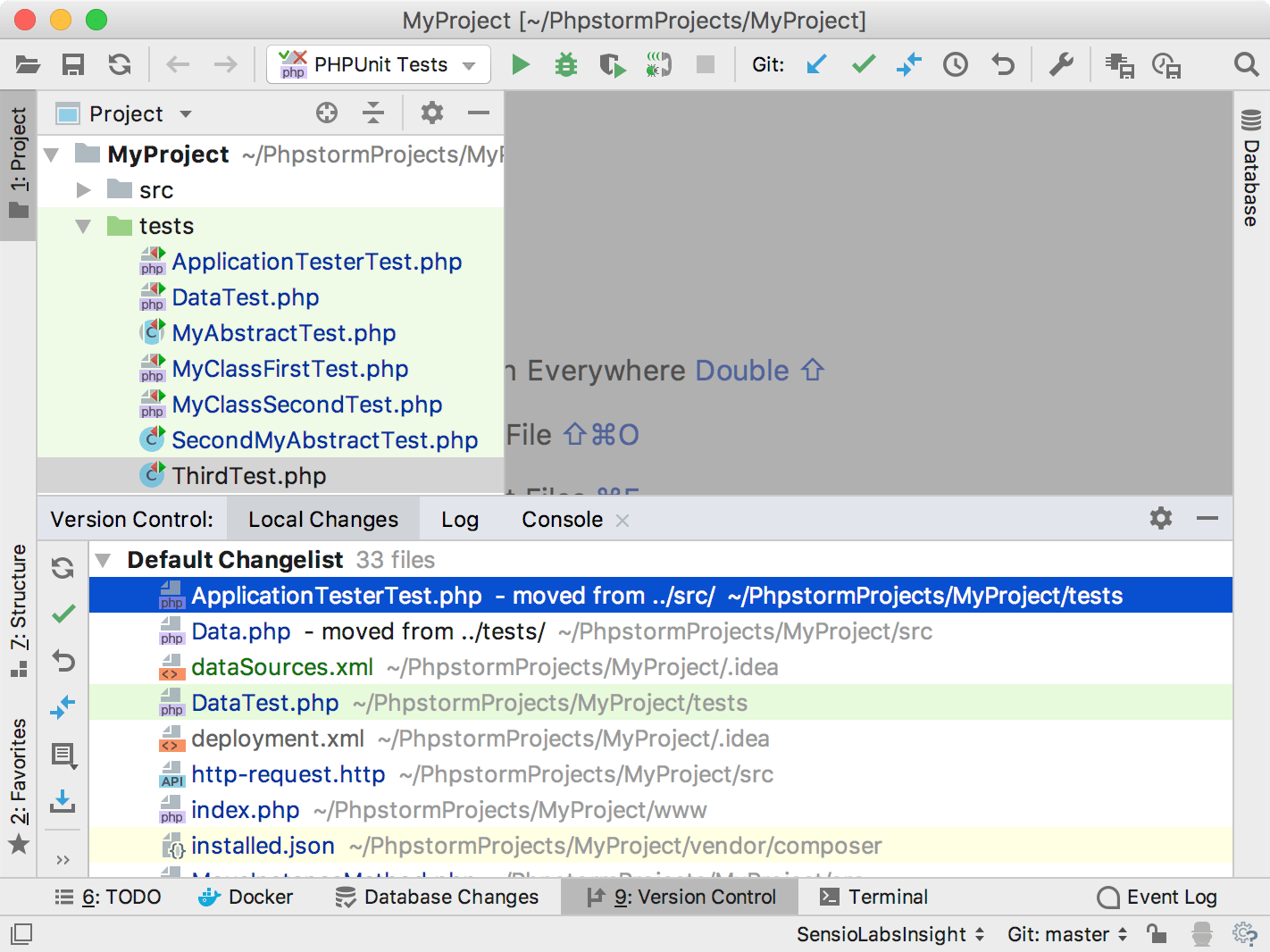

The Local Changes tab of the Version Control tool window shows your local changes: both staged and unstaged. To simplify managing changes, all changes are organized into changelists. Any changes made to source files are automatically included into the active changelist. You can create new changelists, delete the existing ones (except for the Default changelist), and move files between changelists.

ps migration guide changes

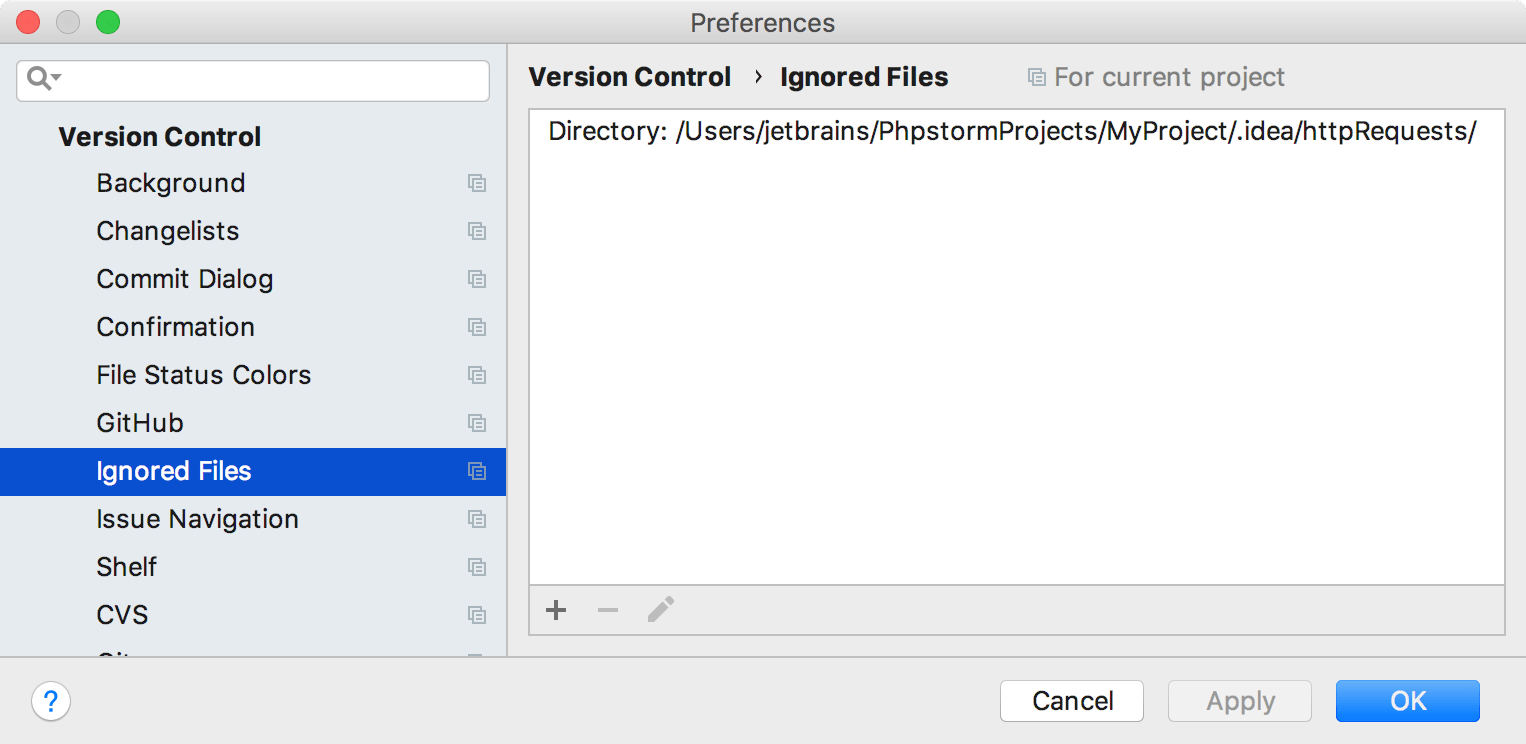

To configure ignored files, go to Settings | Version Control, or use the corresponding button in the Version Control tool window.

ps migration guide ignored files

Working with history

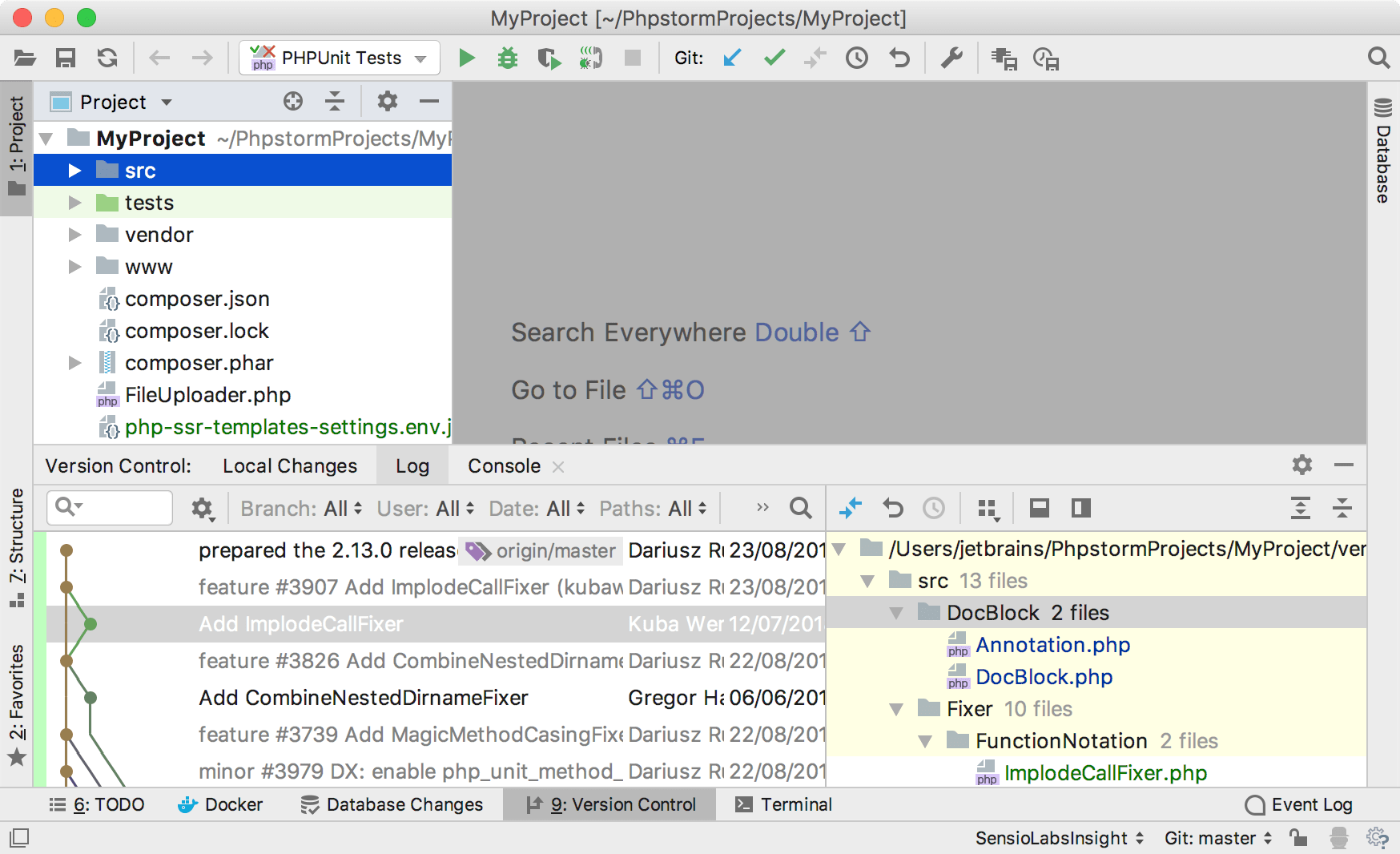

The Log tab of the Version Control tool window lets you see and search through the history of commits. You can sort and filter commits by the repository, branch, user, date, folder, or even a phrase in the description. You can find a particular commit, or just browse through the history and the branch tree:

ps migration guide log

Working with branches

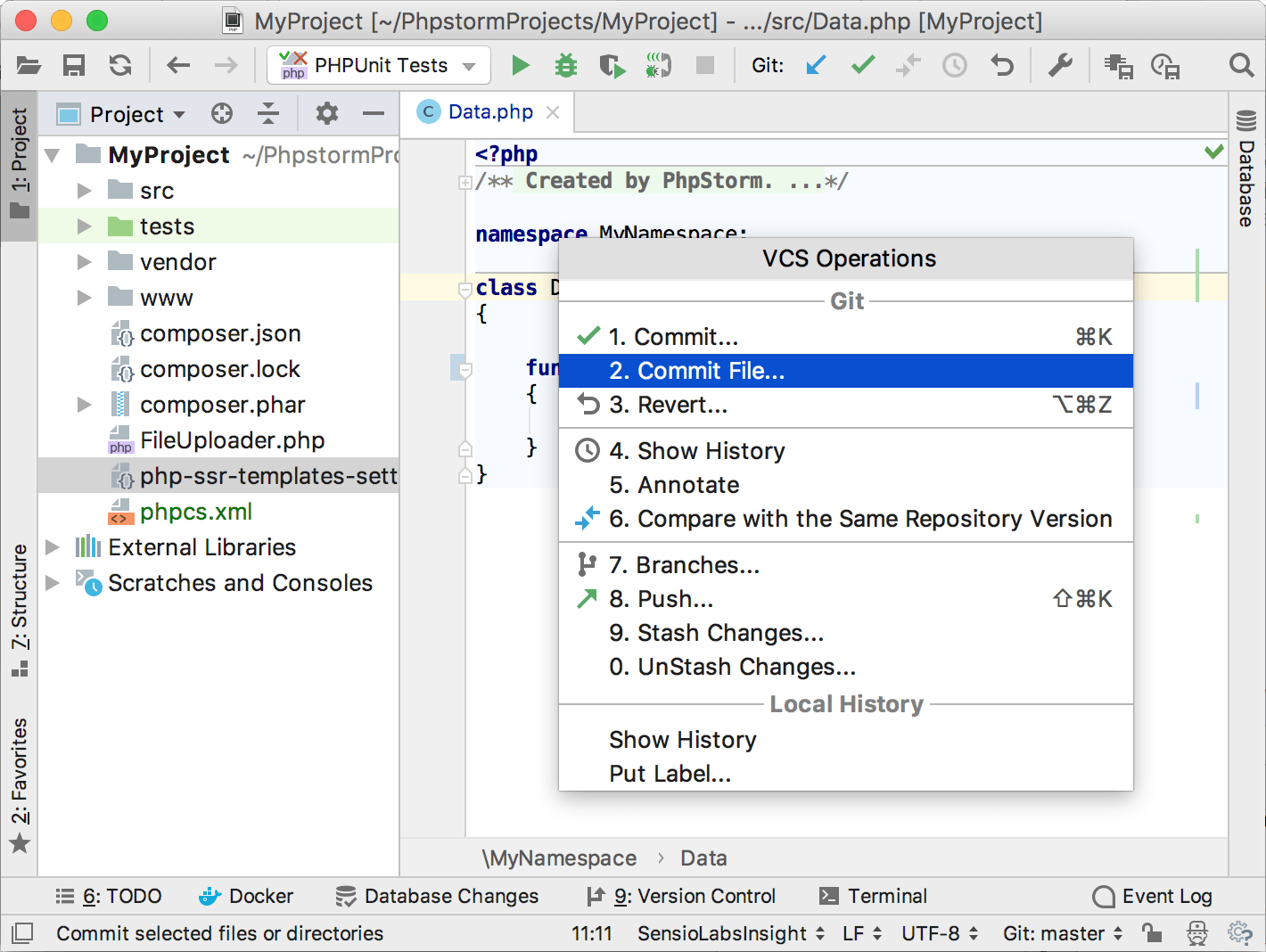

PhpStorm lets you create, switch, merge, compare and delete branches. For these operations, either use Branches from the main or context VCS menu, or the VCS operations popup (you can invoke it by pressing Alt+`, or the widget on the right of the status bar:

ps migration guide vcs popup

All VCS operations are available from the VCS main menu:

Action

Shortcut

Version Control tool window

Alt+9

VCS operations popup

Alt+`

Commit changes

Ctrl+K

Update project

Ctrl+T

Push commits

Ctrl+Shift+K

Importing an Eclipse project to PhpStorm

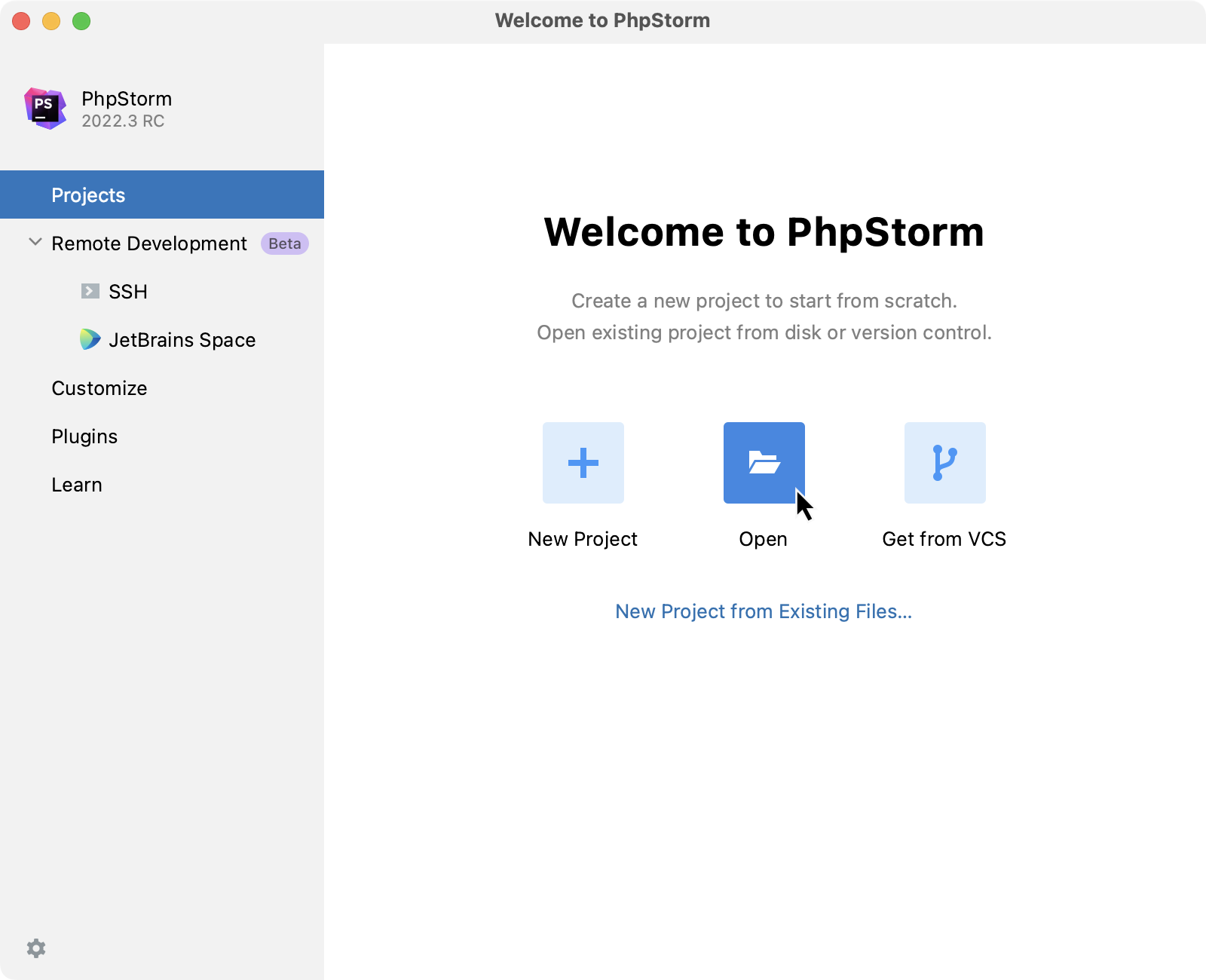

Despite these differences in terms and the UI, you can import either an Eclipse workspace or a single Eclipse project. To do this, click Import Project on the Welcome Screen, or select File | New | Project from Existing Sources in the main menu.

If you'd like to import your existing run configurations from Eclipse, consider using this third-party plugin.

Configuring PHP development environment

What configuration is needed before start?

A lot of PhpStorm features are available without any configuration right after you launch it. Still, to take full advantage of running your PHP application, you need to configure a PHP interpreter and a server.

If you plan to launch the application locally, you need a PHP engine installed and registered in PhpStorm, as well as a Web server installed, configured, and integrated with PhpStorm. You can install these components separately or use an AMP package. For more details about initial environment configuration, refer to Configuring PHP Development Environment.

If you are going to run and debug an application directly on a remote host, the only thing you need is register access to this host in PhpStorm to enable synchronization.

How do I start with deployment to a remote host?

If you've checked out your project from the remote host, the deployment server is already configured. Otherwise, you will need to get it configured (it can be FTP/SFTP/FTPS server or mounted/local folder) on the Deployment page of the Settings/Preferences dialog. The Remote Host Tool Window is available on the right-hand side of the PhpStorm window, which can be handy for browsing through your remote server and performing various actions.

See Deploying your application for details.

How do I start debugging?

PhpStorm comes with support for both Xdebug and Zend Debugger for debugging and profiling. There is a zero-configuration debugging workflow available, which means that to start debugging you only need to:

  • Press Start Listening for PHP Debugging Connections php icons debug listen off on the toolbar of the IDE.

  • Place a breakpoint in code by clicking in the editor gutter next to the line.

  • Start debugging in the browser using a plugin or browser bookmarklets.

Last modified: 10 October 2018

See Also
