XSLT run configurations

Running XSLT Scripts is as easy as opening the Editor Context Menu and either creating a permanent Run Configuration or just choosing Run to instantly run the selected XSLT script.

Before you start

Install and enable the XPathView + XSLT plugin on the Settings | Plugins page, tab Marketplace, as described in Installing plugins from JetBrains Marketplace.

Creating run configurations

Permanent Run Configurations can be created through Run | Edit Configurations on the main manu. You'll find an additional tab named XSLT to add Run Configurations for XSLT scripts.

A Run Configuration can also be created by the Create "<name>" action from the context menu.

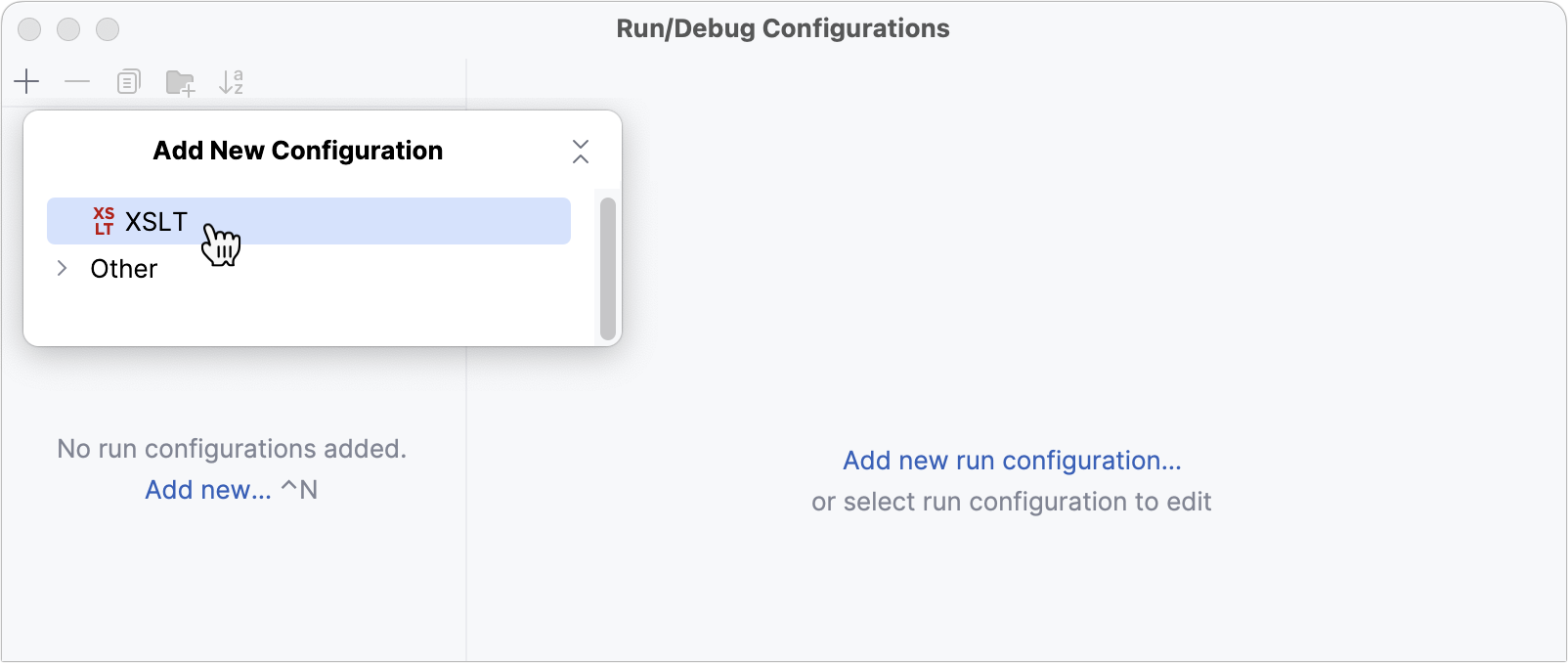

Create Run Configuration

In that case, the name of the configuration will be taken from the Style Sheet's file name and its path will already be filled into the XSLT script file text field. If the Style Sheet defines parameters, those will be filled into the Parameters table with empty values. Parameters that are highlighted in blue don't have a value assigned yet and will not be passed to the Style Sheet during execution, so it's not required to delete those automatically created parameter values if nothing should be passed to the Style Sheet.

Run configuration settings

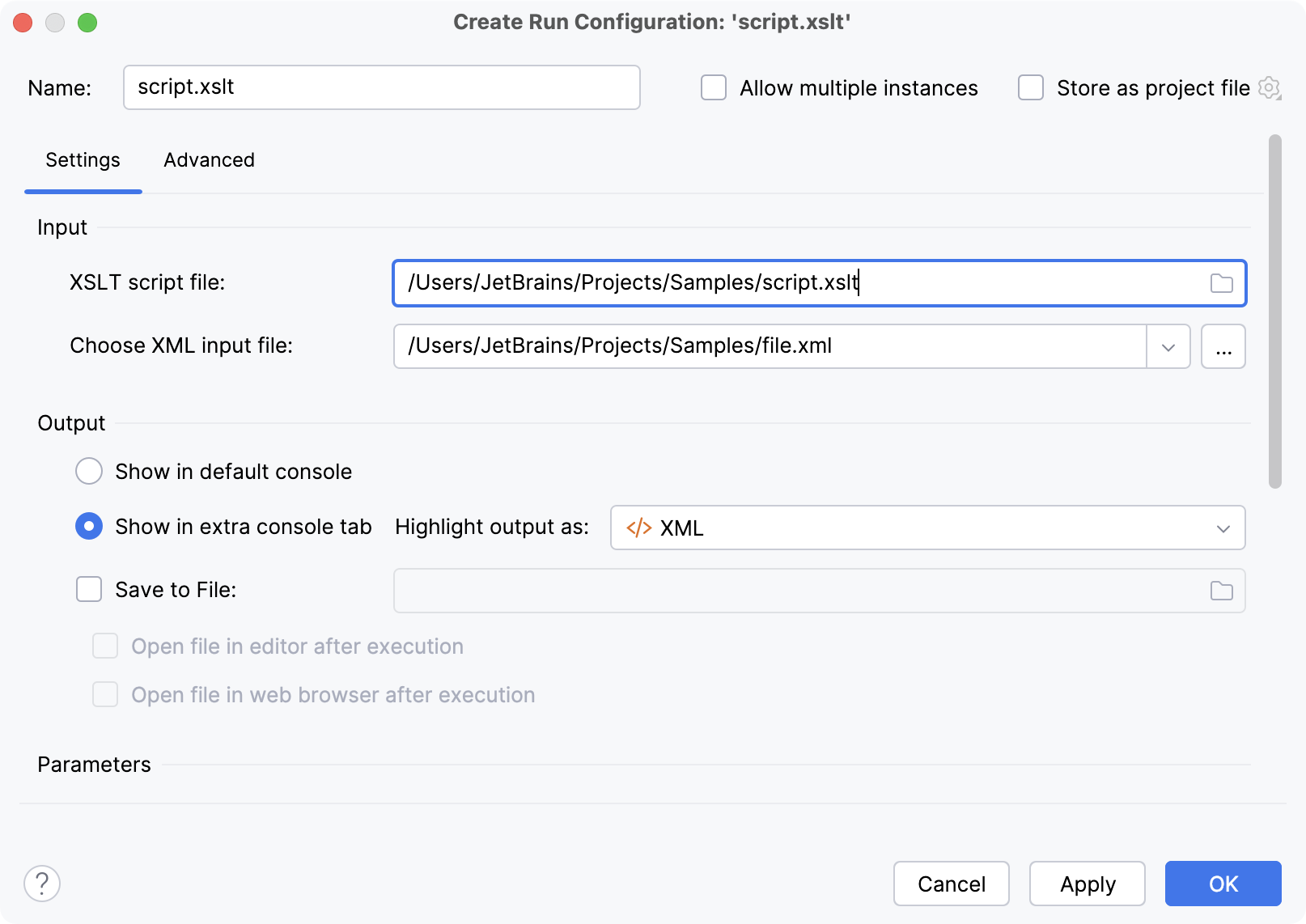

Run Settings

Input

An XSLT Run Configuration has various settings that can be adjusted. The most important ones are the location of the XSLT script file and the XML input file that should be transformed. Those are mandatory, and the specified files must exist, otherwise the configuration cannot be executed.

The XML input file field lists all XML files that have been associated with the chosen Style Sheet via the File Associations functionality.

Output

There are three different choices about how the output of the script should be handled. The first is Show in default console. When this is selected, the output will appear in the normal run console, together with any warnings and error messages from the XSLT transformer, as well as messages generated by the script, for example, by xsl:message.

By default selected is the option Show in extra console tab which will show the output in an extra tab named XSLT Output. This option has the ability to highlight the produced output according to different file types that are available in PhpStorm. However, this is kind of an experimental feature, so it can be turned off completely by selecting the Disabled option. The output will then be written into a temp file that is displayed by the normal Log Viewer.

The last option, Save to file can be used to directly write the output to a file. The field must not be empty and can refer to any existing or non-existing file. Check the option Open file in editor after execution to open the file in PhpStorm after the script ends normally. The option Open file in web browser can be checked to open the generated file in the configured web browser after execution has finished.

Parameters

The Parameters table is used to specify the parameter names and their values that should be passed to the script. Press the Add and Remove buttons to modify the list. A newly added parameter will not have any value assigned by default, and thus will not be passed to the script if the value isn't edited.

Advanced options

This tab allows you to control some options that are not needed for usual run configurations.

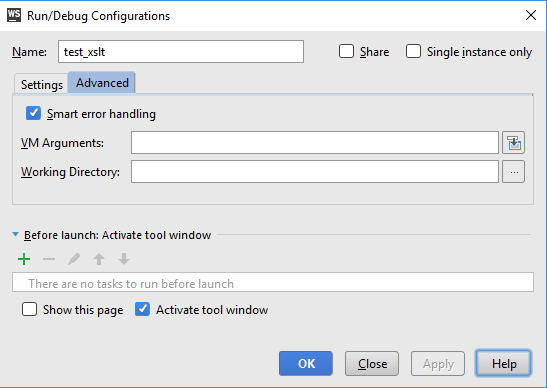

Advanced Settings

Smart error handling

Clear this checkbox to see full error messages including their complete stack traces when an error occurs during execution. When the checkbox is selected, those stack traces will be suppressed and only the relevant information about errors will be displayed in the console.

VM arguments

Allows you to pass arbitrary VM arguments to the VM that is used for running the XSLT script.

Working directory

The working directory to use. When left empty, the working directory will be the directory the XSLT script file is located in.

Last modified: 25 March 2024
