Debug Tool Window

View | Tool Windows | Debug
Alt+5

In this topic:

Overview

The Debug tool window becomes available when you start debugging.

It displays the output generated by the debugging session for your application. If you are debugging multiple applications, the output for each application is displayed in a separate tab named after the corresponding run/debug configuration.

For each application, there are the following nested tabs:

Each area has a context menu that allows you to configure its behavior and navigate between tabs.

Each of the tabs and areas can be hidden/restored, or moved to a location of your choice.

Debug toolbar

ItemTooltip and ShortcutDescription
stop_and_rerunRerun
Ctrl+F5
Click this button to stop the current application and run it again. When an application is stopped, this button toggles to debug_resume.
debug_resumeDebug
F9
When the current application is stopped, click this button to debug it again. When an application is running, this button toggles to stop_and_rerun.
runResume Program
F9
When an application is paused, click this button to resume program execution.
pauseIconPause Program
Ctrl+Pause
Click this button to pause program execution.

Note that the button is not available for Run/Debug Configuration: Node JS, Run/Debug Configuration: Node JS Remote Debug, and Run/Debug Configuration: NodeUnit.

stopStop
Ctrl+F2
Click this button to terminate the current process externally by means of the standard shutdown script.

For a Node.js run configuration, clicking the button once invokes soft kill allowing the Node.js application to catch the SIGINT event and perform graceful termination (on Windows, the Ctrl+C event is emulated). After the button is clicked once, it is replaced with icon_run_tool_window_kill.png indicating that subsequent click will lead to force termination of the application, e.g. on Unix SIGKILL is sent.

debug_view_breakpointsView Breakpoints
Ctrl+Shift+F8
Click this button to open the Breakpoints dialog box where you can configure breakpoints behavior.
debug_mute_breakpointsMute BreakpointsUse this button to toggle breakpoints status.

When the button debug_mute_breakpoints is pressed in the toolbar of the Debug tool window, all the breakpoints in a project are muted, and their icons become grey: muted_breakpoint.

You can temporarily mute all the breakpoints in a project to execute the program without stopping at breakpoints.

debug_layoutRestore LayoutClick this button abandon changes to the current layout and return to the default state.
projectToolWindowSettingsIconSettingsClick this button to open the menu with the following options available:
  • Show Values Inline: select this option to enable the Inline Debugging feature that allows viewing the values of variables right next to their usage in the editor.
  • Sort Values Alphabetically: select this option to sort the values in the Variables pane in the alphabetical order.
  • Unmute breakpoints on session finish: select this option to re-enable all disabled breakpoints after the debugging session has been finished.
  • Show Return Values: select this option to display the return values of the executed functions in the current frame while stepping.
pin2PinClick this button to pin or unpin the currently selected tab.
closeClose
Ctrl+Shift+F4
Click this button to close the selected tab.
helpHelp
F1
Click this button to open the corresponding help page.

Stepping toolbar

ItemTooltip and ShortcutDescription
frames_show_execution_pointShow Execution Point
Alt+F10
Click this button to highlight the current execution point in the editor and show the corresponding stack frame in the Frames pane.
frames_step_overStep Over
F8
Click this button to execute the program until the next line in the current method or file, skipping the methods referenced at the current execution point (if any). If the current line is the last one in the method, execution steps to the line executed right after this method.
frames_step_intoStep Into
F7
Click this button to have the debugger step into the method called at the current execution point.
step_into_my_codeStep Into My Code
Shift+Alt+F7
Click this button to skip stepping into library sources and keep focused on your own code.
frames_step_outStep Out
Shift+F8
Click this button to have the debugger step out of the current method, to the line executed right after it.
frames_drop_frameDrop frameInterrupts execution and returns to the initial point of method execution. In the process, it drops the current method frames from the stack.
frames_run_to_cursorRun to Cursor
Alt+F9
Click this button to resume program execution and pause until the execution point reaches the line at the current cursor location in the editor. No breakpoint is required. Actually, there is a temporary breakpoint set for the current line at the caret, which is removed once program execution is paused. Thus, if the caret is positioned at the line which has already been executed, the program will be just resumed for further execution, because there is no way to roll back to previous breakpoints. This action is especially useful when you have stepped deep into the methods sequence and need to step out of several methods at once.

If there are breakpoints set for the lines that should be executed before bringing you to the specified line, the debugger will pause at the first encountered breakpoint.

variables_evaluate_exprEvaluate Expression
Alt+F8
Click this button to open the Evaluate Expression dialog.
Async
  • When this check box is selected, PyCharm recognizes breakpoints inside asynchronous code and stops at them and lets you step into asynchronous code. As soon as a breakpoint inside an asynchronous function is hit or you step into asynchronous code, a new element Async call from <caller> is added in the Frames pane of the Debugger tab. PyCharm displays a full call stack, including the caller and the entire way to the beginning of the asynchronous actions.
  • When the check box is cleared, PyCharm does not recognize and therefore skips breakpoints in the asynchronous code and does not allow you to step into it.
The image below shows an example of a JavaScript debugging session.
  • With the Async check box selected, the debugger will stop at line3(breakpont), then at line5(breakpoint). On clicking Step into, the debugger will stop at line5 (on function), then will move to line6.
  • With the Async check box cleared, the debugger will stop at line3(breakpont), then at line5(breakpoint). On clicking Step into, the debugger will move to line9.

Hide/restore toolbar

IconTooltipDescription
debug_hideHideClick this button located in the upper-right corner of the Debug Console, Watches, Treads, Frames, or Variables pane to hide the corresponding area. When an area is hidden, its icon appears in upper-right corner of the Debugger.
show-consoleRestore 'Console' viewClick this button to make the Console area visible. This button becomes available after clicking debug_hide.
show-framesRestore 'Frames' viewClick this button to make the Frames area visible. This button becomes available after clicking debug_hide.
show-watchesRestore 'Watches' viewClick this button to make the Watches area visible. This button becomes available after clicking debug_hide.
show-threadsRestore 'Threads' viewClick this button to make the Threads area visible. This button becomes available after clicking debug_hide.
show-variablesRestore 'Variables' viewClick this button to make the Variables area visible. This button becomes available after clicking debug_hide.

Moving tabs and areas

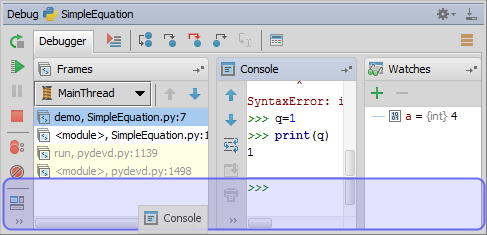

If you are unhappy with the default layout of the Debug tool window, you can always move the tabs and areas. To to that, just drag a tab or an area to the desired location. The possible target gets highlighted:

py_move_debug_tab

Drop the tab or area in the highlighted location.

To restore the default layout of tabs and area, click debug_layout in the Debug toolbar.

Context menu of a tab

Use the context menu of the Frames/Threads, Variables or Watches areas to configure the behavior of these areas or navigate between tabs.

ItemDescription
HideClick this button to hide the corresponding area
Close OthersClick this button to hide all tabs except for the Console and Debugger tabs.
Focus On StartupIf this option is selected, the selected area gets the focus when you start a debugging session.
Focus On BreakpointIf this option is selected, the selected area gets the focus when a breakpoint is reached.
Select Next Tab / Select Previous Tab
Ctrl+Alt+Right / Ctrl+Alt+Left
Use these options to switch between the Console and the Debugger tabs.
