PyCharm 2017.1 Help

Part 6. Django-Specific Navigation

This feature is supported in the Professional edition only.

In this section:


Finally, we'll explore the Django-specific navigation.

Note that same type of navigation is available for the other frameworks: Pyramid, Flask etc.

Use the example from the "first steps" guide Creating and Running Your First Django Project.

Jumping from a view to a template

Open the file for editing (F4). In the left gutter, next to the line template_name = "polls/index.html", you see the icon /help/img/idea/2017.1/classTypeHtml.png.

Hovering the mouse pointer over this icon reveals the following pop-up window:


Clicking this icon results in jumping directly to the template index.html, that resides in the folder polls under templates:


Jumping from a template to a view

In the left gutter of the template file index.html, you see the icon /help/img/idea/2017.1/pythonScript.png. If you hover your mouse pointer over this icon, you'll see the following pop-up window:


Clicking this icon leads you directly to the corresponding view.

Jumping between views and file

PyCharm allows you to easily navigate between a particular view and the corresponding url. This is how it's done:

  1. Hover your mouse pointer over the view name, while keeping Ctrl key pressed, and see the view name turning into a hyperlink:
  2. If you click this hyperlink, you'll jump directly to the corresponding URL:

Vice versa, you can also jump from a URL to the corresponding view. Again, in the file, hover your mouse pointer over the view name, while keeping Ctrl key pressed, and see the view name turning into a hyperlink.

Ctrl+click the view name - and find yourself in the corresponding view.

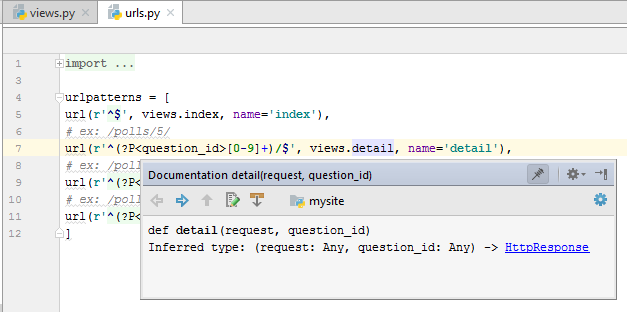

By the way, if you click a pin icon /help/img/idea/2017.1/pin.png in the pop-up, this pop-up becomes "pinned" - that is, turns into a tool window:

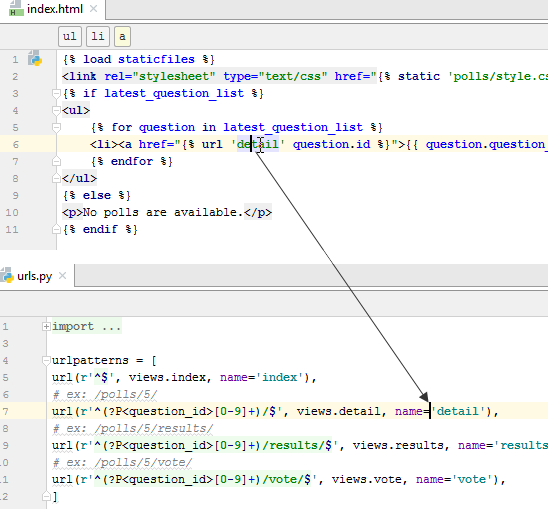

Finally, open a template in the editor (F4), say, index.html and hover your mouse pointer over detail, while keeping Ctrl key pressed, and see the name turning into a hyperlink. Click this hyperlink - you immediately jump to the file


Navigating to implementation and declaration

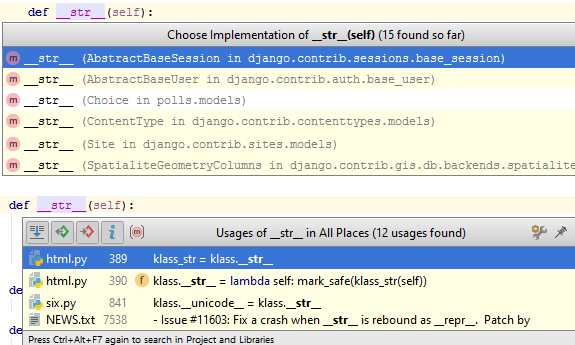

In a Django project, you see the same icons /help/img/idea/2017.1/gutterIconOverridden.gif and /help/img/idea/2017.1/gutterIconOverriding.png as in a pure Python project. When you hover your mouse pointer over such an icon, you see a pop-up window, like the following:


You can also jump to a declaration or implementation of a symbol. To do that, just place the caret at the implementing/overriding symbol and press Ctrl+B or Ctrl+Alt+B (or choose Navigate | Declaration or Navigate | Implementation on the main menu):


Jumping to tests

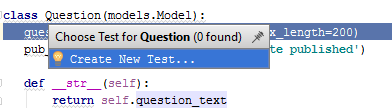

Django applications can be tested same as the pure Python ones. Same way you can create tests for the Django projects, for example, press Ctrl+Shift+T:

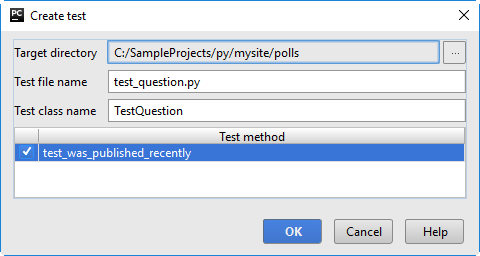

Fill in the form in the Create test dialog:


You'll see the code like:

from unittest import TestCase class TestQuestion(TestCase): def test_was_published_recently(self): self.fails()

The test class naturally fails, but it's up to you to write some meaningful code.

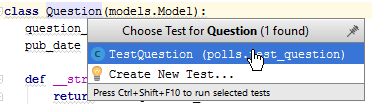

When a test already exists, you can jump to it, using the same keyboard shortcut Ctrl+Shift+T:


(Note that choosing a particular test runner can be done in the Settings/Preferences dialog, on the page Python Integrated Tools.)


This brief tutorial is over. You've mastered the following features:

  • Used the gutter icons to navigate between views and templates.
  • Navigated between views and urls.
  • Repeated how to jump to an implementation or declaration.
  • Repeated how to navigate to an existing test or create a new one.

See Also

Language and Framework-Specific Guidelines:

Last modified: 26 July 2017
