Using the Advanced Vagrant Features in PyCharm

This tutorial describes how to use the advanced features of Vagrant integration in PyCharm. The details of using Vagrant and Oracle VirtualBox are out of scope of this tutorial. For more information, refer to the respective documentation.

Pay attention to prerequisites mentioned in the Vagrant: Working with Reproducible Development Environments page. Also make sure that a Vagrant box is created and initialized.

Using the built-in SSH terminal to connect to a Vagrant machine

PyCharm features a built-in SSH terminal which can be used to connect to a remote machine.

Starting connection

To connect to a Vagrant machine, go to Tools | Start SSH session in the main menu. This opens a list of hosts we can connect to.

The configured Vagrant machine is added to this list automatically. Clicking it opens connection to the SSH endpoint exposed by this Vagrant machine. The Edit credentials... menu item allows entering connection information manually. However, we'll confine here to using the virtual box.

Available vagrant hosts

Working with SSH

So, after choosing Vagrant, PyCharm connects to the Vagrant machine using SSH server and shows a terminal to work with:

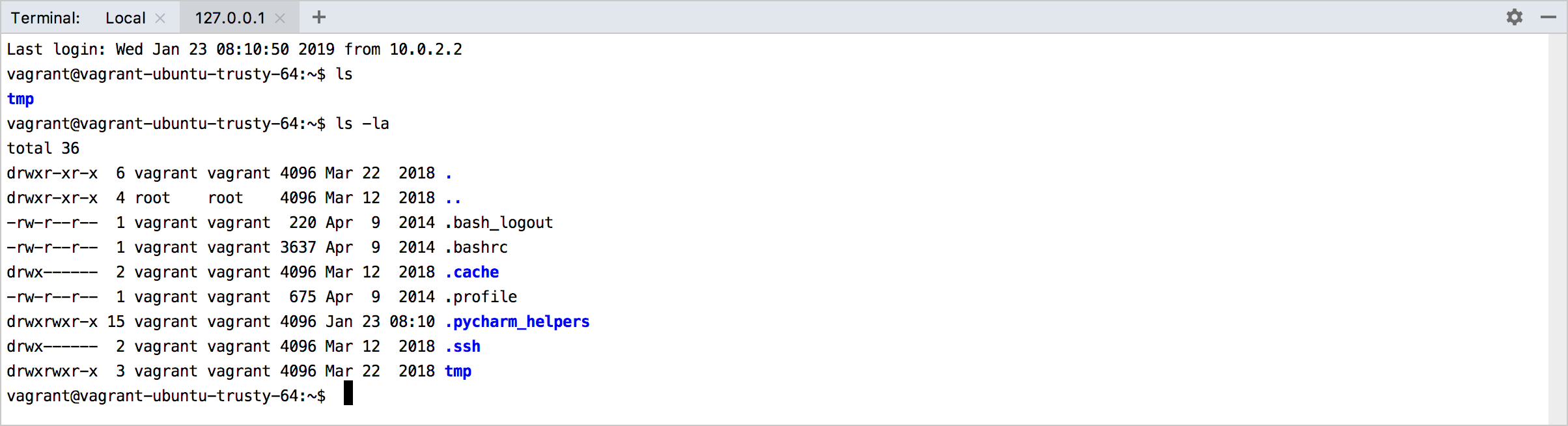

Vargant int he terminal

In the SSH terminal you can do the following:

  • Scroll through the history of commands using up and down arrow keys

  • Perform clipboard operations

Working with shared folders

Vagrant allows sharing folders between the host machine and the Vagrant machine. You can use these folders, for example, to automatically map web root contents from the current PyCharm project to the Apache virtual host directory on the Vagrant machine.

Adding a path mapping

Open Vagrantfile for editing (F4, and add a configuration entry for path mapping:

Vagrant.configure("2") do |config| config.vm.synced_folder "src/", "/srv/website" end

Reloading Vagrant

Reload Vagrantfile by selecting Tools | Vagrant | Reload from the main menu:

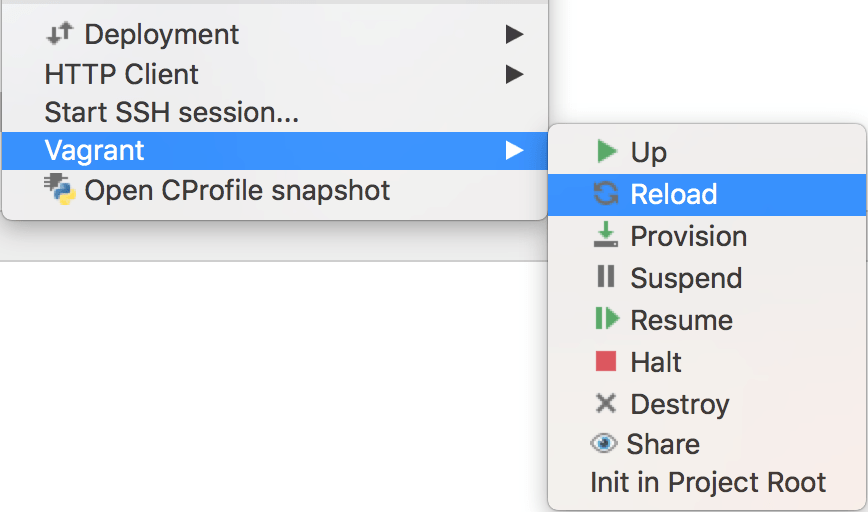

Reload vagrant

The results of command execution show up in the Run tool window:

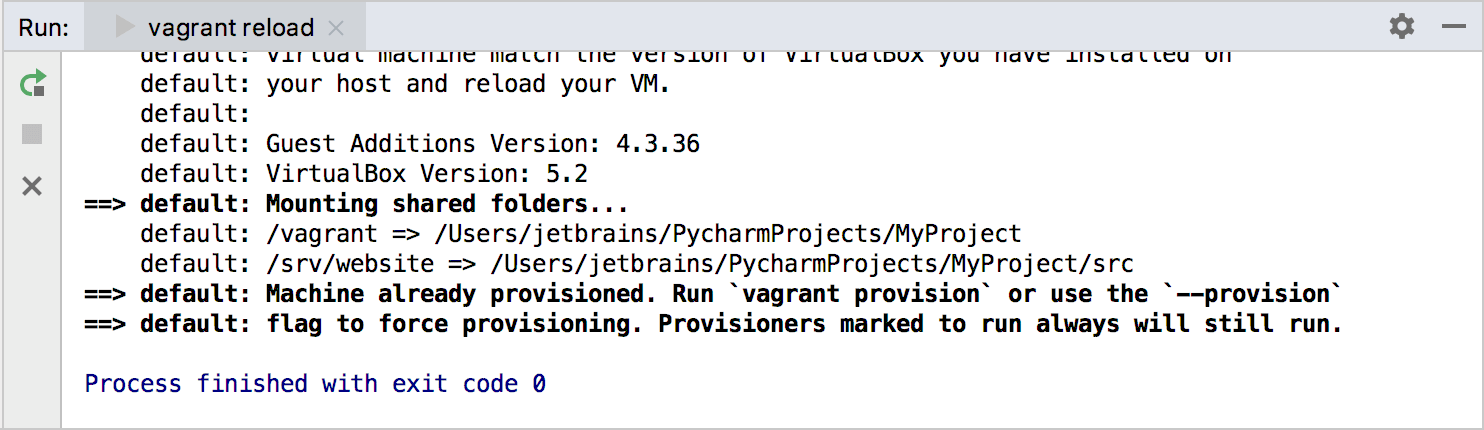

Vagrant reloading results

Once the Vagrant machine is reloaded, a new path mapping becomes available. For example, when connecting to the Vagrant machine using the built-in SSH terminal, we see the contents of the /vagrant folder that maps to the PyCharm local project folder. Be careful: deleting files from this folder will delete files on both ends!

Specifying Vagrant instance folder

By default, the Vagrantfile and all other Vagrant specifics (like Puppet manifests) are placed in the root of a PyCharm project. Since this is not always desirable, the instance folder where PyCharm should look for Vagrantfile can be configured through the Vagrant page of the Settings:

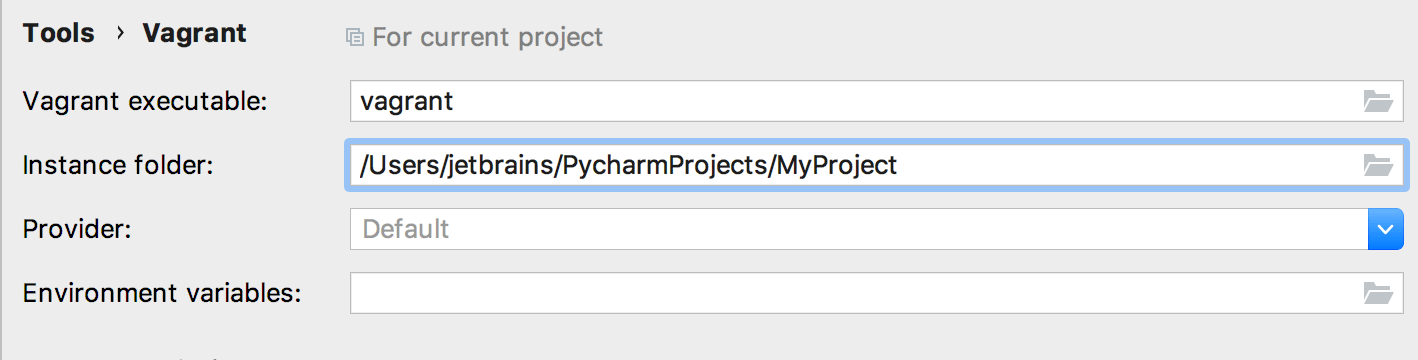

Specifying the Vagrant instance folder

Managing Vagrant plugins through settings

In the Vagrant page of the Settings, you can also manage Vagrant plugins. In the tab Plugins, use the toolbar buttons to install, uninstall and update plugins.

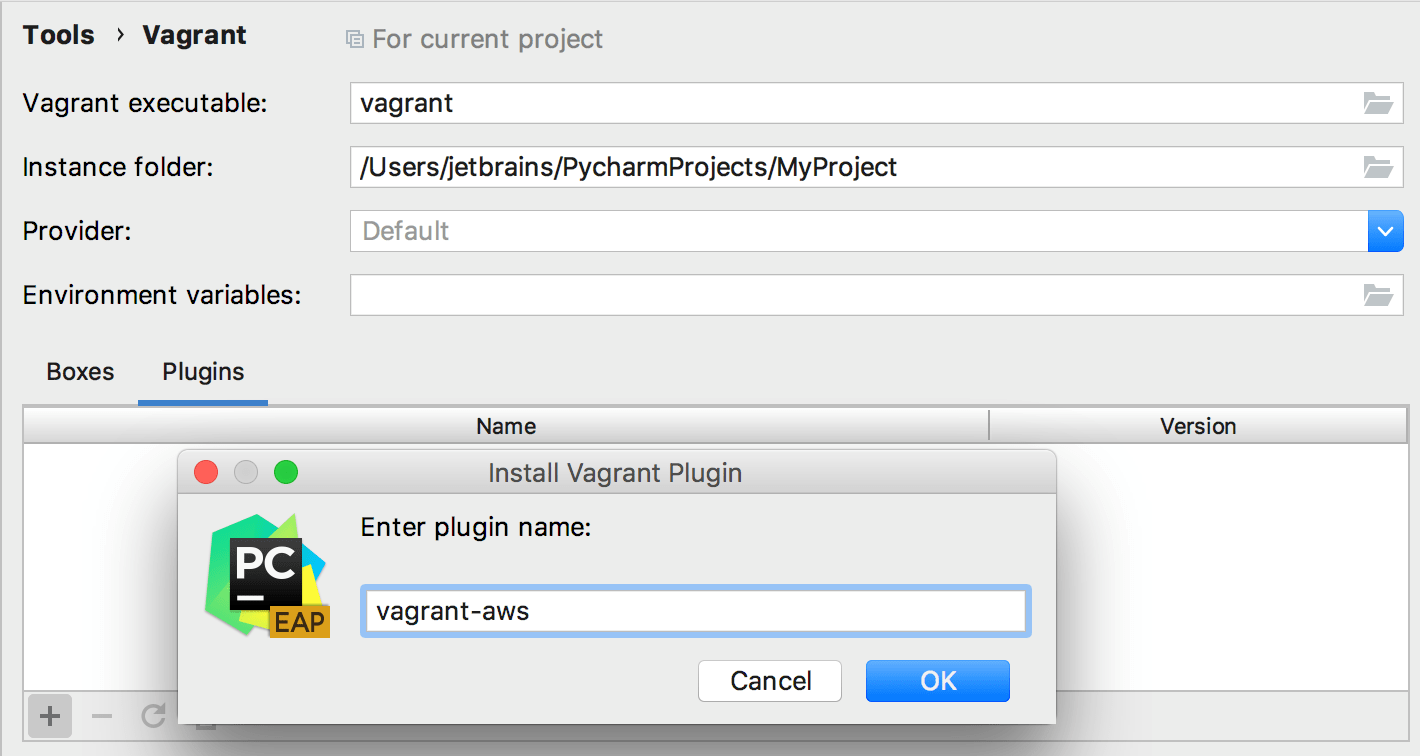

Adding a Vagrant plugin

You can also install licenses, for example, for the VMWare Fusion Provider which allows running Vagrant machines on VMWare.

Providers support

Vagrant works with Oracle VirtualBox as the virtualization platform by default. However, you can change the virtualization platform using providers, so the virtual machines can be run by a system other than VirtualBox, for example, VMWare or Amazon EC2. Find available providers at the list of available Vagrant plugins.

For each command, you should pass the provider to be used to Vagrant. To simplify this process and have PyCharm automatically add the provider name to every Vagrant command, specify the provider in the Vagrant page of the Settings. All providers installed on your machine, are available from the settings. Once selected, a provider will be used to execute all Vagrant commands in PyCharm:

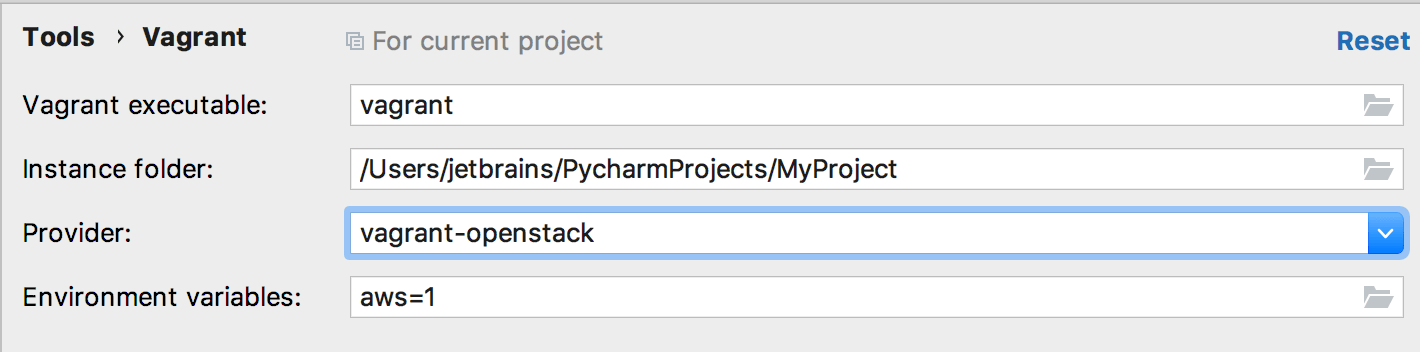

Redefining the vagrant provider

(Re-)provisioning a Vagrant machine

A Vagrantfile can contain a series of provisioners which can launch installation and configuration routines once a virtual machine is running.

The Tools | Vagrant | Provision main menu command invokes the configured provisioners on an already running Vagrant machine, without having to first destroy the virtual machine.

For more information, refer to the provisioning documentation.

Working with Environment variables

Environment variables in Vagrantfile are can be used for Puppet nodes, Puppet environments, custom facts, AWS keys.

In the Vagrant page of the Settings dialog, specify project-specific environment variables to be passed to Vagrantfile:

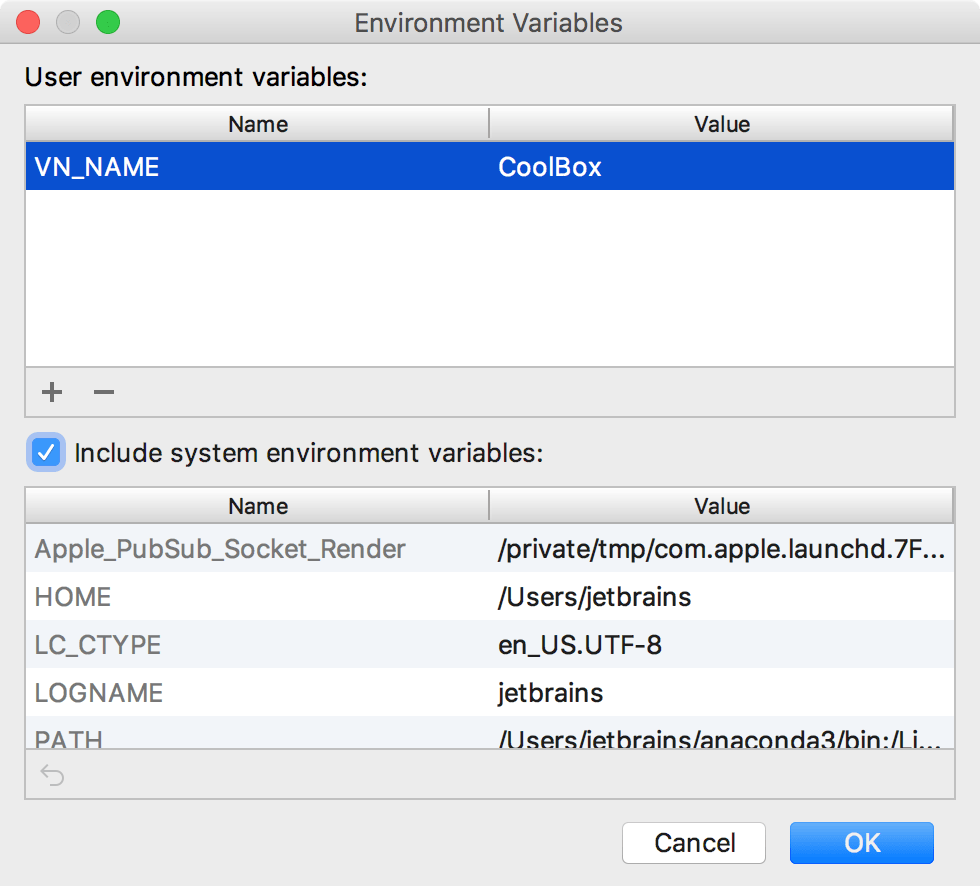

Adding an environment variable

Once set, these environment variables are referred to in a Vagrantfile, using the syntax #{ENV['name_of_variable']}:

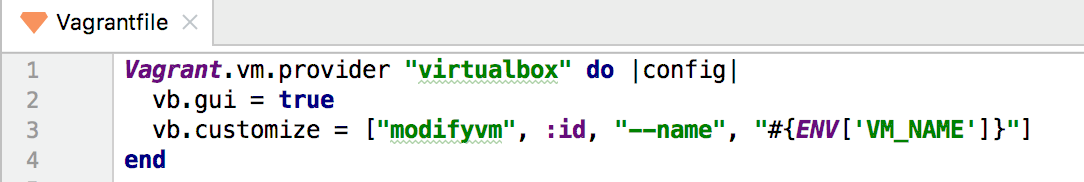

Newly added environmental variable in the Vagrantfile
Last modified: 26 May 2024
