JetBrains Rider supports the Couchbase Query Query service, not the Couchbase Query Analytics service.
You can skip the port field or set the port number to 11210 that is the default port for the Couchbase Query Query Service.
In the Database tool window ( ), click the Data Source Properties icon .
On the Data Sources tab in the Data Sources and Drivers dialog, click the Add icon () and select Couchbase Query.
Check if there is a Download missing driver files link at the bottom of the data source settings area. As you click this link, JetBrains Rider downloads drivers that are required to interact with a database. The IDE does not include bundled drivers in order to have a smaller size of the installation package and to keep driver versions up-to-date for each IDE version.
You can specify your drivers for the data source if you do not want to download the provided drivers. For more information about creating a database connection with your driver, see Add a user driver to an existing connection.

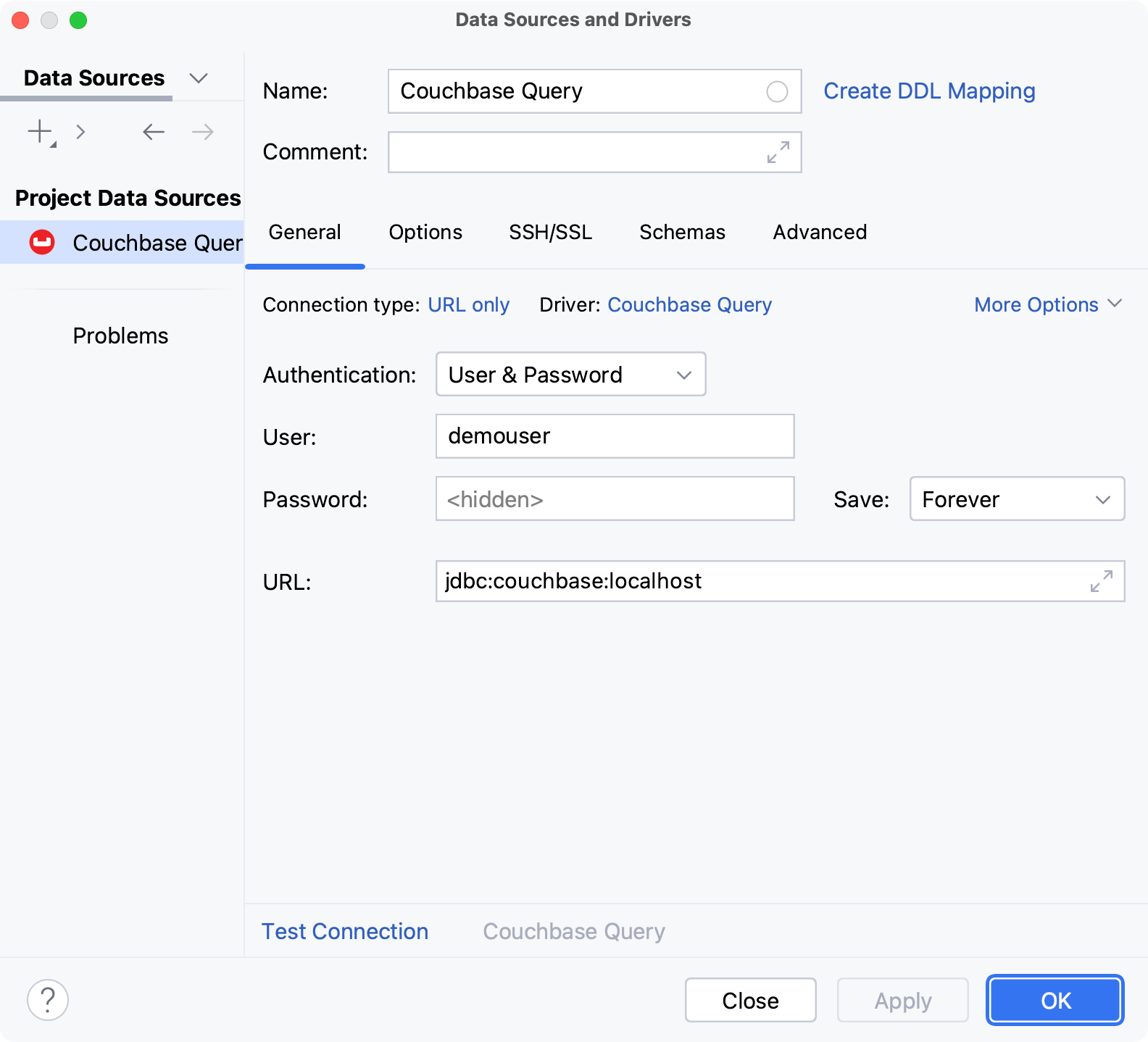

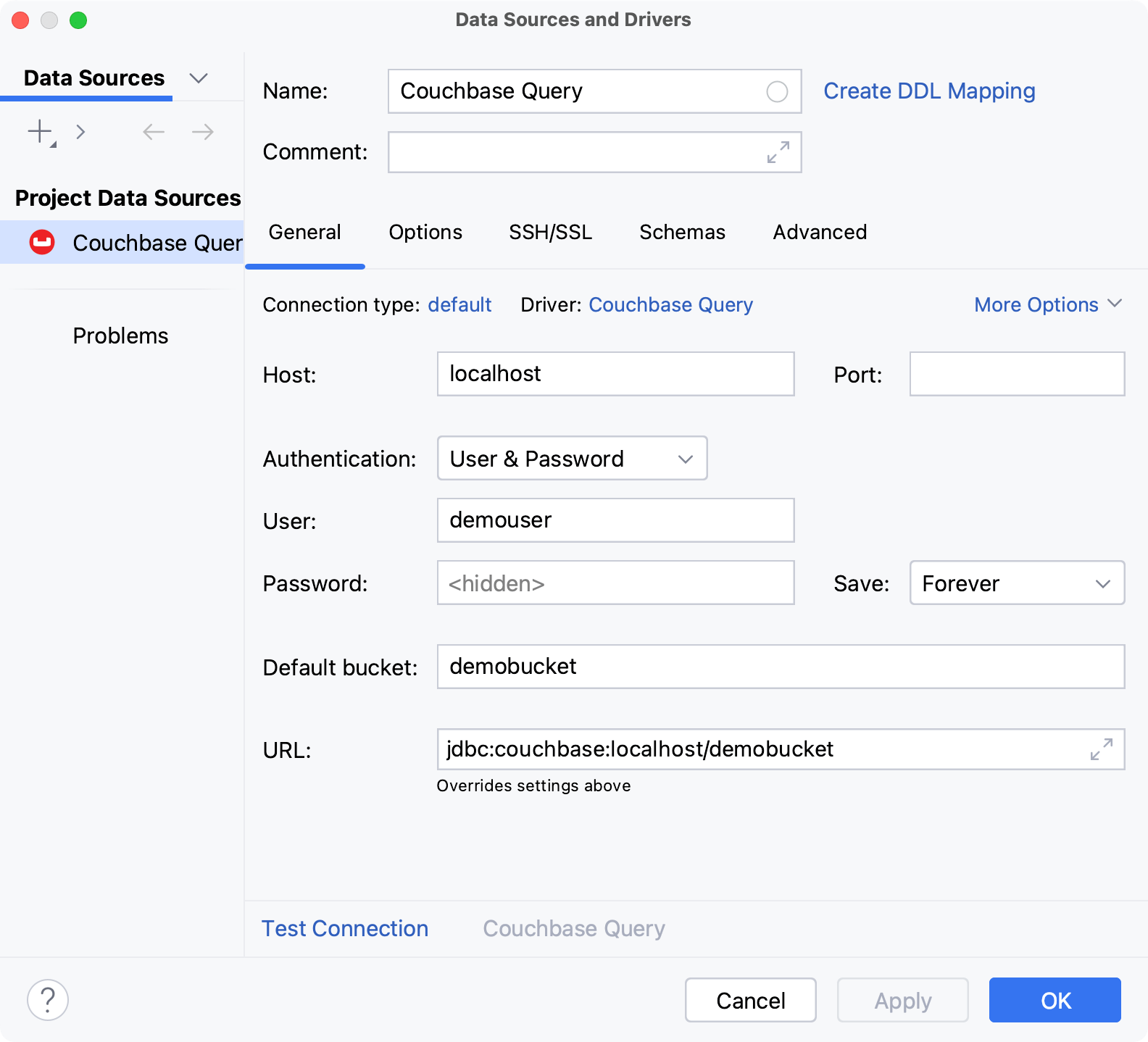

Specify database connection details. Alternatively, paste the JDBC URL in the URL field.
To delete a password, right-click the Password field and select Set Empty.
To ensure that the connection to the data source is successful, click the Test Connection link.
