UI Overview

Here you can learn how JetBrains Rider user interface is organized to help you find your way through your working environment.

When you first run JetBrains Rider, or have no open solution, JetBrains Rider displays the Welcome screen which enables quick access to the major entry points. When a solution is opened, JetBrains Rider displays the main window.

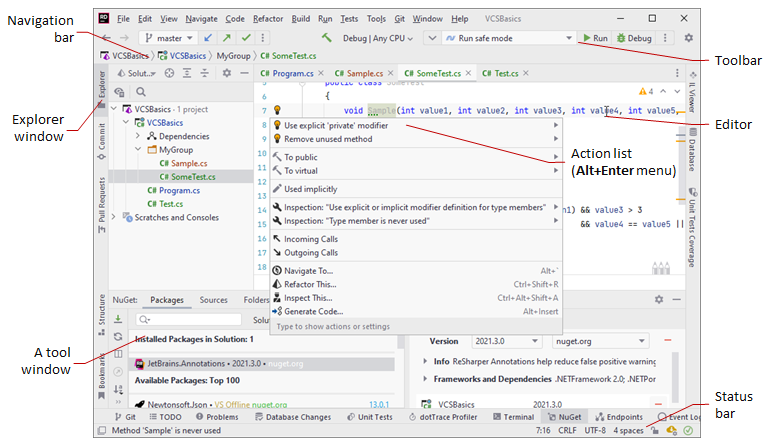

JetBrains Rider's main window consists of logical areas, which are shown on the picture below, marked with numeric labels.

JetBrains Rider main window
  1. Main menu and toolbar — contain commands that affect the entire solution or large portions of it, such as opening, creating solution, refactoring the code, running and debugging applications, keeping files under version control and more.

    The main toolbar duplicates the main menu's essential commands for quicker access. By default, the main toolbar is hidden. To show it, select View | Toolbar from the main menu.

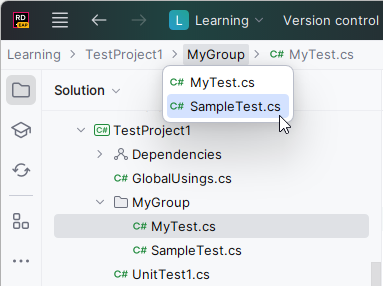

  2. Navigation bar — a quick alternative to the Solution window. Use it to navigate your solution and open files for editing.

    Use View | Navigation Bar to hide or show the navigation bar; press Ctrl+F2 to bring the application focus to the navigation bar.

  3. Status bar  — indicates the status of your solution, the entire IDE, and shows various warning and information messages.
  4. Editor  — here you can read, create, and modify your code.
  5. Tool windows — secondary windows that provide access to various specific tasks (solution management, search, running and debugging, integration with version control systems, etc.).
Last modified: 17 November 2017
