JetBrains Rider 2023.3 Help

Sybase ASE

Enable the Database Tools and SQL plugin

This functionality relies on the Database Tools and SQL plugin, which is bundled and enabled in JetBrains Rider by default. If the relevant features aren't available, make sure that you didn't disable the plugin.

  1. Press Ctrl+Alt+S to open the IDE settings and then select Plugins.

  2. Open the Installed tab, find the Database Tools and SQL plugin, and select the checkbox next to the plugin name.

Official documentation and software

This topic presents a general procedure on how you can create a data source for the connection to your Sybase ASE database in JetBrains Rider, and run a test connection. It is assumed that you already have the necessary prerequisites and the database is up and running. For example, if you want to run a database on your machine and connect to that database, the corresponding DBMS software must be installed on the machine first.

Connect to a Sybase ASE database

  1. In the Database tool window ( View | Tool Windows | Database) , click the New icon New and select Connect to Database.

  2. If you have a connection string for the database defined in your solution or elsewhere, leave the Use connection string option selected and choose Sybase ASE in the Database type selector.

    Use the String selector to choose the desired connection string from your solution or type it in manually, then click Connect.

  3. You can also choose Add data source manually, click Next and select Sybase ASE in the Database source selector. Follow the wizard steps to form the connection string by configuring individual options.

  4. To access all available options for the new database connection, click in the Database window, then click the New icon New and select Sybase ASE.

  5. In the General tab of Data Sources and Drivers dialog right pane, specify the driver and connection type.

    1. From the Driver list, select the JDBC driver for your connection.

      For Sybase ASE, the supported drivers are Sybase ASE and Sybase ASE (jTds).

    2. From the Connection type list, select the connection type depending on the connection details that you have:

      Connection types for Sybase ASE
      • default: connect by using Host, Port, Database, and URL.

      • URL only: connect by using only the URL.

      Connection types for Sybase ASE (jTds)
      • default: connect by using Host, Port, Database, and URL. An additional Domain credentials authentication method is available.

      • URL only: connect by using only the URL.

      For the URL only connection type, the JDBC URL that you enter is used as is.

      For the other connection types, the JDBC URL is broken down into connection details. You can either specify them separately and use the automatically generated URL, or you can enter the URL directly in the corresponding field.

    General tab of the Data Sources and Drivers dialog
  6. Check if there is a Download missing driver files link at the bottom of the connection settings area. Click this link to download drivers that are required to interact with a database. For a direct download link, refer to the JetBrains JDBC drivers page.

    Location for the downloaded JDBC drivers is the JetBrains Rider configuration directory.

    The Download missing driver files link

    You can also use your drivers for the database instead of the provided ones. For more information about connecting to a database with your driver, refer to Add a user driver to an existing connection.

    If there is no Download missing driver files link, then you already have the required drivers.

  7. Specify the database connection details. Alternatively, paste the JDBC URL in the URL field.

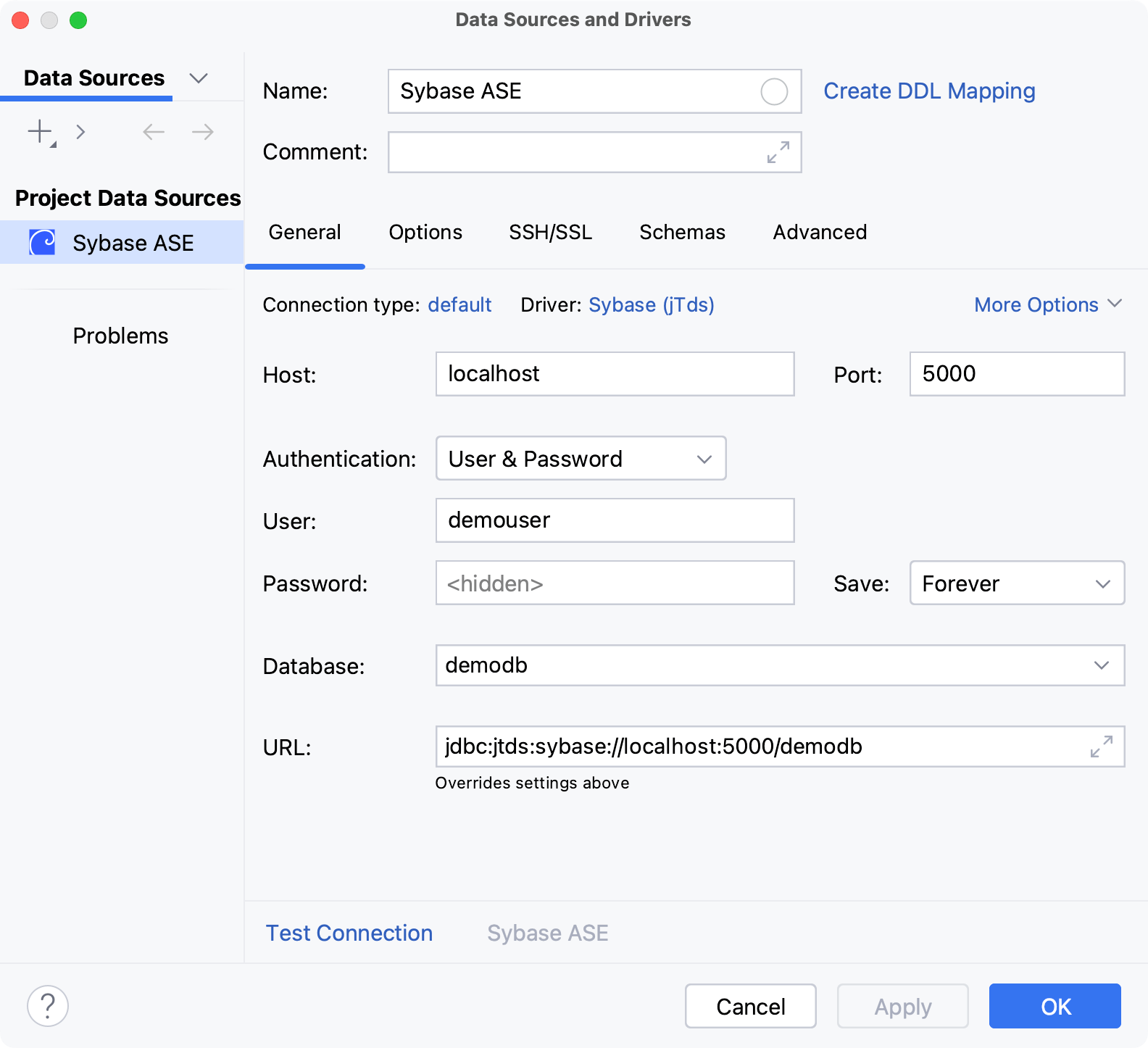

    Connection types and settings for Sybase ASE (jTds)
    1. In the Host field, type your server address.

    2. In the Port field, type the port of Sybase ASE. The default port is 5000.

    3. From the Authentication list, select the authentication method that you want to use to authenticate the connection. The following options are available:

      • User & Password: by using your login and password.

      • (For the Sybase ASE (jTds) driver only) Domain credentials: by using domain authentication.

      • No auth: authentication is not required.

    4. In the User and Password fields, type your user credentials.

      To use no password, leave the Password field empty.

      To delete a once entered password, right-click the Password field and select Set Empty.

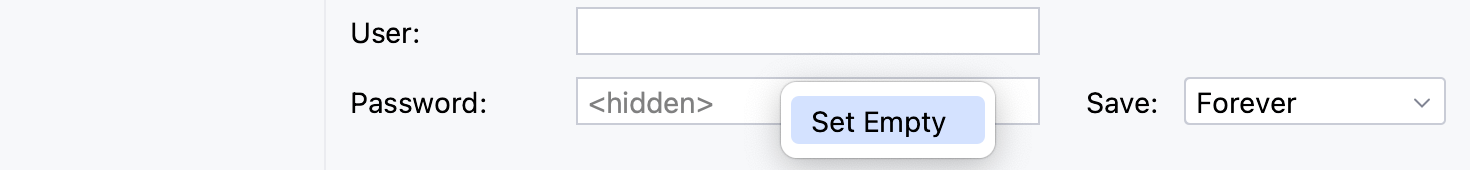

      the Set Empty context menu action
    5. In the Database field, type the database name to which you want to connect.

    6. In the URL field, JetBrains Rider generates the JDBC URL automatically using the values of other connection settings.

      If you need to use a JDBC URL with certain additional settings, paste it in the URL field. The general URL to use is as follows:

      • Format: jdbc:jtds:sybase://<host_address>:<port_number>/<database_name>

      • Example: jdbc:jtds:sybase://127.0.0.1:5000/myDatabase

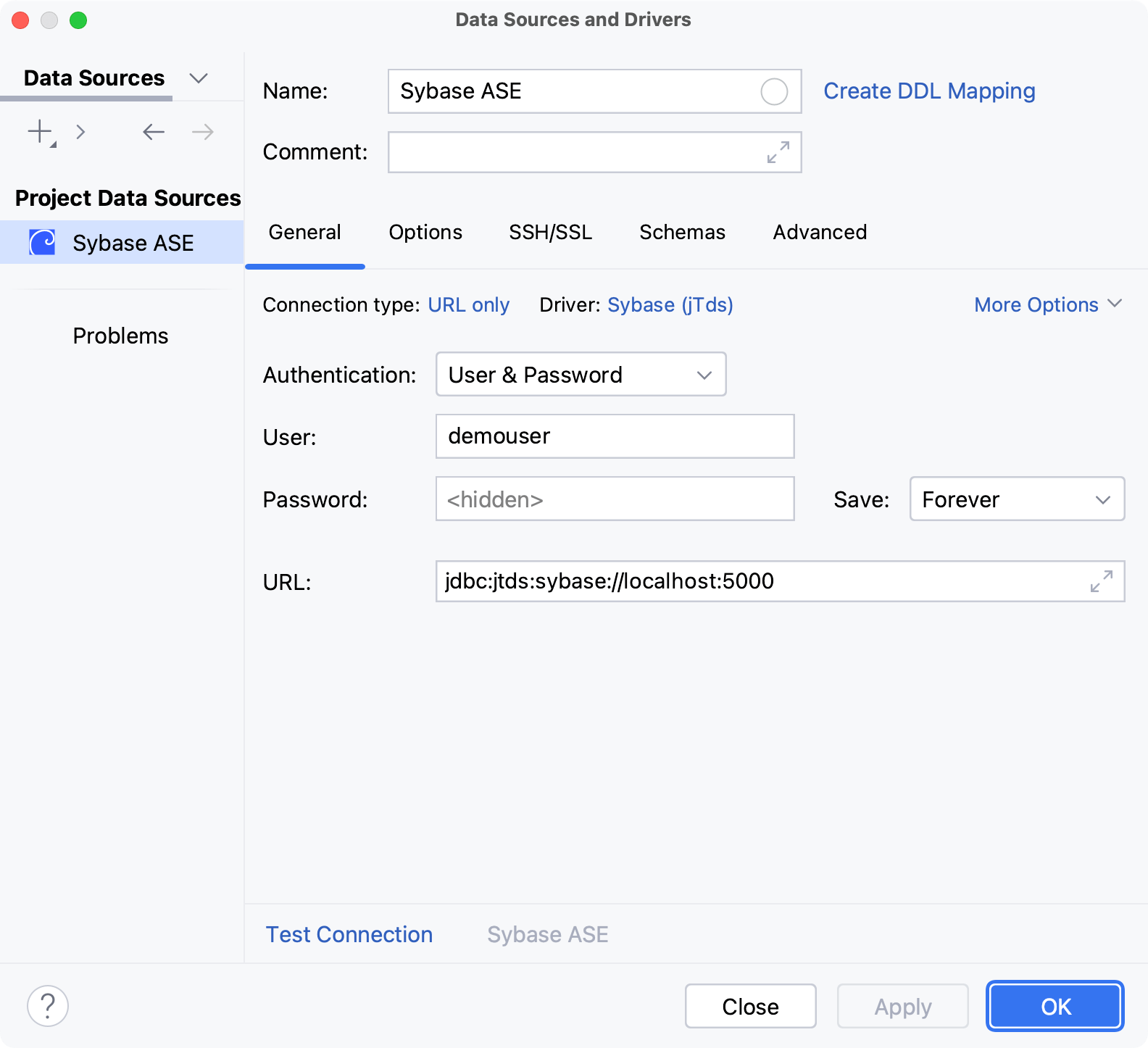

    Database connection details
    1. From the Authentication list, select the authentication method that you want to use to authenticate the connection. The following options are available:

      • User & Password: by using your login and password.

      • (For the Sybase ASE (jTds) driver only) Domain credentials: by using domain authentication.

      • No auth: authentication is not required.

    2. In the User and Password fields, type your user credentials.

      To use no password, leave the Password field empty.

      To delete a once entered password, right-click the Password field and select Set Empty.

      the Set Empty context menu action
    3. In the URL field, JetBrains Rider generates the JDBC URL automatically using the values of other connection settings.

      If you need to use a JDBC URL with certain additional settings, paste it in the URL field. The general URL to use is as follows:

      • Format: jdbc:jtds:sybase://<host_address>:<port_number>/<database_name>

      • Example: jdbc:jtds:sybase://127.0.0.1:5000/myDatabase

    Database connection details

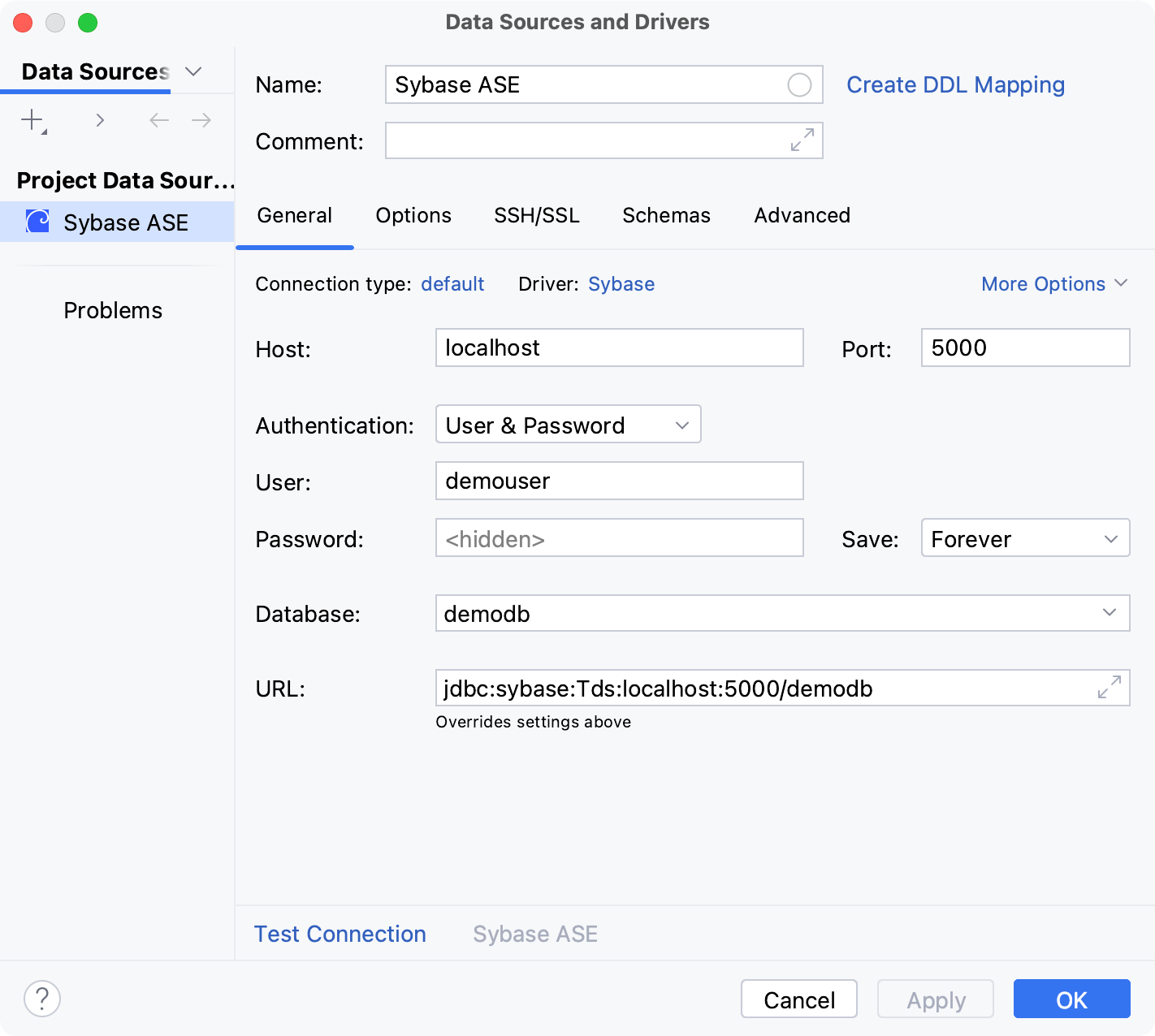

    Connection types and settings for Sybase ASE
    1. In the Host field, type your server address.

    2. In the Port field, type the port of Sybase ASE. The default port is 5000.

    3. From the Authentication list, select the authentication method that you want to use to authenticate the connection. The following options are available:

      • User & Password: by using your login and password.

      • (For the Sybase ASE (jTds) driver only) Domain credentials: by using domain authentication.

      • No auth: authentication is not required.

    4. In the User and Password fields, type your user credentials.

      To use no password, leave the Password field empty.

      To delete a once entered password, right-click the Password field and select Set Empty.

      the Set Empty context menu action
    5. In the Database field, type the database name to which you want to connect.

    6. In the URL field, JetBrains Rider generates the JDBC URL automatically using the values of other connection settings.

      If you need to use a JDBC URL with certain additional settings, paste it in the URL field. The general URL to use is as follows:

      • Format: jdbc:sybase:Tds:<host_address>:<port_number>/<database_name>

      • Example: jdbc:sybase:Tds:127.0.0.1:5000/myDatabase

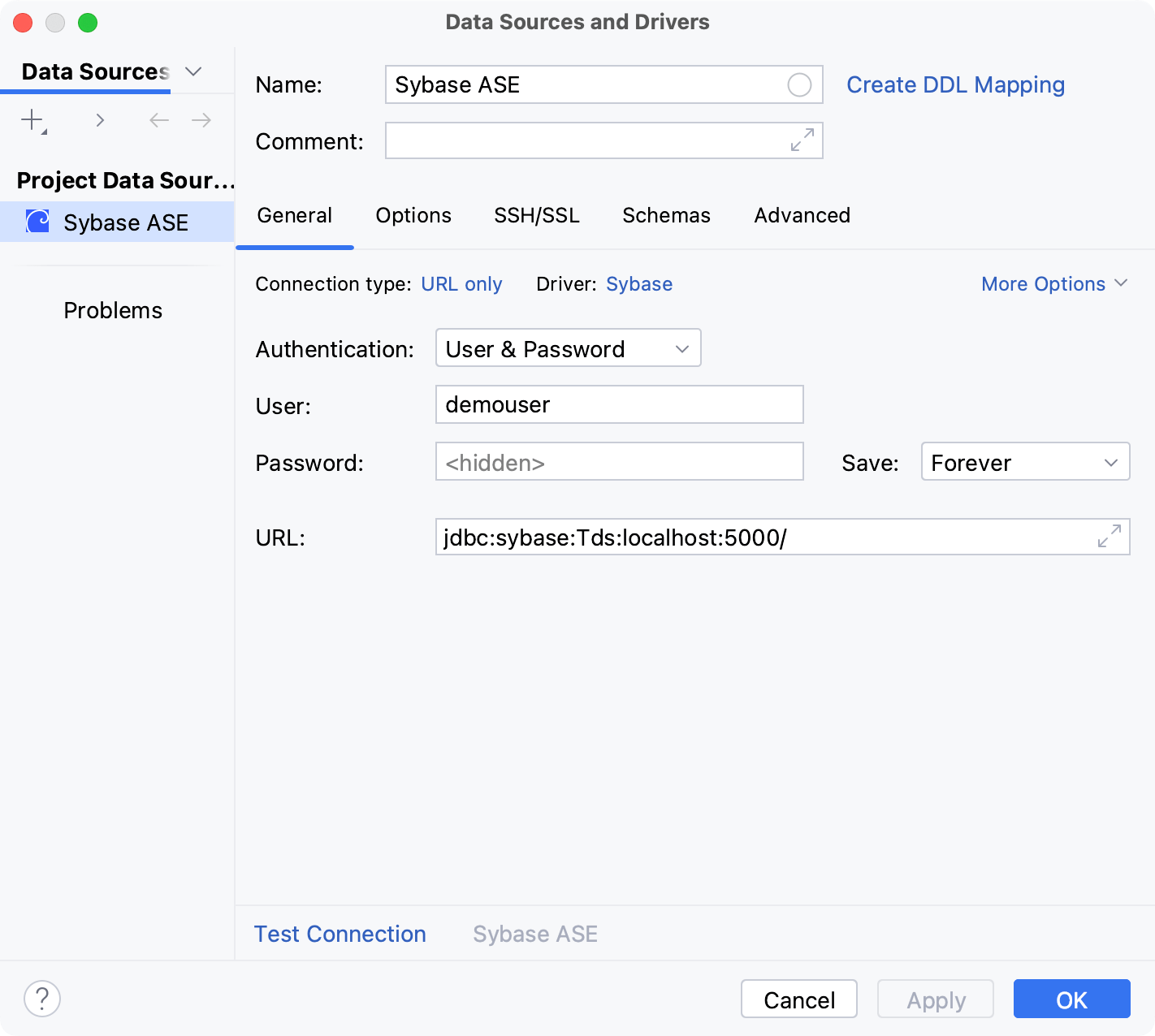

    Database connection details
    1. From the Authentication list, select the authentication method that you want to use to authenticate the connection. The following options are available:

      • User & Password: by using your login and password.

      • (For the Sybase ASE (jTds) driver only) Domain credentials: by using domain authentication.

      • No auth: authentication is not required.

    2. In the User and Password fields, type your user credentials.

      To use no password, leave the Password field empty.

      To delete a once entered password, right-click the Password field and select Set Empty.

      the Set Empty context menu action
    3. In the URL field, JetBrains Rider generates the JDBC URL automatically using the values of other connection settings.

      If you need to use a JDBC URL with certain additional settings, paste it in the URL field. The general URL to use is as follows:

      • Format: jdbc:sybase:Tds:<host_address>:<port_number>/<database_name>

      • Example: jdbc:sybase:Tds:127.0.0.1:5000/myDatabase

    Database connection details

    For the reference information about connection settings and properties on the General and other tabs of Data Sources and Drivers dialog (Shift+Enter) , see Connection settings and DBMS-specific properties.

  8. Ensure that the connection to the database can be established using the provided details. To do that, click the Test Connection link at the bottom of the connection details area.

    Test Connection link

    In case of any connection issues, refer to the Cannot connect to a database page.

  9. (Optional) By default, only the default database and schema are introspected and available to work with. If you also want to work with other databases and schemas, in the Schemas tab, select them for the introspection.

    Schemas tab of the Data Sources and Drivers dialog
  10. Click OK to create the data source.

  11. Find your new data source in the Database tool window (⌘ 1) .

    • For more information about the Database tool window, see the corresponding reference topic.

    • For more information about working with database objects in JetBrains Rider, refer to Database objects.

    • To write and run queries, open the default query console by clicking the data source and pressing F4.

    • To view and edit data of a database object, open Data editor and viewer by double-clicking the object.

Connection settings and DBMS-specific properties

Connection settings

For the reference information about connection settings (for example, Host, Port, and so on) on the General and other tabs of Data Sources and Drivers dialog (Shift+Enter) , see Data source settings.

DBMS-specific properties

General tab

Item

Description

Domain

Domain name to use for the Domain credentials authentication method available for the Sybase ASE (jTds) driver.

Last modified: 21 March 2024
