Languages and frameworks: YAML

JetBrains Rider enables you to work with YAML files (.yml, .yaml) and supports the following capabilities:

  • Syntax highlighting

    You can change color settings on the Editor | Code Style | YAML page of the Settings/Preferences dialog (Control+Alt+S).

  • Code formatting

    You can access code style settings related to YAML on the Editor | Code Style | YAML page of the Settings/Preferences dialog (Control+Alt+S).

  • Inspections

    JetBrains Rider detects duplicated keys, unused anchors in YAML documents, and so on.

  • Code completion

    For example, you can use code completion for YAML documents that have the JSON schema, or you can complete anchor aliases.

  • Navigation and search

    For instance, you can navigate between anchors and aliases.

  • Finding anchor usages

  • Rename refactorings (for example, for anchors and aliases)

Let’s explore some YAML-specific features available in the editor.

Anchors and aliases

JetBrains Rider supports working with anchors and aliases. If you specify a new anchor in the YAML file, the editor will show a warning that this anchor is not used by any node.

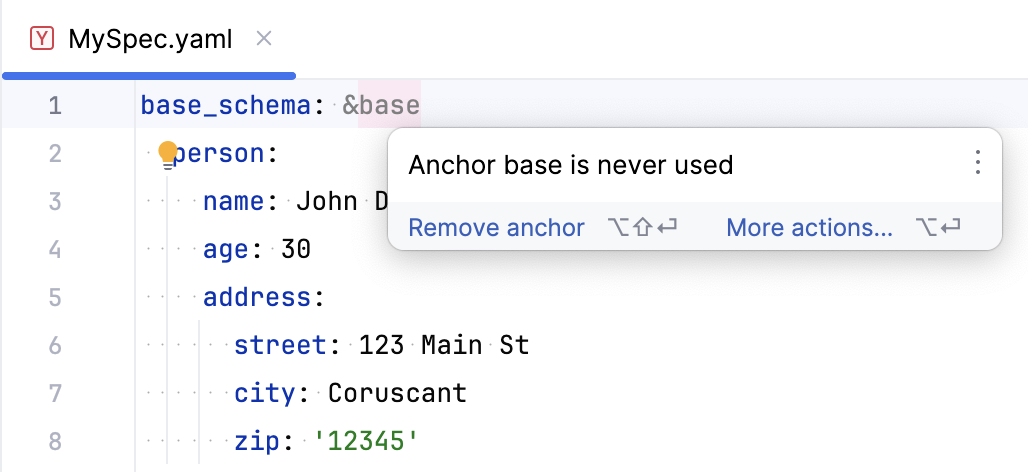

YAML: unused anchor warning

The editor enables you now to complete aliases for this anchor.

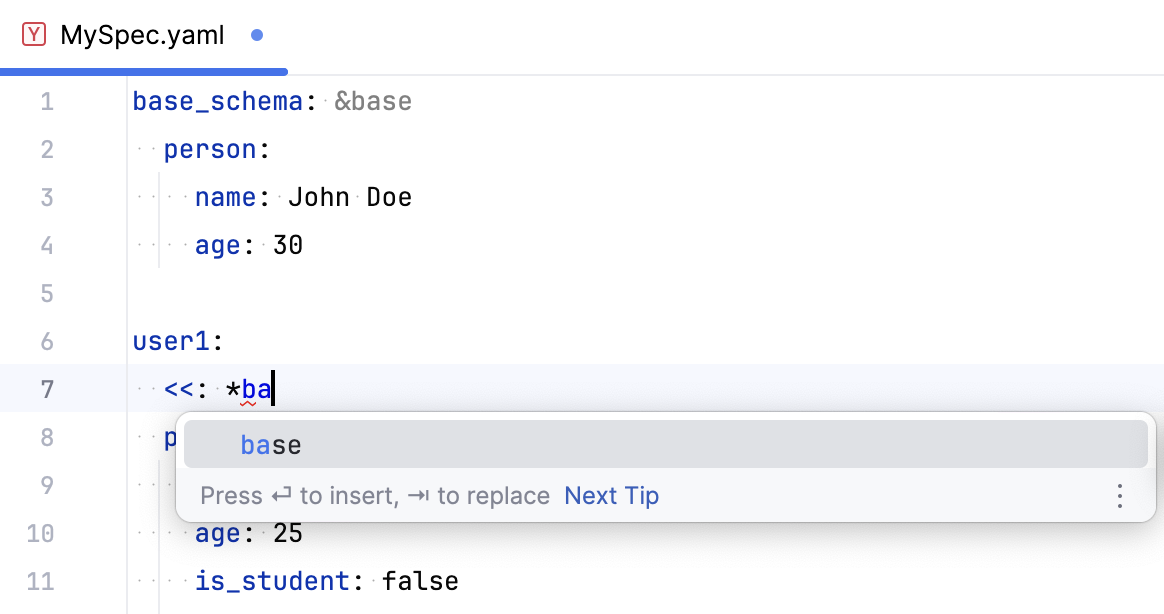

YAML: complete alias

To quickly find usages of an anchor, place the caret on the anchor and press Control+B.

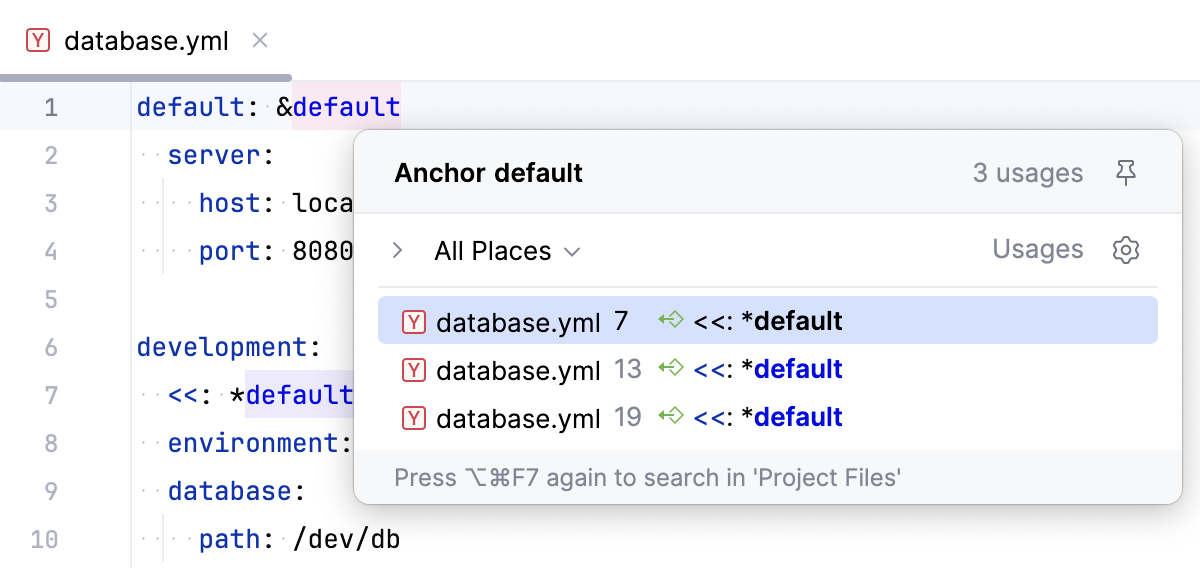

YAML: navigate to aliases

JetBrains Rider supports the rename refactoring for anchors and aliases: Place the caret on the anchor and press Shift+F6. Alternatively, right-click the anchor and select Refactor | Rename.

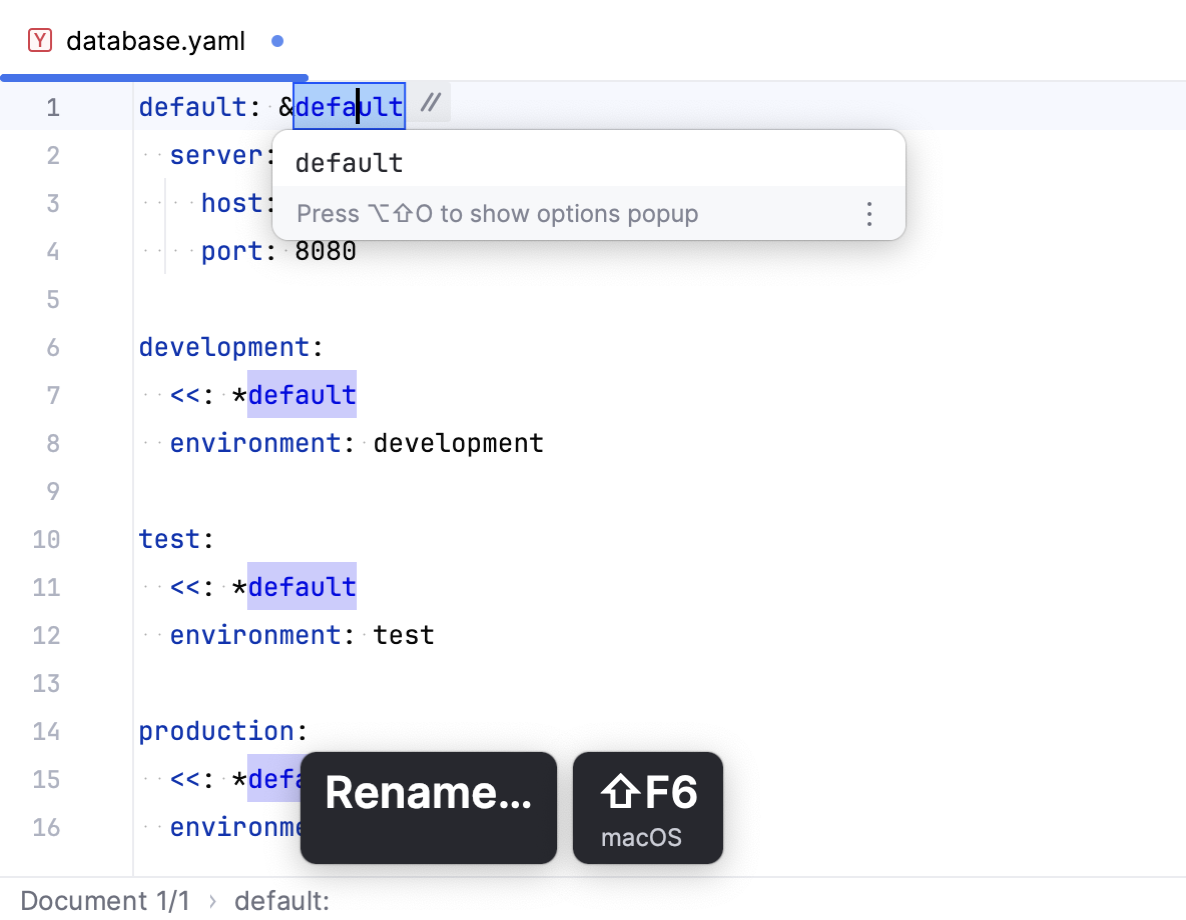

renaming the YAML anchor

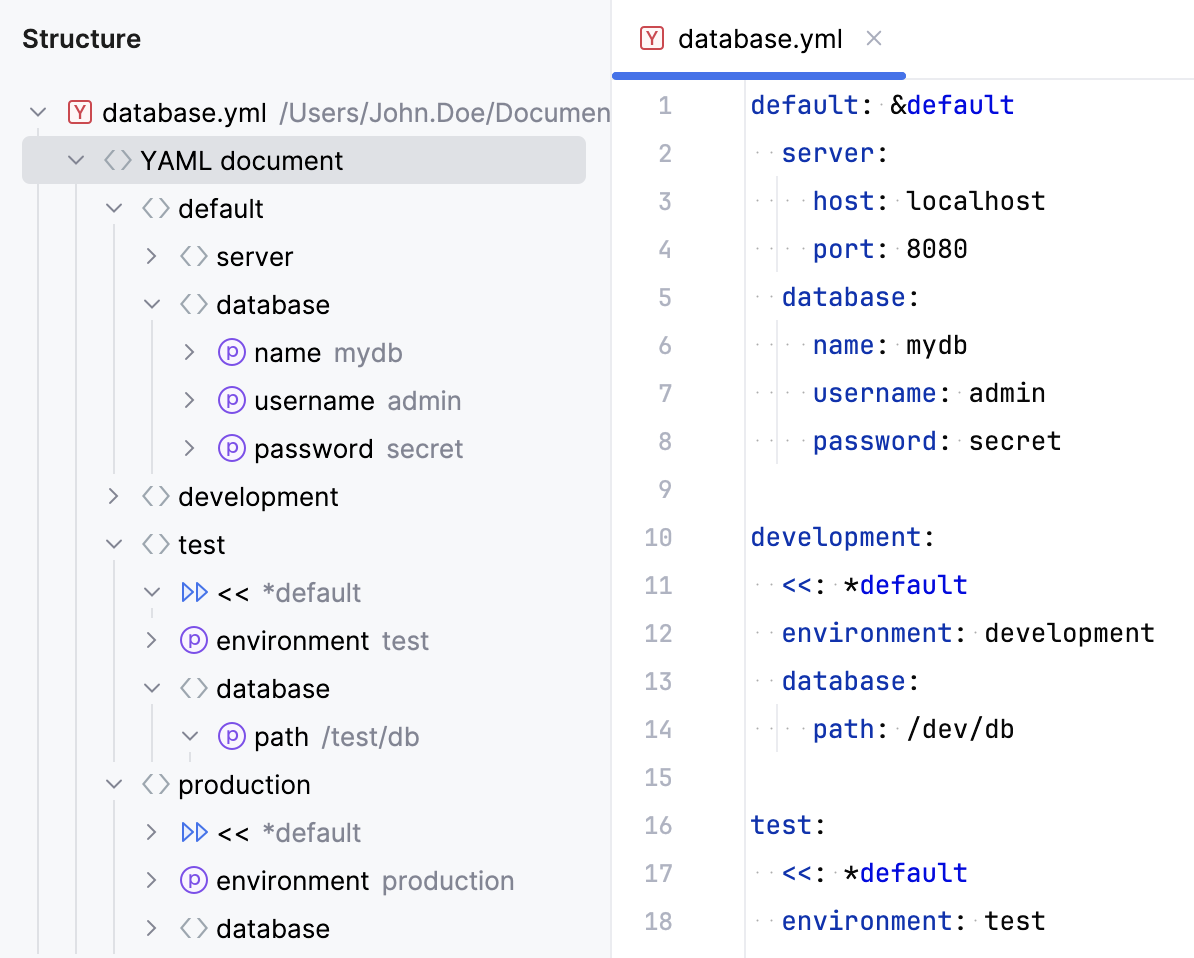

Use the Structure tool window (Alt+7) to quickly navigate through YAML files. To show or hide elements of reused anchors in the Structure tool window, click View Options use Aliased sub-trees.

YAML structure view

JSON schemas

JetBrains Rider supports code completion and inspections for YAML files using the JSON schema. JetBrains Rider can infer a schema automatically (based on the file location or structure), or you can select it manually. For example, if you have GitHub Actions workflow files in the .github/workflows directory, JetBrains Rider will suggest completing its options based on the github-workflow.json schema automatically loaded from schemastore.org:

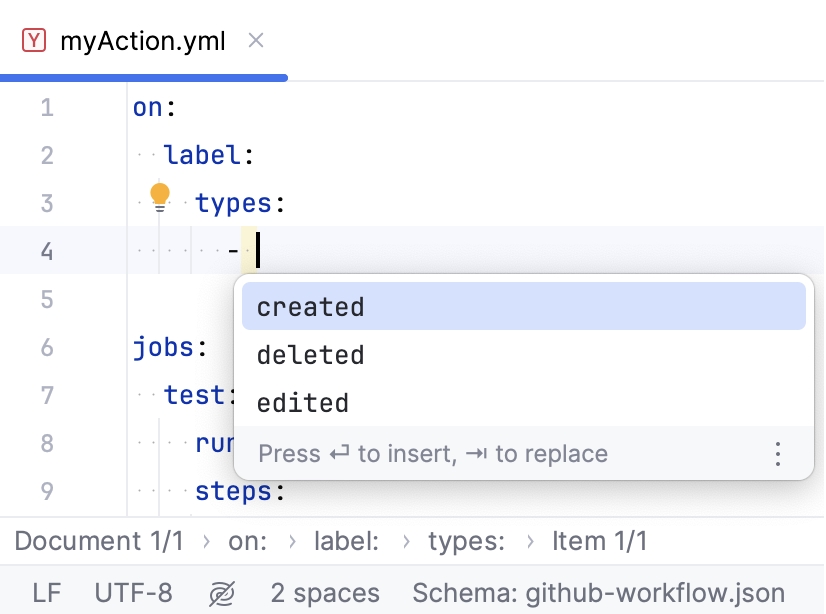

YAML: complete based on schema

You can manage loading JSON schemas using the Languages & Frameworks | Schemas and DTDs | Remote JSON Schemas page of the Settings/Preferences dialog (Control+Alt+S).

If necessary, you can specify a path to the required schema file in Languages & Frameworks | Schemas and DTDs | JSON Schema Mappings.

Select a JSON schema for a file

You can specify a custom schema for a particular file.

  1. Click the schema switcher in the status bar.

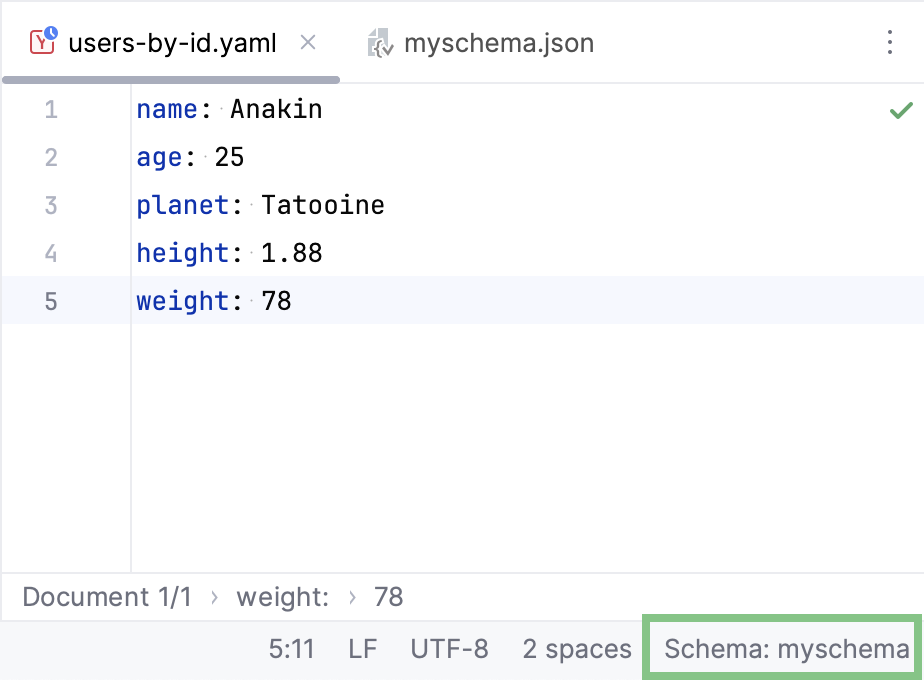

    Select schema for a file
  2. In the list that opens, select one of the suggested schemas or click New Schema Mapping…. This will open the JSON Schema Mappings settings where you can specify a local or remote schema for your file.

Get properties from a schema

If JetBrains Rider detects a schema for your YAML file, you can quickly insert all of its properties into that file using a dedicated action, removing the need for manual typing.

  • If a schema contains required properties, and you want to insert only these particular properties, press Alt+Enter (Show Context Actions) anywhere in a file and select Add missing properties.

  • If you want to insert all properties available in the schema, press Alt+Enter (Show Context Actions) anywhere in a file and select Fill in all properties from JSON schema.

Use $schema keyword

You can also refer to a schema right in the file itself.

  1. At the top of the file, enter # $schema:.

  2. Start typing the name of a schema file. You'll get completion for the names of schemas loaded from schemastore.org.

    If you want to use a local schema file, specify the path to it relative to the file where you want to use the schema, for example, # $schema: ./my-schema.json. This will enable the same coding assistance that you would have when you use a remote schema, including inspections, completion, and property filling actions.

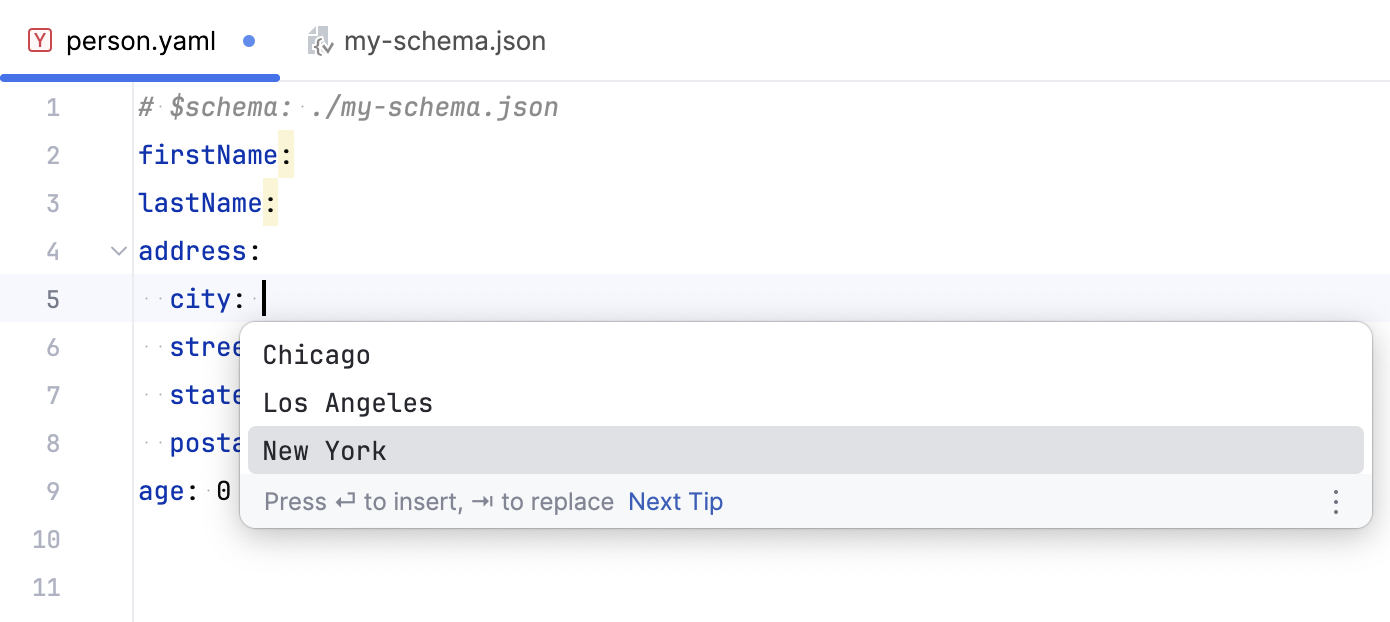

    Completion from local schema

Copying keys

JetBrains Rider provides the ability to copy a full path to a specific option specified in the YAML file. You can do this in two ways:

  • Place a caret to the required key and press Control+Alt+Shift+C.

  • Hover over the required key, right-click it and select Copy Reference.

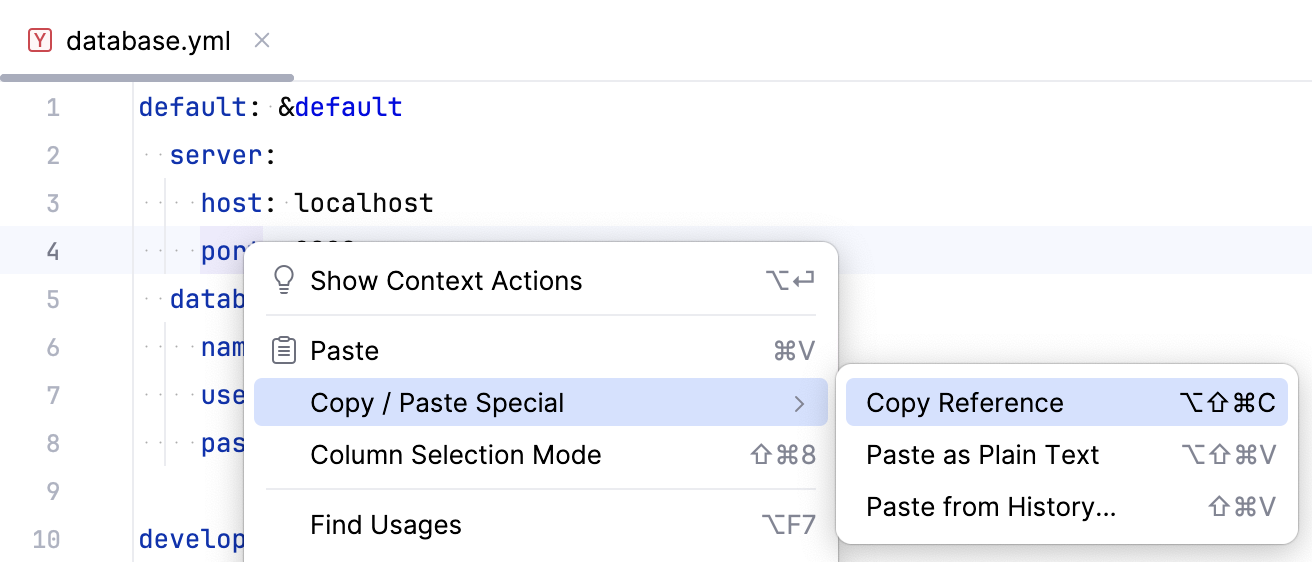

YAML: copy references

For example, on the image above, default.server.port will be copied.
