This section describes the buttons on the title bar of the tool window and the options on the context menu of the title bar. Turn these options on and off to have elements of certain types hidden or shown and configure the way they are presented.
The buttons on the title bar are common for all language contexts. The set of options on the context menu depends on the context.
The buttons on the title bar are common for all language contexts.
Item
Tooltip
Description
Collapse AllCtrl+NumPad -
Click this button to have all the nodes in the tool window collapsed.
Expand AllCtrl+NumPad Plus
Click this button to have all the nodes in the tool window expanded.

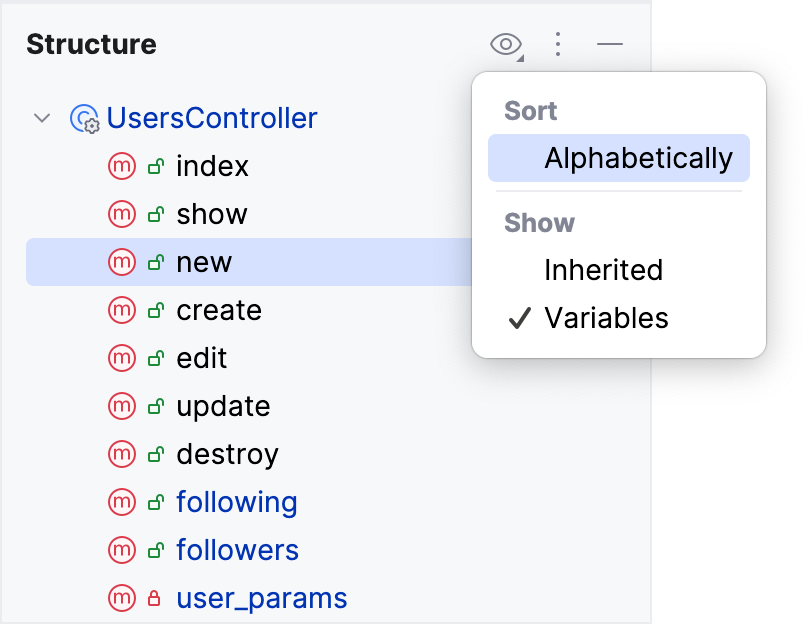

Click this button to open the context menu and configure the appearance of the tool window, its viewing mode, and the way it presents the structure of the current file by turning the menu items on or off.
Hide Shift+Escape
Click this button to hide the tool window.
Ruby
Icon
Tooltip
Description
Sort Alphabetically
Turn this option on to have the elements within a class sorted alphabetically.
Show Inherited
Turn this option on to display all the methods and fields inherited by the current class and accessible from it. The inherited members are displayed gray to distinguish them from the members defined in the current class.
Show Fields
Click this button to have all fields (properties) shown in the tree.
Collapse AllCtrl+NumPad -
Click this button to have all the nodes in the tool window collapsed.
Expand AllCtrl+NumPad Plus
Click this button to have all the nodes in the tool window expanded.
Autoscroll to Source
Click this button to enable automatic navigation to the line of source code that corresponds to the selected node when the focus switches to the editor.
Autoscroll from Source
Click this button to have RubyMine automatically move the focus in the Structure tool window to the node that corresponds to the code where the cursor is currently positioned in the editor.
RSpec
Icon
Tooltip
Description
Sort Alphabetically
Click this button to have the elements within a class sorted alphabetically.
List View
Click this button to have the method calls shown as a flat list. Turn this option off to have the method calls shown as a tree view.
Hide before/after calls
Click this button to have the before and after method calls hidden. Turn this option off to have the before and after method calls displayed.
Hide active examples
Click this button to suppres showing the active examples in the Structure tool window.
Hide pending examples
Click this button to suppress showing the pending examples in the Structure tool window.
Hide disabled examples
Click this button to suppress showing the disabled examples in the Structure tool window.
Collapse AllCtrl+NumPad -
Click this button to have all the nodes in the tool window collapsed.
Expand AllCtrl+NumPad Plus
Click this button to have all the nodes in the tool window expanded.
Autoscroll to Source
Click this button to enable automatic navigation to the line of source code that corresponds to the selected node when the focus switches to the editor.
Autoscroll from Source
Click this button to have RubyMine automatically move the focus in the Structure tool window to the node that corresponds to the code where the cursor is currently positioned in the editor.
Cucumber feature files, ERB, HAML
Icon
Tooltip
Description
Collapse AllCtrl+NumPad -
Click this button to have all the nodes in the tool window collapsed.
Expand AllCtrl+NumPad Plus
Click this button to have all the nodes in the tool window expanded.
Autoscroll to Source
Click this button to enable automatic navigation to the line of source code that corresponds to the selected node when the focus switches to the editor.
Autoscroll from Source
Click this button to have RubyMine automatically move the focus in the Structure tool window to the node that corresponds to the code where the cursor is currently positioned in the editor.
HTML, XML
Icon
Tooltip
Description
Sort Alphabetically
Click this button to have the elements within a class sorted alphabetically.
HTML5 Outline
Click this button on to view HTML 5 outline of a HTML file:
Collapse AllCtrl+NumPad -
Click this button to have all the nodes in the tool window collapsed.
Expand AllCtrl+NumPad Plus
Click this button to have all the nodes in the tool window expanded.
Autoscroll to Source
Click this button to enable automatic navigation to the line of source code that corresponds to the selected node when the focus switches to the editor.
Autoscroll from Source
Click this button to have RubyMine automatically move the focus in the Structure tool window to the node that corresponds to the code where the cursor is currently positioned in the editor.
JavaScript, TypeScript, CoffeeScript
Icon
Tooltip
Description
Sort Alphabetically
Click this button to have the elements within a class sorted alphabetically.
Group Methods by Defining Type
Click this button to have all the methods that override/implement the methods of a particular class/interface grouped under the node that corresponds to this class/interface.
Show Fields
Click this button to have all fields (properties) shown in the tree.
Show Inherited
Click this button to display all the methods and fields inherited by the current class and accessible from it. The inherited members are displayed gray to tell them from the members defined in the current class.
Collapse AllCtrl+NumPad -
Click this button to have all the nodes in the tool window collapsed.
Expand AllCtrl+NumPad Plus
Click this button to have all the nodes in the tool window expanded.
Autoscroll to Source
Click this button to enable automatic navigation to the line of source code that corresponds to the selected node when the focus switches to the editor.
Autoscroll from Source
Click this button to have RubyMine automatically move the focus in the Structure tool window to the node that corresponds to the code where the cursor is currently positioned in the editor.
