Foreign keys

Foreign key relationships specify how tables relate to each other and indicate relationships between tables. RubyMine recognizes foreign key relationships in your database schema and uses them to construct JOIN clauses. You can see these relationships in the auto-completion list, data navigation, and diagrams.

In RubyMine, you can use explicit foreign keys or create virtual foreign keys.

A foreign key is a field or a collection of fields in one table that refers to the primary key in another table. When you create or modify a table, you can clearly define those keys:

CREATE TABLE visitor ( id int NOT NULL, activity_id int NOT NULL, PRIMARY KEY (id), FOREIGN KEY (activity_id) REFERENCES activity(activity_id) );

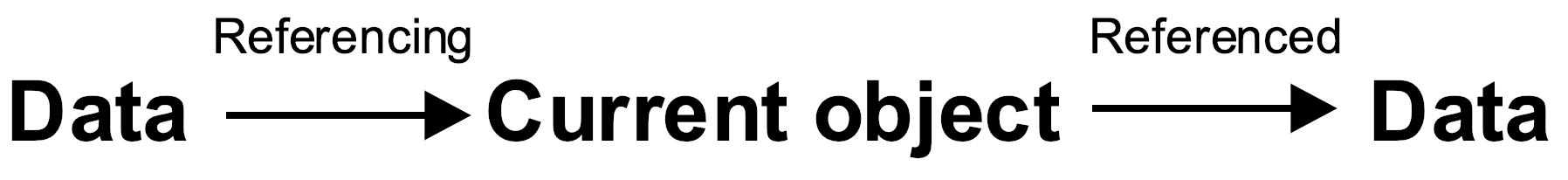

The table that contains a foreign key is a child table. The table that contains a candidate key is a referenced or target table. If your database contains explicit foreign key relationships, RubyMine automatically uses them in auto-completion, data navigation, and diagrams.

In the following example, activity.activity_id is a primary key, while visitor.activity_id is a foreign key.

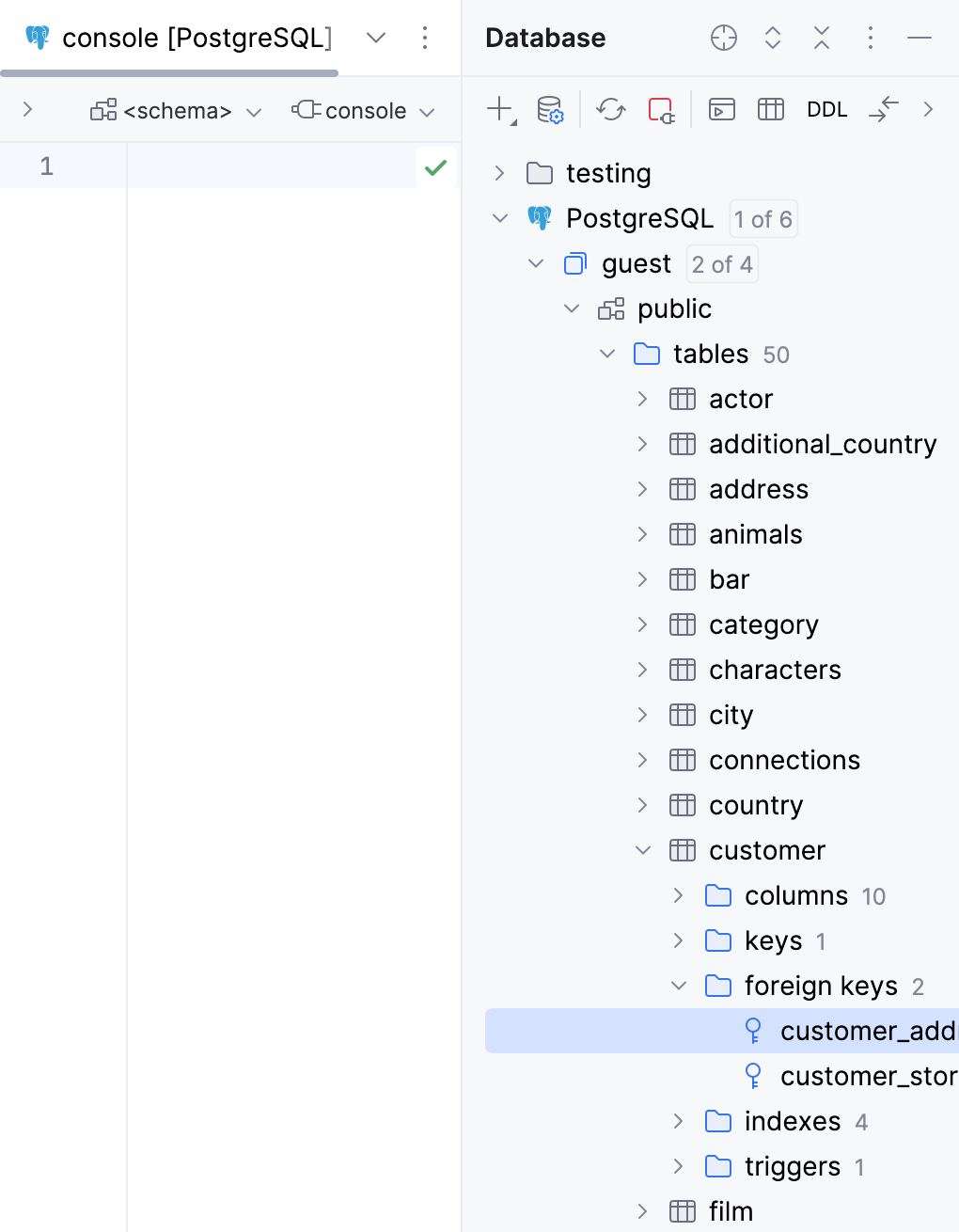

Explicit foreign keys

There are cases when you do not want to use explicitly-defined foreign keys. Reasons for not using foreign keys might include performance issues (in CRUD operations), database characteristics (databases like ClickHouse and Apache Cassandra do not support foreign keys), usage of temporary tables (for testing), personal reasons, and other.

In this case, you can still create foreign key relations without changing your database code. Alternatively to foreign keys, virtual foreign keys are not defined in the database code.

Consider the following example query:

SELECT * FROM activity JOIN visitor ON visitor_id = visitor.id

Let's assume that visitor_id is not defined as a foreign key in the database. You can still use this virtual relation between the visitor_id field in the activity table and the id field in the visitor table in this JOIN clause. You can save this relation and use it later or configure rules for virtual foreign keys in settings by using regular expressions.

Virtual foreign keys

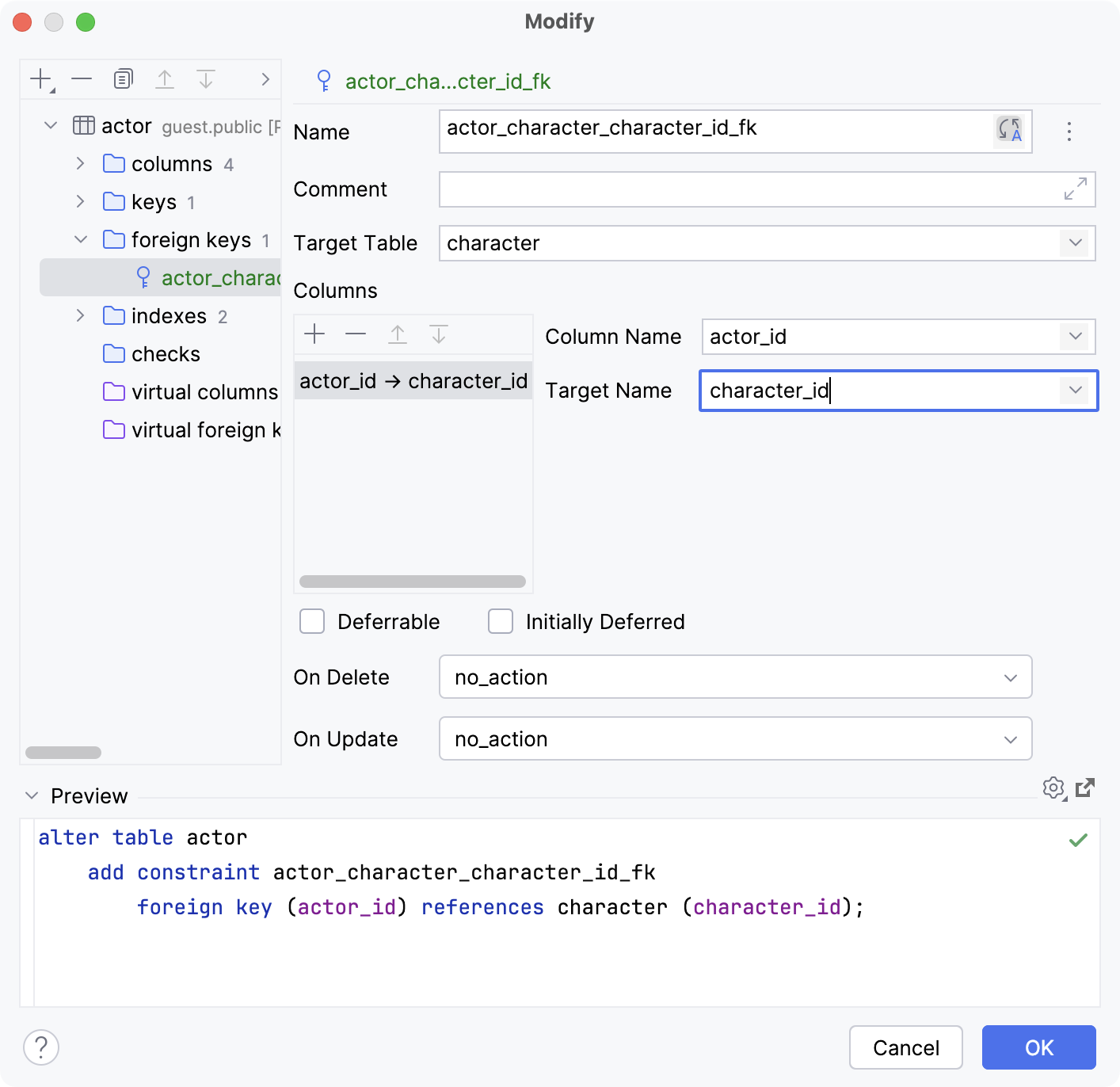

Create a foreign key in a database

  1. In the Database tool window (View | Tool Windows | Database), expand the data source tree until the node of a child table.

  2. Right-click a child table and select New | Foreign Key.

  3. In the Target table pane, specify the name of the target table.

  4. In the Columns pane, click the Add button the Add button.

  5. In the From field, specify the name of the column in the child table.

  6. In the To field, specify the name of the column in the target table.

  7. Click Execute.

    Create a foreign key

Create a virtual foreign key

  1. Click the table relation in the ON clause and press Alt+Enter.

  2. Select Store table relation.

    The relation is saved in external-data.xml. You can see the path to the XML document in the data source settings (Shift+Enter) on the Options tab.

Create rules for virtual foreign keys

You can use regular expressions to create a rule according to which RubyMine will point a column in one table to a column in another table.

  1. Open settings (Ctrl+Alt+S) and navigate to Editor | Code Completion.

  2. Scroll to the SQL section.

  3. In the table, click the Add button (click the Add button)

  4. Double-click the Column pattern cell and type the regular expression that will match a column name that you want to use as a virtual foreign key.

  5. Double-click the Target column pattern cell and type the replacement pattern. The replacement pattern uses the match from the Column pattern expression and is interpreted as a regular expression. You can see the result in the Generated pattern field. The resulted expression in the Generated pattern field must match the desired table.column pattern.

    You can check your rules by using the Check button (the Check button). When you click the Check button, the Rule debugger dialog opens.

Debug rules for virtual foreign keys

Debug rules for virtual foreign keys

  1. Open settings (Ctrl+Alt+S) and navigate to Editor | Code Completion.

  2. Scroll to the SQL section.

  3. Click the Check button (the Check button).

  4. In the Rule debugger dialog, fill the following fields:

    • Column pattern: the regular expression that will match a column name that you want to use as a virtual foreign key.

      For example, to describe columns that use the _id postfix, use the (.*)_(?i)id regular expression. This regular expression will find columns like visitor_id or visitor_Id, and capture visitors as the first capturing group ($1).

    • Target column pattern: the replacement pattern that uses the match from the Column pattern expression and is interpreted as a regular expression. You can see the result in the Generated pattern field. Note that the result appears only when you give an example of a column name in the Source column field.

      For example, we can use the captured group ($1) from the Column pattern expression, add a dot (.) and id. This expression will generate visitor.id reference that we can use as a primary key.

      Note: the Target column pattern replacement pattern is used to generate a regular expression pattern in the Generate pattern field with captured groups. Ensure that you double-escaped symbols that are translated literally like the dot in the example expression ($1\\.(?i)id).

    • Source column: an example of a column name that you want to use as a virtual foreign key.

    • Generated pattern: a generated read-only regular expression pattern that is matched to the Target table.column name. Generated pattern is a result that is generated by the replacement pattern in Target column pattern.

    • Target table.column: an example of the table and column name that will be used as a primary key for the virtual foreign key in Source column.

    Debug rules for virtual foreign keys

Productivity tips

Modify templates for generated index and key names

When you create indexes, and primary and foreign key constraints, their default names are generated according to corresponding templates. For a primary key, for example, the template is {table}_{columns}_pk.

  • To view and modify these templates, open the settings Ctrl+Alt+S and navigate to Editor | Code Style | SQL | Common SQL. Click the Code Generation tab.

    The templates can contain variables and text. When you generate a name, the specified text is reproduced literally. For example, when you apply the {table}_pk template in the actor table, the generated name of the primary key will be actor_pk.

    To see information about possible variables and their usage, click the field and press Ctrl+Q.

    {unique?u:} checks if the index is unique and inserts the corresponding sequence of characters. If the index is unique, the template generates a name with the sequence of characters specified between ? and :. For the {unique?u:} template, it is u. If the index is not unique, the sequence between : and } is inserted. For the {unique?u:} template, it is nothing.

    Example

    You have the persons table with columns FirstName and LastName. The {table}_{columns}_{unique?u:}index template generates the following name for the not unique index: persons_FirstName_LastName_index.

    Modify templates          for generated index and key names
