RubyMine 2023.3 Help

Manage Git branches

In Git, branching is a powerful mechanism that allows you to diverge from the main development line, for example, when you need to work on a feature, or freeze a certain state of a code base for a release, and so on.

In RubyMine, all operations with branches are performed in the Git Branches popup. To invoke it, in the main window header, click the Git widget with the name of the branch that is currently checked out:

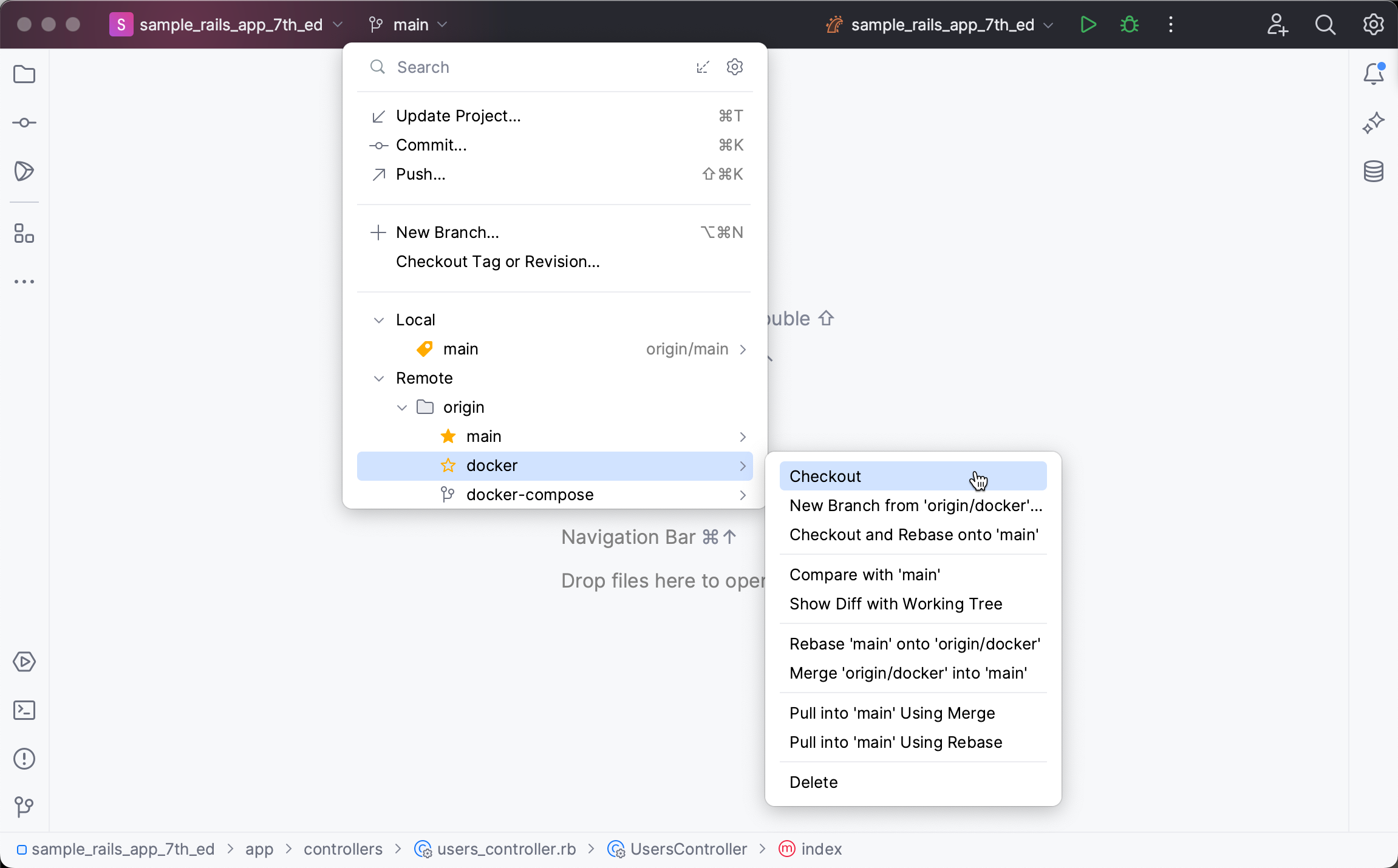

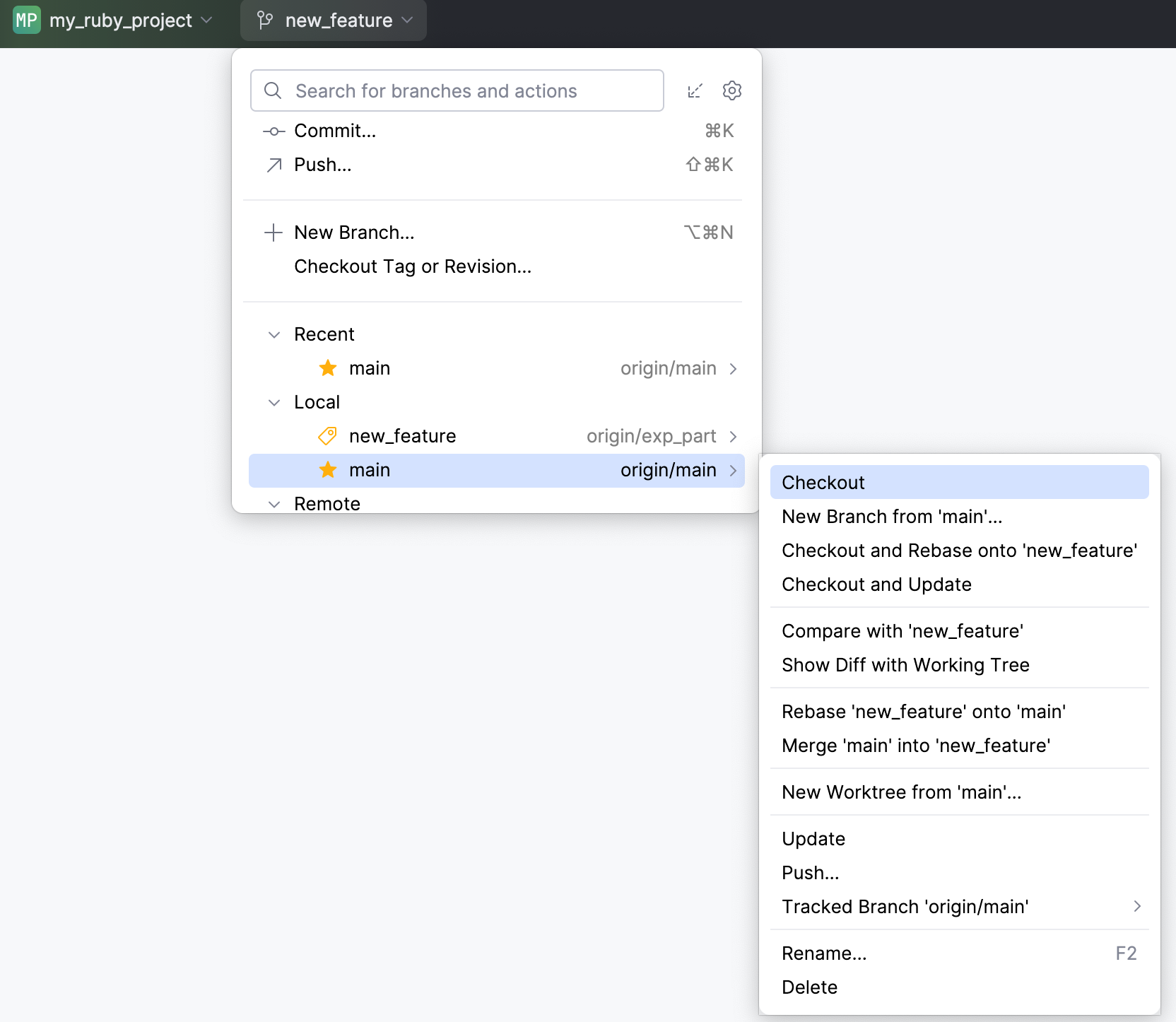

Git widget

You can also manage branches and perform batch operations with multiple branches in the Branches pane of the Git tool window.

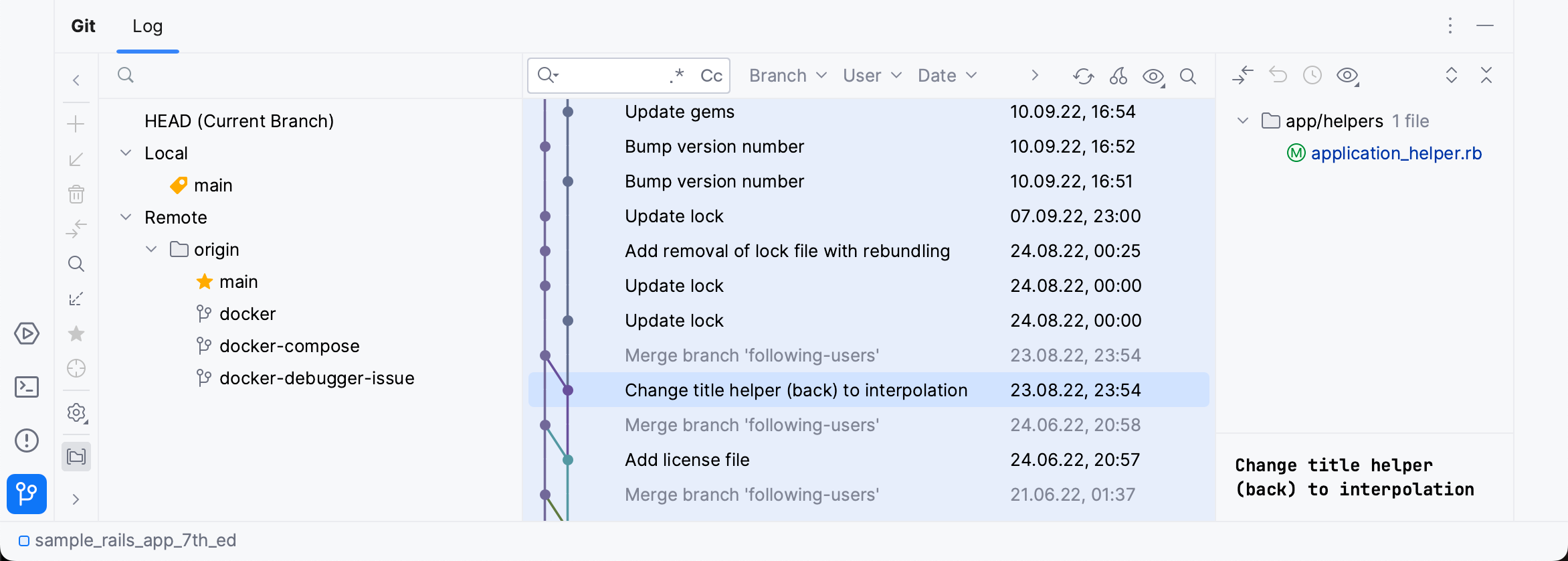

Branches pane

Create new branch

Create a new branch from current branch

  1. In the Branches popup, choose New Branch or right-click the current branch in the Branches pane of the Git tool window and choose New Branch from 'branch name'.

  2. In the dialog that opens, specify the branch name, and make sure the Checkout branch option is selected if you want to switch to that branch.

    Once you start typing a name for your new branch, RubyMine will suggest relevant prefixes based on the names of existing local branches.

    The new branch will start from the current branch HEAD.

Create a new branch from selected branch

  1. In the Branches popup or in the Branches pane of the Git tool window select a local or a remote branch that you want to start a new branch from and choose New Branch from Selected.

  2. In the dialog that opens, specify the branch name, and make sure the Checkout branch option is selected if you want to switch to that branch.

Create a new branch from selected commit

  1. In the Log view, select the commit that you want to act as a starting point for the new branch and choose New Branch from the context menu.

  2. In the dialog that opens, specify the branch name, and make sure the Checkout branch option is selected if you want to switch to that branch.

Rename branches

  1. In the Branches popup or in the Branches pane of the Git tool window, select the branch you want to rename and choose Rename.

  2. In the dialog that opens, change the branch name to the one you need.

Mark branches as favorites

If you have many branches, you may want to see only your favorite ones. The main branch is marked as a favorite by default. Favorite branches are always displayed at the top of the Branches popup and in the Branches pane of the Git tool window.

  • To mark a branch as a favorite, in the Branches popup, hover over the branch name, and click the star outline that appears on the left:

    favourite branch

    Alternatively, select the branch you want to mark as favourite and press Space.

    You can also select a branch in the Branches pane of the Git tool window and click the Star icon on the toolbar.

Group branches

In the Branches popup, RubyMine keeps branches in three nodes:

  • Recent branches node shows up to five recently checked-out branches.

  • Local branches node lists all local branches.

  • Remote branches node shows all remote branches available after the latest fetch.

Also, RubyMine automatically groups branches by prefix and stores them in expandable lists.

Branches grouped by prefix in the Branches popup

In order for branches to be grouped, prefixes in branches' names should be separated with forward slashes /. For example, jd/2023.1.

To stop grouping branches by prefix or to hide the Recent node, click the Gear icon Settings in the upper-right corner of the Branches popup and then deselect the Group by Prefix or the Show Recent Branches options.

Group by Prefix option in the Branches popup

Check out branches (git-checkout)

If you want to work on a branch created by someone else, you need to check it out to create a local copy of that branch.

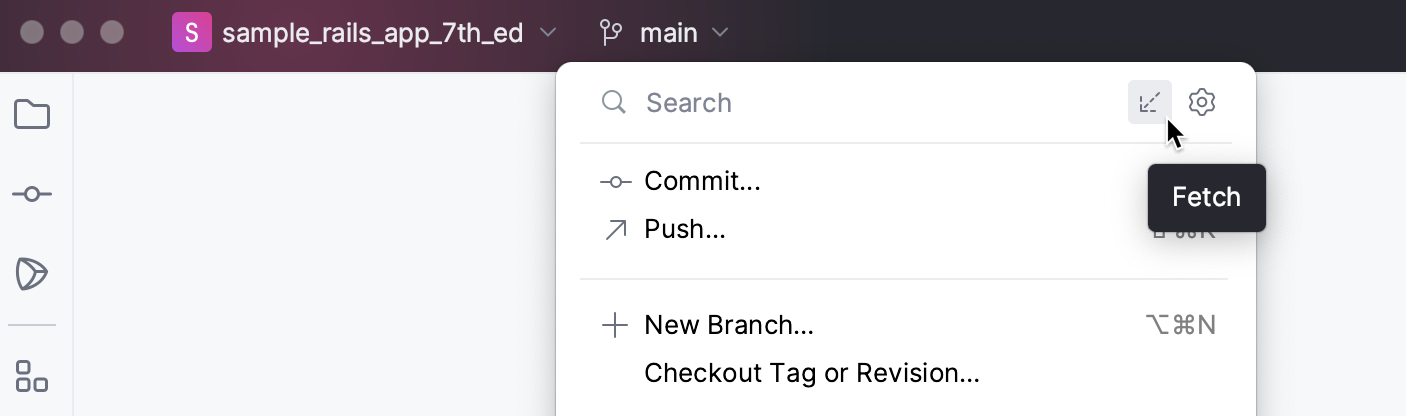

To make sure you have a full list of remote branches, click the Fetch icon in the Branches popup:

the Fetch icon

Check out a branch as a new local branch

  1. In the Branches popup or in the Branches pane of the Git tool window, select a branch that you want to check out locally from Remote Branches, or Common Remote Branches if your project has several roots and synchronous branch control is enabled, or from Repositories | Remote Branches if it is disabled.

  2. Choose Checkout from the list of actions.

А new local branch will be created, checked out and set to track the origin remote branch.

It can happen that you already have a local branch with the same name as a remote branch you want to check out. Depending on the situation, here is how you can finish the checkout process:

  • If no commits will be lost, and the local branch already tracks the remote, RubyMine automatically resets the local branch to the remote branch and then checks it out.

  • If the local branch contains commits that can be lost because of the reset, RubyMine will offer you to:

    • Drop Local Commits: RubyMine will drop your local commits, reset the local branch, and change tracking.

    • Rebase onto Remote: RubyMine will rebase your local branch onto the remote branch, keep your local commits, reset the local branch, and change tracking.

Switch between branches

When multitasking, you often need to jump between branches to commit unrelated changes.

  1. In the Branches popup or in the Branches pane of the Git tool window, select the branch that you want to switch to under Local Branches and choose Checkout from the list of available operations.

    For multi-repository projects, branches are automatically grouped by repositories. To check out the necessary branch, in the Branches popup, choose the repository first.

  2. What happens next depends on whether there are conflicts between your local changes that you have not committed yet, and the branch that you are going to check out:

    • If your working tree is clean (that means you have no uncommitted changes), or your local changes do not conflict with the specified branch, this branch will be checked out (a notification will pop up in the bottom-right corner of the RubyMine window).

    • If your local changes are going to be overwritten by checkout, RubyMine displays a list of files that prevent you from checking out the selected branch, and suggests choosing between Force Checkout and Smart Checkout.

      If you click Force Checkout, your local uncommitted changes will be overwritten, and you will lose them.

      If you click Smart Checkout, RubyMine will shelve uncommitted changes, check out the selected branch, and then unshelve the changes. If a conflict occurs during the unshelve operation, you will be prompted to merge the changes. For more information, refer to Resolve conflicts.

Compare branches

Compare a branch with the current branch

If you want to check how a branch has diverged from the current branch, you can compare them.

  1. From the Branches popup or from the Branches pane of the Git tool window, select the branch that you want to compare with the current branch, and choose Compare with Current.

    A new tab will be added to the Git tool window listing all commits that exist in the selected branch and do not exist in the current branch.

    You can click the Swap Branches link to change which branch is considered as a base against which you are comparing the other branch.

  2. To see a list of all files that are different in the two branches, press Control+A: the Changed Files pane will list all files that contain differences.

Compare a branch with the working tree

Apart from comparing a branch with the current branch, you can compare it against the local state of the current branch. This is useful if you have local uncommitted changes.

  • From the Branches popup or from the Branches pane of the Git tool window, select the branch that you want to compare with the local working tree, and choose Show Diff with Working Tree.

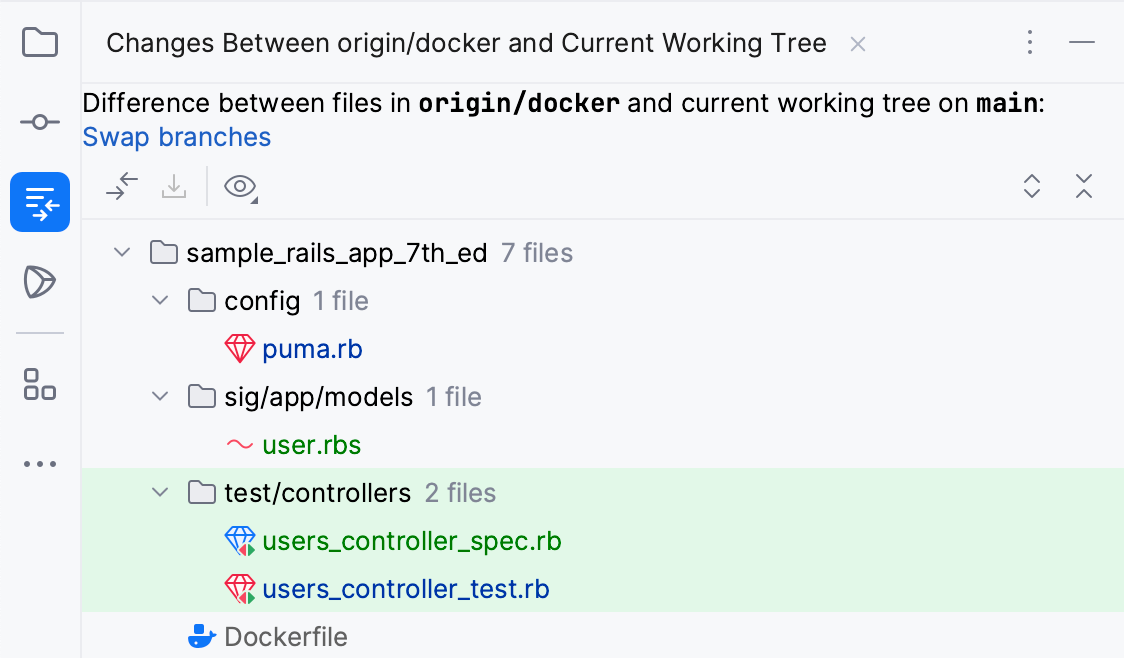

    The Changes tool window that opens shows a list of all files that are different in the selected branch compared with the branch that is currently checked out:

    Show diff between selected branch and current working tree
    • Files that exist in the selected branch and are missing in the current branch are marked with grey.

    • Files that exist in the current branch but are missing in the selected branch are marked with green.

    • Files that contain differences between the selected and the current branch are marked with blue.

    You can click the Swap Branches link to change which branch is considered as a base against which you are comparing the other branch.

    • To review the differences within a specific file, select it and click diff icon on the toolbar, or press Control+D.

    • To apply the entire file contents to the current branch, click the Get from Branch icon. For more information, refer to Apply separate files.

Watch this video to get a better view on how to compare changes to your branch:

Delete branches

After you have integrated the changes from a feature branch into the main line of development, you can delete the branch you do not need anymore.

  1. Check out a branch that you are going to use for further work.

  2. In the Branches popup or from the Branches pane of the Git tool window, right-click the branch you want to delete and choose Delete.

After you have deleted a branch, a notification will be displayed in the bottom-right corner from which you can restore the deleted branch:

deleted branch notification

If the branch contained commits that have not yet been merged to its upstream branch or to the current branch, it will still be deleted immediately (equivalent to the git branch --D or git branch --delete --force command), but the notification will also contain a link allowing you to view the unmerged commits.

If the deleted branch was tracking a remote branch, there will also be a link in this notification to remove the remote branch.

Configure synchronous branch control

If you have a multi-rooted repository, you can configure RubyMine to perform all branch operations (such as checkout, merge, delete, and so on) simultaneously on all roots as if it were a single repository.

  1. Press Control+Alt+S to open the IDE settings and then select Version Control | Git.

  2. Select the Execute branch operations on all roots option (note that this option is only available if your project has multiple roots).

If an operation fails at least in one of the repositories, RubyMine prevents branches from diverging by suggesting that you roll back this operation in the repositories where it was successful.

Last modified: 11 January 2024
