InstallationToken Endpoint: How to Issue GitHub Auth Tokens Programmatically

TeamCity GitHub App connections can issue authentication tokens that let TeamCity access GitHub repositories. This usually happens automatically when you create projects in the UI or manually issue tokens on the VCS Auth Tokens page.

The <TeamCity_Server_URL/app/oauth/githubapp/installationToken endpoint provides an alternative way to generate these tokens without using the UI. This is especially useful when configuring build configurations and VCS roots via the REST API, as it allows you to programmatically obtain the token IDs needed for those roots.

Main Properties

Endpoint

/app/oauth/githubapp/installationToken

Request type

POST

Headers

Content-Type: application/x-www-form-urlencoded
Accept: application/json
(optional) X-TC-GitHub-PAT: a US-ASCII string that is your personal GitHub access token (issued on the GitHub user settings page). If omitted, TeamCity will try to identify a user and their permissions by checking existing tokens stored in its internal storage. See the Special Notes section for more information.

Body

An x-www-form-urlencoded string with the following keys:

projectId — the internal ID of a project that will own a newly issued auth token.
The project ID can be copied from the project settings page in TeamCity UI, or retrieved via the app/rest/projects/name:Public%20Name?fields=id REST API endpoint.
connectionId — the internal ID of a GitHub App connection that will be used to issue a new token. By default, has the PROJECT_EXT_INT32 format.
The connection ID can be copied from the Connections tab of parent project settings page, or retrieved via the /app/rest/projects/id:ProjectID/projectFeatures?locator=type:OAuthProvider REST API endpoint
repositoryName — the name of a repository that the newly issued token will be able to access. The username should be omitted ("my-repo-name" instead of "johndoe/my-repo-name"). Allows you to list multiple repositories in the `repositoryName=name1&repositoryName=name2&..." format.
Only accepts names of repositories owned by organizations or users that installed the corresponding GitHub App.

Response

Successful requests return an HTTP 200 "OK" response with a JSON payload containing the following fields:

tokenId — the full ID of the newly issued token.
permissions — the list of permission-value pairs that describe access permissions of the issued token.
repositories — the array of repository names that can be accessed using this token.
personalAccessTokenSource — returns either "USER_PROVIDED" or "TOKEN_STORAGE_LOOKUP" depending on whether the user's personal access token was explicitly provided via the X-TC-GitHub-PAT header, or retrieved by TeamCity.

Failed requests return code 400 "Bad request".

The cURL sample below illustrates how to use the GitHub App connection with the "PROJECT_EXT_31" ID to issue a token that has access to the "sample-java-app-maven" and "HelpLinkGenerator" repositories. The token will be owned by a project with the "GitHubMavenJavaApp" ID.

curl --location 'http://your-server-URL/app/oauth/githubapp/installationToken' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--header 'Accept: application/json' \
--header 'X-TC-GitHub-PAT: ghp_foOBar1337' \
--header 'Authorization: Bearer 12345' \
--data 'projectId=GitHubMavenJavaApp&connectionId=PROJECT_EXT_31&repositoryName=sample-java-app-maven&repositoryName=HelpLinkGenerator'

If successful, the request returns the following payload:

{
    "tokenId": "tc_token_id:CID_3183460fk032c31a4d92650323o03492:-1:1af54425-9b25-4f1e-8c63-66f062309abf",
    "permissions": {
        "CONTENTS": "WRITE",
        "METADATA": "READ_ONLY",
        "PULL_REQUESTS": "READ_ONLY",
        "ISSUES": "WRITE",
        "STATUSES": "WRITE",
        "CHECKS": "WRITE"
    },
    "repositories": [
        "sample-java-app-maven",
        "HelpLinkGenerator"
    ],
    "personalAccessTokenSource": "USER_PROVIDED"
}

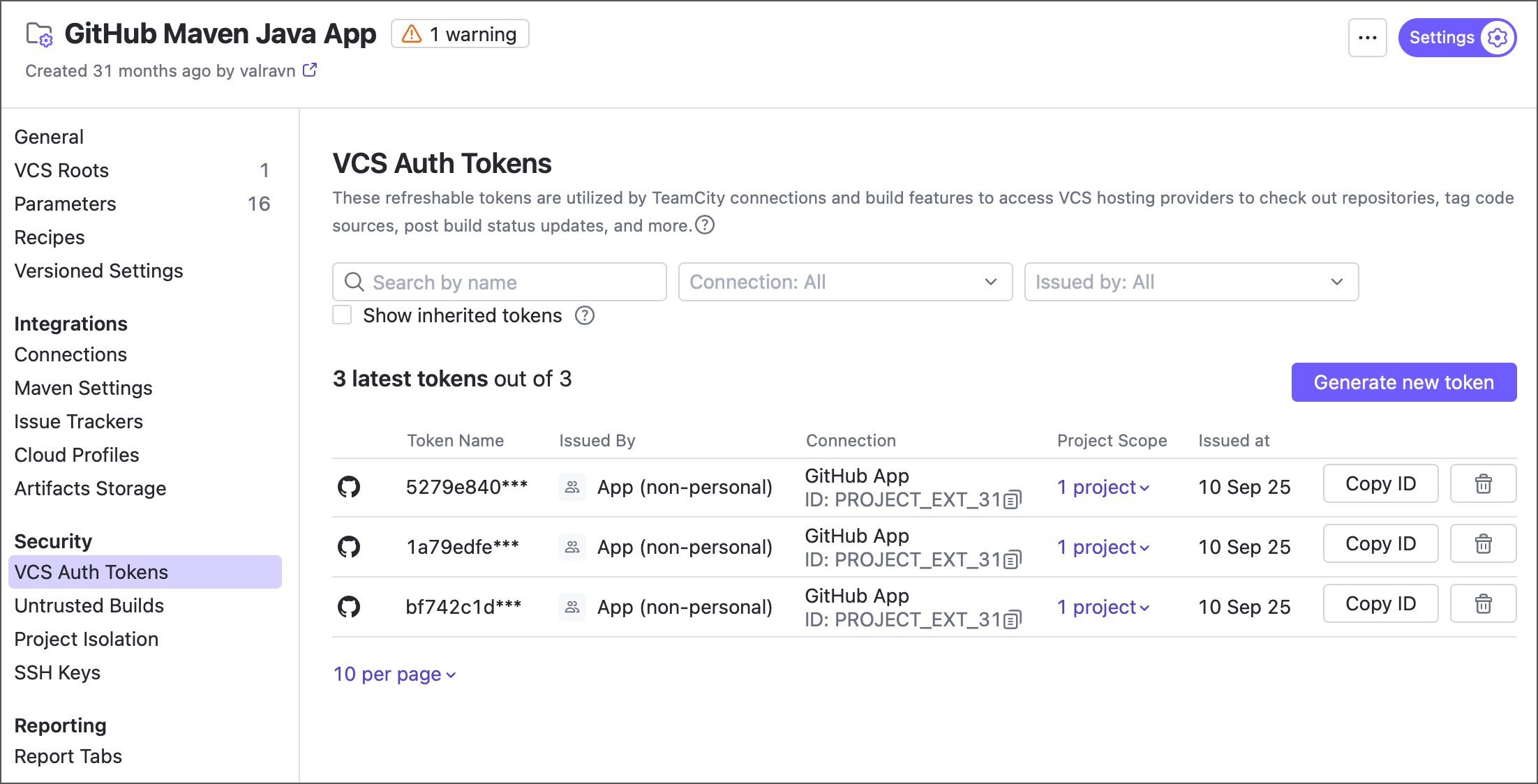

The issued token is visible on the VCS Auth Tokens tab of parent project settings.

Tokens generated via the endpoint shown on the project VCS Auth Tokens page

Special Notes

The user sending a POST request must be a project administrator of the referenced TeamCity project. Only this project (and its child subprojects) will be able to use the newly issued token.
The issued token has access permissions only for repositories whose names were passed in the request body. It is not possible to issue an unrestricted token that can access any user/organization repository.
TeamCity limits an installation token’s permissions to the lowest level the user has across the selected GitHub repositories. Therefore, the user must have previously signed in to TeamCity through the corresponding GitHub App connection, such as by logging in or listing repositories on the "New Project" page. Alternatively, use the X-TC-GitHub-PAT to explicitly specify the user's personal access token (PAT).

10 September 2025
