Configuring Build Parameters

Parameters are name=value pairs that you reference via the %parameterName% syntax in TeamCity settings and build scripts.

The parameter value part can be a raw value (release.number=2026.1) or include a reference to another parameter (system.tomcat.libs=%env.CATALINA_HOME%/lib/*.jar).

Parameter Types

TeamCity supports paramters of three types:

Configuration Parameters — parameters whose primary objective is to share settings within a build configuration. You can also use these parameters to customize a configuration that was created from a template or uses a recipe. TeamCity does not pass parameters of this type to a build process (that is, these parameters are not accessible by a build script engine).
Environment Variables — parameters that start with the env. prefix. These parameters are passed to the process of a build runner similarly to the default env variables of a system.
System Properties — parameters that start with the system. prefix. TeamCity can pass parameters of this type to configuration files of certain runners as variables specific to a build tool.

Main Use Cases

Parameterize a build script

If occasionally you need to run custom script variations, you can replace raw values with parameters. For example, the following Kotlin DSL sample illustrates a Gradle step that runs the clean build command by default.

object GradleStepParameters : BuildType({
    params { param("gradle.task", "clean build") }
    steps {
        gradle {
            id = "gradle_runner"
            // runs "clean build" by default
            tasks = "%gradle.task%"
        }
    }
})

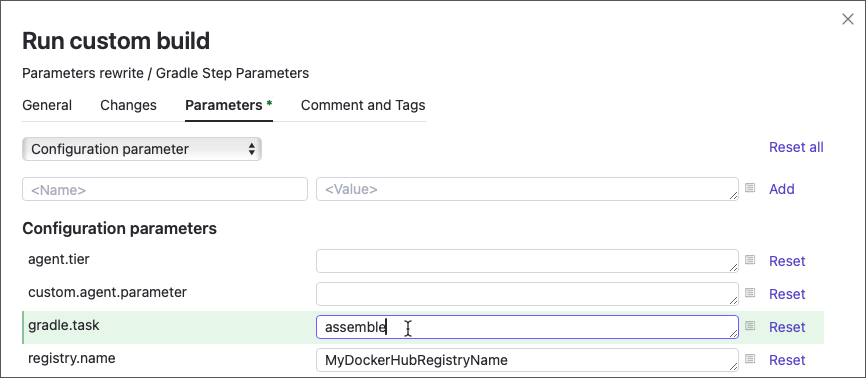

Users can trigger a custom build to override this parameter and run a different Gradle task.

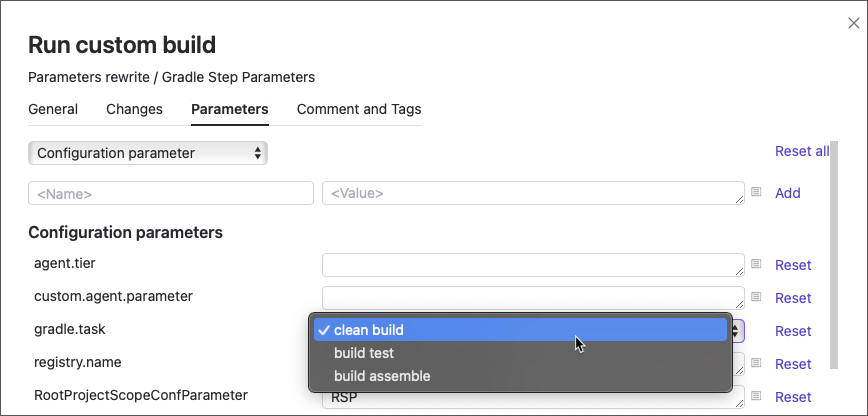

You can also pre-fill this parameter with supported values. Then, instead of typing, users will be able to select an option via a combo-box...

params {
    select("gradle.task", "clean build",
            options = listOf("clean build", "test build", "build assemble"))
}

...or checkboxes.

params {
    select("gradle.task", "clean build",
            allowMultiple = true, valueSeparator = "%space.separator%",
            options = listOf("clean", "test", "build", "assemble", "package"))
    param("space.separator", " ")
}

See Create and Set Up Custom Parameters for more information on parameter customization.

Project-owned parameters can store settings common for multiple build configurations or pipelines. For example, if your organization follows strict branch-naming guidelines for all repositories, you can avoid entering identical branch specifications and other settings for each VCS root.

// Project level

params {
    param("default.branch.spec", """
            refs/heads/dev-*
            -:refs/heads/sandbox
            -:refs/heads/testing-*
        """.trimIndent())
    param("default.branch", "refs/heads/dev-2024.1")
}

// VCS Root

object GitHubRepoRoot : GitVcsRoot({
    name = "My Root"
    url = "..."
    branch = "%default.branch%"
    branchSpec = "%default.branch.spec%"
    authMethod = password {
        userName = "..."
        password = "..."
    }
})

Avoid raw values

TeamCity agents report a number of parameters that store tool installation paths. You can use these parameters in build scripts and TeamCity settings. Doing so allows you to create agent-agnostic conditions and minimize potential errors.

steps {
    gradle {
        name = "Gradle step"
        tasks = "build-dist"
        jdkHome = "%\env.JDK_19_0_ARM64%"
    }
}

In other cases, you might want avoid raw values because this data is sensitive (for example, authentication credentials used inside a build script). To hide these sensitive values from both TeamCity UI and build logs, create a password parameter.

Customize templates and recipes

Templates allow you to quickly create similar build configurations and pipelines. You can parameterize certain template settings to implement unique behavior for each object that derives from this template.

For example, the following build configuration has two steps and the Boolean skip.optional.step parameter. Step #2 will or will not be executed depending on this parameter value.

import jetbrains.buildServer.configs.kotlin.*
import jetbrains.buildServer.configs.kotlin.buildSteps.script

object SourceConfig : BuildType({
    name = "SourceConfig"

    params {
        param("skip.optional.step", "false")
    }
    steps {
        script {
            name = "Mandatory Step"
            scriptContent = """echo "Mandatory step #1 is running...""""
        }
        script {
            name = "Optional Step"
            scriptContent = """echo "Optional step #2 is running...""""
            conditions {
                equals("skip.optional.step", "false")
            }
        }
    }})

If you extract a template from this configuration, you can create multiple copies of the same configuration. In those copies that do not need to run the optional step #2, override the skip.optional.step parameter and set it to true.

import jetbrains.buildServer.configs.kotlin.*

object ConfigFromTemplate : BuildType({
    templates(SourceConfigTemplate)
    name = "Build Config Based on Template"

    params {
        param("skip.optional.step", "true")
    }
})

Recipes are generalized steps that encapsulate frequently used actions. These objects also use parameters to customize their behavior.

<meta-runner name="cURL: File Download">
    <description>A two-step recipe that utilizes the "curl -o %URL% %fileName%" command to download a file, and calls "ls" command to print the contents of a working directory afterwards</description>
    <settings>
        <parameters>
            <param name="URL" value="" spec="text description='The URL of a file to be downloaded' display='normal' label='Download URL:'"/>
            <param name="fileName" value="" spec="text description='Enter the saved file name or leave blank to keep the origin name' label='File name:'" />
            <!--other parameters-->
        </parameters>
        <build-runners>
            <runner name="" type="simpleRunner">
                <parameters>
                    <param name="script.content" value="curl -o %URL% %fileName%" />
                    <param name="teamcity.step.mode" value="default" />
                    <param name="use.custom.script" value="true" />
                </parameters>
            </runner>
            <runner name="" type="simpleRunner">
                <parameters>
                    <param name="script.content" value="ls" />
                    <param name="teamcity.step.mode" value="default" />
                    <param name="use.custom.script" value="true" />
                </parameters>
            </runner>
        </build-runners>
        <requirements />
    </settings>
</meta-runner>

Specify step execution conditions

You can define step execution conditions to specify whether individual steps should run. You can craft these conditions using custom and predefined configuration parameters and environment variables.

For example, you can run different shell scripts depending on the build agent's operating system.

import jetbrains.buildServer.configs.kotlin.*
import jetbrains.buildServer.configs.kotlin.buildSteps.powerShell
import jetbrains.buildServer.configs.kotlin.buildSteps.script

object StepExecutionConditions : BuildType({
    params {
        param("win.destination.path", "C:/Sources")
        param("unix.destination.path", "/Users/Admin/Sources")
    }

    steps {
        // PowerShell script runs only on Windows agents
        powerShell {
            name = "Copy File (Windows)"
            conditions {
                startsWith("teamcity.agent.jvm.os.name", "Windows")
            }
            scriptMode = script {
                content = """
                    Copy-Item "%system.teamcity.build.workingDir%/result.xml"
                    -Destination %win.destination.path%"""
            }
        }
        // Command Line runner for non-Windows agents
        script {
            name = "Copy File (Unix)"
            executionMode = BuildStep.ExecutionMode.RUN_ON_FAILURE

            conditions {
                doesNotContain("teamcity.agent.jvm.os.name", "Windows")
            }
            scriptContent = """
                cp "%system.teamcity.build.workingDir%/result.xml"
                %unix.destination.path%"""
        }
    }
})

Specify agent requirements

Agent requirements allow you to specify parameter-operator-value conditions. Only those agents that meet these conditions are allowed to build this build configuration.

You can define agent requirements using only those parameters whose values agents can report before the build starts. These parameters are:

Predefined configuration parameters available for all agents (for example, teamcity.agent.name).
Environment variables reported by agents (for example, env.DOTNET_SDK_VERSION).
Custom configuration parameters that are present in agents' buildAgent.properties files (for example, create a custom.agent.parameter in TeamCity UI and add the custom.agent.parameter=MyValue line to agents' properties files).

In Kotlin DSL, use the requirements collection to define new requirements.

object MyBuildConfig : BuildType({
    requirements {
        // Only agents with .NET SDK 5.0
        exists("DotNetCoreSDK5.0_Path")
        // Only Windows agents
        startsWith("teamcity.agent.jvm.os.name", "Windows")
        // Only agents with "Android" workload for .NET 7 SDK
        contains("DotNetWorkloads_7.0", "android")
    }
})

Parameterize builder configurations

.NET, Maven, Gradle, Ant and NAnt runners allow you to reference TeamCity parameters in build configuration files. This technique allows you to pass the required values to build processes.

In .NET, pass parameter values using the $(<parameter_name>) syntax.

The following sample .csproj file defines two custom MSBuild targets:

<Project xmlns="http://schemas.microsoft.com/developer/msbuild/2003">
    <PropertyGroup>
        <OutputZipFile>project.zip</OutputZipFile>
        <OutputUnzipDir>unzipped</OutputUnzipDir>
    </PropertyGroup>

    <Target Name="Zip">
        <ItemGroup>
            <FilesToZip Include="project.proj*" />
        </ItemGroup>
        <Exec Command="dir" />
        <Microsoft.Build.Tasks.Message Text="##teamcity[progressMessage 'Archiving files to $(OutputZipFile) file...']"/>
        <Exec Command="PowerShell -command Compress-Archive @(FilesToZip, ',') $(OutputZipFile) -Force" />
    </Target>
    <Target Name="Unzip">
        <Microsoft.Build.Tasks.Message Text="##teamcity[progressMessage 'Unzipping files to $(OutputUnzipDir) folder...']"/>
        <Exec Command="PowerShell -command Expand-Archive $(OutputZipFile) -DestinationPath $(OutputUnzipDir) -Force" />
    </Target>
</Project>

To reference a parameter value in Maven and Ant, use the ${parameterName} syntax.

<configuration>
    <tasks>
        <property environment="env"/>
        <echo message="TEMP = ${env.TEMP}"/>
        <echo message="TMP = ${env.TMP}"/>
        <echo message="java.io.tmpdir = ${java.io.tmpdir}"/>
        <echo message="build.number = ${build.number}"/>
    </tasks>
</configuration>

To reference a parameter value in Maven and Ant, use the ${parameterName} syntax.

<target name="buildmain">
    <ant dir="${teamcity.build.checkoutDir}" antfile="${teamcity.build.checkoutDir}/build-test.xml" target="masterbuild_main"/>
</target>

For Gradle runner, TeamCity system properties can be accessed as native Gradle properties (those defined in the gradle.properties file). If the property name is allowed as a Groovy identifier (does not contain dots), use the following syntax:

println "Custom user property value is ${customUserProperty}"

Otherwise, if the property has dots in its name (for example, build.vcs.number.1), use the project.ext["build.vcs.number.1"] syntax instead.

Parameter Sources

All TeamCity parameters can be categorized in two main groups: predefined and custom (created by TeamCity users). Custom parameters can be declared on multiple levels, including individual projects, build configurations, and agent machines.

Predefined parameters

TeamCity exposes multiple predefined parameters that you can reference in your build workflows. For example, the teamcity.agent.work.dir.freeSpaceMb parameter reports the total free space on this particular build agent, and DotNetCLI_Path parameter returns the .NET CLI installation path.

See this article for more information: List of Predefined Build Parameters.

Custom template, project, configuration, and pipeline parameters

These parameters are created by users inside project, configuration, and pipeline settings. In certain cases, TeamCity creates them automatically. For example, if your CLI step runs the echo %MyParam% command but MyParam does not exist, every build will fail. TeamCity recognizes this as a misconfiguration and does not run new builds unless you provide a value for this missing parameter. In other words, the presence of a missing parameter becomes an implicit requirement for new builds.

See Create and Set Up Custom Parameters and Implicit Requirements for more information.

Custom agent parameters

You can manually declare parameters inside agent configuration files (<AGENT_HOME>/conf/buildAgent.properties). For example, the following sample demonstrates how to implement a custom build agents' ranking system:

# An agent's "buildAgent.properties" files

######################################
#   Default Build Properties         #
######################################
# ...
agent.tier=Platinum
# ...

This custom agent rank can then be employed in agent requirements:

object Build : BuildType({
    name = "My build config"
    requirements {
        equals("agent.tier", "Platinum")
    }
})

Custom build parameters

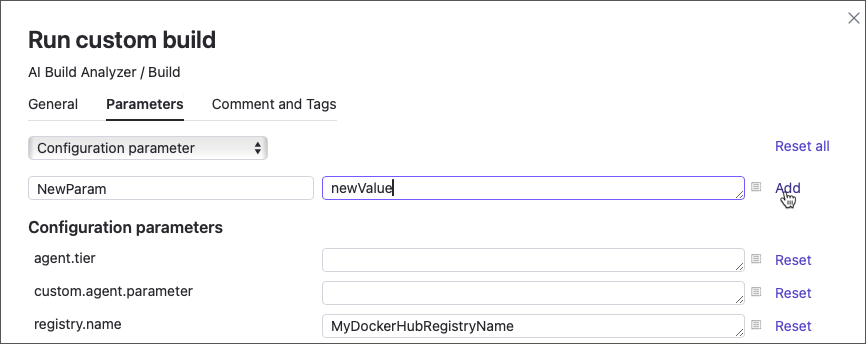

Users who trigger custom builds can override existing parameter values and add new parameters on a corresponding dialog tab.

Dynamically created custom parameters

Print the ##teamcity[setParameter name='foo' value='bar'] service message to the build log to update an existing or add a new parameter.

Parameter Values

TeamCity parameters can obtain their values from one or multiple sources listed below.

Values from a template selected as the enforced settings template. These values cannot be disabled or overridden by users.
The Parameters tab of the Run Custom Build dialog.
Custom values assigned to a parameter in build configuration or pipeline settings.
Custom values assigned to a parameter parent project settings. Parameters defined within a project are inherited by all its child entities.
Values specified in a regular build configuration template.
Values specified in a build agent's configuration file (the <AGENT_HOME>/conf/buildAgent.properties file).
Values reported by an agent when it connects to the TeamCity server. These values are passed to parameters that describe the agent environment. For example, the DotNetCoreSDK7.0_Path parameter that stores the path to .NET 7 SDK on this specific agent.
Values of predefined build parameters. These parameters can collect their values on a server side in the scope of a specific build (for example, the build.number parameter), or on the agent side right before a build starts (for example, the teamcity.agent.work.dir.freeSpaceMb parameter).

The list above also ranges parameter value sources by priority, from highest to lowest. That is, if the same parameter retrieves different values from different sources, a value from the topmost source in this list is applied. For example, if the my.parameter is defined inside an agent configuration file and inside a build configuration, the value from the configuration settings page wins.

Override Parameter Values During a Build

Initial parameter values can be overridden by sending the ##teamcity[setParameter name='foo' value='bar'] service message. Note that parameters modified in such manner update their values only in the scope of the current build or build chain. To permanently override a parameter value, send the REST API request from your build step like shown below:

import jetbrains.buildServer.configs.kotlin.*
import jetbrains.buildServer.configs.kotlin.buildSteps.script

object UpdateBuildVersion : BuildType({
name = "Update Build Version"

    steps {
        script {
            id = "simpleRunner"
            scriptContent = """
                version=%\build.version%
                ((version=version+1))

                curl --location --request PUT 'http://<server_URL>/app/rest/projects/<project_name>/parameters/build.version' \
                --header 'Accept: */*' \
                --header 'Content-Type: text/plain' \
                --header 'Authorization: Bearer your_token' \
                --data ${'$'}version
            """.trimIndent()
        }
    }
})

Get Parameter Value From a Remote Source

To hide sensitive data from both TeamCity UI and build logs (for example, login credentials and access tokens), use password parameters that mask their values. To secure critical values even further, store them in a third-party vault and create a TeamCity parameter of the remote secret type. These parameters have no explicit "value" part. Instead, they store a query that TeamCity runs whenever it needs to resolve the parameter reference.

Currently, only HashiCorp Vault is supported as a remote secret storage. See this article for more information: HashiCorp Vault Integration.

Track Parameter Values

When a build finishes, you can check out all parameters that were present during this build on the Parameters tab of the Build Results page. TeamCity highlights new parameters and those whose values changed during the build.

To check initial and actual parameter values of the specific build via REST API, send GET requests to the /app/rest/builds/[{buildLocator}](https://www.jetbrains.com/help/teamcity/rest/buildlocator.html) endpoint and specify required payload fields according to the Build schema.

/app/rest/builds/{buildLocator}?fields=originalProperties(*) — returns user-defined parameters from the build configuration and their default values.
/app/rest/builds/{buildLocator}?fields=startProperties(*) — returns all parameters reported by an agent and their values at the time the build started.
/app/rest/builds/{buildLocator}?fields=resultingProperties(*) — returns all parameters reported by an agent and their values by the time the build finished.

You can also check initial and final values of the specific parameter. To do this, specify the name of the target parameter:

curl -L \
  https:<SERVER_URL>/app/rest/builds/<BUILD_LOCATOR>?fields=\
    originalProperties($locator(name:(value:(myParam),matchType:matches)),property),\
    startProperties($locator(name:(value:(myParam),matchType:matches)),property),\
    resultingProperties($locator(name:(value:(myParam),matchType:matches)),property)
