Deployment Build Configuration
When your project is built and tested, you often need to deploy it to its final infrastructure. For example, upload a package to the NuGet Gallery, deliver a container to a DockerHub repository, or update your documentation website sources. Different CI/CD solutions use different terms for this last step of a pipeline: "deploy" stage, delivery target, release, production, and so on.
In TeamCity, delivery tasks are performed by the same "build configuration" objects that carry out regular building routines. However, since building and delivery are different tasks triggered by different team members, a configuration that deploys a product can be explicitly marked as a Deployment Configuration.
Deployment configurations are designed to differentiate configurations that perform regular building routines from configurations that deliver apps to external infrastructures.
Deployment configurations do not differ from regular configurations in terms of functionality. They can utilize the same build features, employ same build runners, and so on.
If a deployment configuration follows a regular building/testing configuration within the same chain, TeamCity users with sufficient permissions can trigger deployment directly from regular configurations.
Deployment configurations do not allow running personal builds. Also, you cannot simultaneously run two builds that belong to the one deployment configuration.
Splitting deployment and building/testing configurations into different subprojects is recommended to set up fine-grained user permissions.
To switch a build configuration type, navigate to the Configuration settings | General tab.
In this tutorial, you will create deployment configurations to supplement a pipeline developed in the Composite Build Configuration article.
Create a Building Pipeline

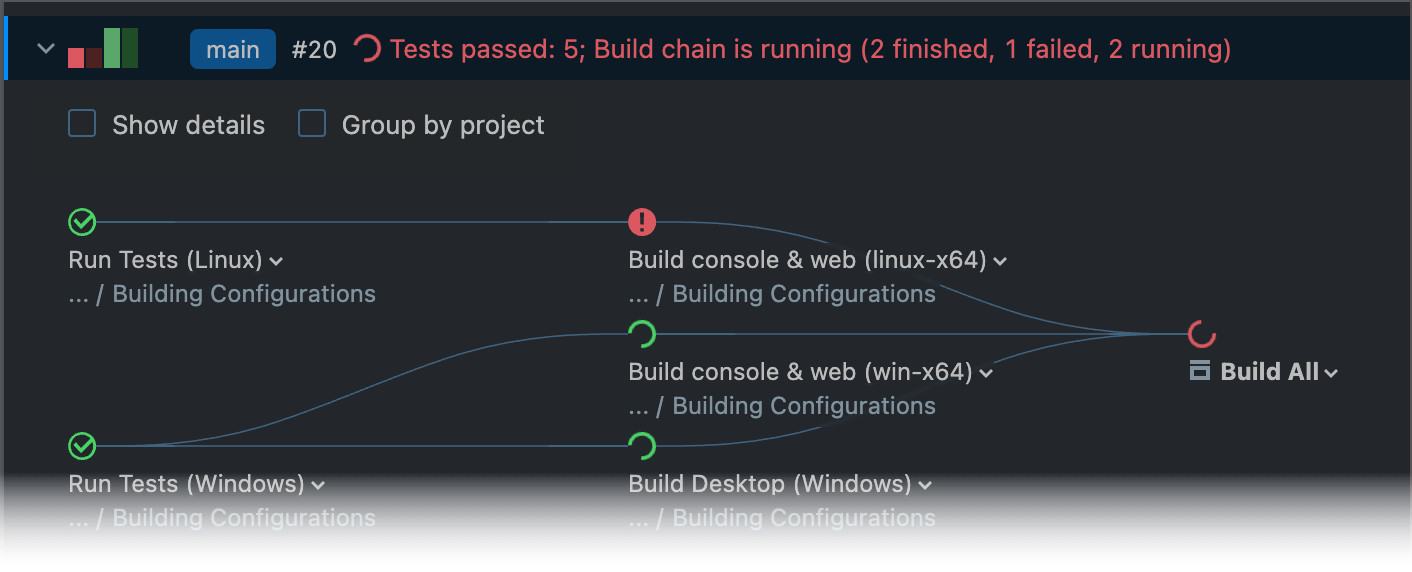

Follow the steps described in the Composite Build Configuration article to create a chain of five interconnected configurations that end with the composite "Build All" configuration.
Create a Deployment Subproject
Regular project developers who can edit and run building configurations should not be able to run delivery tasks. To set up fine-grained user permissions and securely store delivery-related parameters and credentials away from the main building pipeline, we recommend creating delivery configurations in a separate project.
Go to Administration | <Your project> and click Create subproject.
Choose the Manually tile to create a blank project unrelated to any specific VCS repository.
Set the subproject name to "Deployment Configurations".
Depending on the type of your project and delivery target, deployment configurations can include different steps. For example, your configuration can employ the .NET runner that executes the
nuget pushcommand to upload a package to a NuGet Gallery, or one of Deployers that upload files to an FTP server or Windows shares.
In this sample, deployment configurations upload Docker images to a DockerHub registry. For that reason, you need to create a Docker connection that specifies the registry address and your login credentials. This connection will be available for all configurations in this subproject. To create a connection, navigate to the subproject's Connections tab.
The Kotlin code below illustrates the final setup.
Add Your First Deployment Configuration
On the General Settings tab of your new subproject, click Create build configuration.
Choose the Manually option and enter "Deploy Console (Windows)" as the configuration name.
Set the build configuration type to "Deployment".
In the Version Control Settings, click Attach VCS Root and choose the same root all "Build..." configurations use.
"Deploy Console (Windows)" depends on the "Build console & web (win-x64)" build configuration and must be able to access its artifacts.
Navigate to Building Configuration | Dependencies" and add corresponding snapshot and artifact (
bin => context) dependencies.
Add three build steps to your configuration:
The final configuration setup should look like the following:
Run a Delivery Configuration
The code above highlights the first unique feature of deployment build configurations: its default settings differ from the settings of regular configurations.
The Allow triggering personal builds option is disabled.
The Total maximum builds in the configuration is limited to 1 to avoid potential issues caused by multiple builds trying to access the same delivery destination simultaneously.
Other unique features of deployment build configurations include:

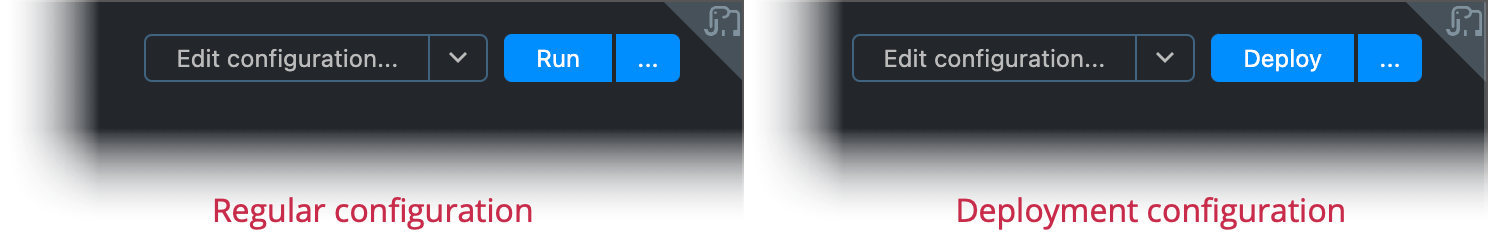

The button that starts a deployment build is called Deploy instead of Run.

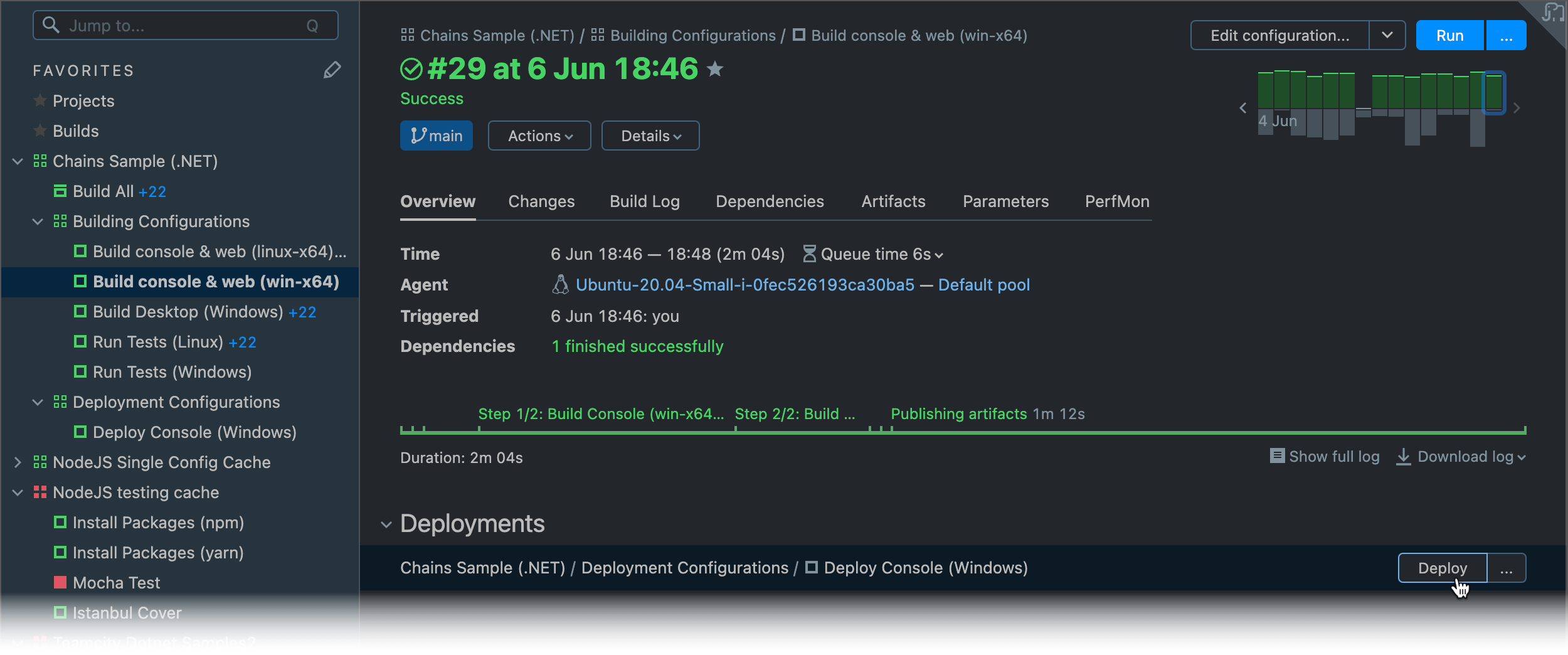

You can deploy artifacts directly from configurations that produced them. Open the details of a finished regular build and click Deploy under the "Deployments" section.

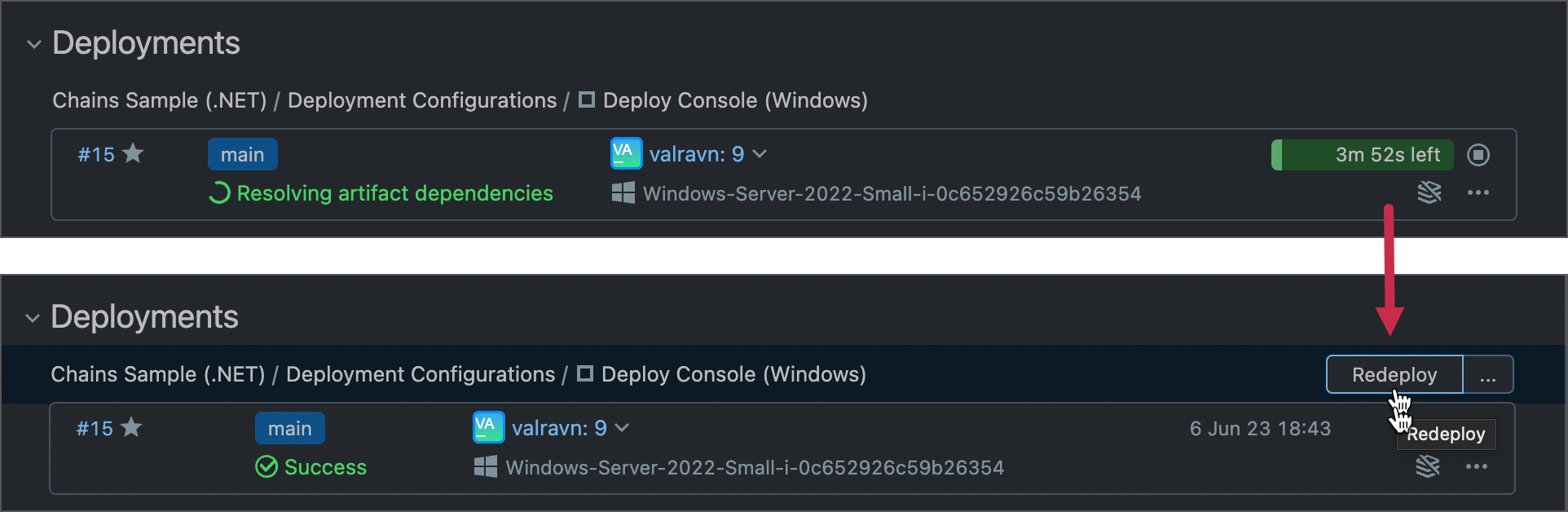

When a deployment build starts, you can track its progress from the "Deployments" section. When it finishes, the Redeploy button appears. This button allows you to re-run the delivery routine.

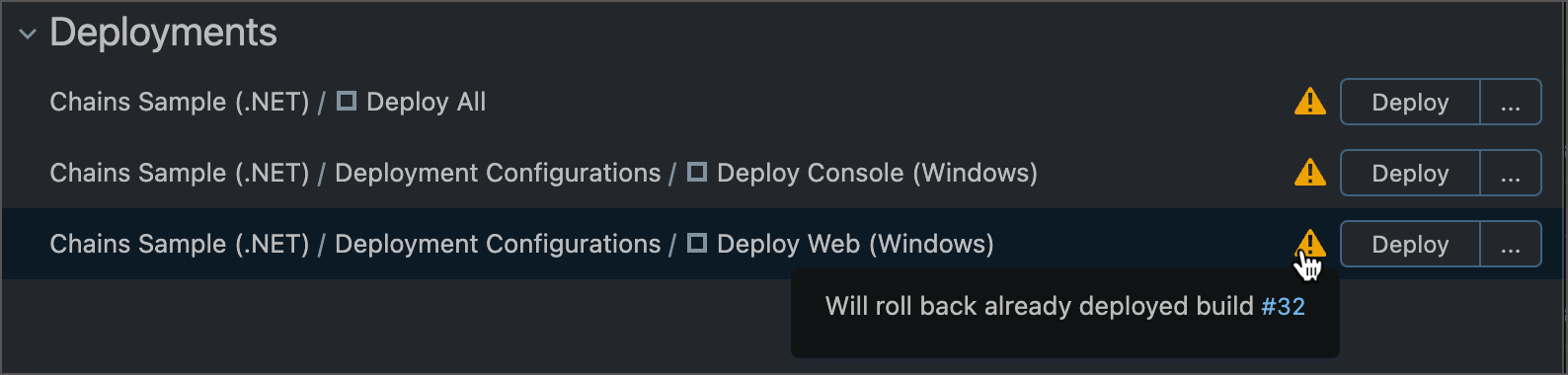

If a build configuration's artifacts are already deployed, earlier builds warn users that triggering a deployment configuration will override newer deliveries.

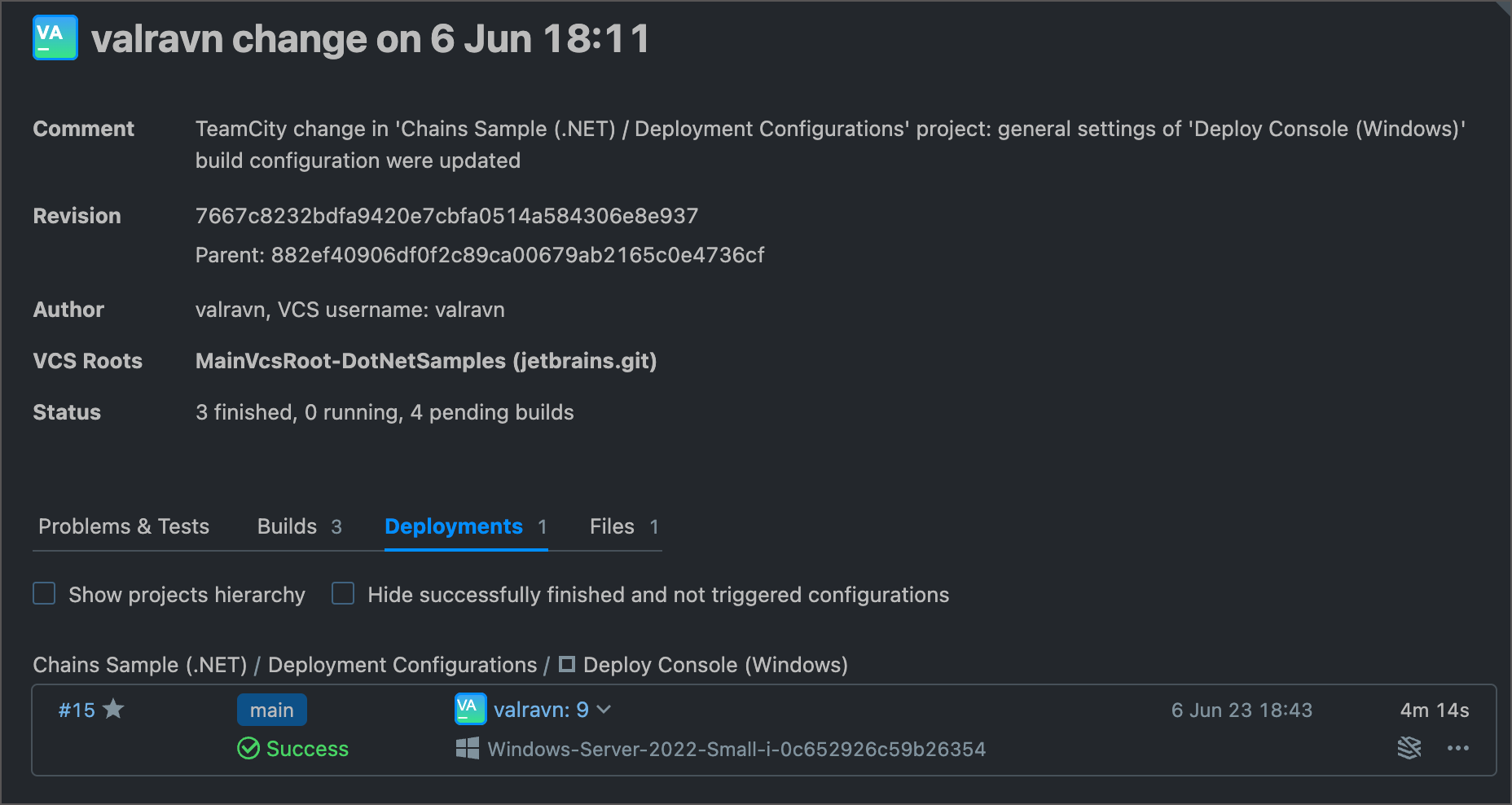

The Changes and Change Log tabs of TeamCity projects, configurations, and individual builds allow you to click revision numbers to view detailed information about each change. If your pipeline has delivery configurations, this change details page displays the Deployments tab that allows you to quickly identify when this change was delivered for the first time.
Regular build configurations show builds with the latest changes first. Deployment configurations arrange their builds chronologically.
Add More Delivery Configurations
Navigate to the "Deploy Console (Windows)" configuration settings and click Actions | Copy Configuration to create three copies of your delivery configuration.
Modify the new copies as follows:
Deploy Web (Windows) — uses instructions from
context/web.linux.dockerfileto build an image and pushes this image into a separate "docker_username/clock-web" registry.
Deploy Console (Linux) — has snapshot and artifact dependencies to the Build console & web (linux-x64) configuration. Utilizes a different, Linux-based image in its build steps.
Deploy Web (Linux) — both of the above.
Navigate to the parent (topmost) project and create a new step-less configuration next to the existing "Build All". Call this new configuration "Deploy All" and set its type to "Deployment".
In the "Deploy All" configuration settings, add snapshot dependencies to all four individual "Deploy..." configurations.

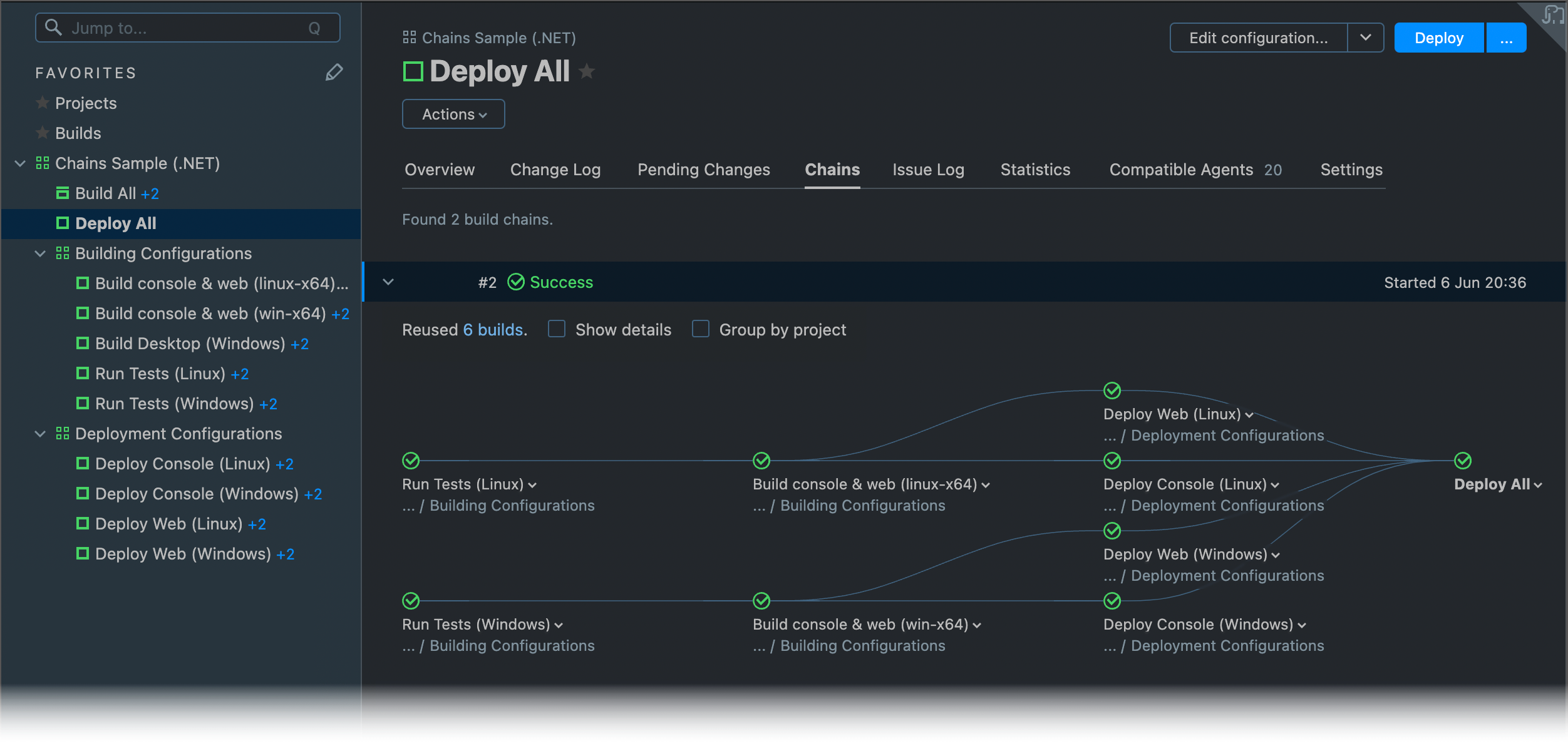

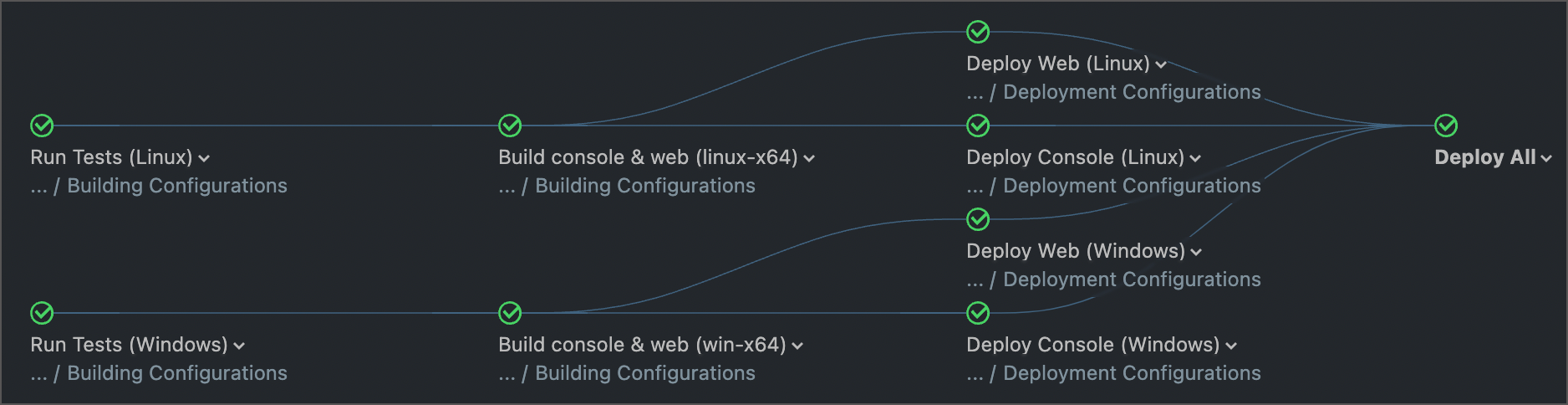

You should end up with four independent deployment configurations and two configurations on the main project level that conveniently run all building and deployment tasks.

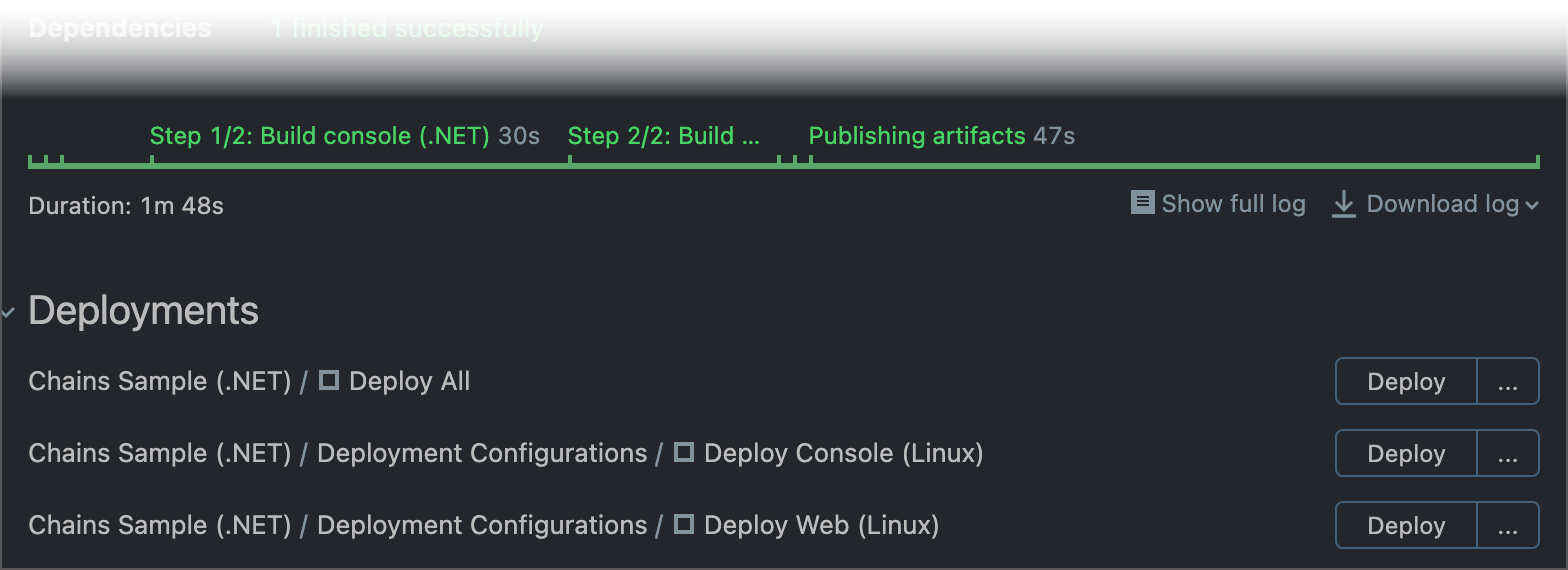

Note that with this setup, build results pages of individual "Build..." configuration builds show multiple options in their "Deployments" section. When a build finishes, you can trigger any related deployment target.
The final configs of all "Deploy..." configurations is shown below.
Set Up User Permissions
The Administration | User Management section allow you to set up per-project user roles and permissions. Consider the following example.
User "Alice" has the "Project Developer" role for the entire parent project. This role grants the same permissions in both "Building Configurations" and "Deployment Configurations" subprojects.
User "Bob" is "Project Developer" in "Building Configurations" and "Project Viewer" in "Deployment Configurations".
In this setup, Alice can trigger building and deployment tasks, whereas Bob cannot start delivery. When Bob browses build results of any "Build..." configuration, TeamCity does not show the "Deployments" section.
TeamCity does not currently allow you to set roles and permissions on a build configuration scope. As a result, you cannot set up permissions that would allow Bob to run "Build All" builds but prevent them from triggering "Deploy All" builds. To work around this issue, move these aggregate configurations into corresponding subprojects.
