Docker images are executable packages for running containers. Docker uses registries to distribute images. By default, WebStorm uses Docker Hub, which is a public registry with all the most common images, such as various Linux flavors, database management systems, web servers, and runtime environments. If you're going to work only with Docker Hub, no further registry configuration is required. To use another public or private Docker registry (including your own deployed registry server), configure it in WebStorm first.
Enable the Docker plugin
This functionality relies on the Docker plugin, which is bundled and enabled in WebStorm by default. If the relevant features aren't available, make sure that you didn't disable the plugin.
Press Control+Alt+S to open the IDE settings and then select.
Open the Installed tab, find the Docker plugin, and select the checkbox next to the plugin name.
To manage Docker images in WebStorm, open the Services tool window ( or Alt+8), expand the configured Docker connection node , and then expand the Images node. For more information, see Images.
Depending on your development needs, you can use Docker for the following:
For example, you can pull an image that runs a Node.js container to test how your application will interact with your production environment.
For example, you can build an image that runs a container with a specific version of Node.js that your application requires.
For example, if you want to demonstrate to someone how your application runs in some specific version of Node.js instead of setting up the proper environment, they can run a container from your image.
Configure a Docker registry

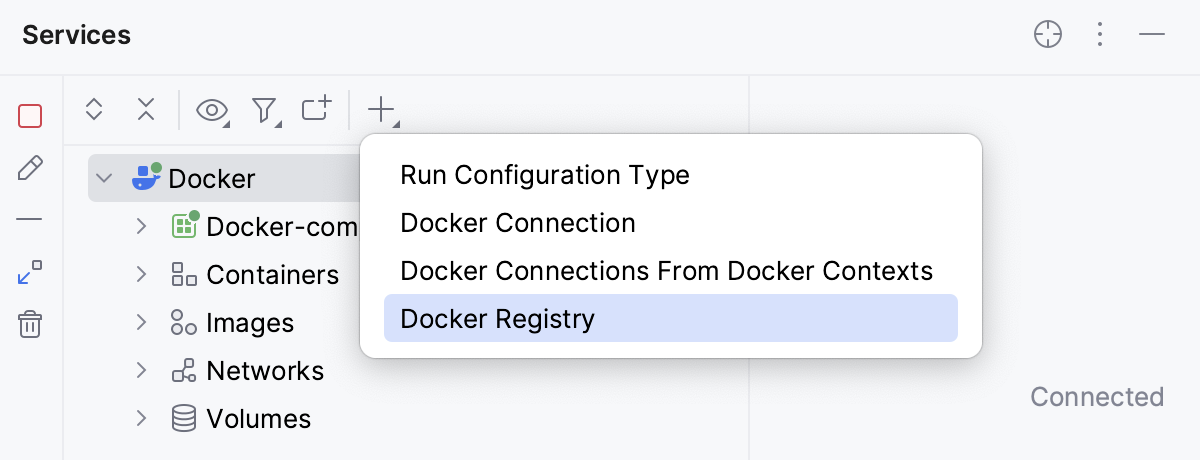

In the Services tool window, click and select Docker Registry.

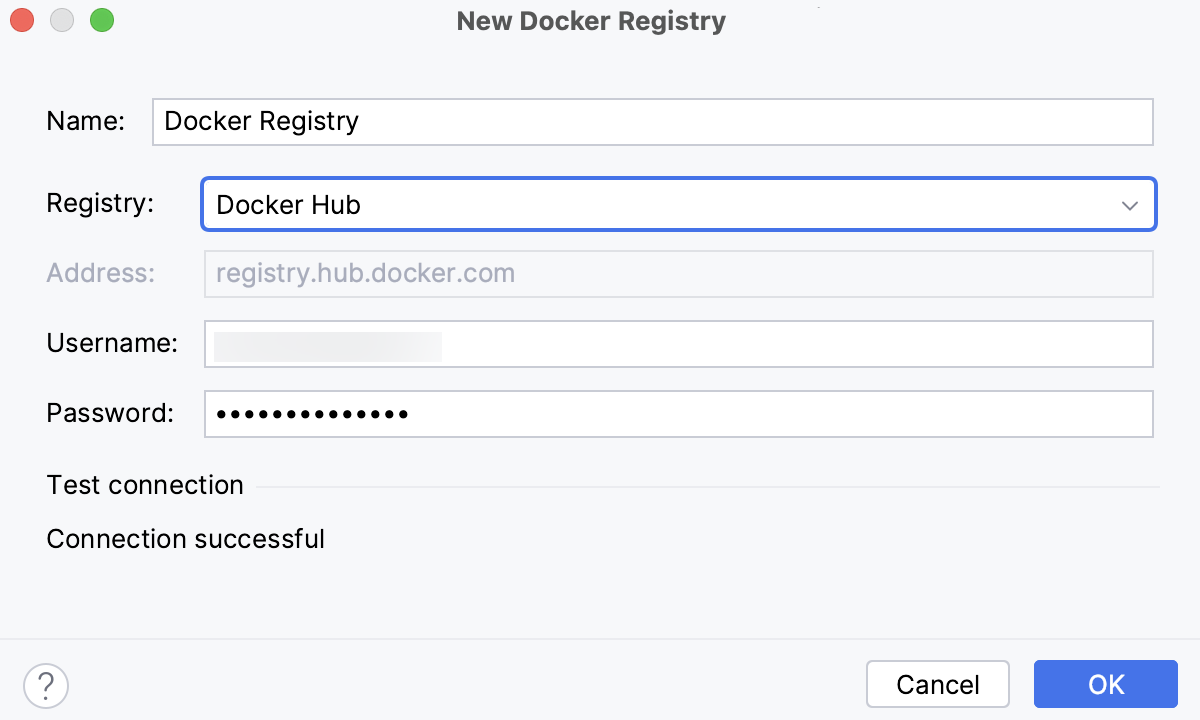

In the New Docker Registry dialog, specify how to connect to the registry. When you specify the credentials, WebStorm will automatically check the connection to the registry. The Connection successful message should appear at the bottom of the dialog.

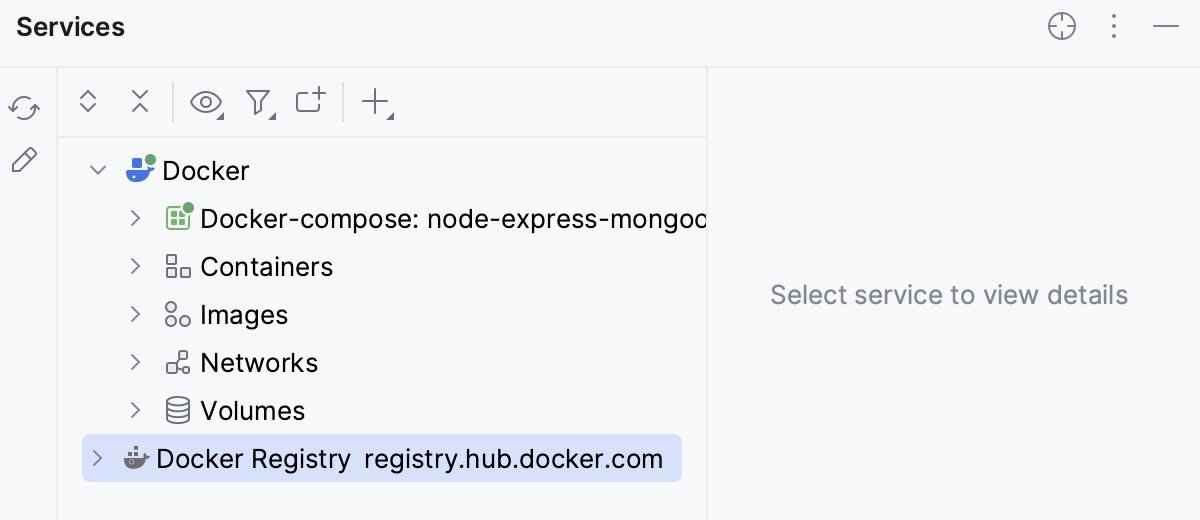

You can see the configured Docker registries in the Services tool window.
Alternatively, you can manage the list of configured Docker registries in Docker Registry settings.
Pull a public image from Docker Hub

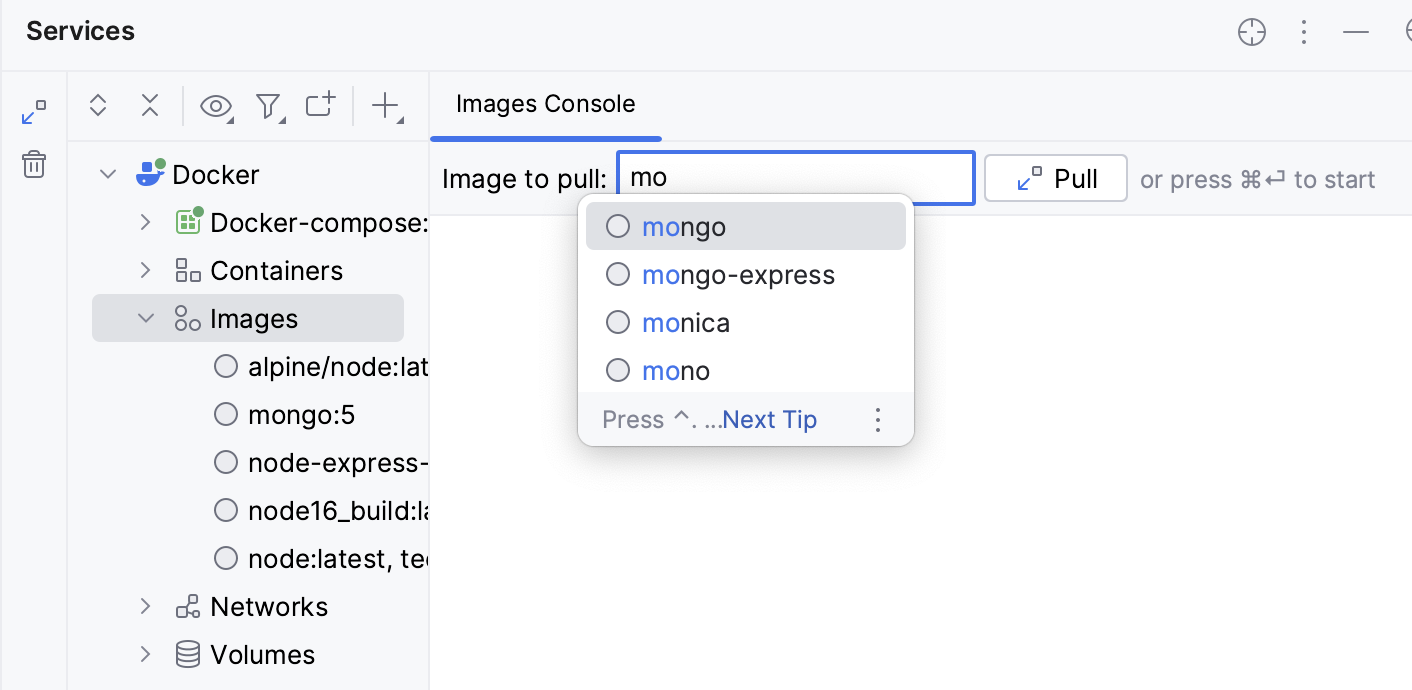

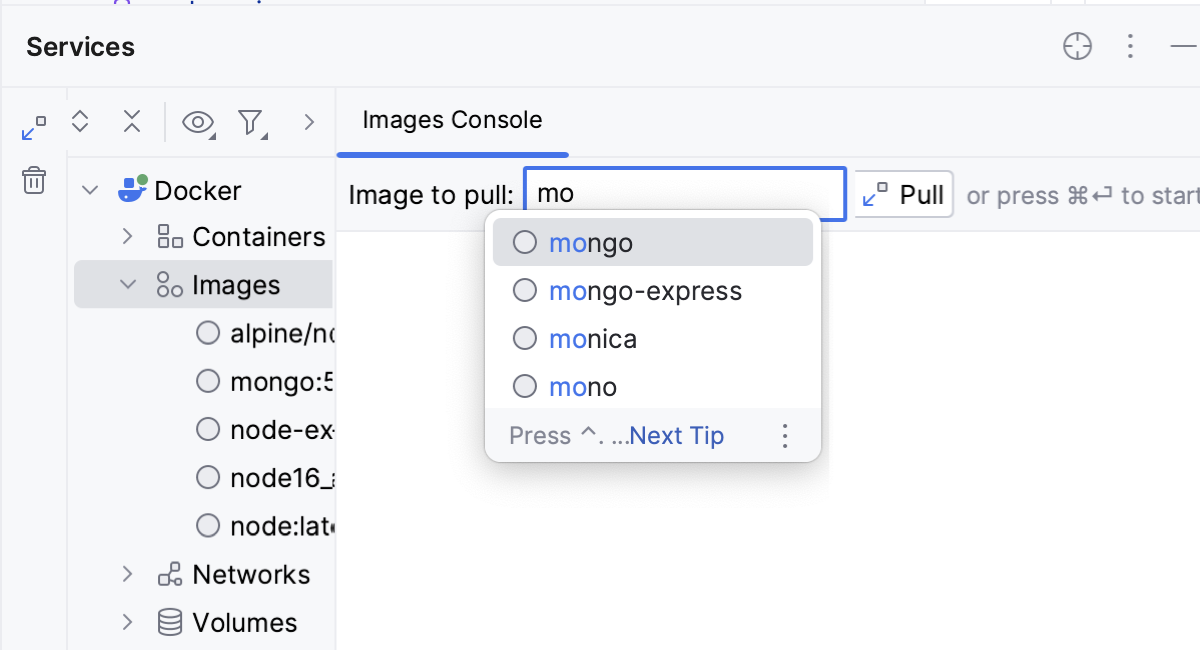

In the Services tool window ( or Alt+8), select the Images node.
Under Images Console, type the name of the image to pull.
Press Control+Enter to run docker pull.
Specify the image as in the Docker CLI, for example:
Pull an image from a Docker registry
If you want to work with private images on Docker Hub or in some other Docker registry, configure a Docker registry connection.

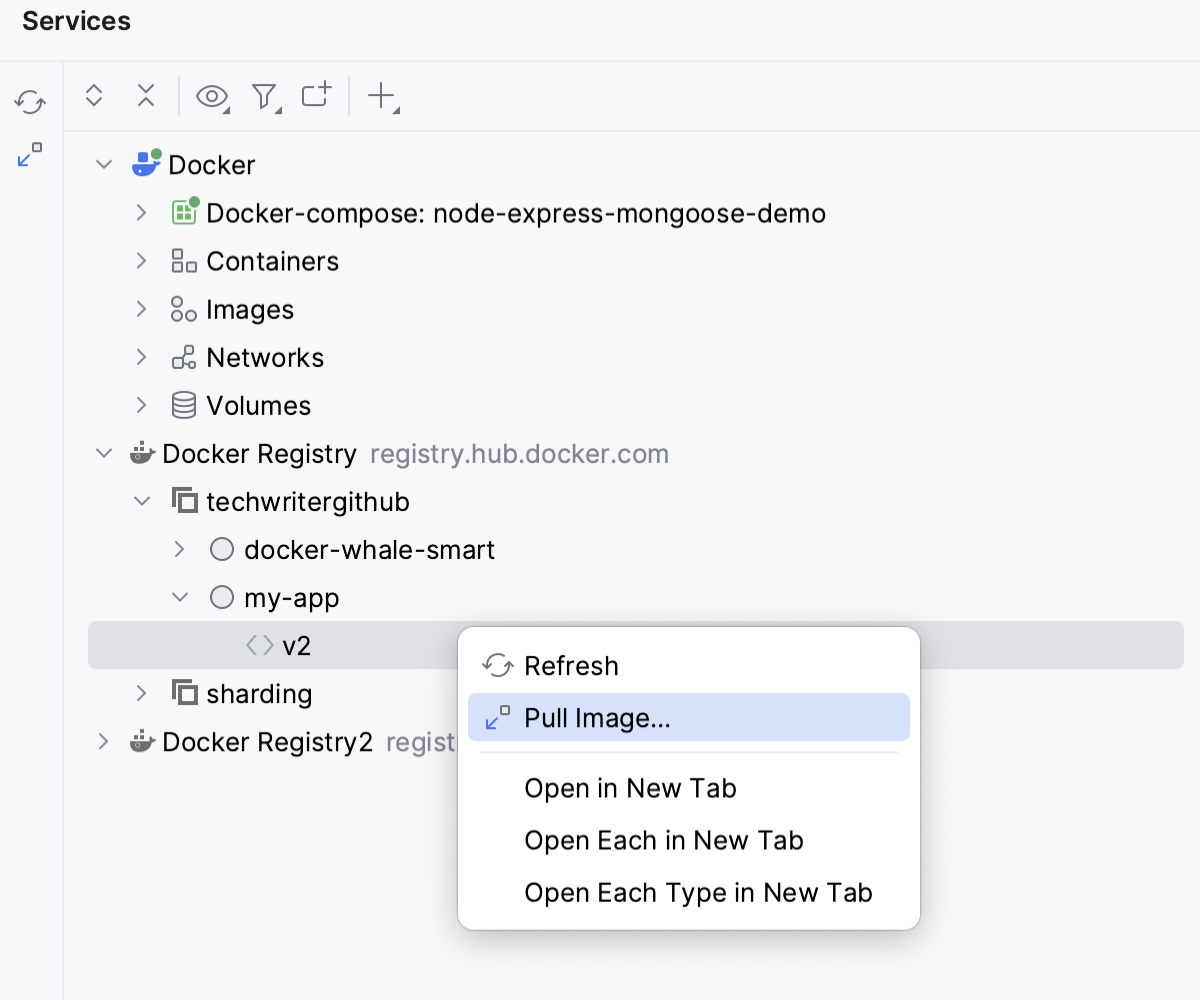

In the Services tool window ( or Alt+8), expand the node with the necessary Docker registry, right-click the image that you need, and select Pull Image….
Build an image from a Dockerfile
Open the Dockerfile from which you want to build the image.

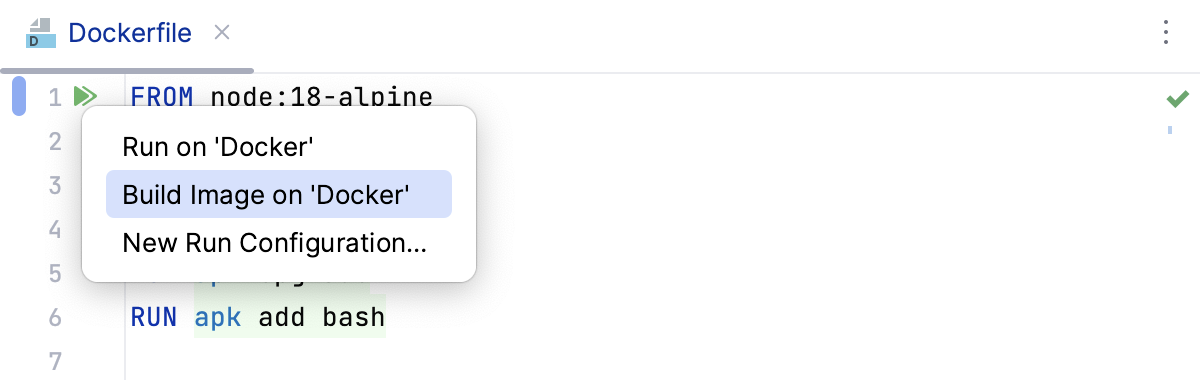

Click in the gutter and select to build the image.

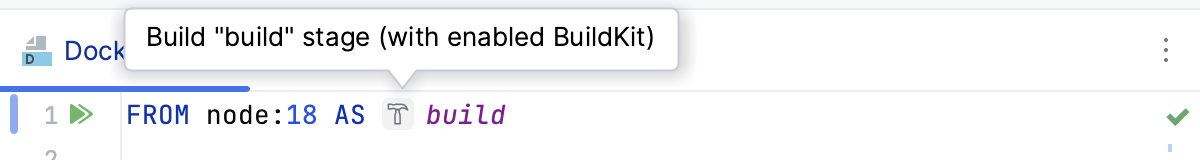

For named stages, you can click in the editor.
To enable inlay hints in Dockerfiles, pen the Settings dialog (Control+Alt+S), go to , expand the Other node, and select the Docker run named stage checkbox under Dockerfile.
Push an image to a Docker registry
You can push an image to a configured Docker registry.

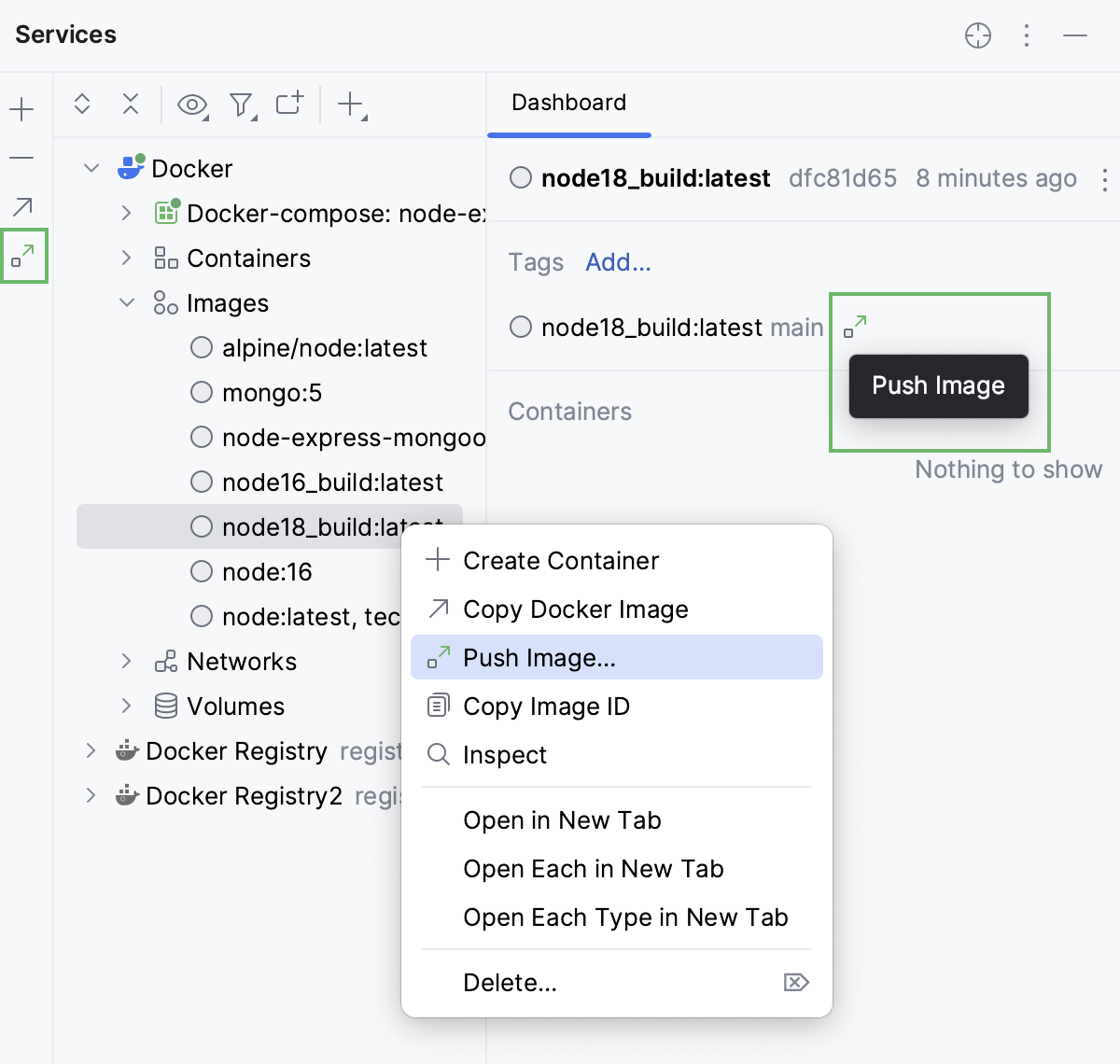

In the Services tool window, select the image that you want to upload and click on the toolbar or in the Dashboard or select Push Image… from the context menu.

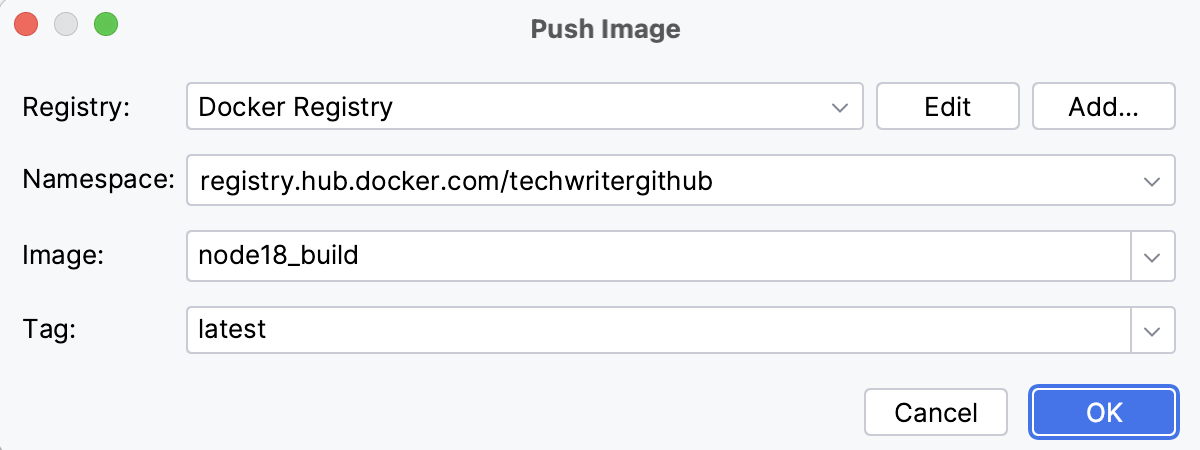

Select the Docker registry and specify the repository and tag (name and version of the image, for example,
Click OK to run the docker push command.
Copy image to another Docker daemon
If you have several Docker daemon connections, you can copy an image from one Docker daemon to another.

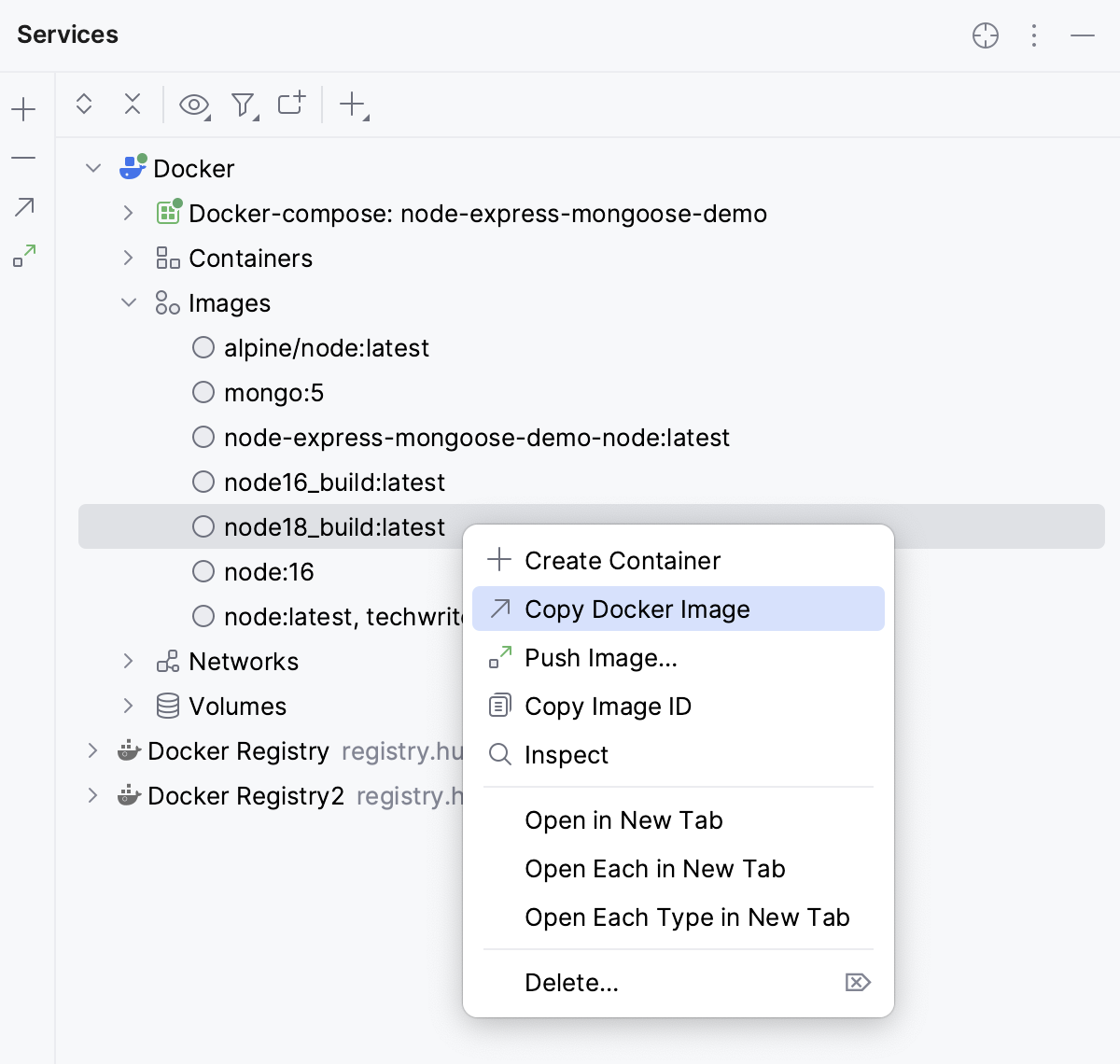

In the Services tool window, select the image that you want to copy and click or select Copy Docker Image from the context menu.
In the Copy Docker Image dialog, select the Docker daemon to which you want to copy the image and click Copy.
Manage Docker images in the Services tool window
WebStorm lists all images that you pull or build locally in the Services tool window under the Images node of the corresponding Docker daemon connection. For more information, see Images.

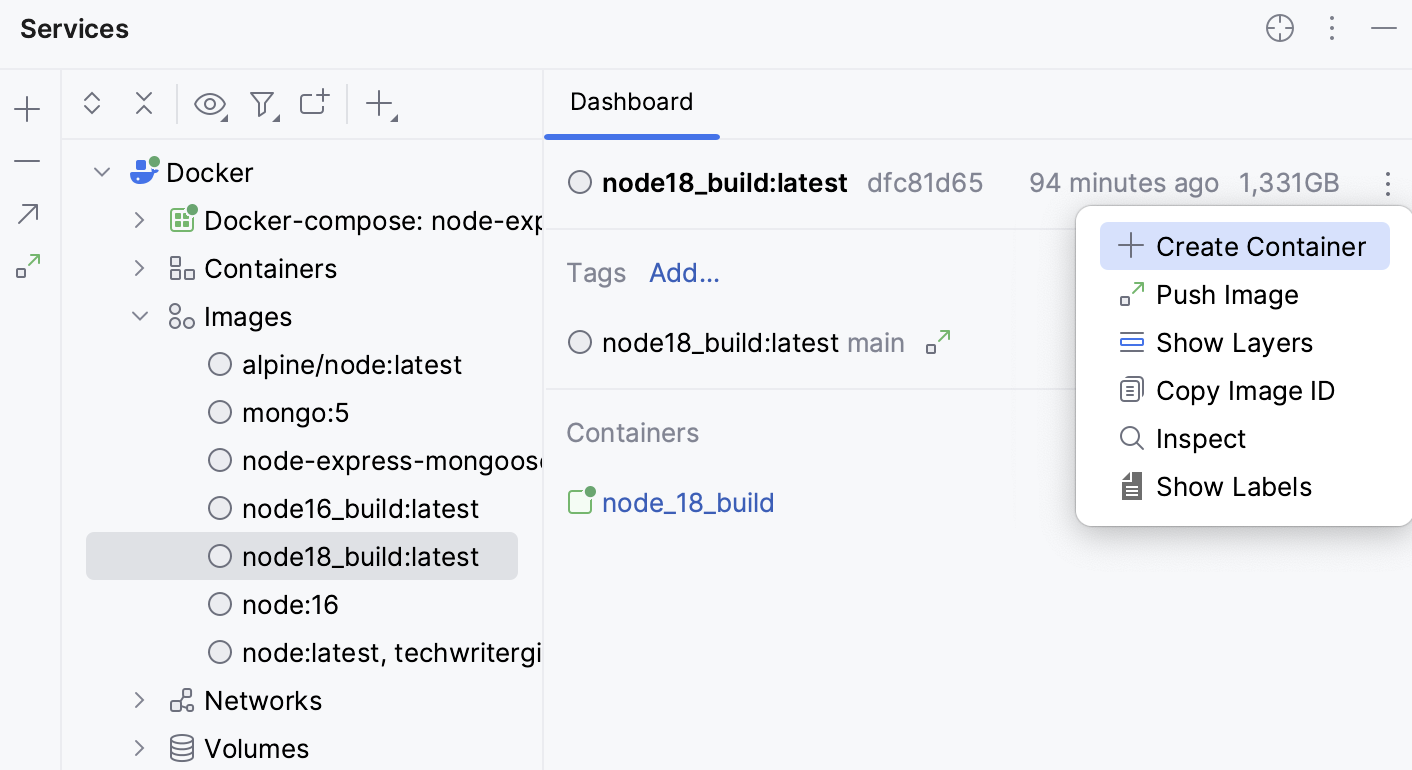

Select an image to view its name, ID, size, tags, date of last changes, and containers that are using this image. You can create a new container from the selected image, push the image to a configured Docker registry, or view the layers used by the image. Click to see more actions: copy the image ID to the clipboard, run the docker image inspect command, or show labels applied to the image.
Images with no tags
<none>:<none> can be one of the following:
Intermediate images that serve as layers for other images and don't take up any space.
Dangling images that remain when you rebuild an image based on a newer version of another image. You should regularly prune dangling images to preserve disk space.
To hide untagged images from the list, click on the Docker toolbar and remove the checkmark from Untagged Images.
To delete one or several images, select them in the list and click .
Explore Docker images
In the Services tool window, under Images, select the image you're interested in.
In the Dashboard tab, click Show Layers.
The Layers tab shows all layers that make up this image with details about each layer. Click Analyze image for more information to gather detailed information including changes to the image's file system.

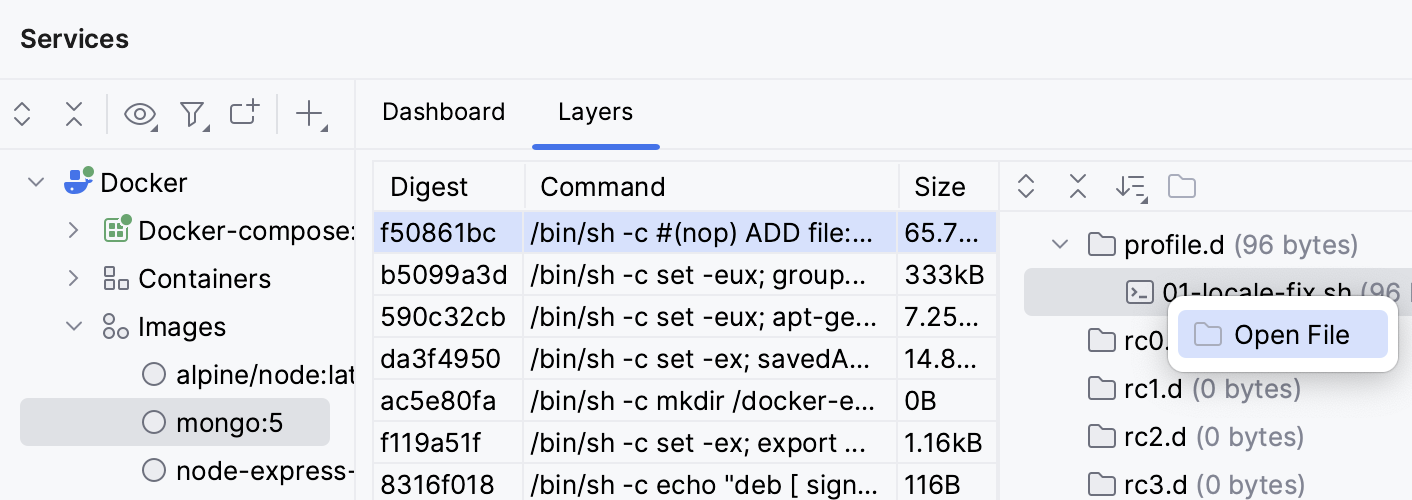

You can double-click or right-click any file in an image's layer to open a copy of it in the editor if WebStorm supports this file type, or download a copy of the file to your local file system if WebStorm doesn't support this file type.
