Issue Link Types

In YouTrack, you can link issues to show the relationship between them. When you add a link from one issue to another, links are added to both issues.

The information on this page describes how to create, update, and delete issue link types in your YouTrack installation. To learn how to add links between issues, see Link Issues.

Issue link types have a property that determines their direction. The direction determines how issues relate to one another. Issue link types can have one of the following link directions:

Direction

Description

Directed

This direction means that there is a subordinate relationship between the issues. For example, the Depend link type indicates that issue A is required for issue B. Inversely, issue B depends on issue A. In this case, the link type indicates that issue A must be resolved first. When you add the is required for link to issue A, a depends on link is automatically added to issue B.

Undirected

These link types merely demonstrate that the two issues are related to each other.

Aggregation

This direction means that the issues can be combined in some way. These links indicate that the issues duplicate each other or are parts of the same task.

YouTrack provides the following default issue link types:

Issue Link Type

Direction

Description

Depend

Directed

Indicates that there is an issue that must be resolved before another issue.

Duplicate

Aggregation

Indicates that the two issues describe the same condition and can be consolidated into a single issue. Read-only

Relates

Undirected

Indicates that the two issues are related to one another, but are not dependent.

Subtask

Aggregation

Indicates that an issue is a component of a larger effort. The effort that is spent on resolving the subtask contributes to the resolution of the parent task. Read-only

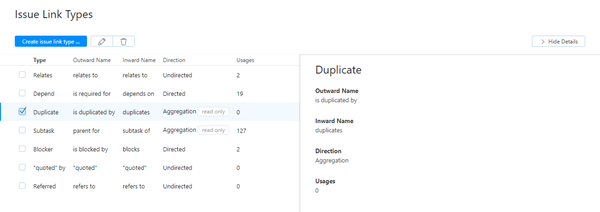

As an administrator, you can add other issue link types to YouTrack with different names. The behavior of these links is determined by their direction. All link types that use the same direction setting behave similarly. You can view the list of link types that are available in YouTrack on the Administration > Issue Link Types page.

Issue link types

When you add a link type, you specify the link names and determine whether the link is directed or not.

For directed links, you specify two names:

  • An inward name for the source issue. When you add a link to an issue, the link in the source issue is assigned the inward name. For example, when a source issue depends on a target issue.

  • An outward name for the target issue. When you add a link to an issue, the link in the target issue is assigned the outward name. For example, when a target issue is required for the source issue.

To create links between issues, users need to have the Link Issues permission on a per-project basis. If users report problems linking issues, ensure that these permissions are configured correctly.

  1. From the Administration menu, select Issue Link Types.

  2. Click the Create issue link type button.

    New issue link type
  3. Enter values for the following settings:

    Setting

    Description

    Name

    Assign the issue link type a name.

    Outward Name

    Assign a name that is assigned to the link in the target issue. For example, is duplicated by.

    Inward Name

    Assign a name that is assigned to the link in the source issue. For example, duplicates. If the link type is not directed, then the inward name is ignored — the outward name is used for the link in both the source and target issues. For example, when you use the undirected issue link type Relates, the link is assigned the name relates to in both the source and target issue.

    Link Direction

    Select a link direction type.

  4. Click the Save button.

You can modify the settings for existing link types. When you modify these settings, you can also change the behavior of the links that use this link type. Specifically, when you modify the Link Direction setting, links that are already added to issues are modified as follows:

  • When you change a directed link type to undirected, only the outward link name remains. Existing links are updated to use the outward name.

  • When you change an undirected link type to directed, existing link names are updated. The new outward name is assigned to links in target issues. The inward name, if changed, is assigned to links in source issues.

  1. From the Administration menu, select Issue Link Types.

  2. Select the issue link type in the list.

  3. Click the Edit icon.

    • The Edit dialog opens.

  4. Update the issue link type settings.

  5. Click the Save button.

  1. From the Administration menu, select Issue Link Types.

  2. Select the issue link type in the list.

  3. Click the Remove icon.

    • A confirmation dialog opens.

  4. Click the Delete button to confirm the action.

    • The issue link type is deleted from YouTrack.
