Run/Debug Configuration: Remote
Use this dialog to create a run/debug configuration to be used for remote running or debugging processes (e.g. applications, servlets, plugin applets). Remote running/debugging enables you to connect to a running JVM.
The dialog box consists of the following tabs:
Click here for the description of the options that are common for all run/debug configurations.

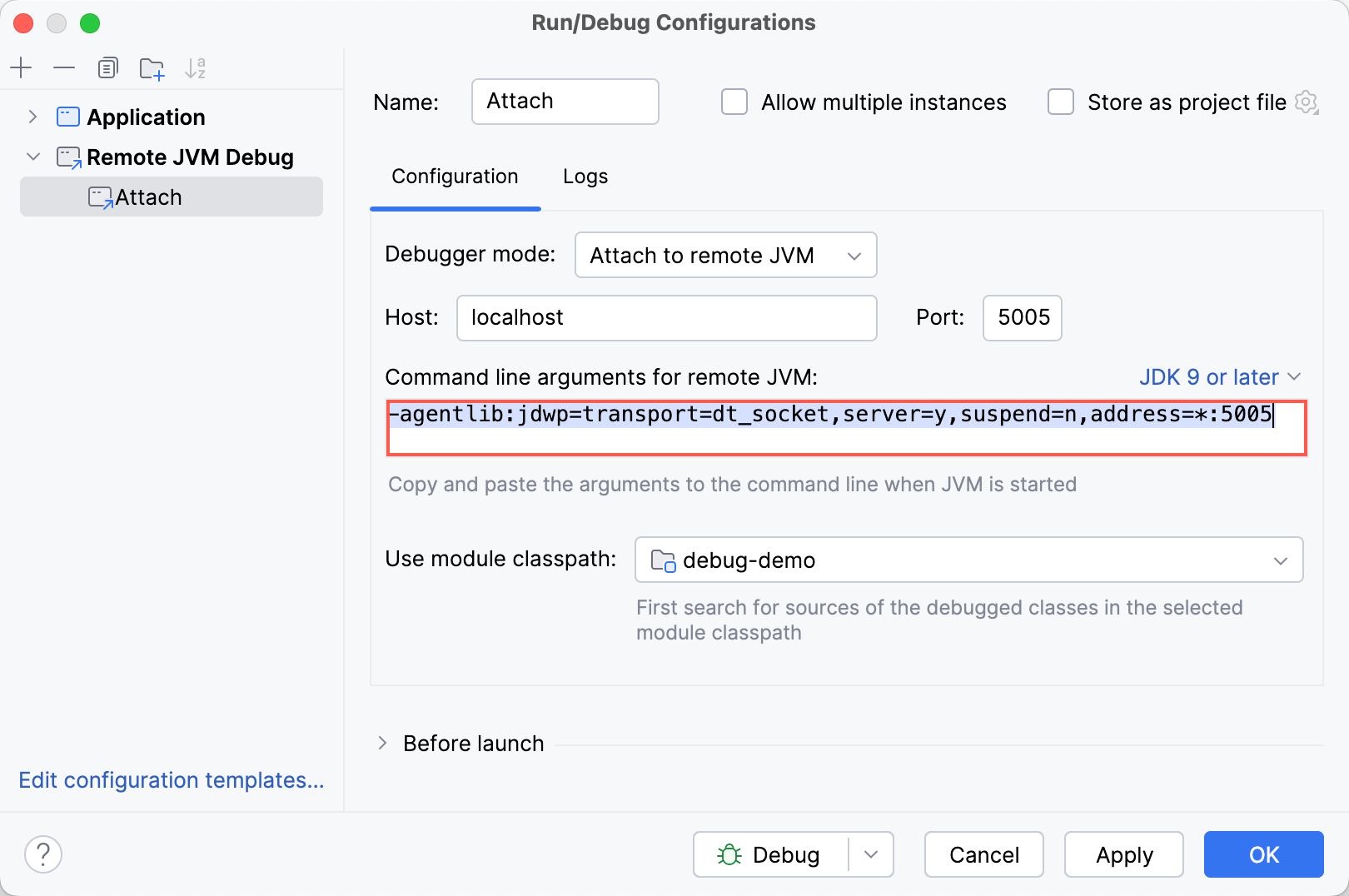

|Command line arguments for running remote JVM||These read-only fields show the command-line arguments to be used for running a remote JVM. IntelliJ IDEA suggests two arguments, depending on the JDK version used.|
|Transport: Socket||If the Socket transport is selected, specify host where the remote process is running and to which the debugger will connect. Specify also the port on remote host to which the debugger should connect.|
|Transport: Shared Memory||Having selected Shared memory transport, specify the shared memory address in the text field. This kind of transport is available for Windows only.|
|Debugger mode: Attach||Select this radio button is you want the debugger to connect to a running remote JVM.|
|Debugger mode: Listen||Select this radio button is you want the debugger to run as a server for remote JVM's which will connect to it to perform debugging. In this case the Host field will be disabled (if the Socket transport is selected). The Port value is considered as a port at which the debugger-"server" will listen to connections from the debugger-"clients".|
|Is Active||Select check boxes in this column to have the log entries displayed in the corresponding tabs in the Run tool window or Debug tool window.|
|Log File Entry||The read-only fields in this column list the log files to show. The list can contain:
|Skip Content||Select this check box to have the previous content of the selected log skipped.|
|Save console output to file||Select this check box to save the console output to the specified location. Type the path manually, or click the browse button and point to the desired location in the dialog that opens.|
|Show console when a message is printed to standard output stream||Select this check box to activate the output console and bring it forward if an associated process writes to Standard.out.|
|Show console when a message is printed to standard error stream||Select this check box to activate the output console and bring it forward if an associated process writes to Standard.err.|
|Click this button to open the Edit Log Files Aliases dialog where you can select a new log entry and specify an alias for it.|
|Click this button to edit the properties of the selected log file entry in the Edit Log Files Aliases dialog.|
|Click this button to remove the selected log entry from the list.|
|Click this button to edit the select log file entry. The button is available only when an entry is selected.|
|Alt+Insert||Click this button to add a new configuration to the list.|
|Alt+Delete||Click this button to remove the selected configuration from the list.|
|Ctrl+D||Click this button to create a copy of the selected configuration.|
|Edit defaults||Click this button to edit the default configuration templates. The defaults are used for newly created configurations.|
|or||Alt+Up or Alt+Down||Use these buttons to move the selected configuration or folder up and down in the list.
The order of configurations or folders in the list defines the order in which configurations appear in the Run/Debug drop-down list on the main toolbar.
|Move into new folder / Create new folder||Use this button to create a new folder.
If one or more run/debug configurations are in focus, the selected run/debug configurations are automatically moved to the newly created folder. If only a category is in focus, an empty folder is created.
Move run/debug configurations to a folder using drag-and-drop, or the buttons.
|Sort configurations||Click this button to sort configurations in alphabetical order.|
|Name||In this text box, specify the name of the current run/debug configuration. This field does not appear for the default run/debug configurations.|
|Defaults||This node in the left-hand pane of the dialog box contains the default run/debug configuration settings. Select the desired configuration to change its default settings in the right-hand pane. The defaults are applied to all newly created run/debug configurations.|
Select this check box to make the run/debug configuration available to other team members.
If the directory-based project format is used,
the settings for a run/debug configuration are stored in a separate .xml file in the
If the file-based format is used,
the settings are stored in the
This check box is not available when editing the run/debug configuration defaults.
|Before launch||Specify which tasks must be performed before applying the run/debug configuration.
The specified tasks are performed in the order they appear in the list.
