Docker toolchain

For the purpose of development in Docker containers, CLion provides full Docker integration via the dedicated Docker toolchain. Watch this video to learn more:

Sample Dockerfile

To help you get started with Docker development in CLion, we created an example Dockerfile for the case of Ubuntu base image. You can copy this file to your project and adjust for your needs or just use it as a reference.

The example file includes the following lines and sections:

  • In the comments at the top, you can find the commands for building the container.

  • The FROM ubuntu:20.04 line refers to the container's base image.

  • The apt-get part installs all the toolchain dependencies into the container. Here you can adjust the tools and their versions.

    Build the container

    • Run the docker build command from the top of the Dockerfile:

      docker build -t clion/ubuntu/cpp-env:1.0 -f Dockerfile.cpp-env-ubuntu .

      Depending on your platform and your Docker setup, you may need to run it using sudo.

      This command will build the Ubuntu base image with proper toolchain dependencies.

    Create a Docker toolchain

    1. Go to Settings / Preferences | Build, Execution, Deployment | Toolchains.

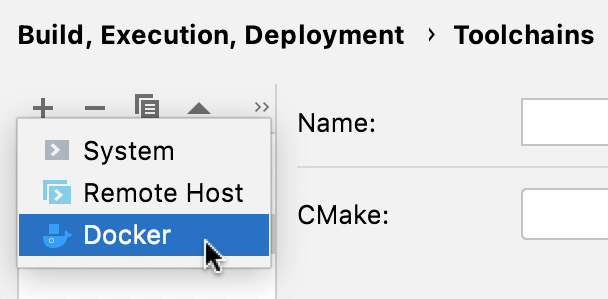

      Click Add toolchain and select Docker:

      Adding a Docker toolchain

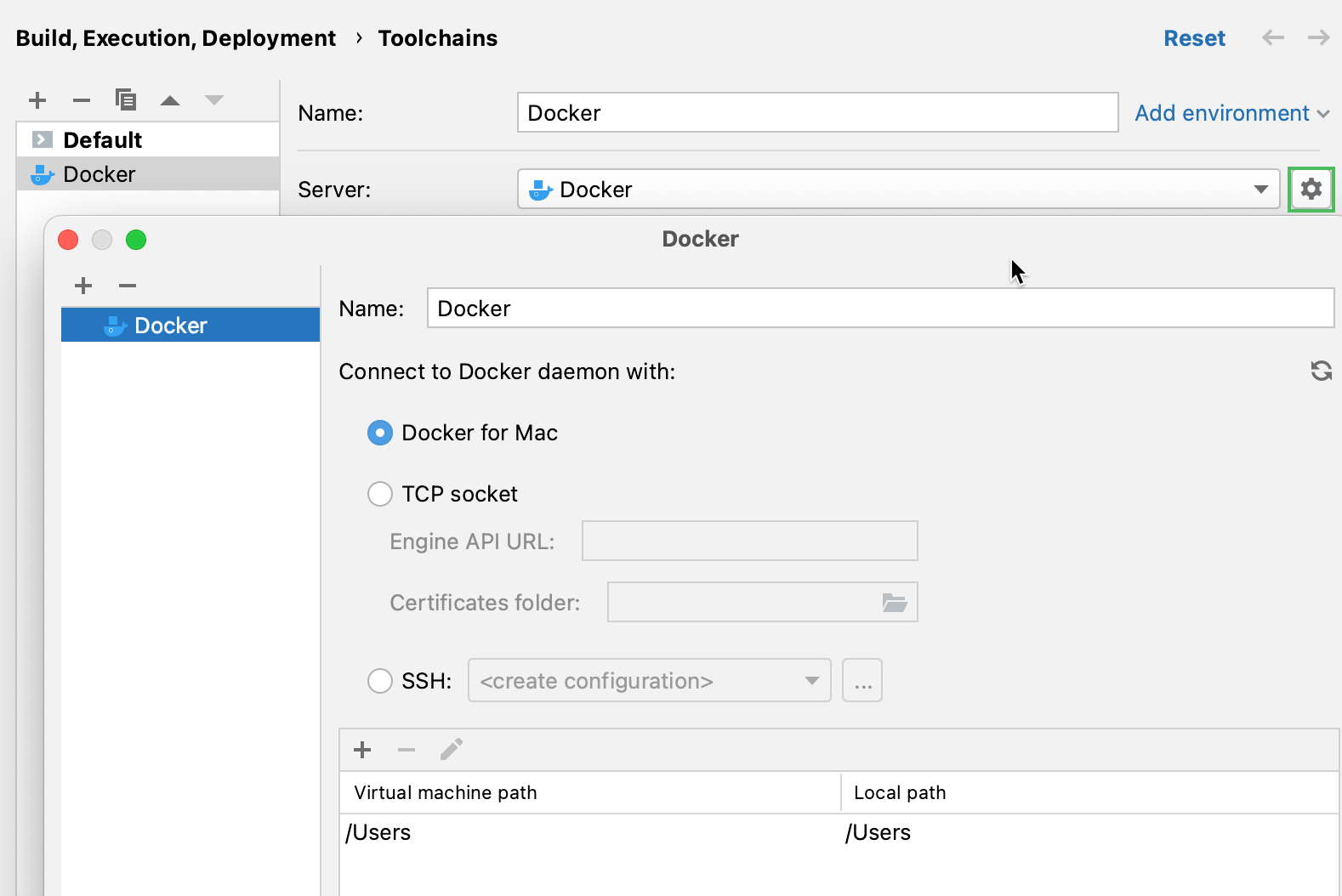

    2. Click the screw nut icon next to the Docker field to add a Docker image:

      Add a Docker image

      You can also configure a Docker server in Settings / Preferences | Build, Execution, Deployment | Docker and then select it in the toolchain settings.

    3. Select the Docker Image and wait until the tools detection finishes.

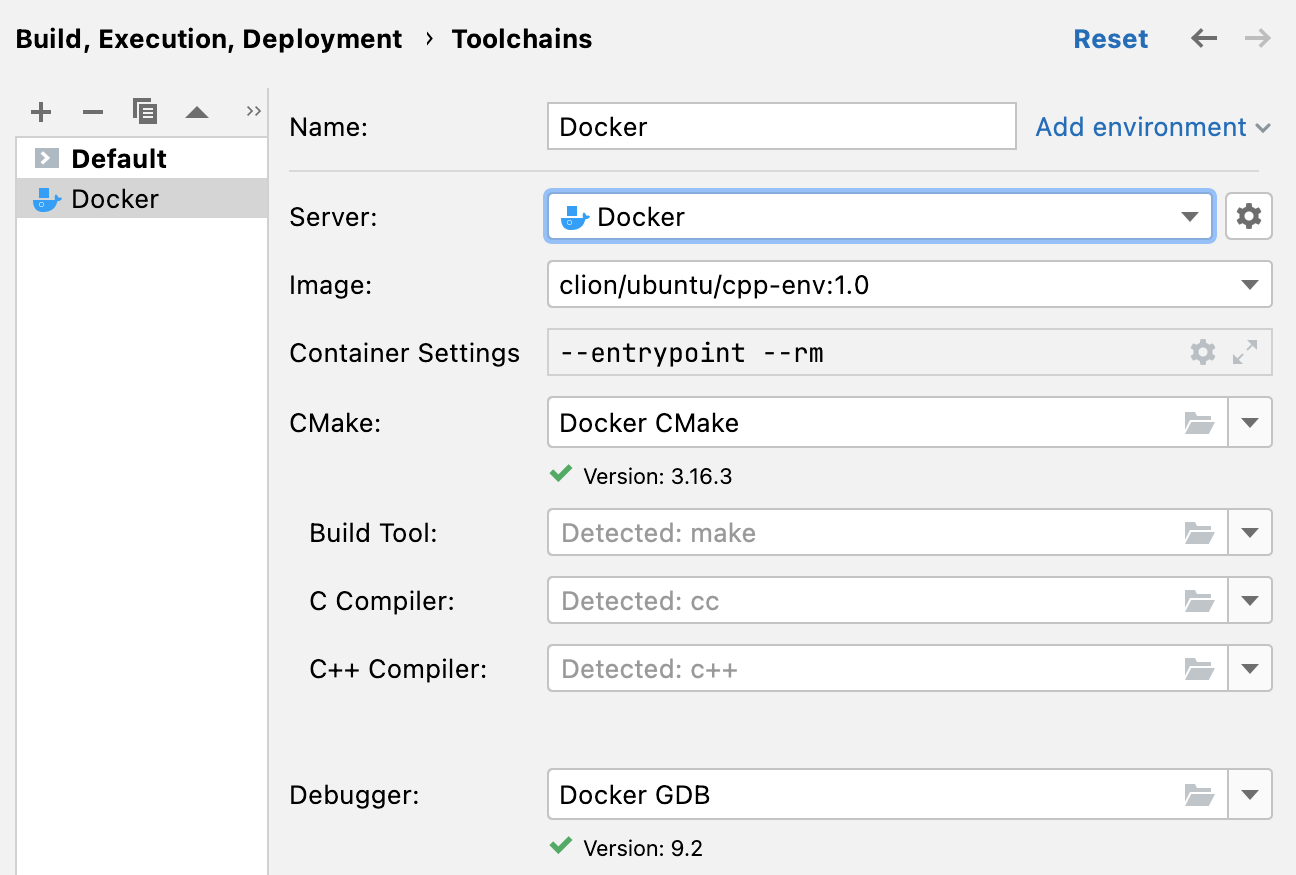

      Docker toolchain configured

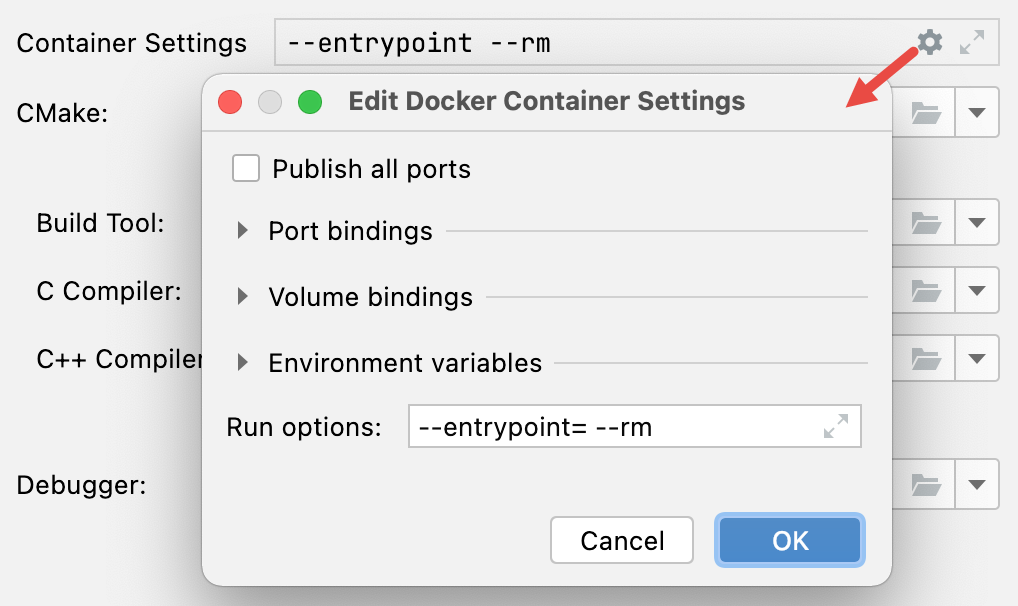

      Use the Container Settings field to provide additional container settings, such as port and volume bindings:

      Docker container settings

    Build, run, debug with a Docker toolchain

    After configuring a Docker toolchain, you can select it in CMake profiles or in Makefile settings. Alternatively, move the toolchain to the top of the list to make it default.

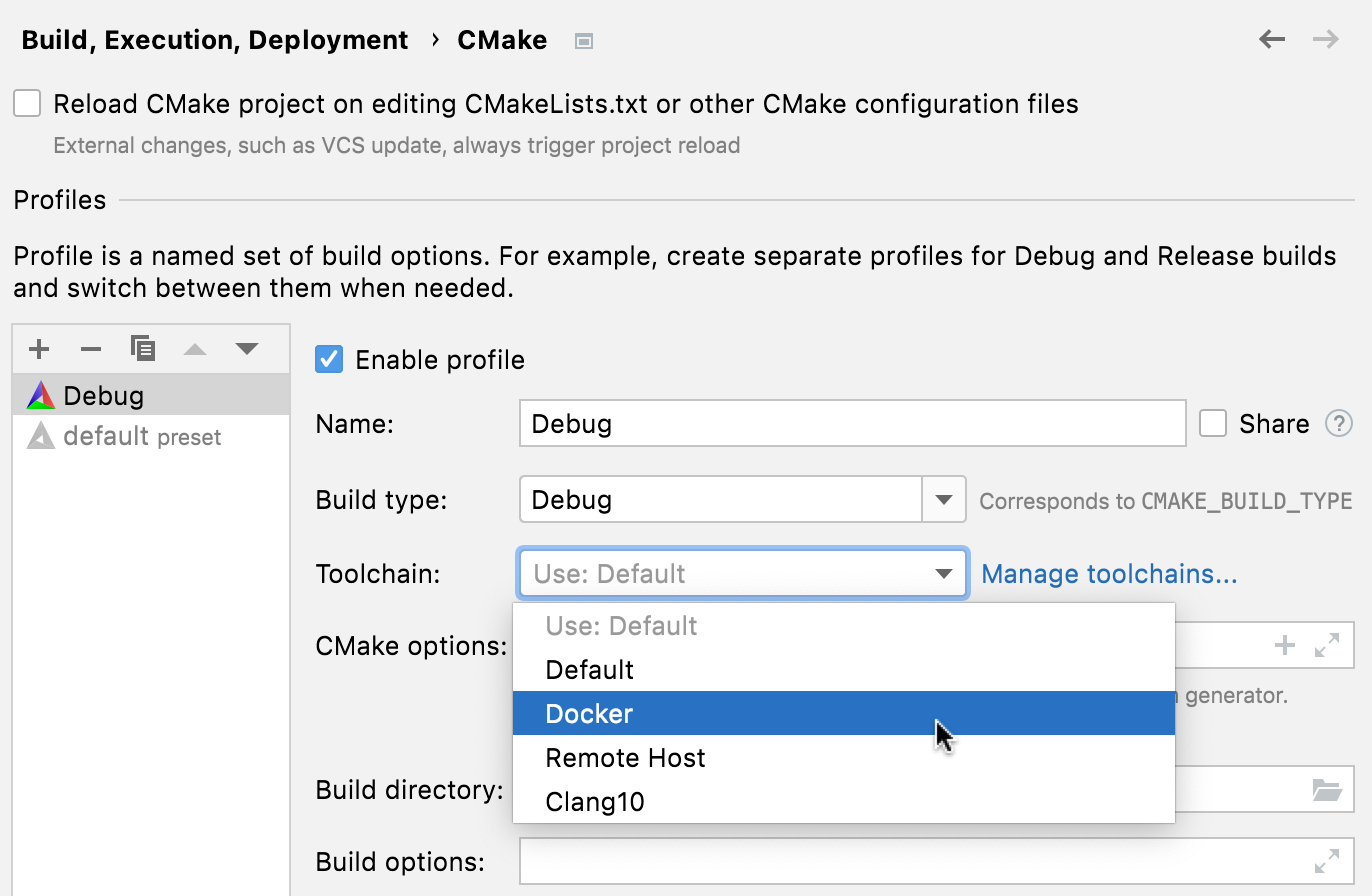

    Docker toolchain in a CMake profile

    The project folder will mounted to the Docker container and building, running, and debugging will be performed in it. CLion will start the container and shut it down after the command is executed. The project folder will be mounted into the /tmp/ProjectFolder directory in the container.

      Improve Docker toolchain performance on Windows

      To get better performance on Windows, we recommend using Docker with the WSL 2 backend.

      1. Set up Docker Desktop with the WSL 2 backend.

      2. In the Docker desktop application, navigate to Settings | Resources | WSL Integration and enable integration with your WSL distribution (for example, ubuntu-20.04).

      3. Place the project sources into the WSL filesystem (for example, \\wsl$\ubuntu-20.04\tmp\llvm), then open it in CLion and configure a Docker toolchain.

      Alternative workflow: develop in Docker using Full Remote mode

      In this case, Docker-based toolchains are configured via full remote mode. The container should be running with an SSH daemon.

      Sample Dockerfile for remote scenario

      Use the remote-cpp-env example file. It includes two additional sections:

      • The ssh section sets up the SSH for CLion to connect into.

      • The user section creates a user into the container.

      1. Build the container

      • Use the docker build line from the top of the Dockerfile:

        docker build -t clion/remote-cpp-env:0.5 -f Dockerfile.remote-cpp-env .

        Depending on your platform and your Docker setup, you may need to run it using sudo.

        This command will build the Ubuntu base image with proper toolchain dependencies, set up SSH, and create the user.

      2. Run the container

      1. Use the next command, docker run:

        docker run -d --cap-add sys_ptrace -p127.0.0.1:2222:22 --name clion_remote_env clion/remote-cpp-env:0.5

        In this line, -d runs the container as a daemon and --cap-add sys_ptrace adds the ptrace capability, which is necessary for debugging.

        The -p part specifies a port mapping. It exposes the default SSH port inside the container (22) as port 2222 on the host environment. You can specify any available port numbers here.

      2. (Optional) You can create mapped volumes using the -v flag: -v /local/path/to/project:/remote/path/to/project

        After that, go to Settings / Preferences | Build, Execution, Deployment | Deployment, change the connection type to Local or mounted folder, and set the path mappings. See Full remote mode: Check and adjust the deployment configuration.

      3. Clear cached SSH keys

      • Last step of building and running the container is the ssh-keygen command, which clears any cached SSH keys. This is important since localhost ports are only temporarily mapped and can be reused by different containers.

        ssh-keygen -f "$HOME/.ssh/known_hosts" -R [localhost]:2222"

      4. Create a Remote Host toolchain

      At this point, the container is running with an SSH server daemon, and you can connect into it using CLion’s standard Remote Development features.

      1. Follow the general instructions on creating a remote toolchain.

        In the Credentials field, set up the SSH configuration:

        • Host - localhost

        • Port - 2222

        • User name / Password - as specified in the Dockerfile

      2. After establishing the connection, CLion attempts to detect the toolchain. Since the tools were installed into default locations, they will be detected automatically.

        If you change the apt-get part of the Dockefile to install the tools into other locations, provide the paths in the Make, C Compiler, C++ Compiler, and Debugger fields.

      3. Create a CMake profile that uses the remote toolchain. Wait for the project to reload.

      After the files get transferred into the container, you will be able to select the profile in the Run/Debug configuration switcher to build, run, or debug your code inside the container using the specified toolchain.
