CLion 2018.2 Help

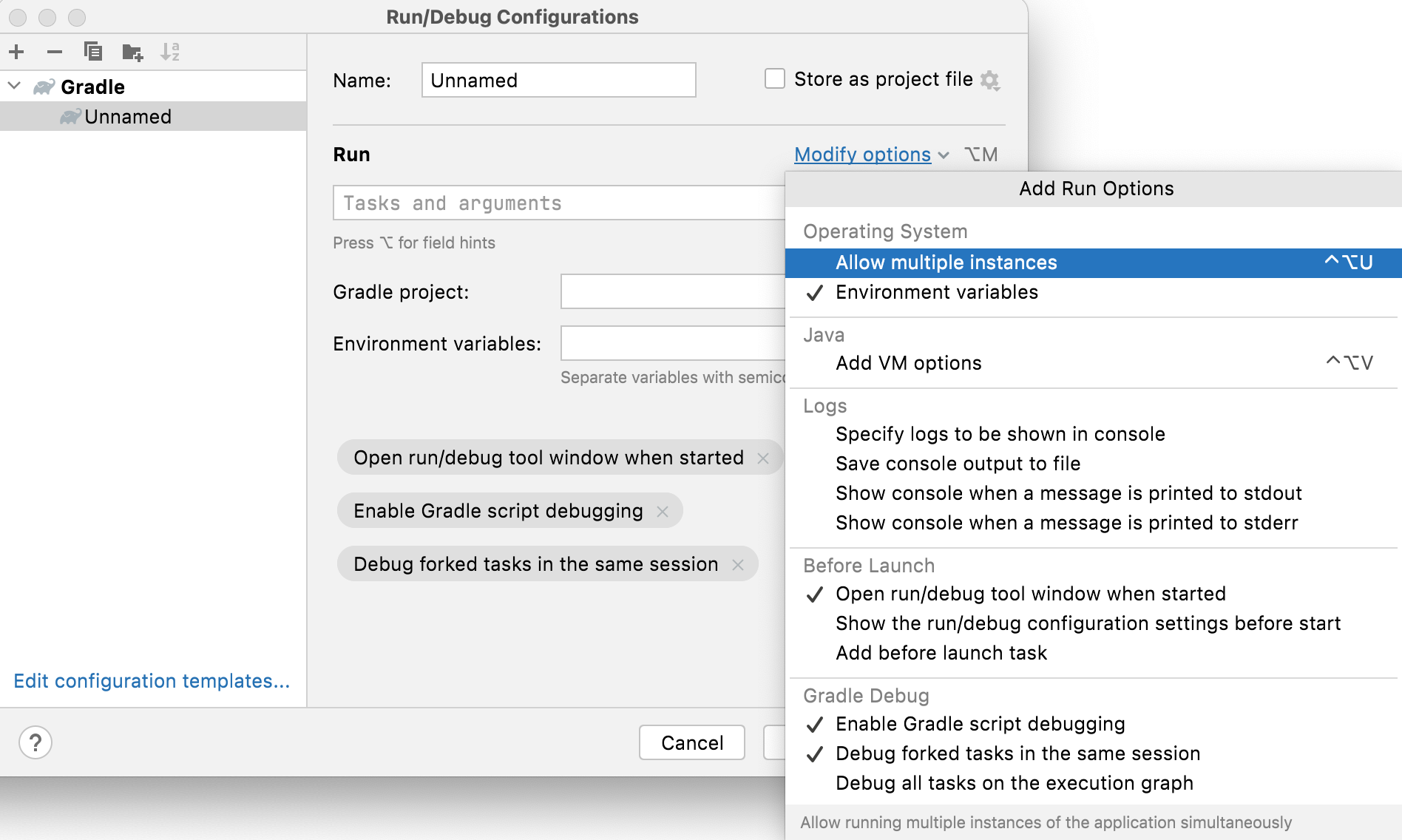

Run/Debug Configuration: Gradle

Configuration tab

ItemDescription
Gradle Project Use this field to specify the location of your Gradle project. You can either click cl gradle prjicon and select from the list of the registered Gradle projects, or provide the path manually.
TasksUse this field to specify the list of tasks for your Run/Debug configuration. Use spaces to separate one task from another.
VM Options

Use this field to specify VM options for your Gradle project.

If you need more room to type, click icons general expandComponent svg next to the field to access the VM options dialog where the text entry area is larger.

When specifying JVM options, follow these rules:

  • Use spaces to separate individual options, for example, -client -ea -Xmx1024m.
  • If an option includes spaces, enclose the spaces or the argument that contains spaces in double quotes, for example, some" "arg or "some arg".
  • If an option includes double quotes (as part of the argument), escape the double quotes using backslashes, for example, -Dmy.prop=\"quoted_value\".
ArgumentsSpecify Gradle command line parameters.
Environment variables Set a list of environment variables used by your Grade project.

Logs tab

Use this tab to specify which log files generated while running or debugging should be displayed in the console, that is, on the dedicated tabs of the Run or Debug tool window.

ItemDescription
Is ActiveSelect check boxes in this column to have the log entries displayed in the corresponding tabs in the Run tool window or Debug tool window.
Log File Entry

The read-only fields in this column list the log files to show. The list can contain:

  • Full paths to specific files.
  • Aliases to substitute for full paths or patterns. These aliases are also displayed in the headers of the tabs where the corresponding log files are shown.

    If a log entry pattern defines more than one file, the tab header shows the name of the file instead of the log entry alias.

Save console output to fileSelect this check box to save the console output to the specified location. Type the path manually, or click the browse button and point to the desired location in the dialog that opens.
Show console when a message is printed to standard output streamSelect this check box to activate the output console and bring it forward if an associated process writes to Standard.out.
Show console when a message is printed to standard error streamSelect this check box to activate the output console and bring it forward if an associated process writes to Standard.err.
icons general add svgClick this button to open the Edit Log Files Aliases dialog where you can select a new log entry and specify an alias for it.
icons actions edit svgClick this button to edit the properties of the selected log file entry in the Edit Log Files Aliases dialog.
icons general remove svgClick this button to remove the selected log entry from the list.
browseButton.png Click this button to edit the select log file entry. The button is available only when an entry is selected.

Common options

When you edit a run configuration (but not a run configuration template), you can specify the following options for it:

ItemDescription
Name In this text box, specify the name for the run/debug configuration. The name will help you identify the created configuration when you choose to edit it later, or when you invoke it, for example. from the Run popup (Shift+Alt+F10).
Share Select this check box to make the run/debug configuration available to other team members.

The shared run/debug configurations are kept in separate xml files under .idea\runConfigurations folder, while the local run/debug configurations are kept in the .idea\workspace.xml.

Toolbar

The tree view of run/debug configurations has a toolbar that helps you manage configurations available in your project as well as adjust default configurations templates.

ItemShortcutDescription
icons general add svgAlt+InsertCreate a run/debug configuration.
icons general remove svgAlt+Delete Delete the selected run/debug configuration. Note that you cannot delete default configurations.
icons actions copy svg Ctrl+D Create a copy of the selected run/debug configuration. Note that you create copies of default configurations.
icons general settings svg Edit Templates View and edit the default template for the selected run/debug configuration. The templates are used for newly created configurations.
icons actions moveUp svg/icons actions moveDown svgAlt+Up/Alt+Down

Move the selected run/debug configuration up and down in the list.

The order of configurations in the list defines the order, in which the configurations appear when you choose a run/debug configuration.

Default templates of run/debug configurations are always sorted alphabetically.

icons actions newFolder svg Move into new folder / Create new folder

You can group run/debug configurations by placing them into folders.

To create a folder, select the configurations within a category, click folder, and specify folder name. If only a category is in focus, an empty folder is created.

Then, to move a configuration into a folder, between the folders or out of a folder, use drag-and-drop or icons actions moveUp svg and icons actions moveDown svg buttons.

To remove grouping, select a folder and click icons general remove svg.

icons objectBrowser sorted svg Sort configurations Click this button to sort configurations in the alphabetical order.

Templates

Under the Templates node in the tree view of run configurations, you can select a run configuration template and edit its default settings. This will not affect the configurations that are already created, but will be used as defaults when creating new configurations of the corresponding type.

When you select the Templates node itself, you will be able to adjust general settings that apply to all run/debug configurations:

ItemDescription
Configurations available in Run Dashboard

In this section you can create a list of run configurations available in the Run Dashboard — a tool window that helps you execute and manage multiple run/debug configurations.

Note that the dashboard will only display the configuration types for which you have created one ore more configurations.
Thus, if you add a configuration type for which no configurations exist in the project, this type will not be displayed on the dashboard until you create a configuration of this type.

Generate run configurations for new CMake targets automatically Select this checkbox for automatic generation of the run configurations for the new targets, following the settings of the CMake Settings dialog. The run configuration is generated upon Reset CMake cache and reload a project action.
Delete run configurations for missing CMake targets automatically Enables automatic deletion of run/debug configurations for missing or obsolete targets.
Confirm rerun with process terminationThe behavior of this checkbox depends on whether the Single instance only option is selected for a particular run/debug configuration.
  • If this checkbox is selected, in case of a single instance, launching a new process (for example, by clicking icons toolwindows toolWindowRun on the main toolbar) while another process is still running, results in showing a dialog box prompting to terminate the current process before launching a new one.
  • If this checkbox is not selected (or in case of multiple instances), CLion starts the new process silently.
Temporary configurations limit Specify the maximum number of temporary configurations to be stored and shown in the Select Run/Debug Configuration drop-down list.

Before Launch options

In this area you can specify tasks that must be be performed before starting the selected run/debug configuration. The tasks are performed in the order they appear in the list.

ItemShortcutDescription
icons general add svgAlt+Insert Click this icon to add one of the following available tasks:
  • Run External tool: select to run an external application. In the dialog that opens, select one or multiple applications you want to run. If it is not defined in CLion yet, add its definition. For more information, see Configuring Third-Party Tools and External Tools.
  • Run Another Configuration: select to execute another run/debug configuration. In the dialog that opens, select the configuration to be run.
  • Run File Watchers: select this option to have CLion apply all the currently active file watchers.
  • Run Grunt task: select this option to run a Grunt task. In the Grunt task dialog box that opens, specify the Gruntfile.js where the required task is defined, select the task to execute, and specify the arguments to pass to the Grunt tool.

    Specify the location of the Node.js interpreter, the parameters to pass to it, and the path to the grunt-cli package.

  • Run Gulp task: select this option to run a Gulp task. In the Gulp task dialog box that opens, specify the Gulpfile.js where the required task is defined, select the task to execute, and specify the arguments to pass to the Gulp tool.

    Specify the location of the Node.js interpreter, the parameters to pass to it, and the path to the gulp package.

  • Run npm Script: select this option to execute an npm script. In the NPM Script dialog box that opens, specify the npm run/debug configuration settings.
  • Compile TypeScript: select to run the built-in TypeScript compiler and thus make sure that all the changes you made to your TypeScript code are reflected in the generated JavaScript files. In the TypeScript Compile Settings dialog that opens, select or clear the Check errors checkbox to configure the behaviour of the compiler in case any errors are detected:
    • If the Check errors checkbox is selected, the compiler will show all the errors and the run configuration will not start.
    • If the Check errors checkbox is cleared, the compiler will show all the detected errors but the run configuration still will be launched.
  • Generate CoffeeScript Source Maps: select this option to generate the source maps for your CoffeeScript sources. In the dialog that opens, specify where your CoffeeScript source files are located.
icons general remove svgAlt+Delete Click this icon to remove the selected task from the list.
icons actions edit svg Enter Click this icon to edit the selected task. Make the necessary changes in the dialog that opens.
icons actions moveUp svg/icons actions moveDown svgAlt+Up/Alt+DownClick these icons to move the selected task one line up or down in the list. (The tasks are performed in the order that they appear in the list.)
Show this pageSelect this checkbox to show the run/debug configuration settings prior to actually starting the run/debug configuration.
Activate tool window

If this checkbox is selected, which it is by default, the Run or the Debug tool window opens when you start the run/debug configuration.

Otherwise, the tool window isn't shown. However, when the configuration is running, you can open the corresponding tool window for it yourself by pressing Alt+4 or Alt+5.

Last modified: 10 August 2018
