Using run/debug configurations

DataGrip uses run/debug configurations to run, debug, and test your code. Each configuration is a named set of startup properties that define what to execute and what parameters and environment should be used.

There are two types of run configurations:

  • Temporary — created every time you select Run <item_name> from the context menu. To call the context menu, right-click an object or an area.

  • Permanent — created explicitly from a template or by saving a temporary configuration. Permanent configurations remain as part of your project until you remove them.

So whenever you run/debug or test your code, DataGrip either uses an existing permanent run/debug configuration or creates a new temporary one.

Permanent configurations have opaque icons while the icons of temporary configurations are semi-transparent.

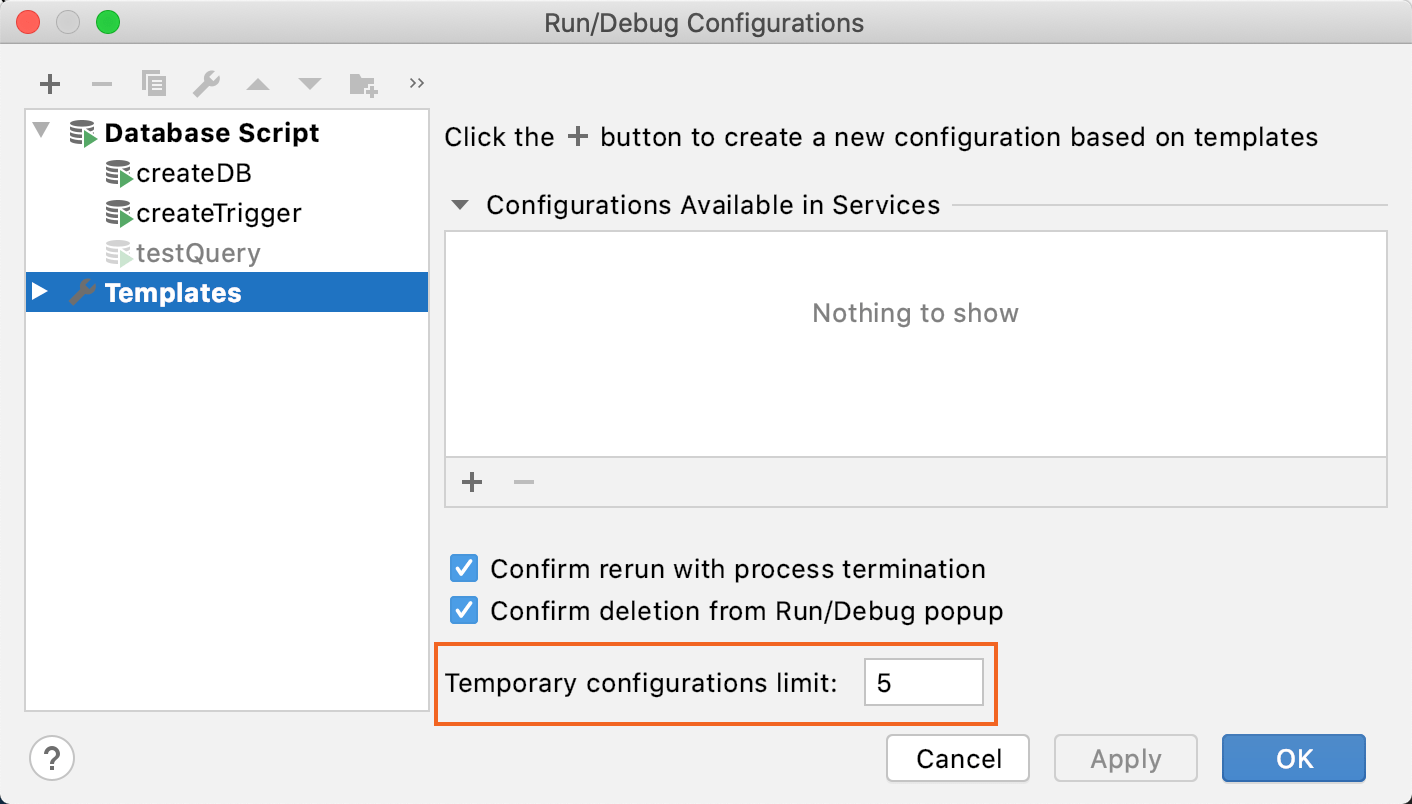

The maximum number of temporary configurations is 5. The older ones are automatically deleted when new ones are added. If necessary, you can increase this limit in Settings/Preferences | Advanced Settings | IDE | Temporary configurations limit.

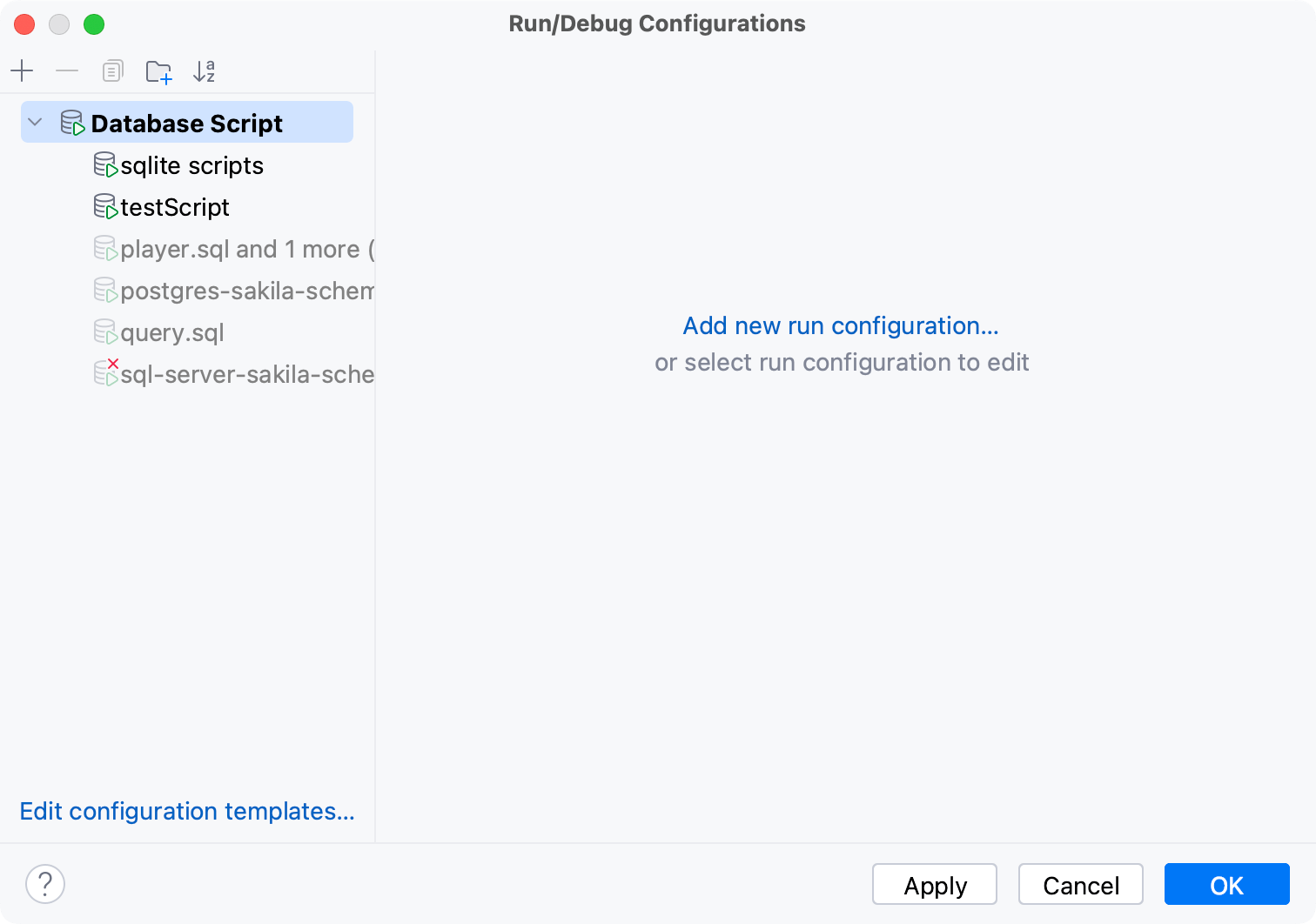

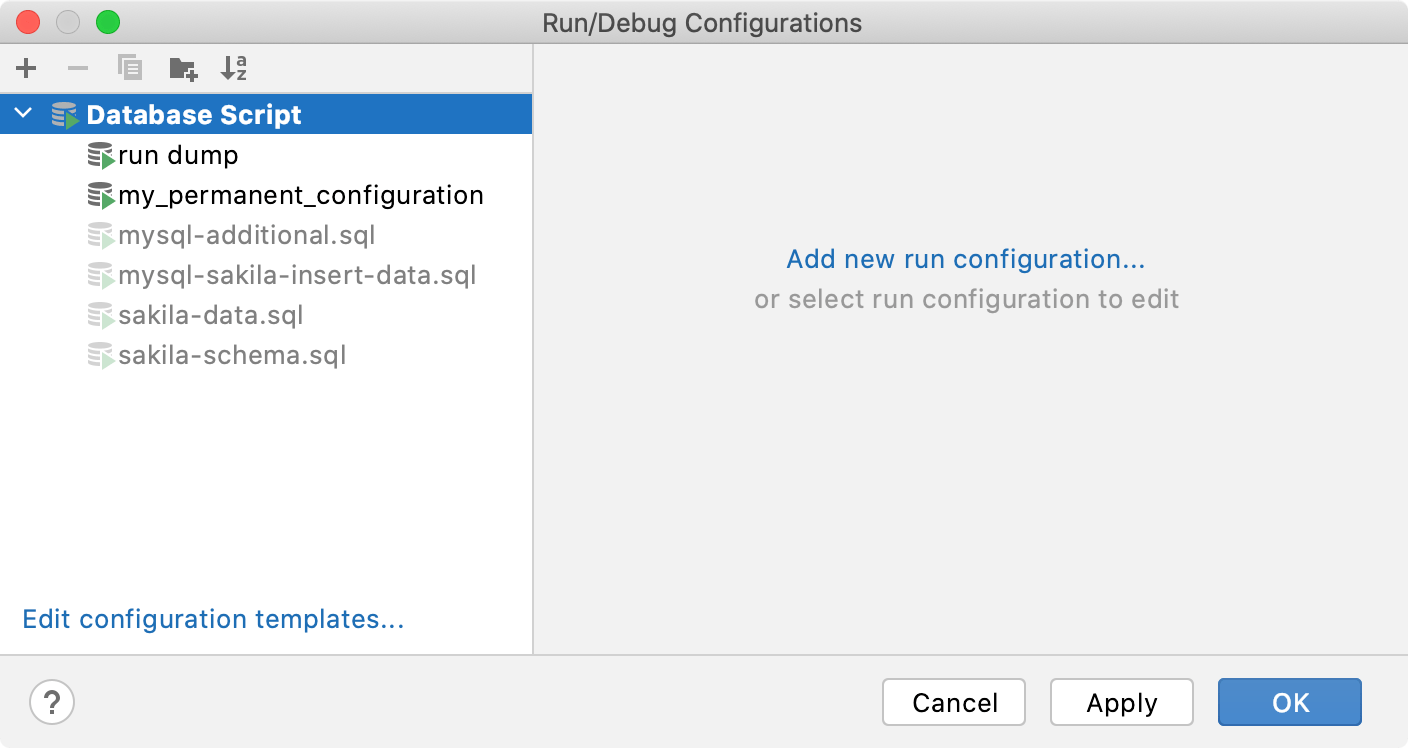

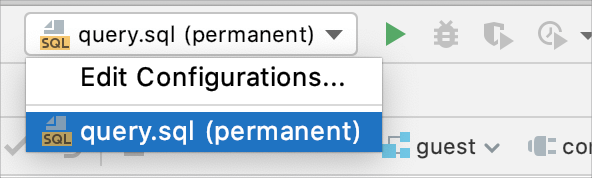

Permanent and temporary configurations have different icons

Create permanent run/debug configurations

DataGrip provides the following ways to create a permanent run/debug configuration:

Save a temporary configuration as permanent

  • Select a temporary configuration in the run configuration switcher and then click Save Configuration.

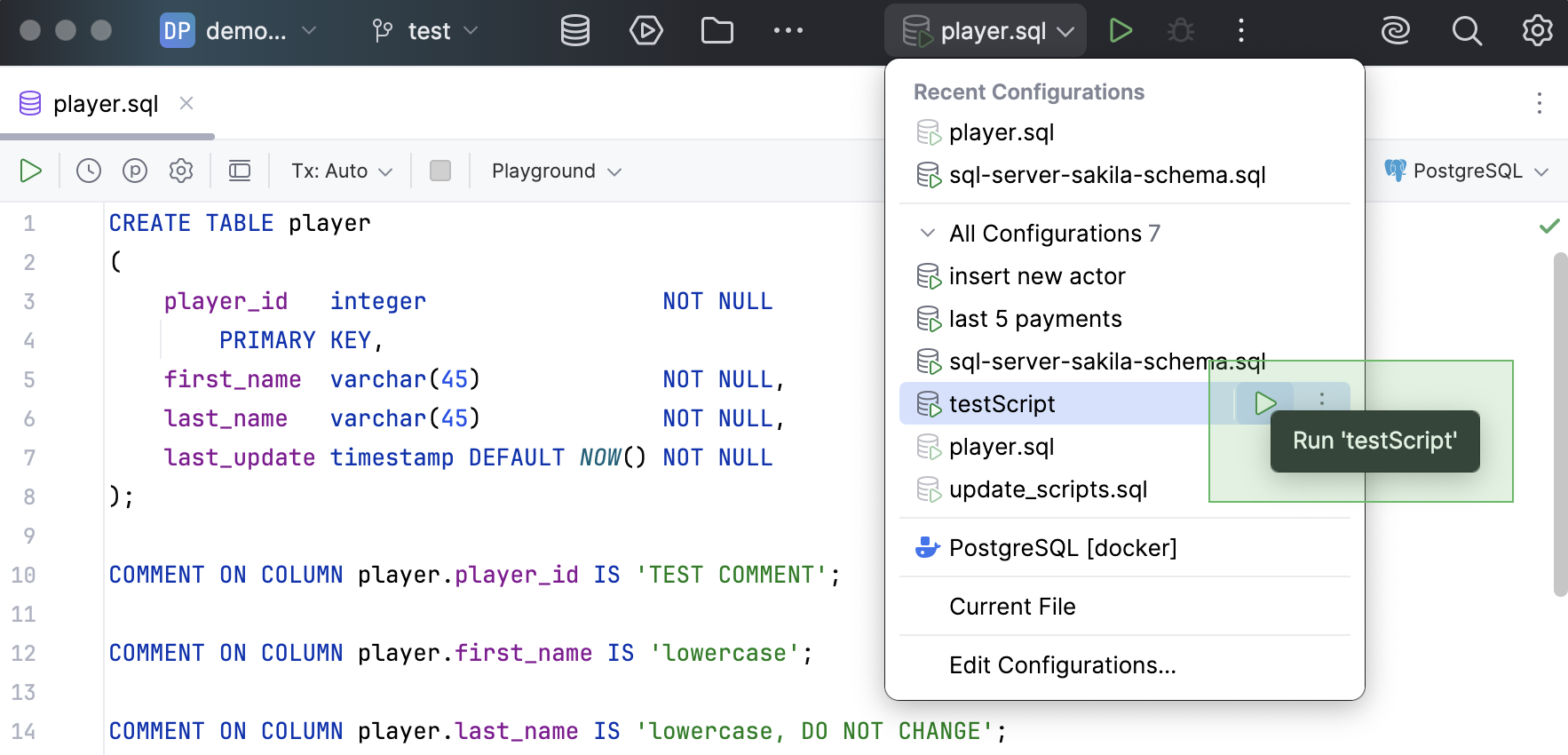

    Save a temporary run configuration

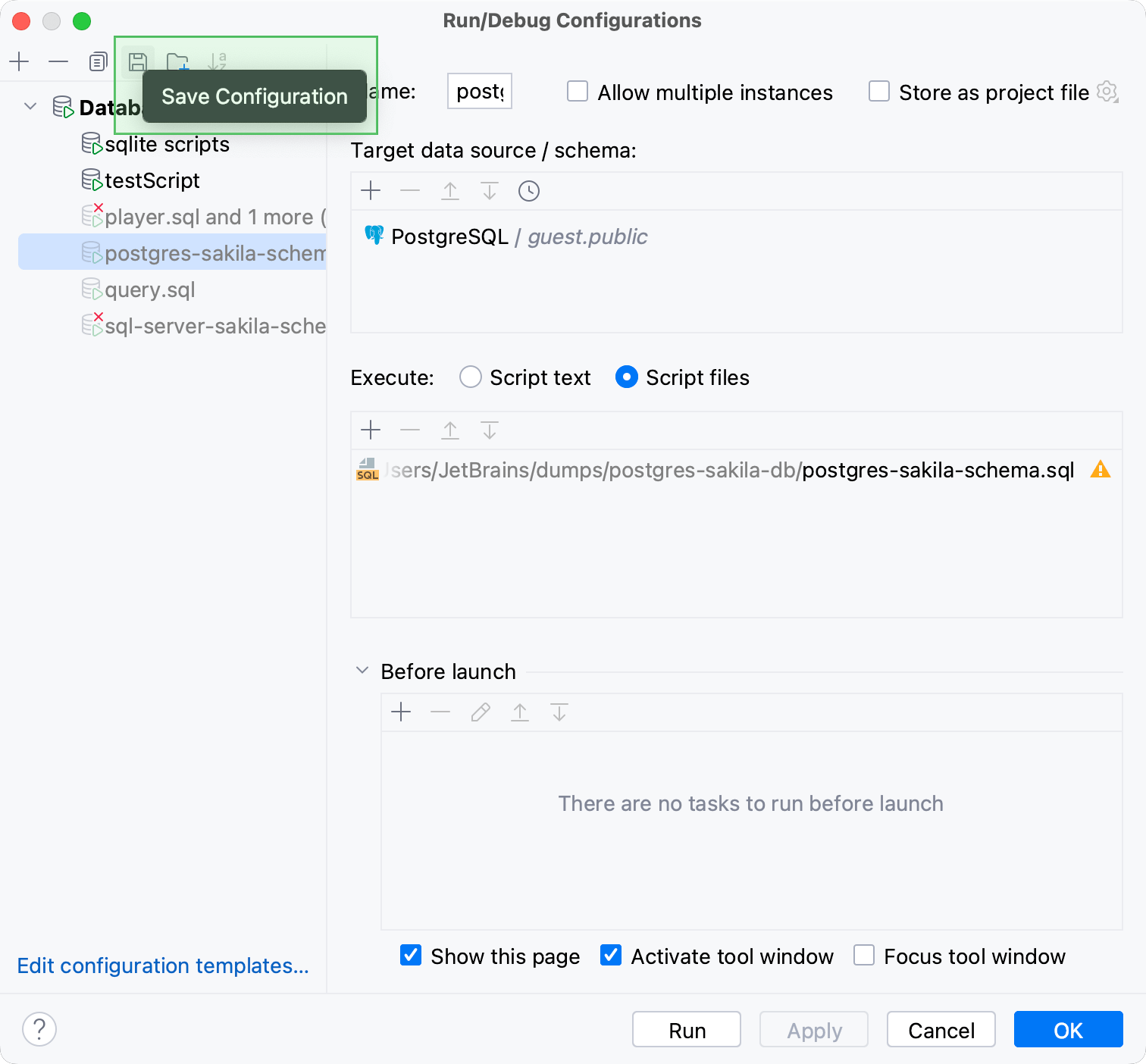

  • Alternatively, select a temporary configuration in the Run/debug configurations dialog and click Save on the toolbar.

DataGrip provides run/debug configuration templates for different languages, tools, and frameworks. The list of available templates varies depending on the installed and enabled plugins.

Create a run/debug configuration from a template

  1. From the main menu, select Run | Edit Configurations. Alternatively, press Alt+Shift+F10, then 0.

  2. Click Run | Edit configurations.

  3. In the Run/Debug Configuration dialog, click the Add New Configuration icon (the Add New Configuration icon) and select Database Script.

    The fields that appear in the right-hand pane display the default settings for the selected configuration type.

    • Target data source / schema: databases or schemas against which you want to run your database scripts. This setting is dialect-dependent.

      If you select a data source as a target, DataGrip displays a schema in which the script will be run. It is the default schema.

    • Script text: script that you want to run.

    • Script files: SQL files that you want to run. To add files, click the Add button (the Add button) and navigate to files that you want to run. If a script contains schema switching, you will see a warning (Warning).

    • Data source (utPLSQL and tSQLt): a name of a data source. utPLSQL supports Oracle. tSQLt supports Microsoft SQL Server.

    • Database (tSQLt): a name of the Microsoft SQL Server database.

    • Paths (utPLSQL and tSQLt): a qualified path to the testing package.

    • Tags (utPLSQL): tags of tests that you want to run. Use semicolon (;) as separator.

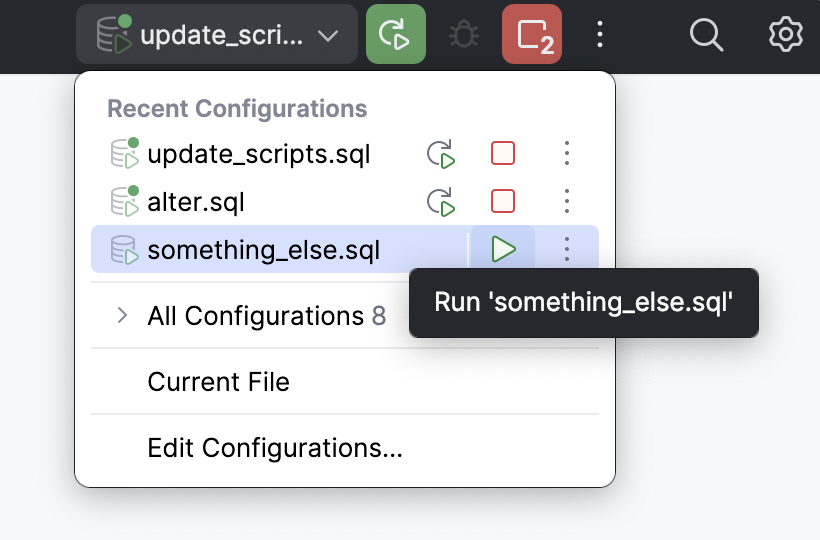

  4. Select Allow parallel run if you want to allow multiple instances of the configuration to run at the same time.

  5. In the Before launch section, define whether you want to perform any specific actions before launching the application, for example, launch an external tool or disconnect from a data source.

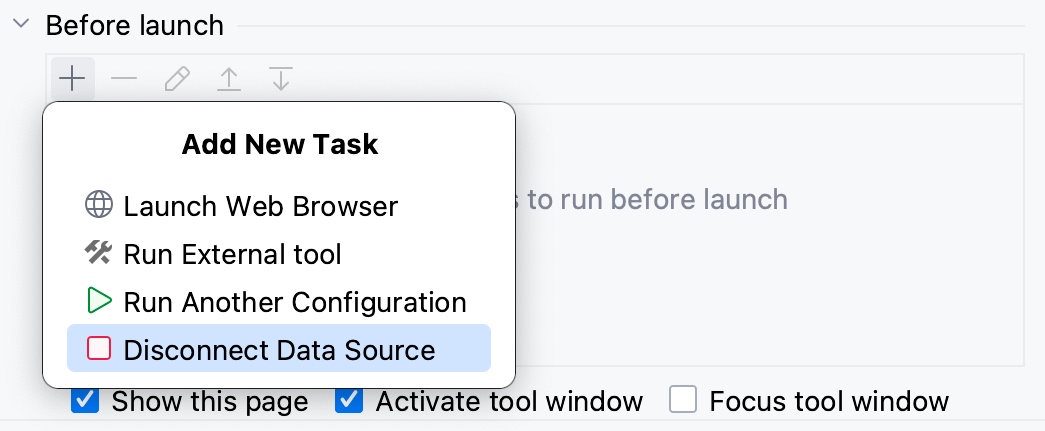

    Disconnect from a data source before running scripts
  6. Apply the changes and close the dialog.

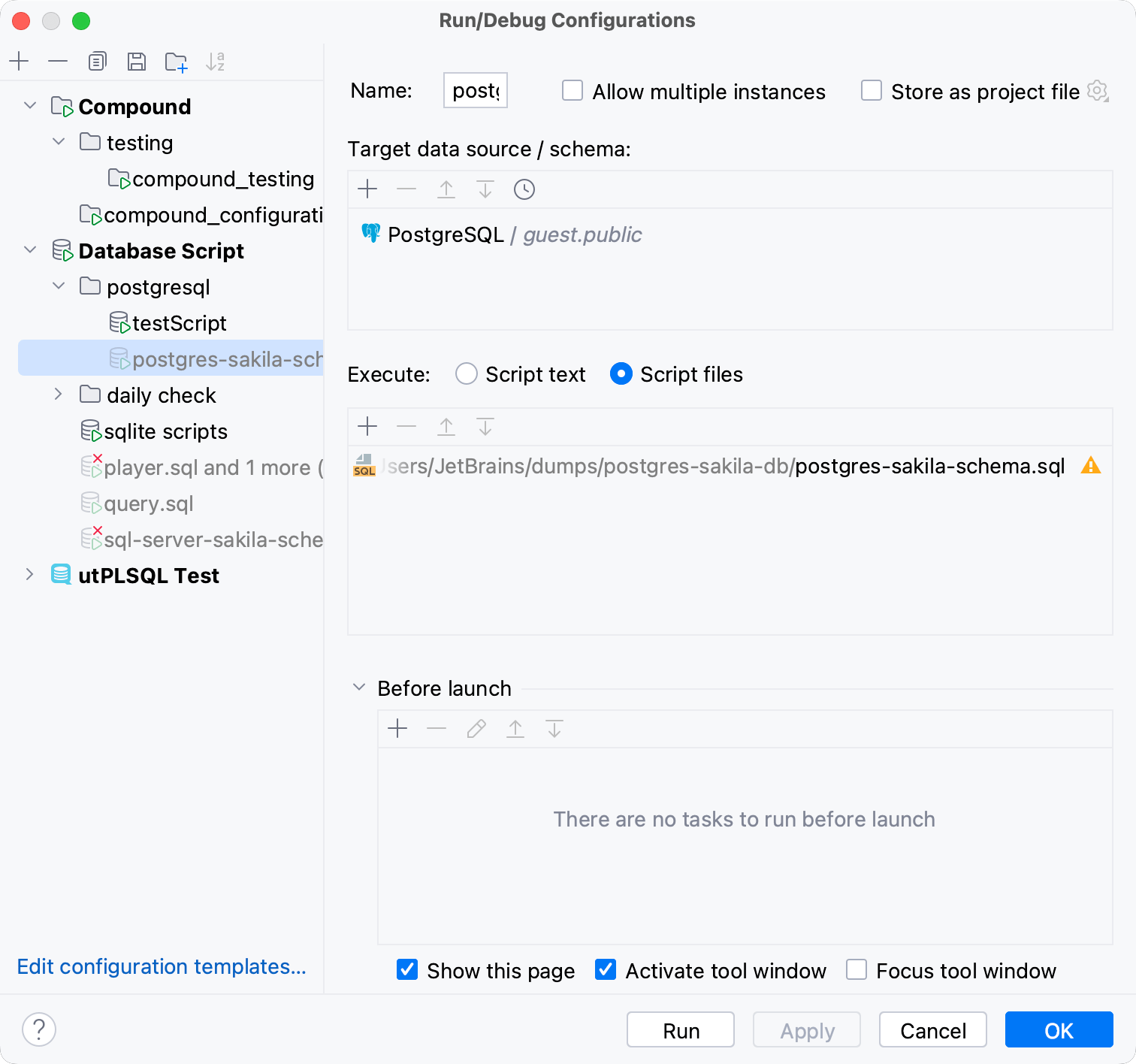

    database script run configuration

Share run/debug configurations

If you are working in a team, you might want to share your run configurations so that your teammates could run the application using the same configuration or enable them to remotely attach to the process you are running.

For these purposes, DataGrip provides a mechanism to store your run configurations as project files and share them through VCS. The same mechanism can also be used when you want to send your configuration as a file to someone else. This saves a lot of time as run configurations sometimes get sophisticated, and keeping them in sync manually would be tedious and error-prone.

  1. From the main menu, select Run | Edit Configurations. Alternatively, press Alt+Shift+F10, then 0.

  2. Select the run configuration you want to share, enable the Store as project file option, and specify the location where the configuration file will be stored.

    If compatibility with DataGrip 2019.3 and earlier is required, store the file in the default location.

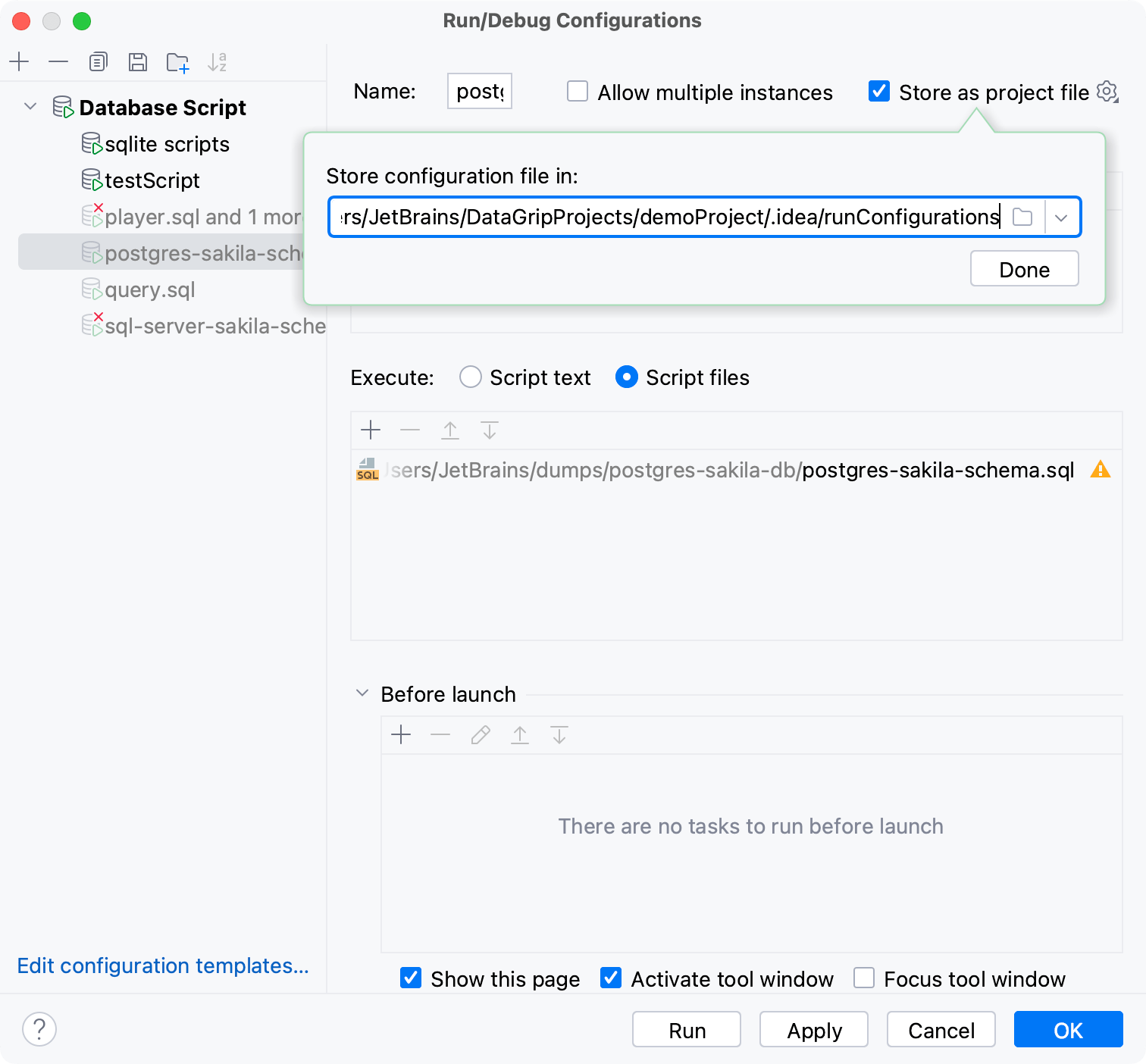

    Store as project file box
  3. (Optional) If the .idea directory is added to VCS ignored files, the .idea/runConfigurations subfolder will be ignored, too. If you use Git for your project, you can share .idea/runConfigurations only and leave .idea ignored by modifying .gitignore as follows:

    /.idea/* !/.idea/runConfigurations

Run/debug configuration templates

All run/debug configurations are based on templates, which implement the startup logic, define the list of parameters and their default values. The list of available templates is predefined in the installation and can only be extended via plugins. However, you can edit default parameter values in each template to streamline the setup of new run/debug configurations.

Configure the default values for a template

  1. From the main menu, select Run | Edit Configurations. Alternatively, press Alt+Shift+F10, then 0.

  2. In the left-hand pane of the run configuration dialog, click Edit configuration templates….

  3. In the Run/Debug Configuration Templates dialog that opens, select a configuration type.

  4. Specify the desired default parameters and click OK to save the template.

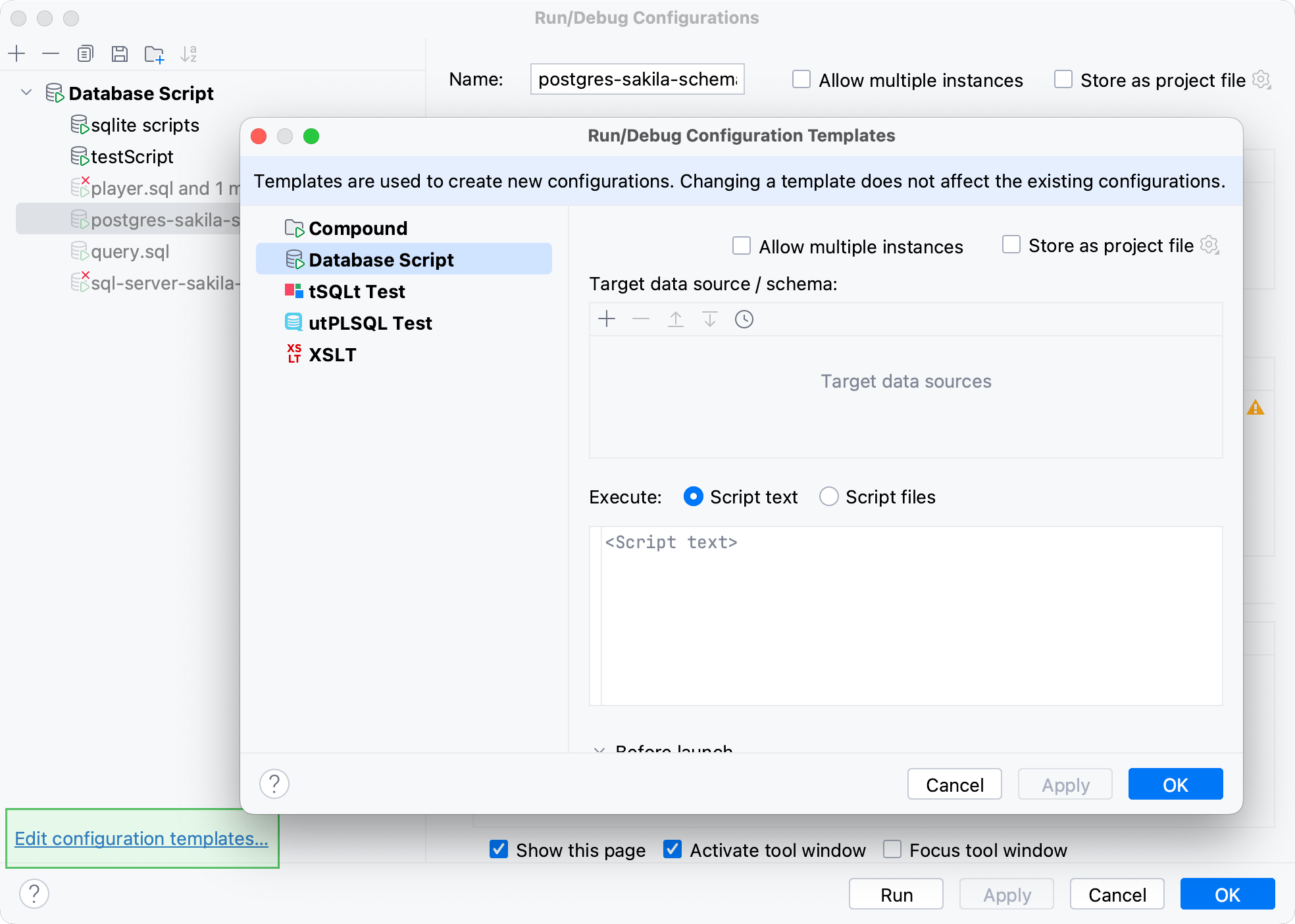

    Run configuration templates

Run/debug configuration folders

When there are many run configurations of the same type, you can group them in folders so they become easier to distinguish visually.

Once grouped, the run configurations appear in the list under the corresponding folders.

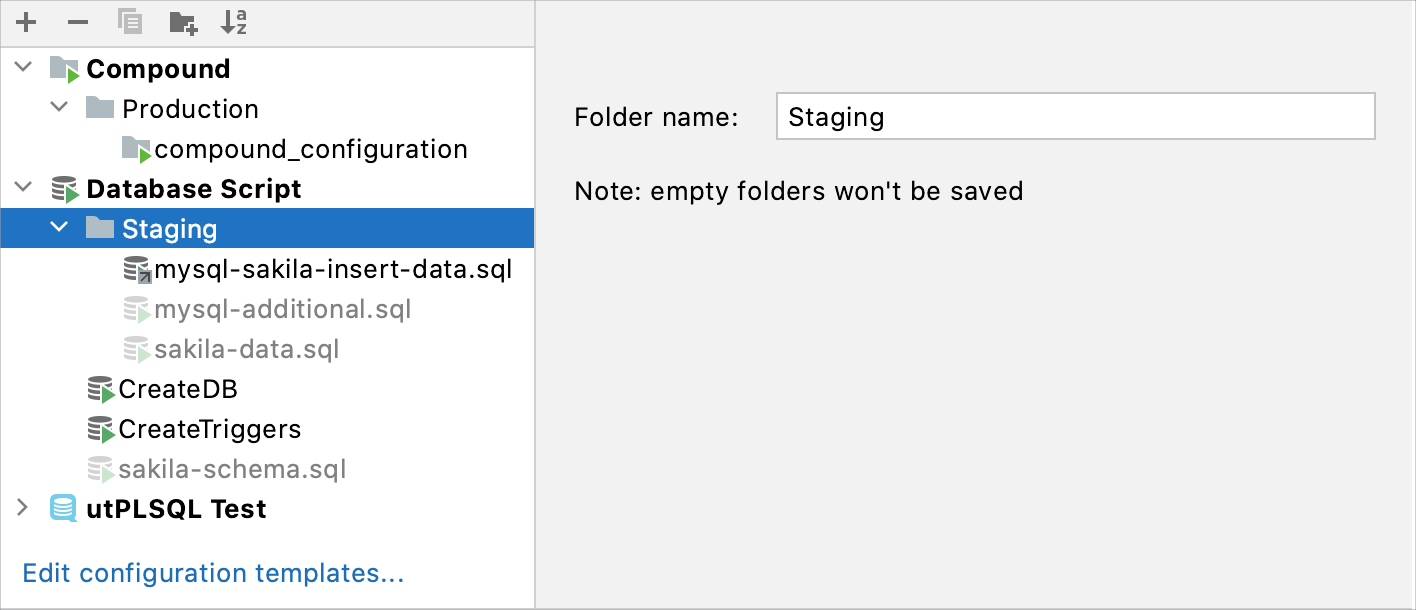

folders for run configurations

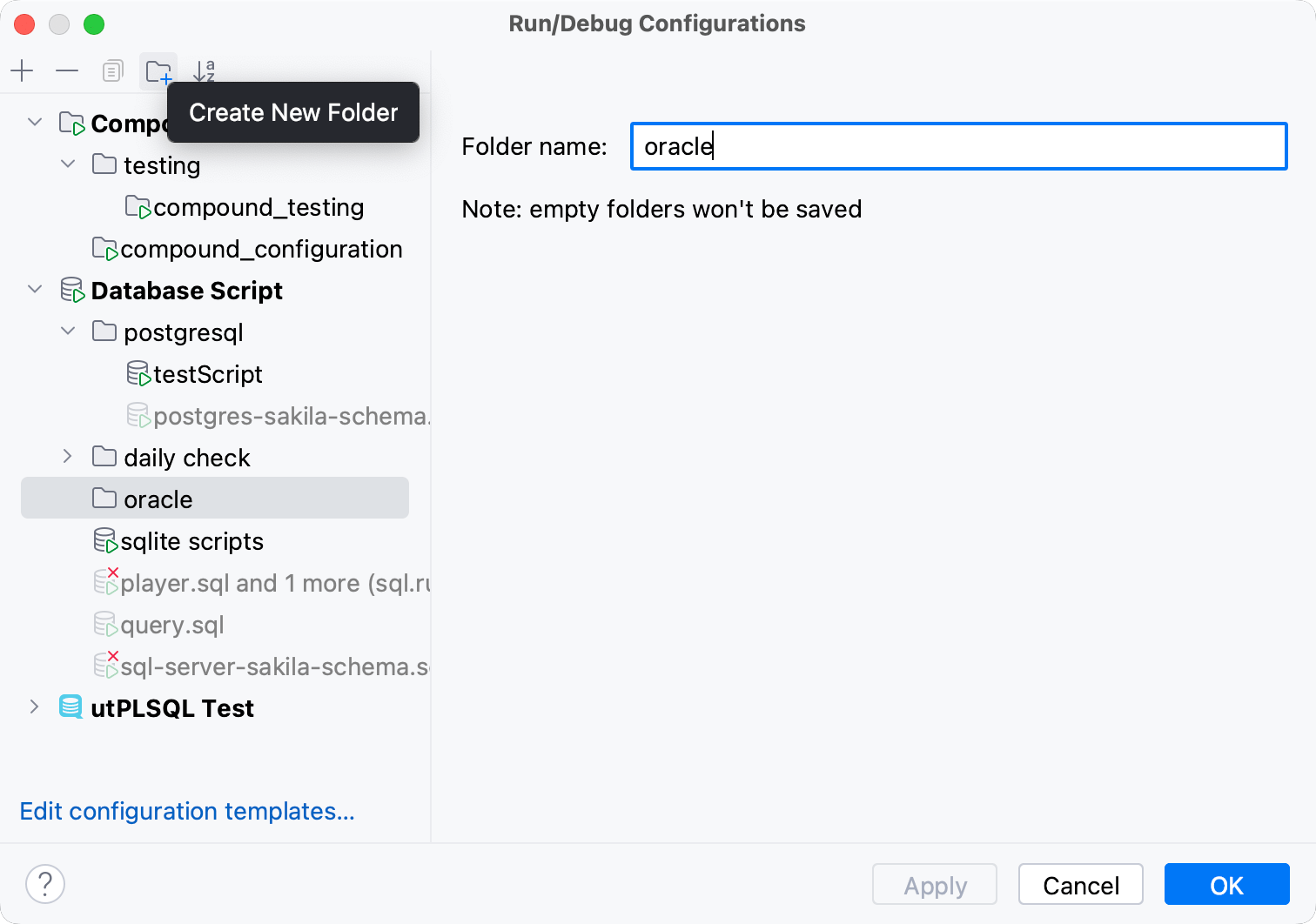

Create a folder for run configurations

  1. From the main menu, select Run | Edit Configurations. Alternatively, press Alt+Shift+F10, then 0.

  2. In the Run/Debug Configurations dialog, select a configuration type and click the New Folder icon on the toolbar. A new empty folder for the selected type is created.

  3. Specify the folder name in the text field to the right or accept the default name.

  4. Select the desired run configurations and move them under the target folder.

  5. Apply the changes. If a folder is empty, it will not be saved.

When you no longer need a folder, you can delete it Delete. The run configurations grouped under this folder will be moved under the root of the corresponding run configuration type.
