DataGrip 2021.3 Help

Services tool window

The Services tool window allows you to use database and Docker services. To use Docker, install the Docker plugin. For more information about Docker, see Docker. In the Services tool window, you can view and manage Docker containers and images (1), data sources (2), connection sessions (3), and files attached to these sessions (4). The small green light on the session icon indicates that you are connected to a data source.

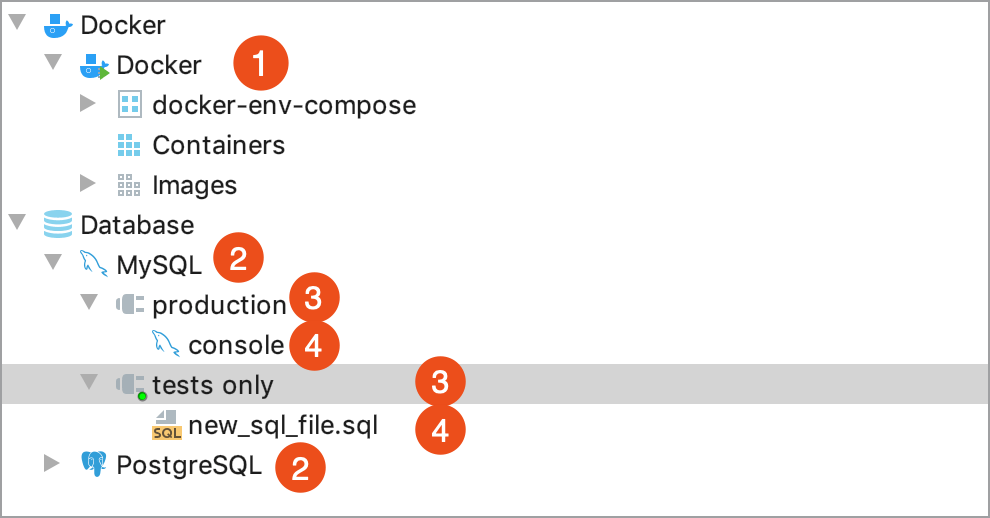

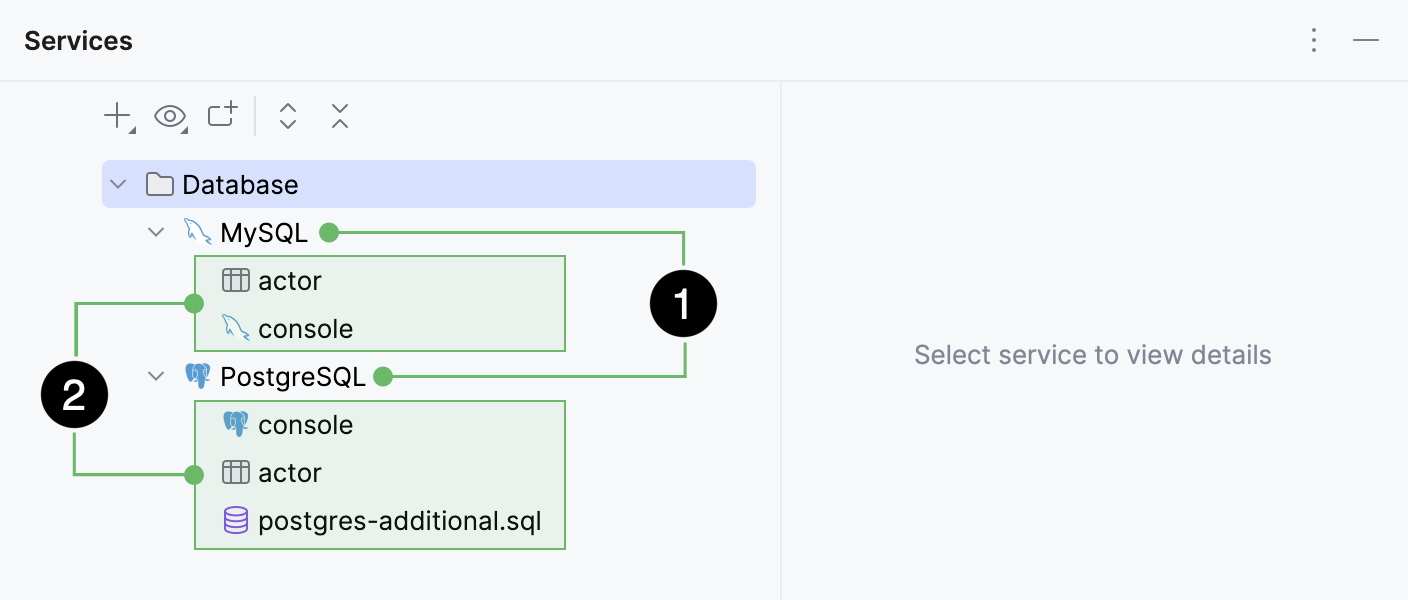

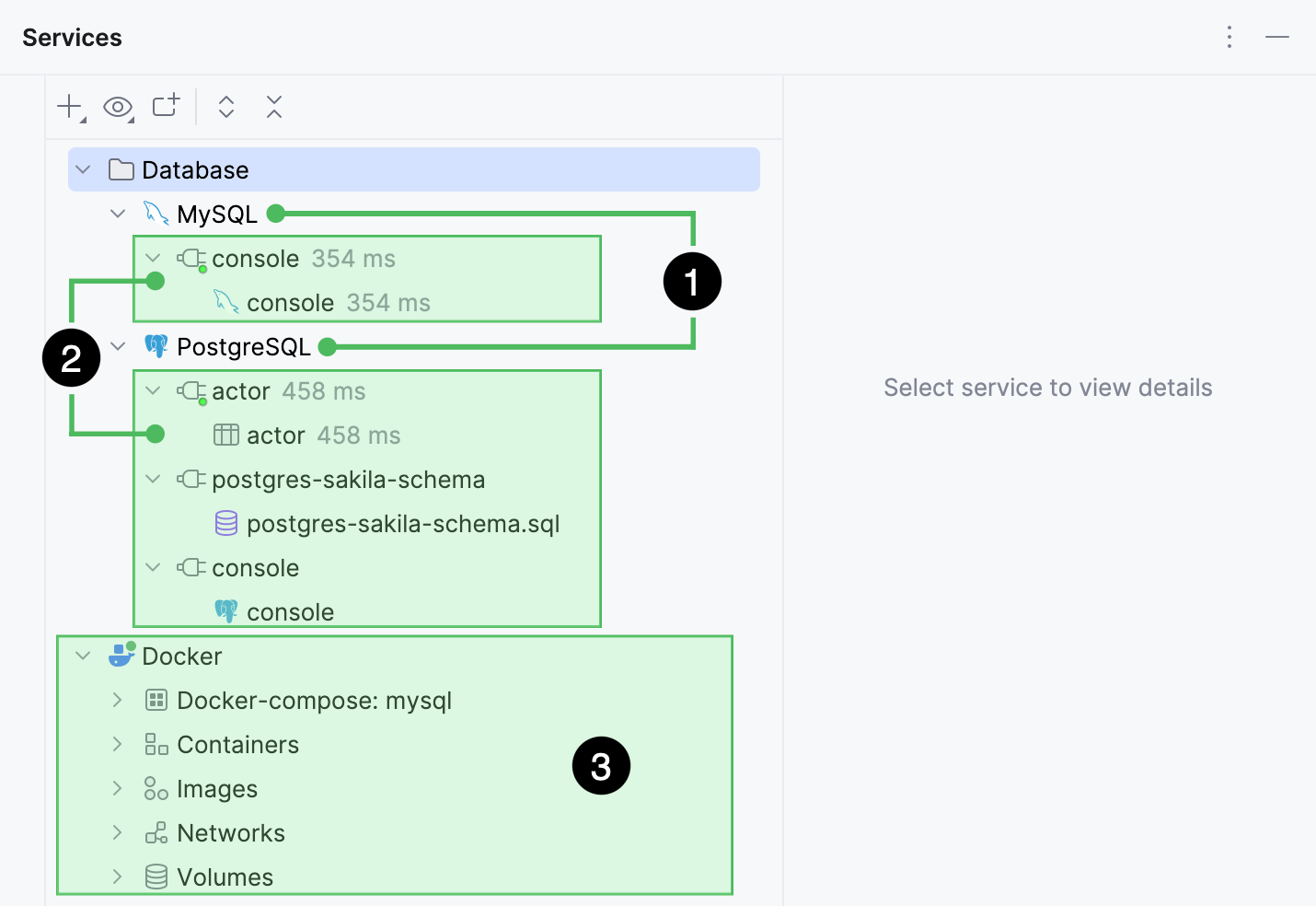

The Services tool window

For a quick overview of the Services tool window, see the following video.

Main toolbar

The main toolbar contains the following buttons and menus that are common for all service types:

Icon

Action

Description

The Expand All button

Expand All Ctrl+NumPad +

Expand all items in the list.

The Collapse All button

Collapse All Ctrl+NumPad -

Collapse all items in the list.

The Group By menu

Group By

Choose how you want to organize the list of services.

  • Service Type: adds a root node that describes a service type (for example, Docker or Database)

  • Service Groups: adds a parent node that describes a particular group (for example, a data source name).

the Group By option

The Filter menu

Filter

Choose how you want to filter the list of services.

The Open in New Tab button

Open in New Tab

Move the selected items to a separate tab.

The Add Service menu

Add Service Alt+Insert

Choose a service type to add.

Database service

In the database service, you can manage your sessions and connections. Connection is a physical communication channel and session is a state of information exchange. For example, if you surf a social network, your connection log might have thousands of connection entries between a client and a server while a session log might show you only a single log entry with the number of bytes transferred.

For more information about managing database sessions, see Run database code.

Left toolbar

Icon

Action

Description

Tx

Tx Mode and Tx Isolation

Choose the isolation level for database transactions and the way transactions are committed.

  • Auto: each statement is executed in its own transaction that is implicitly committed.

  • Manual: transactions are committed and rolled back manually.

The Commit button

Commit Ctrl+Alt+Shift+Enter

Commit the current transaction.

The Rollback button

Rollback

Roll back the last transaction.

The Cancel Running Statements button

Cancel Running Statements Ctrl+F2

Terminate the execution of the current statement.

The Restore Default Layout button

Restore Default Layout Ctrl+F2

Restore default positions of visual elements in the Service view.

The Jump to Console button

Jump to Console Ctrl+Shift+F10

Open the Consoles popup. In the Consoles popup, you can select a query console that you want to open in the editor.

The Disconnect button

Disconnect Ctrl+F2

(For data sources) Close a connection to the selected data source.

The Disconnect button

Cancel Running Statements Ctrl+F2

(For sessions and attached files) Close a connection to the selected data source.

Data sources

Icon

Action

Description

The Jump to Console button

Jump to Console Ctrl+Shift+F10

Open the Consoles popup. In the Consoles popup, you can select a query console that you want to open in the editor.

The Disconnect button

Disconnect Ctrl+F2

Close a connection to the selected data source.

Close All Sessions

Close all opened sessions to a data source.

The Show in New Tab button

Show in New Tab

Move the selected items to a separate tab.

Open Each in New Tab

Split the selected items into separate tabs.

Open Each Tab in New Tab

Create separate tabs for each type of service.

Delete Delete

Close all opened sessions to a data source. Identical to Close All Sessions.

Sessions

Icon

Action

Description

Tx

Tx Mode and Tx Isolation

Choose the isolation level for database transactions and the way transactions are committed.

  • Auto: each statement is executed in its own transaction that is implicitly committed.

  • Manual: transactions are committed and rolled back manually.

The Commit button

Commit Ctrl+Alt+Shift+Enter

Commit the current transaction.

The Rollback button

Rollback

Roll back the last transaction.

The Disconnect button

Cancel Running Statements Ctrl+F2

Stop execution of running statements.

The Restore Default Layout button

Restore Default Layout Ctrl+F2

Restore visual elements of are arranged.

Rename Session

Display the Rename dialog where you can specify a name for a session.

Close Session

Close the selected session.

The Show in New Tab button

Show in New Tab

Move the selected items to a separate tab.

Open Each in New Tab

Split the selected items into separate tabs.

Open Each Tab in New Tab

Create separate tabs for each type of service.

Delete Delete

Close all opened sessions to a data source. Identical to Close All Sessions.

SQL files

Icon

Action

Description

Tx

Tx Mode and Tx Isolation

Choose the isolation level for database transactions and the way transactions are committed.

  • Auto: each statement is executed in its own transaction that is implicitly committed.

  • Manual: transactions are committed and rolled back manually.

The Commit button

Commit Ctrl+Alt+Shift+Enter

Commit the current transaction.

The Rollback button

Rollback

Roll back the last transaction.

The Disconnect button

Cancel Running Statements Ctrl+F2

Stop execution of running statements.

The Restore Default Layout button

Restore Default Layout Ctrl+F2

Restore visual elements of are arranged.

Switch Session

Display the Sessions popup where you can select or create a new session and connect to it.

Detach Session

Detach the selected file from the current session. To attach the file to a session, open the file in the editor, and select the session in the sessions list.

Detach a session

The Show in New Tab button

Show in New Tab

Move the selected items to a separate tab.

Open Each in New Tab

Split the selected items into separate tabs.

Open Each Tab in New Tab

Create separate tabs for each type of service.

Delete Delete

Close all opened sessions to a data source. Identical to Close All Sessions.

the Jump to Source button

Jump to Source F4

Open the file in the editor.

Docker

This type of service is available if you have configured connection settings for at least one Docker instance. For more information, see Enable Docker support.

Add a Docker connection

  1. Click the New Service menu and select Docker Connection.

  2. Configure the docker connection settings in the New Docker Connection dialog.

Main Docker node

Icon

Action

Description

The Connect button

Connect

Connect to the Docker daemon and list all available images and containers.

The Disconnect button

Disconnect

Disconnect from the Docker daemon.

The Edit Configuration button

Edit Configuration

Edit the Docker connection settings.

The Deploy button

Deploy

Select an existing Docker run configuration or create a new one. For more information, see Running containers

The Pull Image button

Pull Image

Pull an image from a Docker registry. For more information, see Pull an image from a Docker registry.

The Filter button

Filter

Choose whether you want to show or hide containers that are not running and images with no tags.

Containers

Icon

Action

Description

The Start Container button

Start Container

Run the selected container.

The Stop Container button

Stop Container

Stop the selected container.

The Delete Container button

Delete Container

Delete the selected container.

The Filter button

Filter

Choose whether you want to show or hide containers that are not running and images with no tags.

Images

Icon

Action

Description

The Pull Image button

Pull Image

Pull an image from a Docker registry. For more information, see Pull an image from a Docker registry.

The Create Container button

Create Container

Create a Docker container from the selected image.

The Delete Image button

Delete Image

Remove the selected image.

The Push Image button

Push Image

Push an image to a Docker registry. For more information, see Push an image to a Docker registry.

The Filter button

Filter

Choose whether you want to show or hide containers that are not running and images with no tags.

Main Docker Compose node

Icon

Action

Description

The Deploy button

Deploy

Deploy your selected Docker Compose services using the associated run/debug configuration. For more information, see Docker Compose

The Stop button

Stop

Stop all containers in the selected Docker Compose services.

The Down button

Down

Stop and remove all containers in the selected Docker Compose services, including all related networks, volumes, and images.

The Edit Configuration button

Edit Configuration

Edit the selected Docker Compose run configuration.

The Filter button

Filter

Choose whether you want to show or hide containers that are not running and images with no tags.

Docker Compose services

Icon

Action

Description

The Start button

Start

Start all containers for the selected service.

The Stop button

Stop

Stop all containers for the selected service.

The Scale button

Scale

Change the number of containers for the selected service.

The Delete Container button

Delete Container

Delete the selected container.

The Filter button

Filter

Choose whether you want to show or hide containers that are not running and images with no tags.

Kubernetes

This type of service is available if:

  • The Kubernetes plugin is installed and enabled. For more information about the Kubernetes integration in DataGrip, see Kubernetes.

  • DataGrip detects a Kubernetes cluster configuration file. By default, this is a file named config in the $HOME/.kube directory. You can specify other kubeconfig files by setting the KUBECONFIG environment variable. For more information about kubeconfig files, see Organizing Cluster Access Using kubeconfig Files.

The Kubernetes node in the Services tool window lists the resources of the Kubernetes cluster in the selected context.

For more information, see Configure Access to Multiple Clusters.

Icon

Action

Description

The Refresh button

Refresh

Refresh information from the Kubernetes cluster.

The Namespace menu

Namespace

Select a namespace to filter the listed resources of the cluster.

The Context menu

Context

Select the Kubernetes context displayed in the Services tool window. This does not change the context of the running Kubernetes cluster.

The Refresh Configuration button

Refresh Configuration

Read the Kubernetes cluster configuration from the kubeconfig file.

The Show Settings button

Show Settings

Open the Kubernetes cluster settings where you can change the path to the kubeconfig file.

You can select the Set this path only for the current project checkbox on the settings page to use different configuration files in different projects.

The Load YAML button

Load YAML

View the read-only configuration file of the selected resource from the cluster.

The Delete Resource button

Delete Resource

Remove the selected resource from the cluster.

The Follow Log button

Follow Log

Output the log of a container in the selected pod.

The Download Log button

Download Log

Save the log of a container in the selected pod to a scratch file and open it in the editor.

Instead of using a scratch file, you can set the path for saving logs or choose the location every time. To configure the download location for pod logs, click The Show Settings button or open Settings/Preferences | Build, Execution, Deployment | Kubernetes.

The Open Console button

Open Console

Attach to the console of the process running inside a container of the selected pod.

The Run Shell button

Run Shell

Run an interactive shell for the container in the selected pod.

By default, DataGrip runs /bin/bash. To run a different shell, click The Show Settings button or open Settings/Preferences | Build, Execution, Deployment | Kubernetes and specify the shell that your pods use.

Productivity tips

Use tabs

The Services tool window can include a lot of services, which you can group according to their type or create separate tabs for your own custom grouping. For example, you can create a tab that will include the following: the run configuration for the application that you are developing, the Docker container that runs the database used as a backend for your application, and a console for accessing the database.

Hide the services tree

Click The Show Options Menu button in the right part of the Services tool window toolbar and then click Show Services Tree to remove the checkbox. You can also press Ctrl+Shift+T to toggle the services tree.

If you hide the services tree, it is replaced by a services navigation bar. Press Alt+Home to focus the services navigation bar.

Hide, remove, and delete services

Right-click any service and select Delete Delete to completely remove the corresponding run configuration, cloud provider, Docker connection, and so on.

If you don't want to show run/debug configurations of a certain type in the Services tool window, right-click the corresponding configuration and select Remove Configuration Type from Services. This will not remove the actual configuration.

To hide a specific run configuration from the Services tool window, right-click the corresponding configuration and select Hide Configuration. To see all hidden run configurations, click the Add Service menu and select Restore Hidden Configurations.

Last modified: 24 June 2021
