Endpoints tool window

The Endpoints tool window provides an aggregated view of both client and server APIs used in your project for HTTP and WebSocket protocols. The tool window can assist you when developing microservices and backend-frontend communication. It is also helpful for exploring third-party APIs.

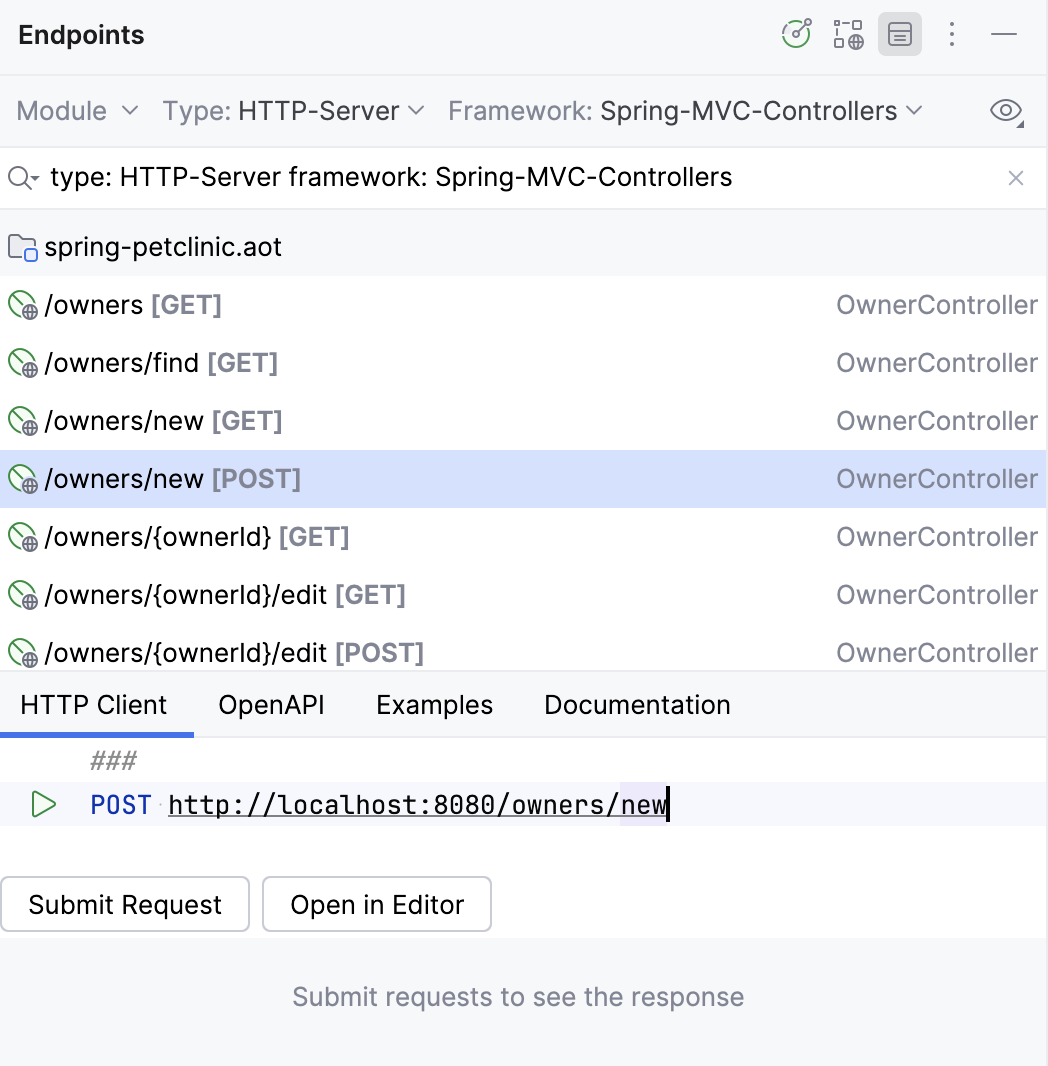

Endpoints tool window

To navigate to the endpoint declaration from the Endpoints tool window, do one of the following:

  • Select Jump to source from the endpoint's context menu.

  • Select the endpoint and press F4.

  • Double-click the endpoint.

In the Endpoints tool window, you can filter the list of endpoints by module, type, and framework. To list endpoints from external sources (for example, from remote OpenAPI specifications) , select External under Module.

Endpoints marked as deprecated appear with a strikethrough (crossed out).

You can also search for endpoints in Search everywhere. Press Ctrl+Shift+\ and, in the Endpoints tab, start typing a URL. The Endpoints tab is available in Spring, Micronaut, Quarkus, and Ktor projects.

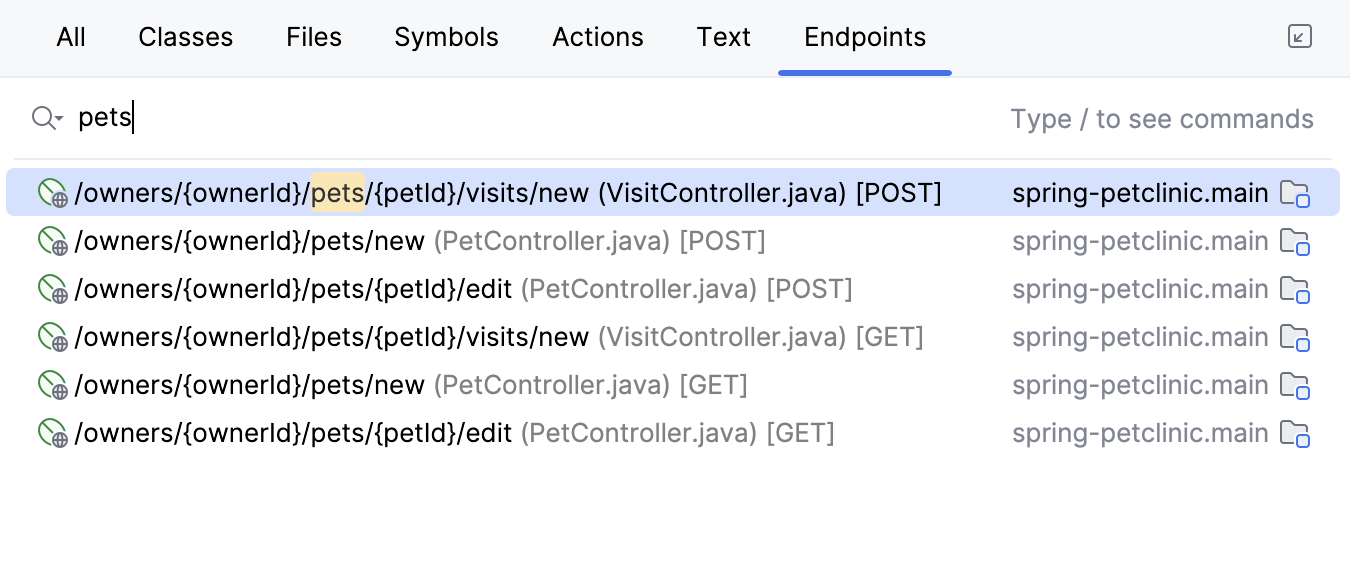

Endpoints in Search Everywhere

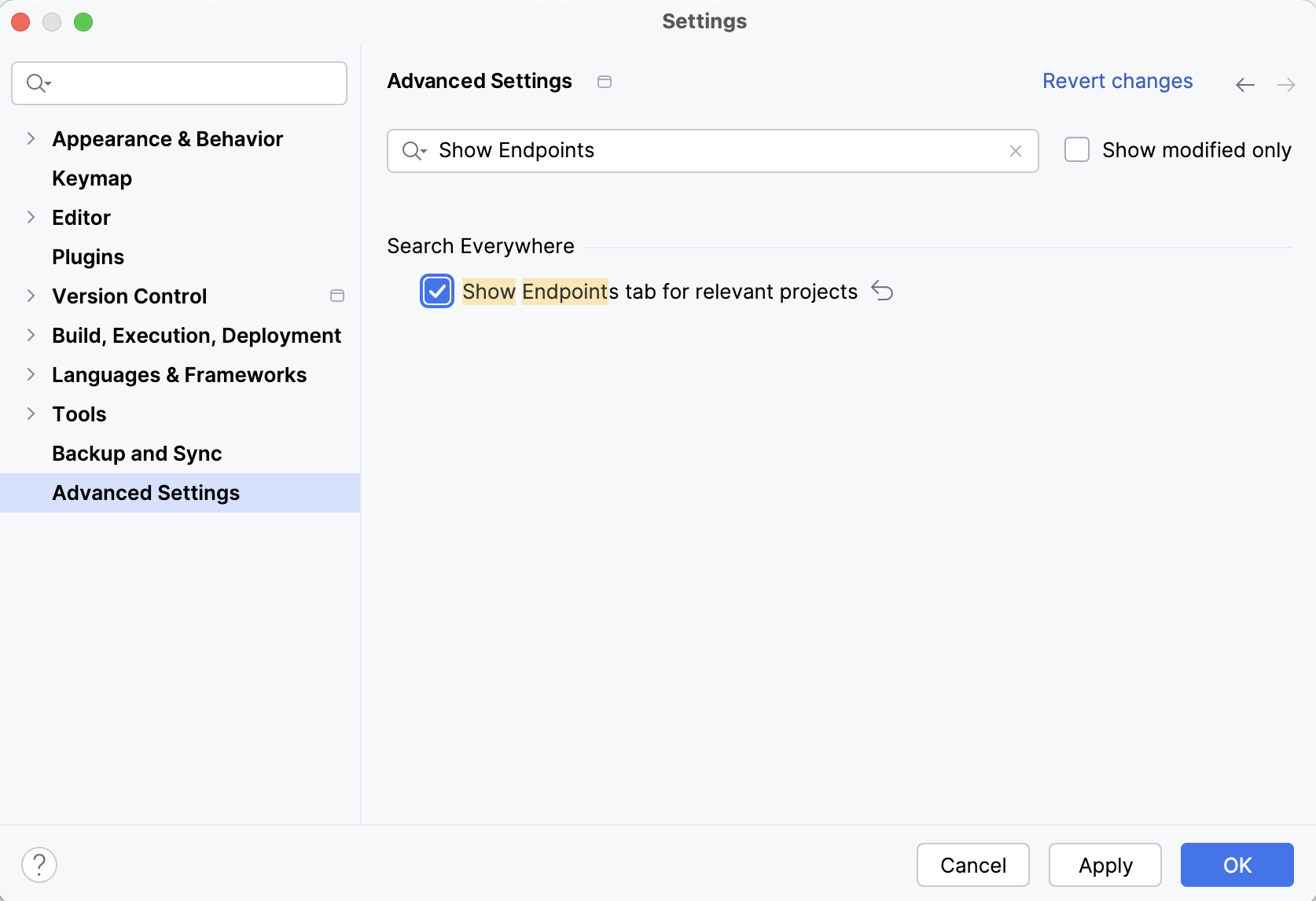

To hide the Endpoints tab from Search Everywhere, open Advanced Settings in the IDE settings (Ctrl+Alt+S) and clear the Show Endpoints tab for relevant projects checkbox.

Supported frameworks

IntelliJ IDEA recognizes endpoints from the following frameworks:

  • Jakarta EE WebSocket

  • Java EE WebSocket

  • JAX-WS

  • JAX-RS

  • JAX-RS Client

  • gRPC/Protobuf

  • MicroProfile Rest Client

  • Spring Feign Client

  • Spring MVC

  • Spring Reactive WebSocket

  • Spring RestTemplate

  • Spring WS

  • Spring WebClient

  • Spring Web Services

  • Micronaut HTTP Controllers

  • Micronaut HTTP Client

  • Micronaut Management Endpoints

  • Micronaut WebSocket

  • Ktor

  • Helidon MP

  • Helidon SE

  • Quarkus

  • OpenAPI 3

  • Swagger 2

  • WSDL

  • Retrofit 2

  • OkHttp 3+

Toolbar

Item

Description

Module

Filter endpoints by module or select an external module

Type

Filter endpoints by type

Framework

Filter endpoints by framework

the Configure OpenAPI Sources icon

Configure OpenAPI Sources: Add an external OpenAPI specification (for example, from SwaggerHub) to include endpoints from this specification in the Endpoints tool window and highlight them with a yellow background. In the OpenAPI Specifications window that opens, click the Add button in the Remote Specifications list, and specify the URL of an OpenAPI specification file or find an OpenAPI specification on SwaggerHub. This also adds URLs defined in the specification to code completion.

For more information, refer to Add a remote OpenAPI specification.

Service Diagram icon

Services Diagram

Show Side Panel

Show and hide the details panel

Configure the tool window layout and filters:

  • Compact List Items: Show only the endpoint addresses, without the type and framework.

  • Group by Module: Group endpoints from the same module.

  • Show From Libraries: Include endpoints defined in libraries.

  • Show From Tests: Include endpoints defined in tests.

Endpoint details

When you select an endpoint, you can see the details in the dedicated pane. Use the Show Side Panel icon or to show and hide the details pane.

Shows the generated HTTP or gRPC request for the selected endpoint.

If the corresponding server is running, you can submit the request to see the response immediately or open it in a separate HTTP requests file in the editor. For more information, refer to HTTP Client.

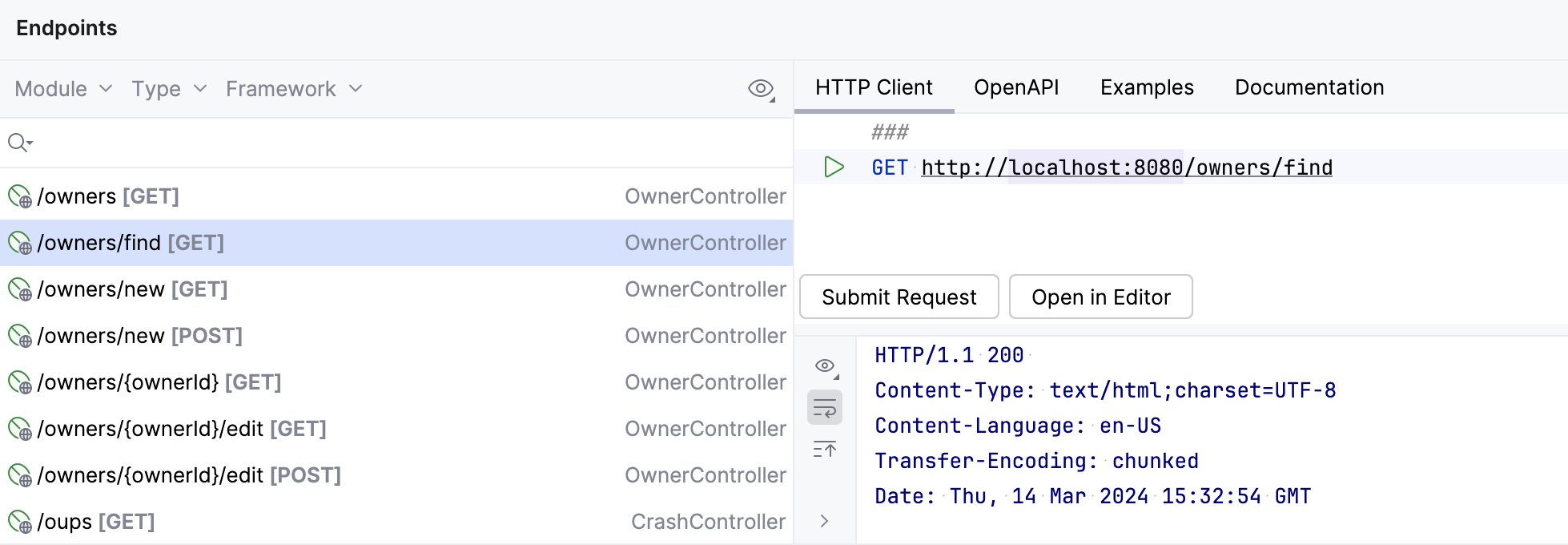

Endpoints tool window: HTTP Client tab

Shows the generated OpenAPI specification for the selected endpoints.

You can also generate an OpenAPI specification for an entire module: right-click a module in the Endpoints tool window and select Export Draft of OpenAPI Specification.

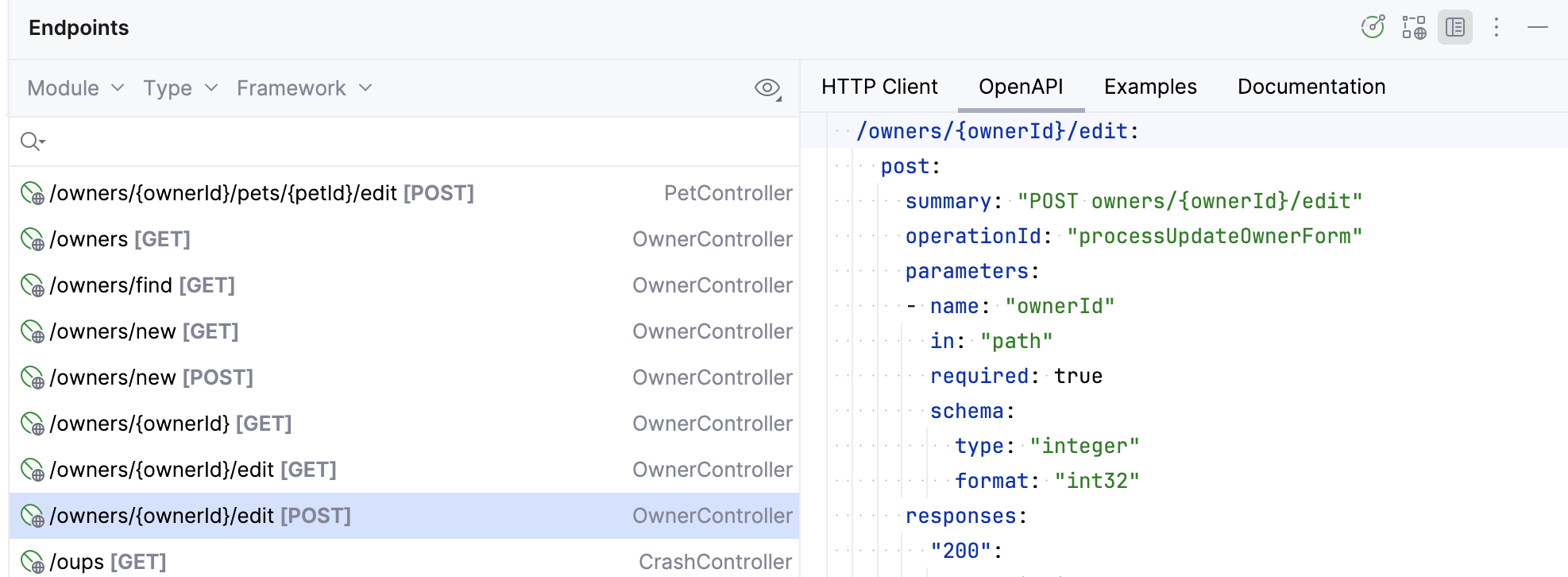

Endpoints tool window: OpenAPI tab

To preview the specification in a separate file, click The Export Draft of OpenAPI Specification button.

Provides examples of client code to access the selected endpoint. Use the Frameworks list to select a framework or a language in which you want to show code.

For Retrofit and Ktor, you can also click the Show icon and select Show Boilerplate Code to complete the request sample with all the necessary code elements, such as import statements and HTTP Client instance.

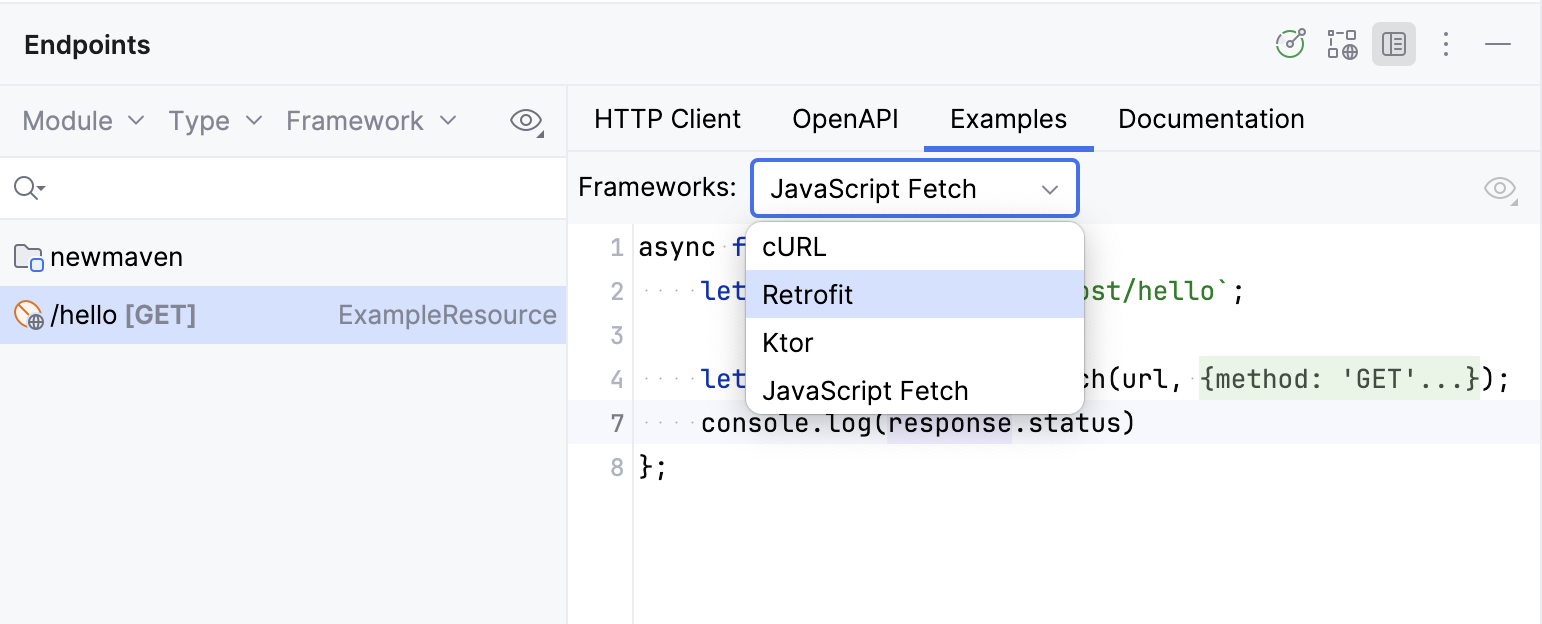

Endpoints tool window: Example tab

To save the code sample into a file, hover over the code and click Save icon. This will save the code into a new scratch file.

Shows the documentation for the selected endpoint. Double-click an endpoint to navigate to its source code.

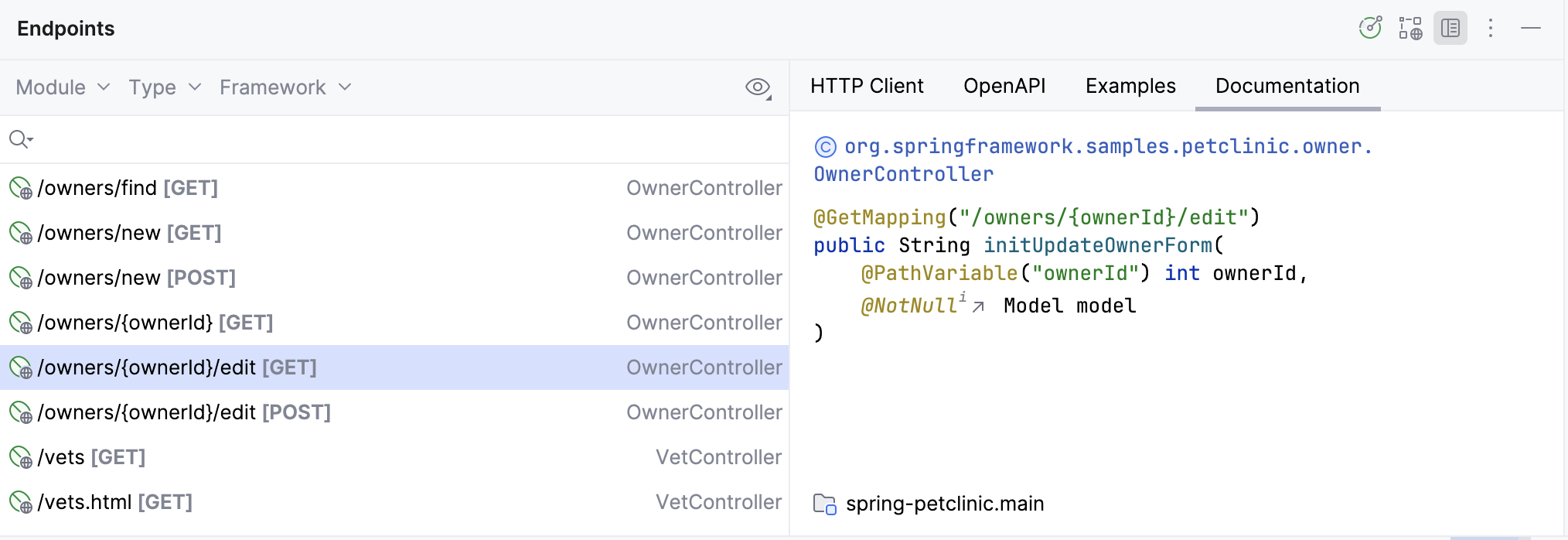

Endpoints tool window: Documentation tab

Services diagram

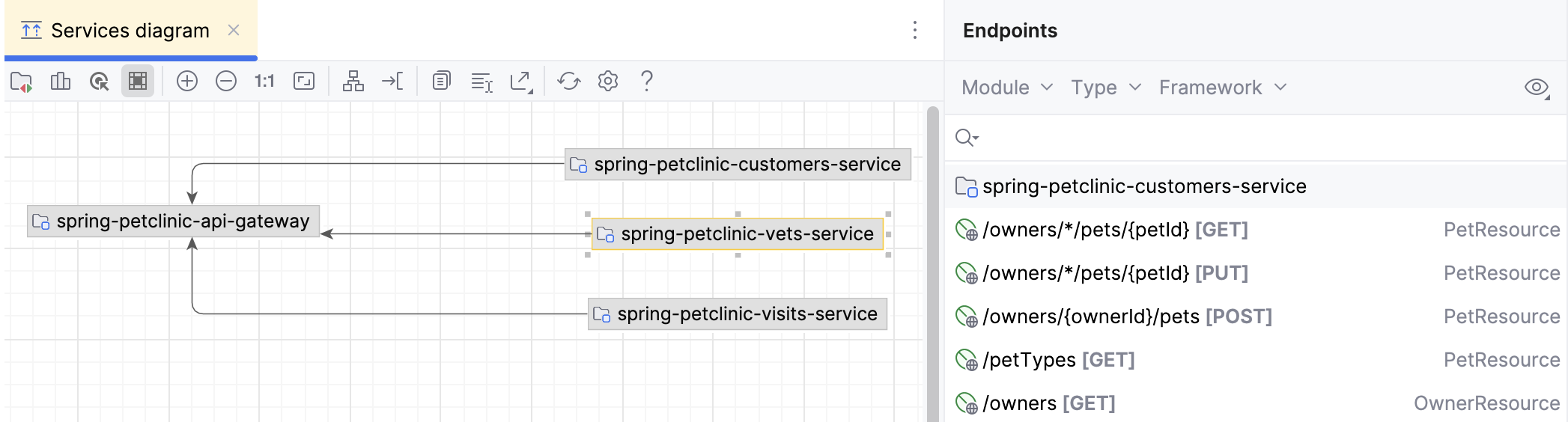

IntelliJ IDEA provides a diagram to show the interactions between microservices. In the Endpoints tool window, click Service Diagram icon.

Services Diagram
