Project Tool Window

View | Tool Windows | Project
Alt+1 https://www.jetbrains.com/help/pycharm/tool-windows-reference.html

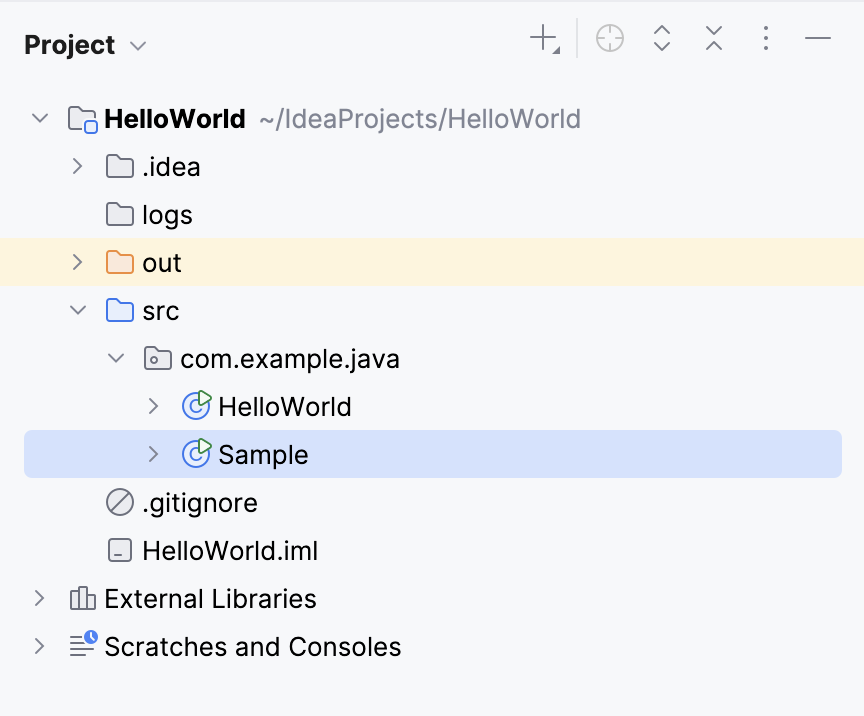

This tool window lets you look at your project from various viewpoints and perform the tasks such as creating new items (directories, files, classes, and so on), opening files in the editor, navigating to the code fragment of interest, and more.

Most of the functions in this tool window are accessed as context menu commands in the content pane and associated shortcuts.

Views

The tool window provides you with the following views:

  • Project view. In this view, all the project items along with their dependencies (SDKs and libraries) are shown. The emphasis is on the directory structure (though the packages are also shown).

  • Packages view. The emphasis is on the package structure of the project. The modules, SDKs and libraries, by default, are not shown.

  • Scopes views (Project Files, Problems, and so on). What is shown in the content pane is limited to the corresponding predefined or user-defined scope. In other respects, depending on the currently selected view options, a scope view may resemble the Project or the Packages view.

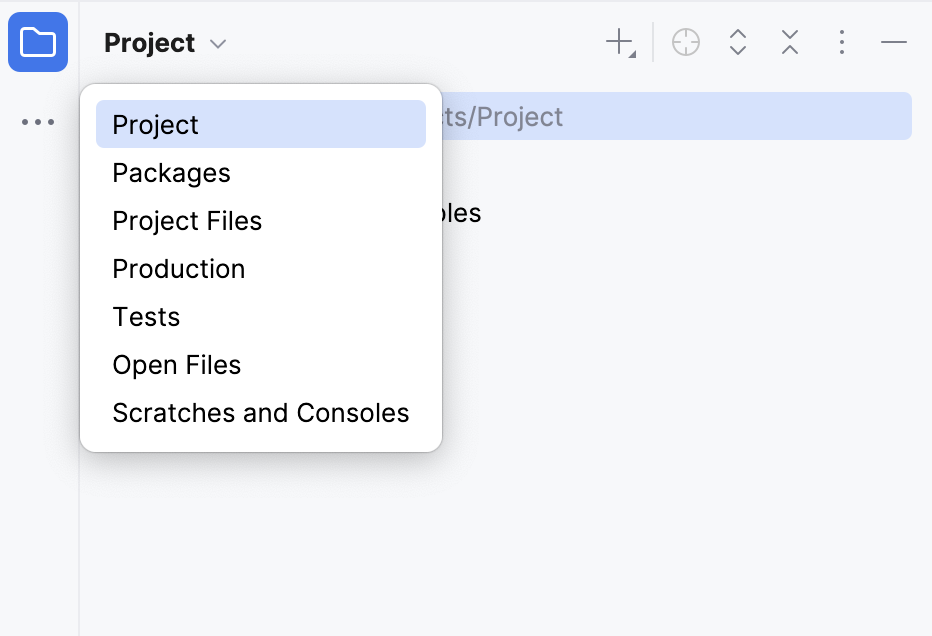

The necessary view is selected from the list in the left-hand part of the title bar or, if the views are represented by tabs, by clicking the corresponding tab.

project tool window views

To configure a view, use the corresponding options in the title bar context menu. The necessary options can also be accessed by clicking Settings on the title bar.

Title bar context menu

The context menu that appears by right-clicking on the title bar, provides settings for project views, viewing modes, as well as for switching between the views, resizing the tool window, and more.

The following table lists and briefly explains the available commands and options.

Item

Shortcut

Description

Select Next View or Tab
Select Previous View or Tab
Show List of Views or Tabs

Alt+Right
Alt+Left
Alt+Down

These are the commands for switching between different views.

Edit Scopes

Use this command to open the Scopes dialog in which you can create and edit used-defined scopes.

Note that this command is available only if the current view is a scope view.

Flatten Packages

If this option is off, the packages are shown as a hierarchy. If this option is on, all the packages appear at the same level and are identified by their qualified names.

Flatten Packages

Compact Empty Middle Packages / Hide Empty Middle Packages

This option lets you specify how or whether empty packages are to be shown. (Empty packages are ones that contain nothing but other packages.)

If the option is on, empty packages are shown compacted.

Empty packages are shown

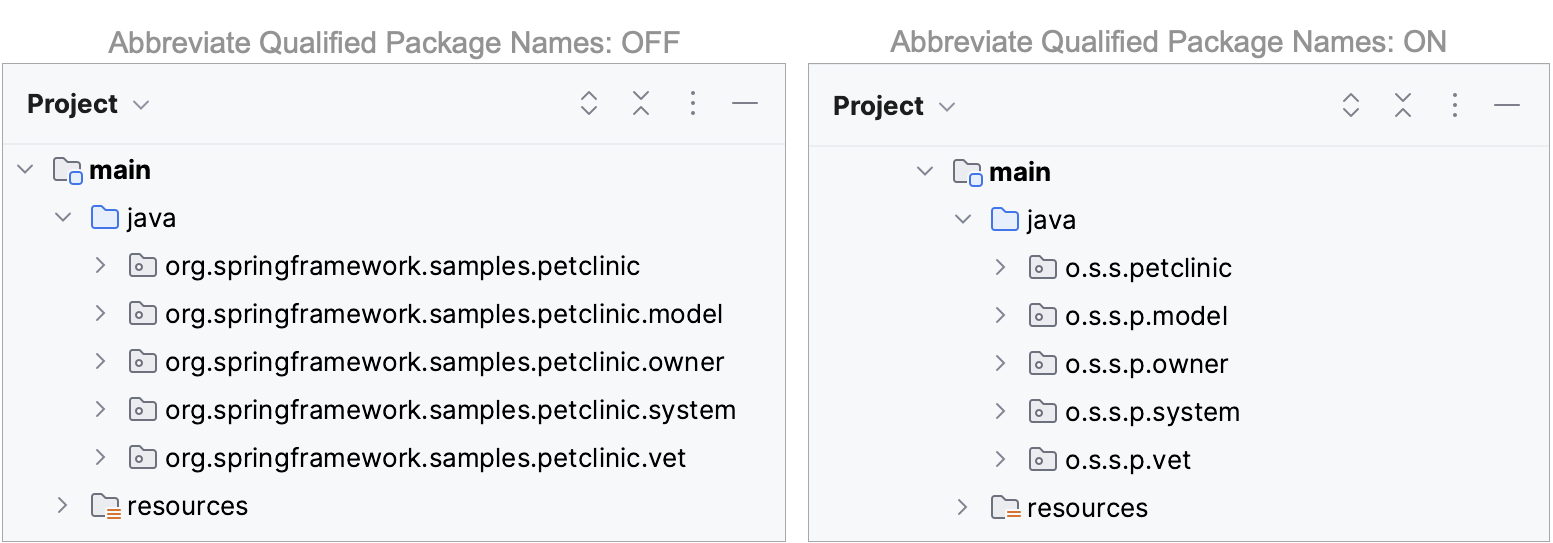

Abbreviate Qualified Package Names

This option is available only if the Flatten Packages option is on.

If the option is on, most of the initial <name>. fragments in qualified package names are abbreviated.

Abbreviate qualified pacakge names

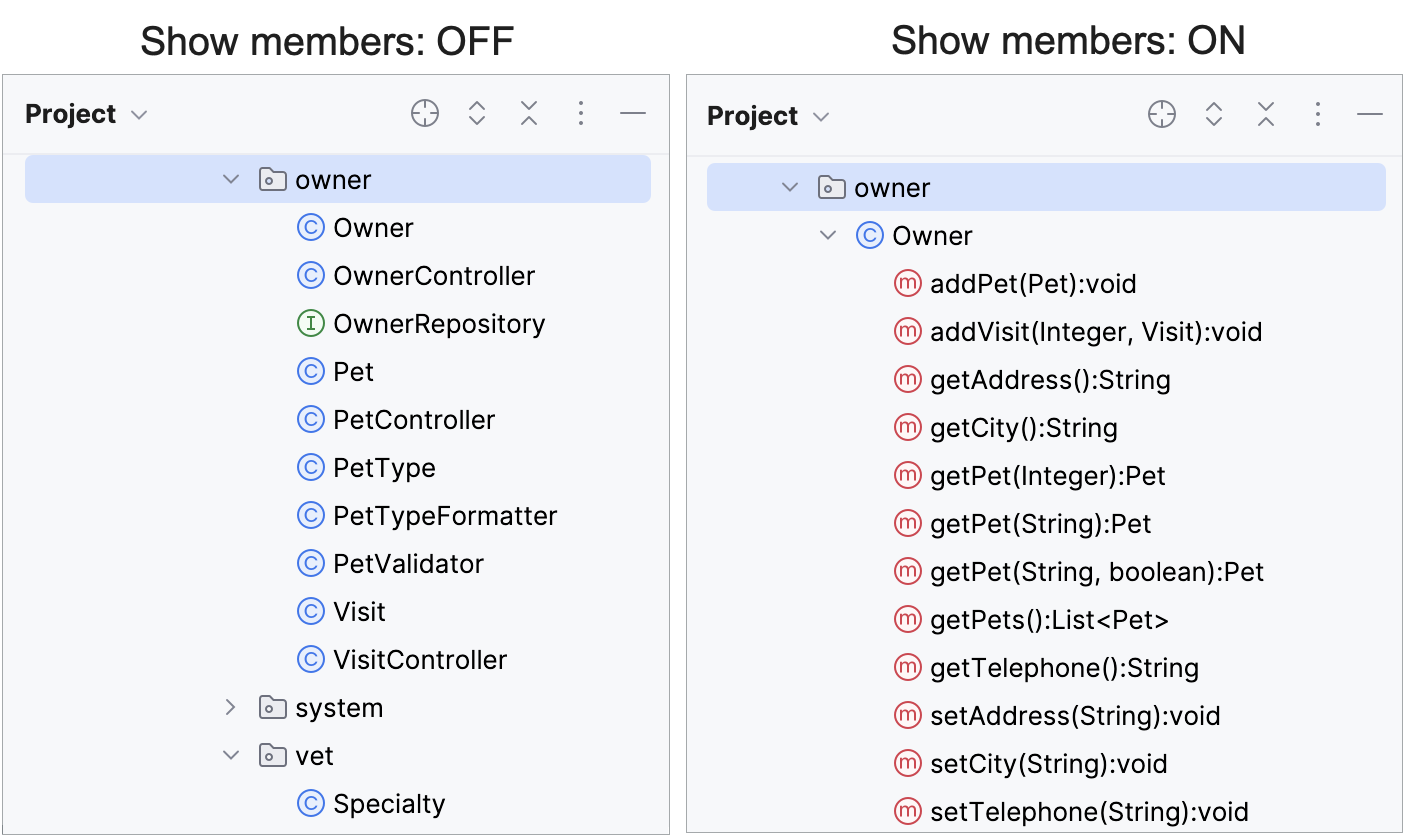

Show Members

If this option is on, the files in the tree that contain classes turn into nodes. When such node is unfolded, the contained classes with their fields, methods, and other members of the selected item are shown.

Show class members in the Project tool window

Autoscroll to Source

If this option is on, IntelliJ IDEA will automatically open the selected item in the editor. Otherwise, you need to double-click items to open them.

Autoscroll from Source

If this option is on, IntelliJ IDEA automatically locates documents that you open in the editor in the current view of this window.

Sort by Type

If the option is off, the items (files, classes, and so on) are sorted alphabetically. If the option is on, the files are sorted by their extensions. The java files appear in the following order: interfaces, classes, enumerations, and so on.

Folders Always on Top

If the option is on, folders are shown above the files. Otherwise, all items are sorted alphabetically, and files and folders appear intermixed.

Show Excluded Files

This option is available only in the Project view.

Turn this option on or off to show or hide excluded folders and files.

Show excluded files

File Nesting...

Opens the File Nesting Dialog where configure presentation of files with the same names and different extensions.

Show Modules

This option is available only in the Packages and scope views. (In the Project view, modules are always shown.)

Turn this option on or off to show or hide modules.

Show Libraries Contents

This option is available only in the Packages view. (In the Project view, libraries are always shown; in the scope views, libraries are never shown.)

Turn this option on or off to show or hide libraries and their contents.

Note that within the Libraries category are the libraries included in module dependencies and also the SDKs associated with your modules.

Pinned, Docked, Floating, Windowed, Split Mode

These options let you control general appearance and behavior of the tool window. See Tool Windows Viewing Modes.

Remove from Sidebar

This command hides the tool window, removes the associated tool window button from the tool window bar and removes the tool window from the quick access menu ( tb shown or tb hidden).

To open the tool window again (and restore the associated features), use the main menu: View | Tool Windows | <Window Name>.

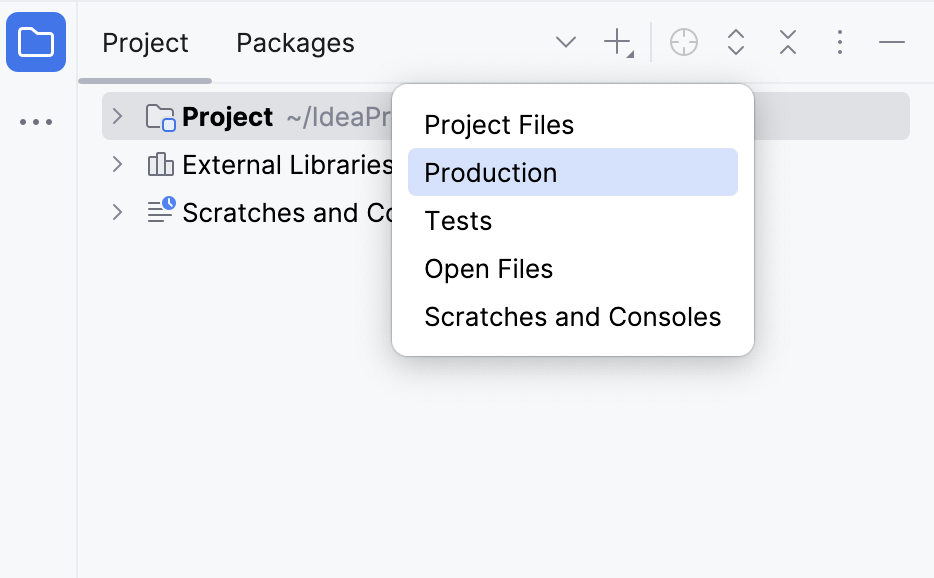

Group Tabs

If this option is on, there is a list in the left-hand part of the title bar from which you can select the necessary view. If this option is off, the views are represented by tabs which appear in the left-hand part of the title bar.

show views as tabs

Move to

To associate the tool window with a different tool window bar, select this command, and then select the destination tool window bar (Top, Left, Bottom or Right).

Resize

To resize the tool window by moving one of its borders, select this command, and then select the necessary Stretch to option.

Note that this command is not available for the floating mode.

Hide

Shift+Escape

Use this command to hide the tool window.

Title bar buttons

Item

Shortcut

Description

Next tab Previous tab

Alt+Right
Alt+Left

If the views are currently shown as tabs (the Group Tabs option is off), this button appears to the right of the last visible tab.

Click this button to open the list of views, for example, to select a different view.

Scroll from Source

Click this icon to navigate from a file in the editor to the corresponding node (file, class, field, method, and so on) in the Project tool window.

This icon is not available if the Autoscroll from Source option is currently on.

collapse all

Ctrl+NumPad -

Use this icon or shortcut to collapse all the nodes.

settings

Click this button to open the menu for configuring the current view and changing the tool window viewing modes.

Note that most of the menu items are options that you can turn on or off. An option which is on has a check mark to the left of its name.

The available options are a subset of the title bar context menu items. Depending on the current view, the menu may include the following options:

Hide tool windowShift+Escape

Use this icon or shortcut to hide the tool window.

When used in combination with the Alt key, clicking this icon hides all the tool windows attached to the same tool window bar.

Content pane

The content pane shows the project items such as directories, files, and so on.

Item

Description

Module

A module

Package

A package

Folder

A folder (directory). Different folder categories have different colors.

For example, the Test Root folder folder is used for test sources, and the Sources Root folder folder keeps your production code. For more information, refer to Folder categories.

Library

A library. When the Project view is selected, there is one such node for the whole project which is labeled External Libraries.

The subcategories in this case are the SDKs (for example, JSDKs JDK icon) and individual libraries (library).

project view

When the Packages view is selected, the corresponding node or nodes are labeled Libraries. If the Show Modules and the Show Libraries Contents options are selected, there is an individual Libraries node for each of the modules.

package view

Scratches and Consoles

Your scratch files and database consoles are grouped under this node.

plain text

Files marked as plain text.

Context menu commands for the content pane items

The context menu of an item provides access to all the functions available for this item.

Item

Shortcut

Description

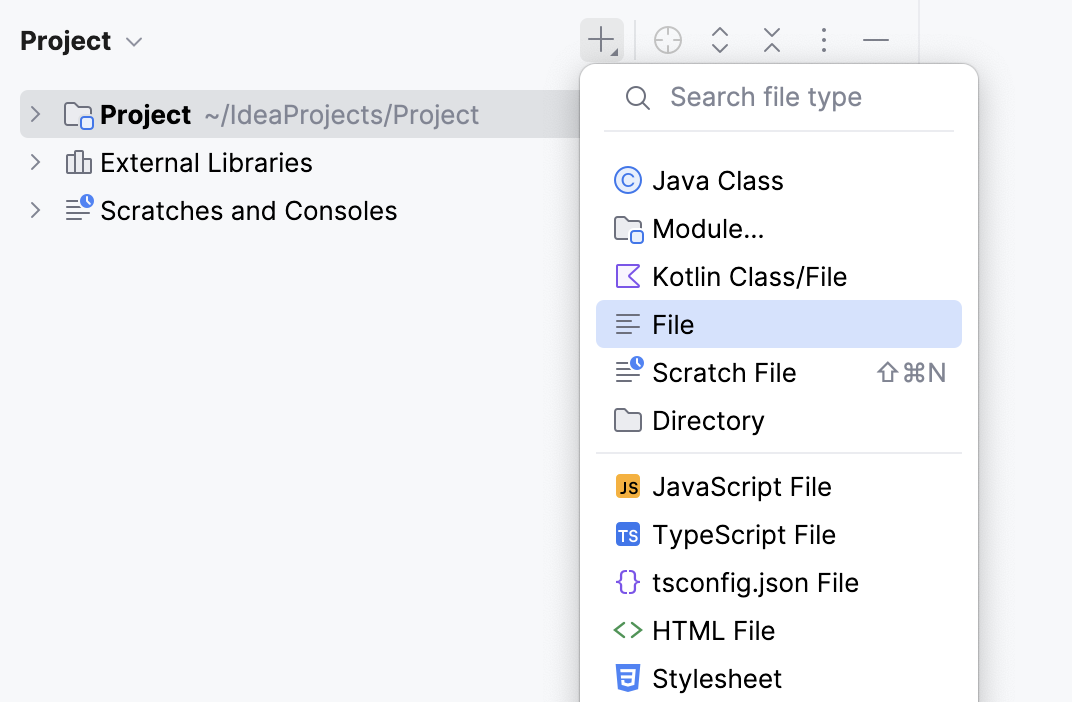

New

Alt+Insert

Use this command to create a new item (module, package, directory, file, class, and so on.) within the selected one (project, module, directory or package) In the Scratches view, this command also lets you create a database console.

Add Framework Support

For a module: use this option to add support for certain frameworks and technologies in the selected module.

Cut

Ctrl+X

Use this command to move the selected item or items from the current location to the clipboard.

Copy

Ctrl+C

Use this command to copy the selected item or items to the clipboard.

Paste

Ctrl+V

Use this command to insert the contents of the clipboard into the selected location.

Jump to Source

F4

Use this command to open the selected file in the editor. If the file is already open, the corresponding editor tab will become active.

Copy Path(s)

Ctrl+Shift+C

Use this command to copy the full path(s) of the selected item or items to the clipboard.

Open Module Settings

F4

Use this command to see the settings for the selected module. These will be shown on the Modules page in the Project Structure dialog.

Find Usages

Alt+F7

Use this command to find the usages of the selected item. (The Find Usages dialog will open.)

Find in Path

Ctrl+Shift+F

Use this command to perform a text search. (Find in Path dialog will open.)

Replace in Path

Ctrl+Shift+R

Use this command to perform text search-and-replace. (Replace in Path dialog will open.)

Analyze

Use this command to access the functions related to code inspection and analysis.

Refactor

Use this command to perform one of the refactorings available for the selected item.

Add to Favorites

Shift+Alt+F

Use this command to add the selected item to an existing or new list of favorite items. See Favorites.

Show Thumbnails

Ctrl+Shift+T

Use this command to view thumbnails for image files located in the selected directory. (The Thumbnails tool window will open.)

Browse Type Hierarchy

Ctrl+H

For a file (normally, a class): use this command to see the class hierarchy for the selected file (class). (The Hierarchy tool window will open.)

See also,Viewing Structure and Hierarchy of the Source Code.

Reformat Code

Ctrl+Alt+L

Use this command to reformat the source code in the selected file or in all files in the current directory. (The Reformat Code dialog will open.)

See also, Reformat and rearrange code.

Optimize Imports

Ctrl+Alt+O

Use this command to optimize imports in the selected file or in all files in the current directory.

Delete

Delete

Use this command to delete the selected item. Use with care!

Change Dialect (<CurrentDialect>)

For SQL files and database consoles: change the SQL dialect associated with the file or console.

Remove Module

Delete

Use this command to remove a module from your project. Note that the files that make up the module are not physically removed from the disk.

Make Module '<name>'

Use this command to make the current module. See Compilation Types andReviewing Compilation and Build Results.

Compile '<name>'

Ctrl+Shift+F9

Use this command to compile the selected source file or all the source files in the selected directory. See Compilation Types andReviewing Compilation and Build Results.

Run '<item_name>'

Ctrl+Shift+F10

For an SQL file or database console: execute all the statements contained in the selected file or console.

Local History

Use this command to view local history for the selected file or directory, or to create a label for the current version of your project.

Synchronize '<item_name>'

Use this command to synchronize the selected item with its version saved in the file system.

(If you change a file or directory contents externally, IntelliJ IDEA, under certain circumstances, may not be aware of the corresponding changes unless you use this command.)

Show in Explorer

Use this command to open a file browser (for example, Windows Explorer or Finder) and show the selected item there.

File Path / Directory Path

Ctrl+Alt+F12

This menu shows the path from the file system root to the selected element with individual directories as the menu items.

file path menu

When you select an item in this menu (for example, a directory), a file browser (for example, Windows Explorer or Finder) opens, and the selected item is shown there.

Compare With

Ctrl+D

Use this command to compare the selected file or directory with another file or directory. See Comparing files, folders and text sources and Differences viewer for folders.

Compare File with Editor

Use this command to compare the selected file with the file open on an active editor tab. See Comparing files, folders and text sources and Differences viewer for files.

Load/Unload Modules

Temporarily ignore unused modules

Mark Directory As

Use this command to make the selected directory a source root or a test source root, to make the directory excluded, and so on.

The necessary category for the directory is selected from the submenu.

Mark as Plain Text

Use this command to exclude the selected file from project, so it is ignored by inspections, code completion, navigation, and so on. The file will be indicated with a special icon plain text and shown as plain text in the editor. For more details, see Exclude files.

Diagrams

Ctrl+Shift+Alt+U or Ctrl+Alt+U

Use this command to open a diagram (for example, a UML diagram) for the selected item.

Update Copyright

Use this command to update the copyright notice for the selected files and folders. See Copyright.

WebServices

Use this command to access the functions related to developing Web services. See Web Services andWeb Service Clients.

File status highlights

If VCS integration is enabled for the current project, IntelliJ IDEA uses colors to denote VCS file status in the Project tool window. The following table presents information about the meaning of the colors.

Color

File Status

Description

Color sample: dark green #0A7700

Added

The file in the active changelist is scheduled for addition to the repository.

Color sample: green #0EAA00

Added in not active changelist

The file in an inactive changelist is scheduled for addition to the repository. This file status is available if the Highlight files from non-active changelists option is enabled in Settings/Preferences | Version Control | Changelists.

Color sample: red #FF0000

Changelist conflict

The file in an inactive changelist has been modified in the active changelist. In this case, a new dialog will open prompting you to resolve the changelist conflict. This file status is available if all options are enabled in Settings/Preferences | Version Control | Changelists.

Color sample: dark green #0A7700

Copied

If a file is a copy of another file, its metadata is tracked, and such a file is marked as copied.

Color sample: grey #616161

Deleted

The file is scheduled for deletion from the repository.

Color sample: dull purple #773895

Deleted from file system

The file has been deleted locally, but hasn't been scheduled for deletion, and it still exists in the repository.

Color sample: light grayish blue #8AA4C8

Have changed descendants

If a file is modified, the IDE will recursively highlight all directories containing that file. This status is available if the Show directories with changed descendants option is enabled in Settings/Preferences | Version Control.

Color sample: bright blue #3264B4

Have immediate changed children

If a file is modified, the IDE will highlight its parent directory. This status is available if the Show directories with changed descendants option is enabled in Settings/Preferences | Version Control.

Color sample: light brown #B28C00

Hijacked

[Perforce, ClearCase, VSS] The file is modified without checkout.

Color sample: dark olive #727238

Ignored

A file is intentionally untracked by VCS.

Color sample: purple #7503DC

Merged

The file is merged by your VCS as a result of an update.

Color sample: red #FF0000

Merged with conflicts

During the last update, the file has been merged with conflicts.

Color sample: red #FF0000

Merged with property conflicts

During the last update, the IDE has detected differences between the properties of the local file and its server version.

Color sample: red #FF0000

Merged with text and property conflicts

Text and property conflicts happen when two or more developers modify the same lines of a file and the same file properties.

Color sample: bright navy #0032A0

Modified

The file has changed since the last synchronization.

Color sample: blue #0047E4

Modified in not active changelist

The file in an inactive changelist has been modified. This file status is available if the Highlight files from non-active changelists option is enabled in Settings/Preferences | Version Control | Changelists.

Color sample: Olive #7C7C00

Obsolete

The file should no longer be in your working copy of the repository.

Color sample: teal #007C7C

Renamed

Since the last update, the file has been renamed.

Color sample: dark cyan #08978F

Switched

[SVN] The file is taken from a different branch than the whole project.

Color sample: brown #993300

(Unknown) Unversioned

The file exists locally, but is not in the repository, and is not scheduled for addition.

Color sample: black None (default color)

Up to date

The file hasn't been changed.

Color

File Status

Description

Color sample: dull green #629755

Added

The file in the active changelist is scheduled for addition to the repository.

Color sample: dull green #629755

Added in not active changelist

The file in an inactive changelist is scheduled for addition to the repository. This file status is available if the Highlight files from non-active changelists option is enabled in Settings/Preferences | Version Control | Changelists.

Color sample: dull red #D5756C

Changelist conflict

The file in an inactive changelist has been modified in the active changelist. In this case, a new dialog will open prompting you to resolve the changelist conflict. This file status is available if all options are enabled in Settings/Preferences | Version Control | Changelists.

Color sample: green #0A7700

Copied

If a file is a copy of another file, its metadata is tracked, and such a file is marked as copied.

Color sample: grey #6C6C6C

Deleted

The file is scheduled for deletion from the repository.

Color sample: dull purple #6C6C6C

Deleted from file system

The file has been deleted locally, but hasn't been scheduled for deletion, and it still exists in the repository.

Color sample: light blue #6897BB

Have changed descendants

If a file is modified, the IDE will recursively highlight all directories containing that file. This status is available if the Show directories with changed descendants option is enabled in Settings/Preferences | Version Control.

Color sample: light blue #6897BB

Have immediate changed children

If a file is modified, the IDE will highlight its parent directory. This status is available if the Show directories with changed descendants option is enabled in Settings/Preferences | Version Control.

Color sample: white None (default color)

Hijacked

[Perforce, ClearCase, VSS] The file is modified without checkout.

Color sample: light olive #848504

Ignored

A file is intentionally untracked by VCS.

Color sample: light purple #9876AA

Merged

The file is merged by your VCS as a result of an update.

Color sample: dull red #D5756C

Merged with conflicts

During the last update, the file has been merged with conflicts.

Color sample: dull red #D5756C

Merged with property conflicts

During the last update, the IDE has detected differences between the properties of the local file and its server version.

Color sample: dull red #D5756C

Merged with text and property conflicts

Text and property conflicts happen when two or more developers modify the same lines of a file and the same file properties.

Color sample: light blue #6897BB

Modified

The file has changed since the last synchronization.

Color sample: light blue #6897BB

Modified in not active changelist

The file in an inactive changelist has been modified. This file status is available if the Highlight files from non-active changelists option is enabled in Settings/Preferences | Version Control | Changelists.

Color sample: white None (default color)

Obsolete

The file should no longer be in your working copy of the repository.

Color sample: strong cyan #3A8484

Renamed

Since the last update, the file has been renamed.

Color sample: white None (default color)

Switched

[SVN] The file is taken from a different branch than the whole project.

Color sample: soft red #D1675A

(Unknown) Unversioned

The file exists locally, but is not in the repository, and is not scheduled for addition.

Color sample: white None (default color)

Up to date

The file hasn't been changed.

Color

File Status

Description

Color sample: green #62CC47

Added

The file in the active changelist is scheduled for addition to the repository.

Color sample: green #62CC47

Added in not active changelist

The file in an inactive changelist is scheduled for addition to the repository. This file status is available if the Highlight files from non-active changelists option is enabled in Settings/Preferences | Version Control | Changelists.

Color sample: dull red #FF6666

Changelist conflict

The file in an inactive changelist has been modified in the active changelist. In this case, a new dialog will open prompting you to resolve the changelist conflict. This file status is available if all options are enabled in Settings/Preferences | Version Control | Changelists.

Color sample: green #62CC47

Copied

If a file is a copy of another file, its metadata is tracked, and such a file is marked as copied.

Color sample: orange #ED864A

Deleted

The file is scheduled for deletion from the repository.

Color sample: orange #ED864A

Deleted from file system

The file has been deleted locally, but hasn't been scheduled for deletion, and it still exists in the repository.

Color sample: vivid cyan #4FF0FF

Have changed descendants

If a file is modified, the IDE will recursively highlight all directories containing that file. This status is available if the Show directories with changed descendants option is enabled in Settings/Preferences | Version Control.

Color sample: vivid cyan #4FF0FF

Have immediate changed children

If a file is modified, the IDE will highlight its parent directory. This status is available if the Show directories with changed descendants option is enabled in Settings/Preferences | Version Control.

Color sample: white None (default color)

Hijacked

[Perforce, ClearCase, VSS] The file is modified without checkout.

Color sample: light olive #A9B837

Ignored

A file is intentionally untracked by VCS.

Color sample: light purple #ED94FF

Merged

The file is merged by your VCS as a result of an update.

Color sample: dull red #FF6666

Merged with conflicts

During the last update, the file has been merged with conflicts.

Color sample: dull red #FF6666

Merged with property conflicts

During the last update, the IDE has detected differences between the properties of the local file and its server version.

Color sample: dull red #FF6666

Merged with text and property conflicts

Text and property conflicts happen when two or more developers modify the same lines of a file and the same file properties.

Color sample: vivid cyan #4FF0FF

Modified

The file has changed since the last synchronization.

Color sample: vivid cyan #4FF0FF

Modified in not active changelist

The file in an inactive changelist has been modified. This file status is available if the Highlight files from non-active changelists option is enabled in Settings/Preferences | Version Control | Changelists.

Color sample: white None (default color)

Obsolete

The file should no longer be in your working copy of the repository.

Color sample: vivid cyan #4FF0FF

Renamed

Since the last update, the file has been renamed.

Color sample: white None (default color)

Switched

[SVN] The file is taken from a different branch than the whole project.

Color sample: soft red D1675A

(Unknown) Unversioned

The file exists locally, but is not in the repository, and is not scheduled for addition.

Color sample: white None (default color)

Up to date

The file hasn't been changed.

Last modified: 20 May 2019

See Also
